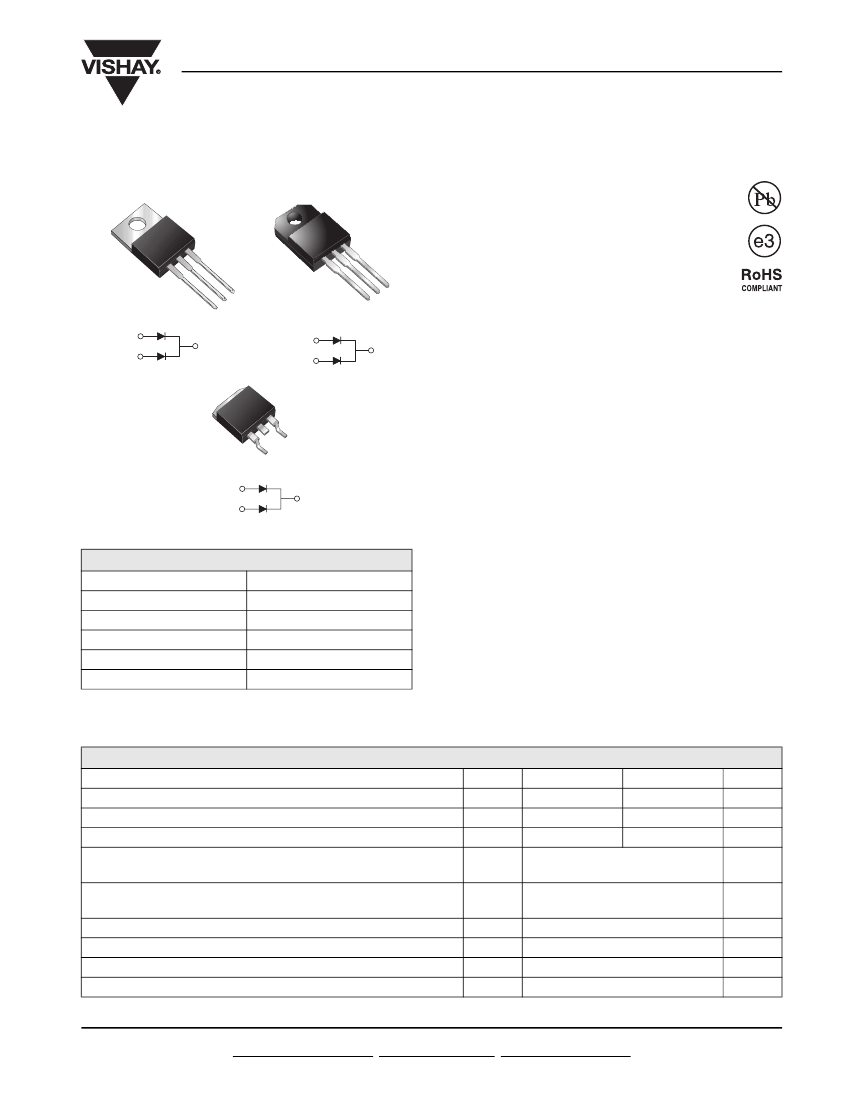

MBR(F,B)10H90CT & MBR(F,B)10H100CT

Vishay General Semiconductor

Dual Common-Cathode High-Voltage Schottky Rectifier

High Barrier Technology for Improved High Temperature Performance

TO-220AB

ITO-220AB

MBR10H90CT

MBR10H100CT

PIN 1

PIN 3

PIN 2

CASE

MBRF10H90CT

MBRF10H100CT

PIN 1

PIN 3

PIN 2

TO-263AB

FEATURES

• Guardring for overvoltage protection

• Lower power losses, high efficiency

• Low forward voltage drop

• Low leakage current

• High forward surge capability

• High frequency operation

• Meets MSL level 1, per J-STD-020, LF maximum

peak of 245 °C (for TO-263AB package)

• Solder Dip 260 °C, 40 s (for TO-220AB and

ITO-220AB package)

• Component in accordance to RoHS 2002/95/EC

and WEEE 2002/96/EC

TYPICAL APPLICATIONS

For use in high frequency rectifier of switching mode

power supplies, freewheeling diodes, dc-to-dc

converters or polarity protection application.

MECHANICAL DATA

MBRB10H90CT

MBRB10H100CT

PIN 1

PIN 2

HEATSINK

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

5Ax2

90 V, 100 V

150 A

0.61 V

3.5 µA

175 °C

Case:

TO-220AB, ITO-220AB, TO-263AB

Epoxy meets UL 94V-0 flammability rating

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD22-B102

E3 suffix for consumer grade, meets JESD 201 class

1A whisker test, HE3 suffix for high reliability grade

(AEC Q101 qualified), meets JESD 201 class 2

whisker test

Polarity:

As marked

Mounting Torque:

10 in-lbs maximum

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Working peak reverse voltage

Maximum DC blocking voltage

Maximum average forward rectified current at T

= 105 °C

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load per diode

Peak repetitive reverse current per diode at t

= 2 µs, 1 kHz

Voltage rate of change (rated V

)

Operating junction and storage temperature range

Isolation voltage (ITO-220AB only) from terminals to heatsink t = 1 min

total device

per diode

SYMBOL

RRM

RWM

F(AV)

FSM

RRM

dV/dt

, T

STG

MBR10H90CT

5.0

150

0.5

10 000

- 65 to + 175

1500

MBR10H100CT

100

UNIT

V/µs

°C

Document Number: 88668
