DSS-2712-330R

Description
General Purpose Inductor, 33uH, 20%, 1 Element, SMD,
CategoryPassive components    inductor
File Size90KB，1 Pages
ManufacturerWurth Elektronik
Related ProductsFound1parts with similar functions to DSS-2712-330R
Download Datasheet Parametric View All

DSS-2712-330R Overview

General Purpose Inductor, 33uH, 20%, 1 Element, SMD,

DSS-2712-330R Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Reach Compliance Codecompli
ECCN codeEAR99
DC Resistance0.45 Ω
Nominal inductance(L)33 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee3
Manufacturer's serial numberDSS-2712
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum rated current0.59 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal surfaceTin (Sn)
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency1 MHz
Tolerance20%
Base Number Matches1

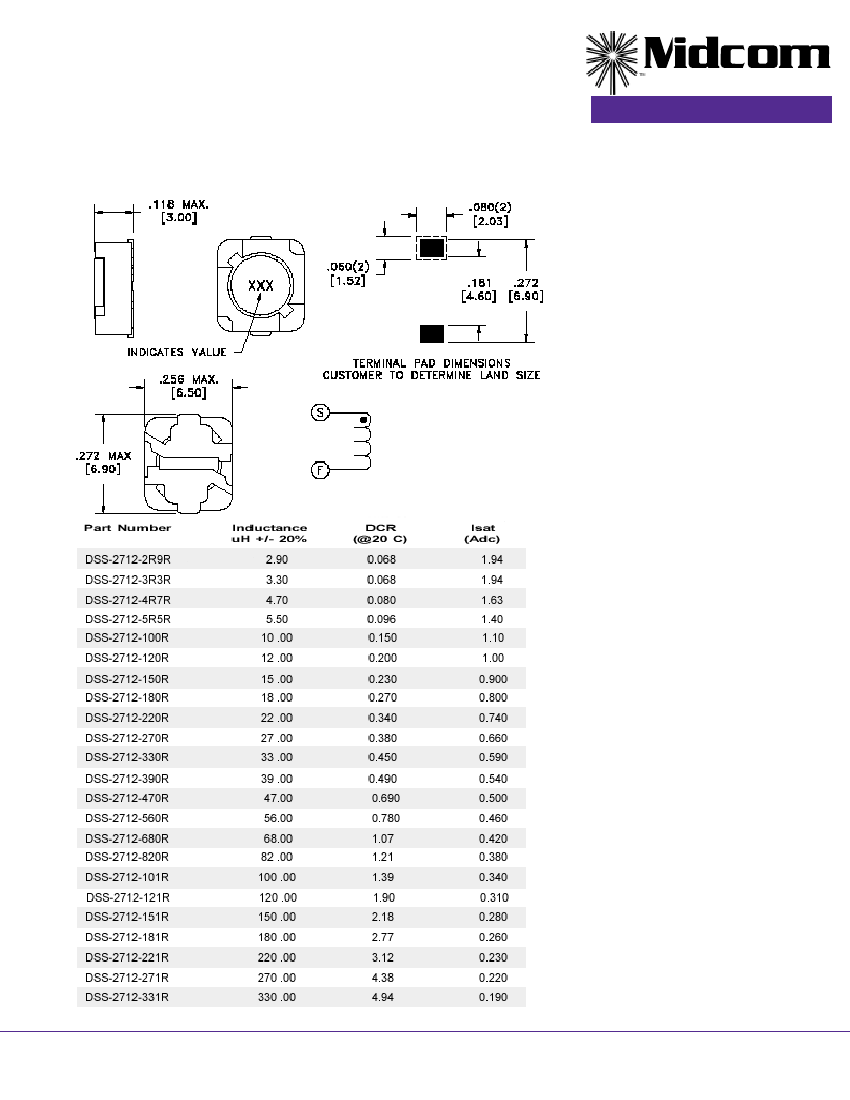

Preview

Download Datasheet
TransformingMagnetics
TM
SwitchmodePower
Surface Mount Drum Core
Power Inductors: DSS-2712 Series
Features
• Magnetically shielded, SMD power
inductors
• Small footprint with low-profile package
• Inductance range: 2.9 uH to 330uH
• Saturating current to 1.94A(dc)
• DC Resistances as low as 0.068 Ohm
• High energy storage capability
• Flat top for pick and place operations
• Tape and reel packaging for automatic
handling
Applications
• DC/DC Converters, high efficiency
shielded applications
• Second stage filters
Environmental Specifications
• Operating temperature range: -40°C to
85°C
• Storage temperature range: -50° to
+125°C
Packaging
•
Parts are packaged in 16 mm embossed
carrier tape per EIA-481-2
• DSS-2712 is packaged 1,800 pieces per
13” reel
NOTES
1 Open Circuit inductance test at 1000KHz, 100mV, 0Adc
2 Saturating DC current for approximately 35% rolloff from initial
inductance
3/29/06
Details subject to change. Contact your Midcom sales representative for additional information. Dimensions: in/mm. All tolerances are ± .010/0,25 and electrical specifications are @ 25°C unless otherwise specified.
Midcom, Inc. USA
121 Airport Drive - PO Box 1330
Watertown, SD 57201
T: 605.886.4385 ~ F: 605.886.4486
www.midcom-inc.com ~ email:sales@midcom-inc.com
