826885-8 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 826885-8

Preview

826885-8: Description3 CONTACT(S), MALE, COMBINATION LINE CONNECTOR; CategoryThe connector The connector; File Size284KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

826885-8 Overview

3 CONTACT(S), MALE, COMBINATION LINE CONNECTOR

826885-8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	COMPATIBLE CONTACT: 926982-1
body width	0.685 inch
subject depth	1.909 inch
body length	0.724 inch
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

8

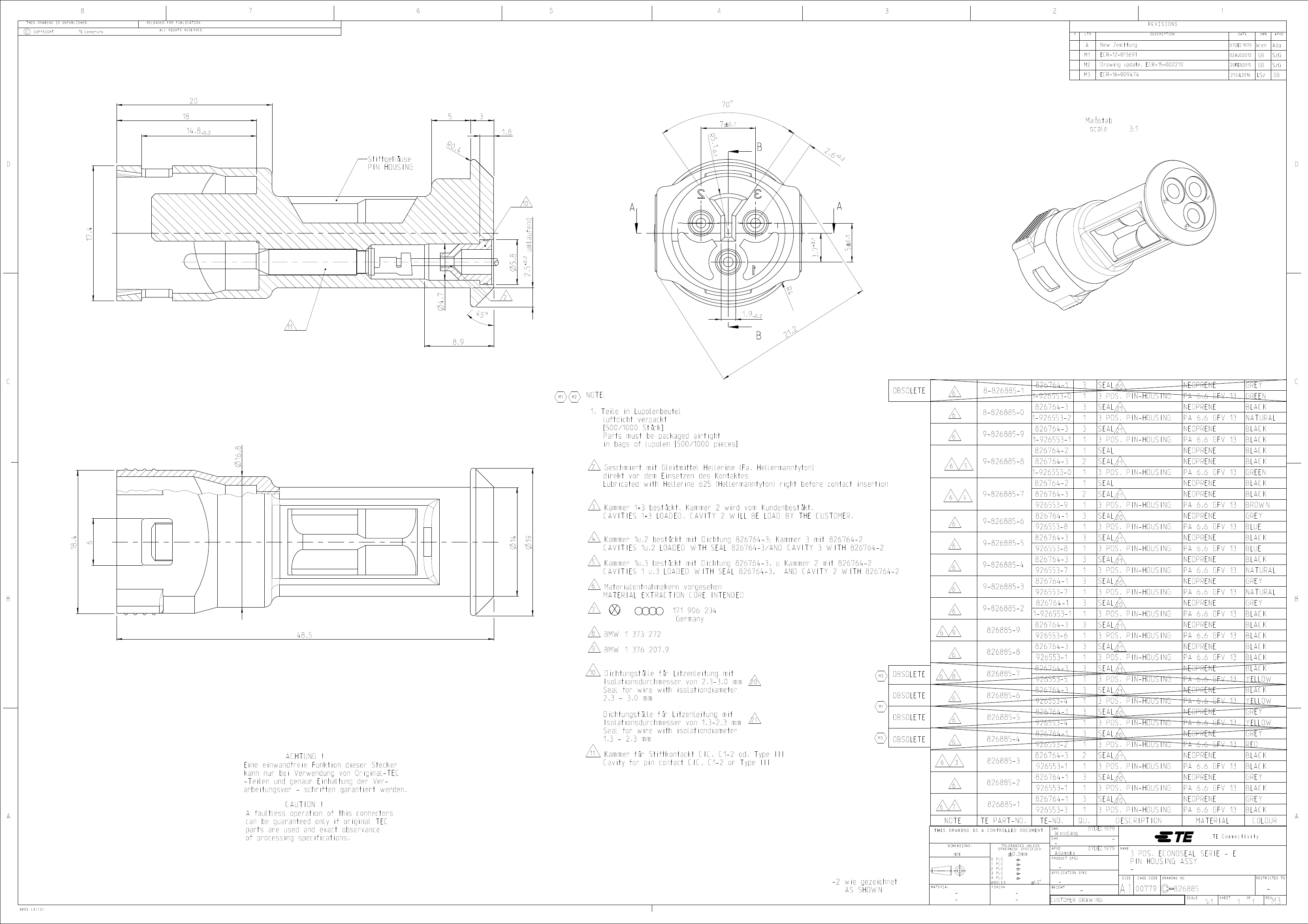

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

7

6

5

4

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

TE Connectivity

A

M1

M2

M3

New Zeichtung

ECR-12-013691

Drawing update. ECR-15-002210

ECR-16-009474

07DEC1979

02AUG2012

20FEB2015

21JUL2016

Wen

GB

LSz

Ada

SzG

GB

20

18

14.8

-0.2

5

3

1.8

1

0.1

R5.

-

70 $

7

0.1

Maßstab

scale

3:1

R0

D

Stiftgehäuse

PIN HOUSING

.4

2.

6

+0.2

D

10

+0.2

2.5

umlaufend

17.4

+0.1

3.7

5.8

4.7

2

45

11

$

1.9

-0.2

.

21

2

8.9

C

M1

M2

5

0.1

R4

OBSOLETE

6

NOTE:

1. Teile in Lupolenbeutel

luftdicht verpackt

[500/1000 Stück]

Parts must be packaged airtight

in bags of lupolen [500/1000 pieces]

2

8-826885-1

8-826885-0

9-826885-9

9-826885-8

1-926553-0

1-926553-2

1-926553-1

826764-2

826764-3

826764-2

826764-3

826764-1

926553-8

826764-3

926553-8

826764-3

926553-7

826764-1

926553-7

1-926553-1

826764-3

926553-1

826764-3

926553-5

826764-3

926553-4

826764-1

926553-4

826764-1

926553-2

826764-3

926553-1

826764-1

926553-1

826764-1

926553-3

TE-NO.

DWN

CHK

826764-1

826764-3

3

1

3

1

3

1

2

1

2

3

1

3

1

3

1

3

1

3

1

3

1

3

1

3

1

3

1

2

1

3

1

3

QU.

1

SEAL

20

3 POS. PIN-HOUSING

SEAL

21

3 POS. PIN-HOUSING

SEAL

21

SEAL

3 POS. PIN-HOUSING

SEAL

21

SEAL

NEOPRENE

PA 6.6 GFV 13 GREEN

PA 6.6 GFV 13 NATURAL

PA 6.6 GFV 13 BLACK

BLACK

GREY

C

16.8

Geschmiert mit Gleitmittel Hellerine (Fa. Hellermanntyton)

direkt vor dem Einsetzen des Kontaktes

Lubricated with Hellerine 625 (Hellermanntyton) right beforeinsertion

contact

Kammer 1+3 bestückt. Kammer 2 wird vom Kundenbestükt.

CAVITIES 1+3 LOADED. CAVITY 2 WILL BE LOAD BY THE CUSTOMER.

Kammer 1u.2 bestückt mit Dichtung 826764-3; Kammer 3 mit 826764-2

CAVITIES 1u.2 LOADED WTH SEAL 826764-3/AND CAVITY 3 WITH 826764-2

Kammer 1u.3 bestückt mit Dichtung 826764-3, u Kammer 2 mit 826764-2

CAVITIES 1 u.3 LOADED WITH SEAL 826764-3, AND CAVITY 2 WITH 826764-2

Materialentnahmekern vorgesehen

MATERIAL EXTRACTION CORE INTENDED

171 906 234

Germany

BMW 1 373 272

BMW 1 376 207.9

Dichtungstülle für Litzenleitung mit

Isolationsdurchmesser von 2.3-3.0 mm

20

Seal for wire with isolationdiameter

2.3 - 3.0 mm

Dichtungstülle für Litzenleitung mit

21

Isolationsdurchmesser von 1.3-2.3 mm

Seal for wire with isolationdiameter

1.3 - 2.3 mm

M3

6

5

1-926553-0

3 POS. PIN-HOUSING

SEAL

21

SEAL

20

PA 6.6 GFV 13 GREEN

3

6

4

9-826885-7

9-826885-6

9-826885-5

9-826885-4

9-826885-3

9-826885-2

826885-9

826885-8

826885-7

826885-6

826885-5

826885-4

826885-3

826885-2

826885-1

TE PART-NO.

926553-9

3 POS. PIN-HOUSING

PA 6.6 GFV 13 BROWN

PA 6.6 GFV 13 BLUE

GREY

6

9

6

18.4

14

19

3 POS. PIN-HOUSING

SEAL

21

SEAL

21

SEAL

20

SEAL

20

3 POS. PIN-HOUSING

4

5

6

BLACK

GREY

6

PA 6.6 GFV 13 NATURAL

PA 6.6 GFV 13 BLACK

B

7

826764-1

48.5

8

9

10

926553-6

SEAL

21

SEAL

21

PA 6.6 GFV 13 BLACK

BLACK

GREY

BLACK

3 POS. PIN-HOUSING

SEAL

21

SEAL

21

SEAL

20

SEAL

20

3 POS. PIN-HOUSING

SEAL

21

SEAL

20

SEAL

20

3 POS. PIN-HOUSING

DESCRIPTION

PA 6.6 GFV 13 BLACK

PA 6.6 GFV 13 YELLOW

PA 6.6 GFV 13 RED

OBSOLETE

6

8

6

M1

OBSOLETE

M3

OBSOLETE

6

ACHTUNG !

Eine einwandfreie Funktion dieser Stecker

kann nur bei Verwendung von Original-TEC

-Teilen und genaur Einhaltung der Ver-

arbeitungsvor - schriften garantiert werden.

A

11

Kammer für Stiftkontackt CIC. C1-2 od. Type III

Cavity for pin contact CIC. C1-2 or Type III

3

PA 6.6 GFV 13 BLACK

MATERIAL

TE Connectivity

BLACK

GREY

6

7

CAUTION !

A faultless operation of this connectors

can be guaranteed only if original TEC

parts are used and exact observance

of processing specifications.

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

NOTE

Wendling

-

Adamski

-

07DEC1979

-

07DEC1979

COLOUR

A

mm

APVD

NAME

-2 wie gezeichnet

AS SHOWN

4805 (3/13)

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

PRODUCT SPEC

APPLICATION SPEC

1.5 $

-

WEIGHT

-

CUSTOMER DRAWING

A1

00779

SIZE

3 POS. ECONOSEAL SERIE - E

PIN HOUSING ASSY

-

CAGE CODE DRAWING NO

RESTRICTED TO

826885

SCALE

5:1

SHEET

1

OF

1

REV

-

M3
