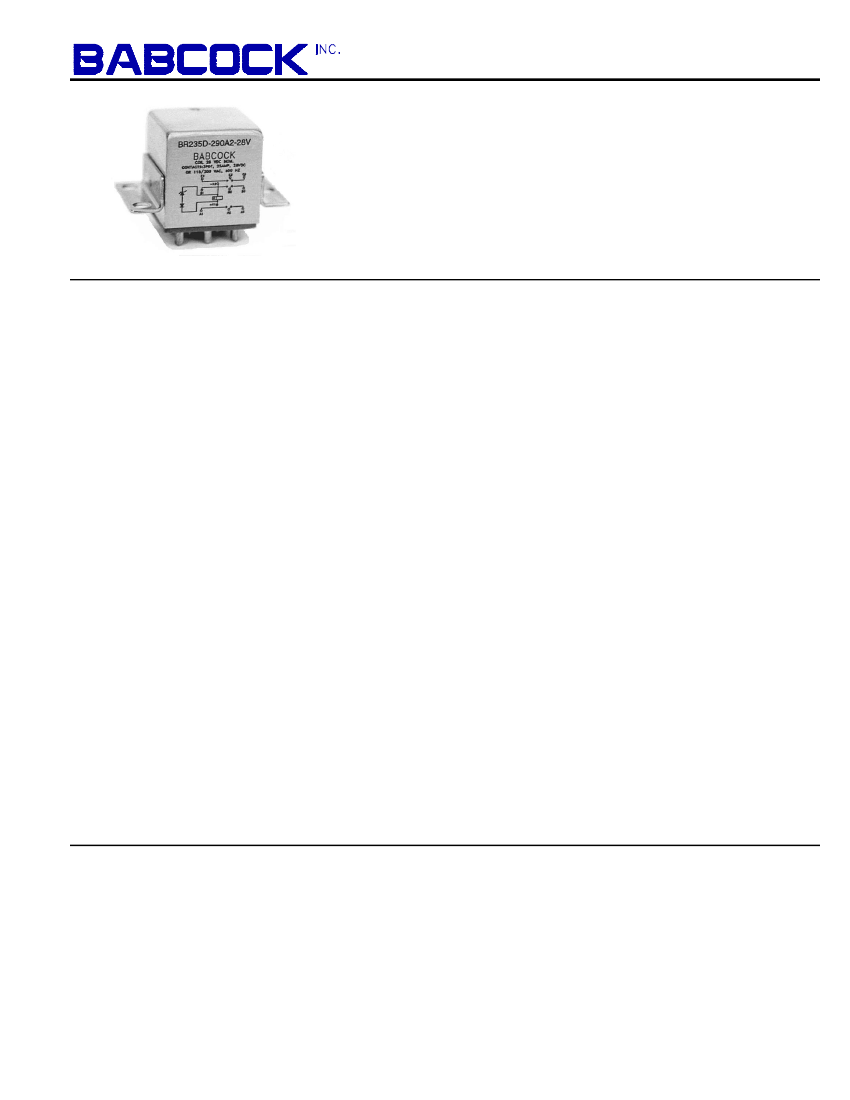

BR235D
Miniature
25 Amps • 3PDT
To MIL-PRF-83536
DC Suppressed Coils
SPECIFICATIONS
GENERAL
Operate/Release Time:
Contact Arrangement
.......................... 3PDT (3 Form C)
Weight..........................................................3.0
oz approx.
Designed to meet the requirements of MIL-PRF-83536
PERFORMANCE
Contact Rating
(Note 1):
Resistive ................................... 25 Amps @ 28 VDC or
115/208V 400 Hz
(Case Grounded)
Inductive ........................15 Amps @ 115/208V 400 Hz
(Case Grounded)
12 Amps @ 28 VDC
(Case Grounded)
Motor......................................... 10 Amps @ 28 VDC or
115/208V 400 Hz
(Case Grounded)
Lamp .......................................... 5 Amps @ 28 VDC or
115/208V 400 Hz
(Case Grounded)
DC Coil
15 ms max
Excluding bounce time at nominal coil voltage
Contact Bounce Time.......................................
1 ms max
@ rated contact load, 28 VDC
Contact Voltage Drop:
Before Life............................. 150 mv max @ 25 Amps
and 6 VDC
After Life ................................ 175 mv max @ 25 Amps
and 6 VDC
ENVIRONMENTAL
o
o
Temperature Range
............................... -70 C to +125 C
Vibration
(Note 2).............................. 0.12" DA 10 - 70 Hz
30 G's 70 - 3,000 Hz
Shock (Operating)(Note
2) ......................... 200 G's 6 ms
ELECTRICAL CHARACTERISTICS
Duty Cycle........................................................Continuous
Insulation Resistance...............................
100 megohms
o
@ 500V 25 C
Dielectric Strength:
Sea Level:
Contact to Case ................................... 1,250 VRMS
Contact to Coil ..................................... 1,250 VRMS
Coil to Case ......................................... 1,000 VRMS
Across Open Contacts ........................ 1,250 VRMS
80,000 Feet:
All Points ................................................. 350 VRMS
Life
.......................50,000 operations minimum @ rated
o
resistive load, 125 C
Pull In Power
............................................500 mw approx.
Notes:
1.
2.
For other ratings consult the factory.
For applications requiring higher shock and
vibration, consult the factory.
3.
AC coil line frequency 50 to 400 Hz.
14930 E. Alondra Blvd., La Mirada, CA 90638-5752 (714) 994-6500 FAX (714) 994-3013
W:2000 Rev. 4
BR235D
COIL DATA:
MODEL BR230D PART NUMBER
NOMINAL COIL VOLTAGE
MAXIMUM COIL VOLTAGE
PULL IN VOLTAGE (MAX @ +125 C)
DROP OUT VOLTAGE (MAX)
MAXIMUM BACK EMF
COIL RESISTANCE ± 10% @ 25 C
o
o
BR235D-20()()-6V
6 VDC
8 VDC
4.5 VDC
1.8 VDC
9 VDC
20 OHMS
BR235D-78()()-12V
12 VDC
15 VDC
9 VDC
3.5 VDC
18 VDC
78 OHMS
BR235D-290()()-28V
28 VDC
29 VDC
18 VDC
5.1 VDC
42 VDC
290 OHMS
BR235D-890()()-48V
48 VDC
59 VDC
36 VDC
11 VDC
72 VDC
890 OHMS
---------------------------------------------------------------------- Relay Type
------------------------------------------------- Nominal coil resistance
-------------------------------------- Terminal style
------------------------------- Mounting Type
------------------- Nominal coil voltage
BR235D

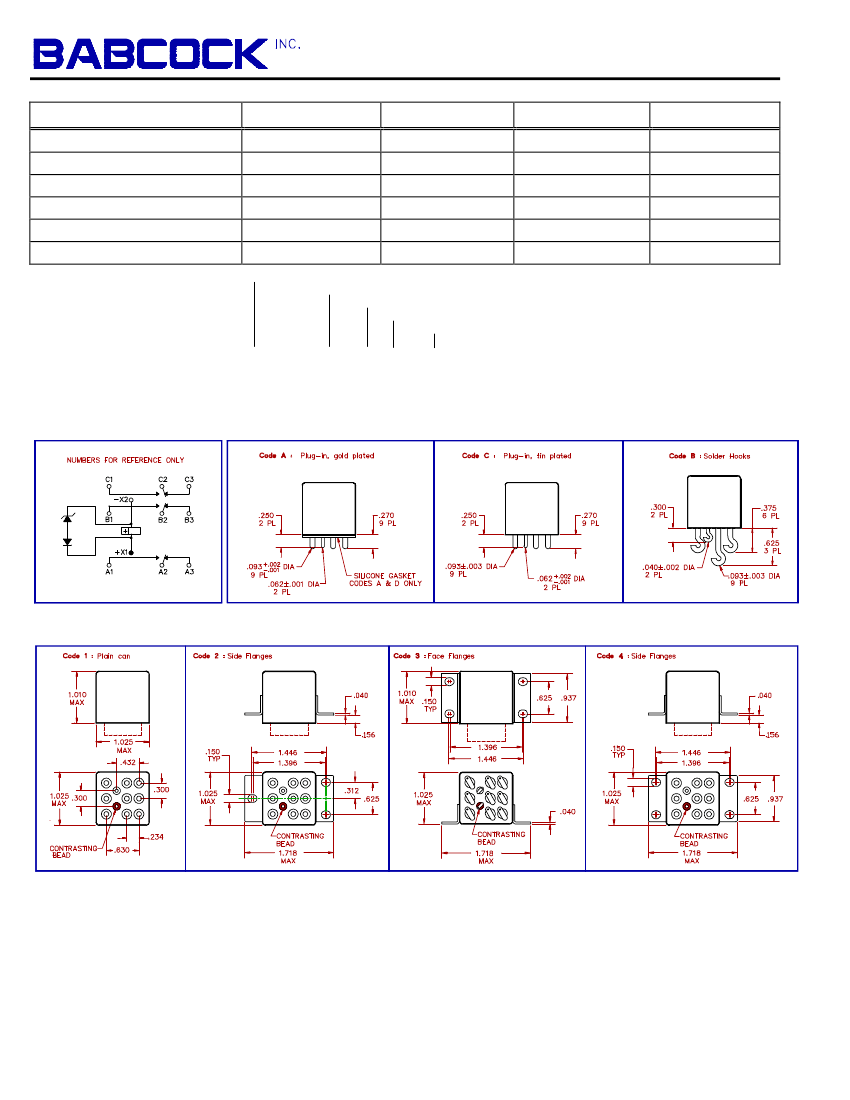

SCHEMATIC
TERMINAL VIEW
-
290
C
2 - 28V
TERMINAL STYLES
MOUNTING CODES
GENERAL NOTES
• Unless otherwise specified, all tests made at nominal coil
o
voltages, @ 25 C.
• For special coil variations, switching configurations,
terminals styles and mounting types, consult the factory.
• Unless otherwise specified, tolerances on decimal
dimensions are ± .010".
• Specifications contained herein are subject to change
without notice.
W:2000 Rev. 4
14930 E. Alondra Blvd., La Mirada, CA 90638-5752 (714) 994-6500 FAX (714) 994-3013
