BE12-1A71-M datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> BE12-1A71-M

Preview

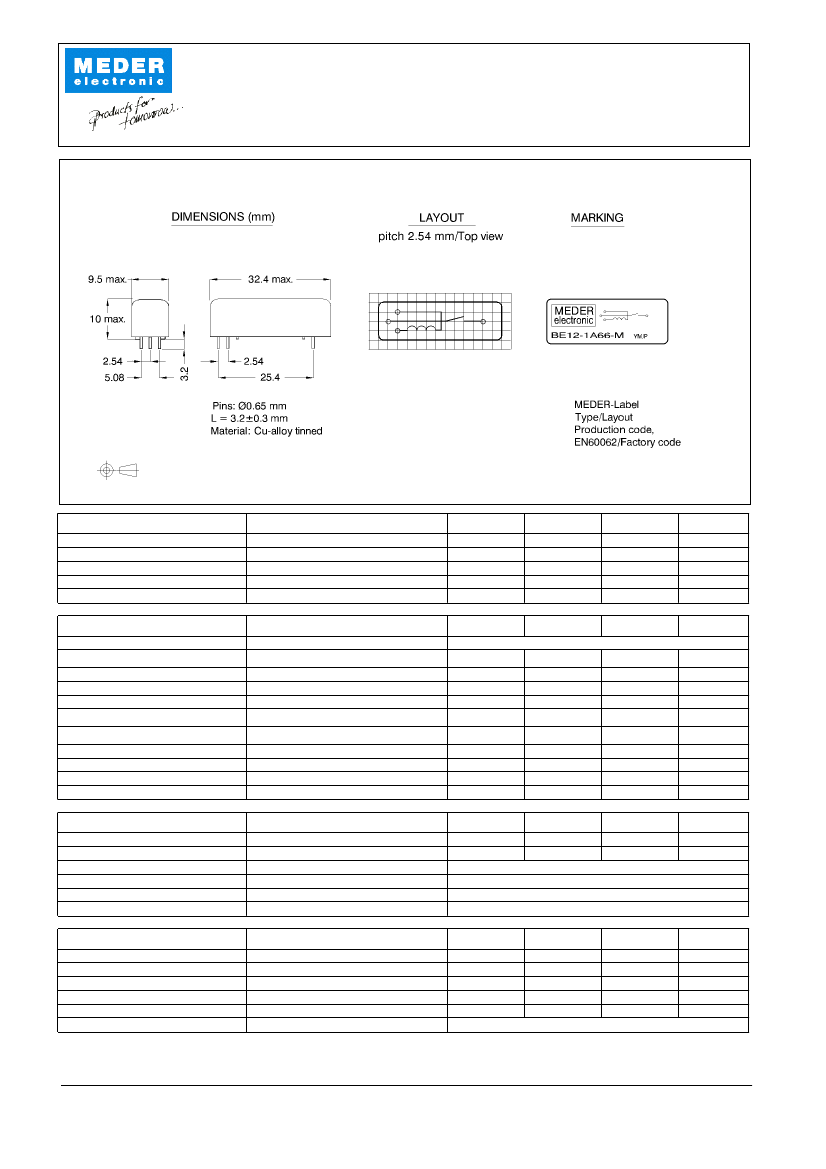

BE12-1A71-M: DescriptionDry Reed Relay, SPST, Momentary, 0.006A (Coil), 12VDC (Coil), 67mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size69KB，1 Pages; ManufacturerStandex

Download Datasheet Parametric Compare View All

BE12-1A71-M Overview

Dry Reed Relay, SPST, Momentary, 0.006A (Coil), 12VDC (Coil), 67mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

BE12-1A71-M Parametric

Parameter Name	Attribute value
Maker	Standex
Reach Compliance Code	unknown
ECCN code	EAR99
body width	9.5 mm
body height	10 mm
Body length or diameter	32.4 mm
Maximum coil current (DC)	0.006 A
Coil operating voltage (DC)	8.4 V
Coil power	67 mW
Coil release voltage (DC)	1 V
Coil resistance	2360 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.5A@200VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@200VDC
Maximum contact voltage (AC)	200 V
Maximum contact voltage (DC)	200 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	BE12-1A71-M
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	0.5 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	32.4mm x 9.5mm x 10mm
Relay action	MOMENTARY
Relay function	SPST
Relay type	DRY REED RELAY
release time	0.1 ms
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER

Preview

Download Datasheet

View All

Europe: +49 / 7731 8399 0

USA:

Asia:

+1 / 508 295 0771

+852 / 2955 1682

| Email: info@meder.com

| Email: salesusa@meder.com

| Email: salesasia@meder.co

Item No.:

8812171200

Item:

BE12-1A66-M

BE12-1A71-M

Coil Data at 20 °

C

Coil resistance

Coil voltage

Rated power

Pull-In voltage

Drop-Out voltage

Conditions

Min

Typ

Max

Unit

Contact data 66

Contact-form

Contact rating

Switching voltage (>20 AT)

Switching current

Carry current

Contact resistance static

Contact resistance dynamic

Insulation resistance

Breakdown voltage (>20 AT)

Operate time incl. bounce

Release time

Conditions

not to exceed their individual max.'s

Min

Typ

A-NO

Max

Unit

DC or Peak AC

! "#$!% &

' (!$%$ (!

Start Value

) # ( *#!

" !$ !)

Start Value

RH <45 %, 100 VDC test voltage

according to IEC 255-5

measured with 40% overdrive

measured with no coil excitation

+

"

Special Product Data

Insulation resistance Coil/Contact

Insulation voltage Coil/Contact

Housing material

Sealing compound

Connection pins

number of contacts

Conditions

RH <45%, 200 VDC test voltage

according to IEC 255-5

Min

Typ

Max

Unit

+

,

Metal / Fe / magn. screening

Polyurethan

Copper alloy tin plated

1

Environmental data

Shock

Vibration

Ambient temperature

Storage temperature

Soldering temperature

Cleaning

Conditions

1/2 sine wave duration 11ms

from 10 - 2000 Hz

Min

/

Typ

Max

Unit

-

.

max. 5 sec

fully sealed

Modifications in the sense of technical progress are reserved

Designed at:

Last Change at:

31.05.07

Designed by:

Last Change by:

WKOVACS

Approval at:

30.05.08

Approval by:

RRIPPL

Version:

02

BE12-1A71-M Related Products

	BE12-1A71-M	8812171200
Description	Dry Reed Relay, SPST, Momentary, 0.006A (Coil), 12VDC (Coil), 67mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount	Dry Reed Relay, SPST, Momentary, 0.006A (Coil), 12VDC (Coil), 67mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount
Maker	Standex	Standex
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
body width	9.5 mm	9.5 mm
body height	10 mm	10 mm
Body length or diameter	32.4 mm	32.4 mm
Maximum coil current (DC)	0.006 A	0.006 A
Coil operating voltage (DC)	8.4 V	8.4 V
Coil power	67 mW	67 mW
Coil release voltage (DC)	1 V	1 V
Coil resistance	2360 Ω	2360 Ω
Maximum coil voltage (DC)	12 V	12 V
Coil/Input Power Type	DC	DC
Contact (AC) maximum rated R load	.5A@200VAC	.5A@200VAC
Maximum contact current (AC)	0.5 A	0.5 A
Maximum contact current (DC)	0.5 A	0.5 A
Contact (DC) maximum rated R load	.5A@200VDC	.5A@200VDC
Maximum contact voltage (AC)	200 V	200 V
Maximum contact voltage (DC)	200 V	200 V
Contact/Output Power Type	AC/DC	AC/DC
JESD-609 code	e3	e3
Manufacturer's serial number	BE12-1A71-M	8812171200
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
operating hours	0.5 ms	0.5 ms
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
physical size	32.4mm x 9.5mm x 10mm	32.4mm x 9.5mm x 10mm
Relay action	MOMENTARY	MOMENTARY
Relay function	SPST	SPST
Relay type	DRY REED RELAY	DRY REED RELAY
release time	0.1 ms	0.1 ms
surface mount	NO	NO
Terminal surface	TIN	TIN
Termination type	SOLDER	SOLDER
