DDA24W7PA197F0 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DDA24W7PA197F0

Preview

DDA24W7PA197F0: DescriptionD Subminiature Connector, 24 Contact(s), Female, Crimp Terminal; CategoryThe connector The connector; File Size24KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric View All

DDA24W7PA197F0 Overview

D Subminiature Connector, 24 Contact(s), Female, Crimp Terminal

DDA24W7PA197F0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ITT
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACTS: 330-77087-010; 330-77087-011; 330-7708-000; 330-7708-001, EMI/RFI SHIELDED
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Mixed contacts	YES
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	5/D
Termination type	CRIMP
Total number of contacts	24
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

D Subminiature

Socket

Shell size

Layout

Combo D

®

/European Version

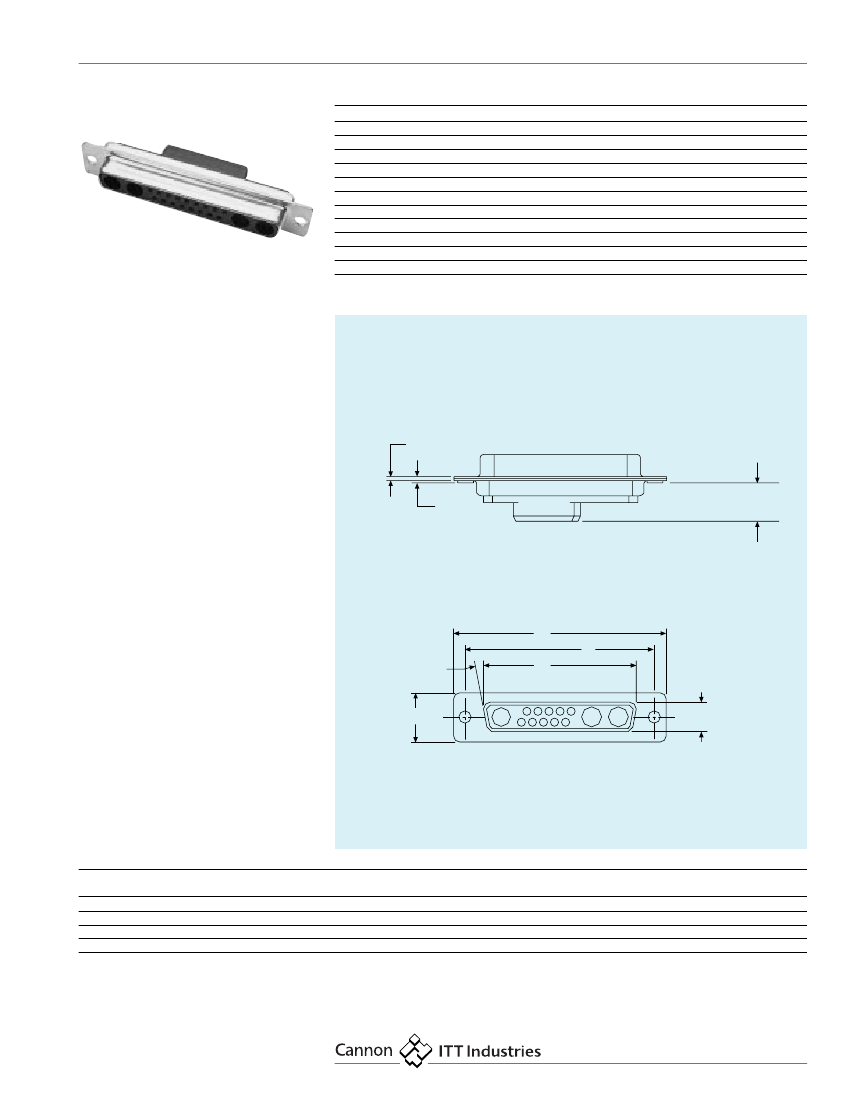

Crimp cable connectors without contacts, sizes DA – DD

Part number

DA

DB

DC

DD

7W2

11W1

3W3

5W5

9W9

13W3

17W2

21W1

8W8

21WA4

24W7

DAA7W2PA197FO

DAA11W1PA197FO

DAA3W3PA197FO

DBA5W5PA197FO

DBA9W9PA197FO

DBA13W3PA197FO

DBA17W2PA197FO

DBA21W1PA197FO

DCA8W8PA197FO

DCA21WA4PA197FO

DDA24W7PA197FO

q

For contact cavity arrangements, see page 53.

For crimp contacts size 20, see page 42.

For mounting methods, see page 86 – 87.

For size 8 contacts see pages 44 – 51.

L

K

10,92

MAX

A

C

10°

B

E

D

Dimensions

Shell

size

A

±

0,38

B

±

0,13

C

±

0,13

D

±

0,13

E

±

0,38

F

±

0,25

K

±

0,32

L

+ 0,25

DA

DB

DC

DD

39,15

53,05

69,3

66,93

24,65

38,4

54,85

52,42

33,3

47,05

63,5

61,11

7,9

10,74

12,55

15,37

10,9

1,21

0,8

41
