The BMB A Series of beads cover a wide range of impedance characteristics. The chip
beads have a monolithic organic material construction that minimizes the effect of
electromagnetic interference. These are high loss types for general use. This series is
offered in 04:02, 06:03 and 08:05 package sizes.
Specifications
Part Number
BMB-1E-0030A-N2
BMB-1E-0120A-N2
BMB-1E-0300A-N2
BMB-1E-0470A-N2
BMB-1E-0600A-N2
BMB-1J-0030A-N2
BMB-1J-0040A-N2
BMB-1J-0060A-N2
BMB-1J-0080A-N2
BMB-1J-0100A-N2
BMB-1J-0120A-N2
BMB-1J-0180A-N2
BMB-1J-0220A-N8A
BMB-1J-0240A-N2
BMB-1J-0300A-N2
BMB-1J-0450A-N2
BMB-1J-0600A-N8
BMB-1J-01000A-N2
BMB-2A-0010A-N1
BMB-2A-0017A-N2
BMB-2A-0030A-N1
BMB-2A-0080A-N4
BMB-2A-0120A-N1
BMB-2A-0120A-N2
BMB-2A-0120A-N4
BMB-2A-0150A-N1
BMB-2A-0220A-N4
BMB-2A-0300A-N1
BMB-2A-0400A-N2
BMB-2A-0600A-N1
BMB-2A-0600A-N2
BMB-2A-0600A-N4
BMB-2A-1000A-N4
BMB-2A-1200A-N4
BMB-2A-1500A-N4
BMB-2A-2000A-N4
BMB-2A-2700A-N4
Impedance (ohms)
at 100MHz (±25%)
30
120
300
470
600
30
40
60
80
100
120
180
220
240
300
450
600
1000
10
17
30
80
120
150
220
300
400
600
1000
1200
1500
2000
2700
DC Resistance
(ohms) maximum
0.15
0.25
0.45
0.55
0.65
Rated Current (mA)
maximum
500
300
200
400
300
0.4
0.5
0.5
0.7
1.0
200
200
0.2
150
100
600
500
400
0.1
0.3
300
0.5
250
0.6
0.8
1.0
1.5
200
100
1773178 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
Multilayer Ferrite Beads
Type BMB-A Series
Chip Dimensions
a
L
W
t
Size
0402
0603
0805
Code
1E
1J
2A
L
1.0 ±0.10
1.6 ±0.15
2.0 ±0.20
W
0.5 ±0.10
0.8 ±0.15
1.2 ±0.20
t
0.5 ±0.10
0.8 ±0.15
0.9 ±0.20
a
0.25 ±0.10
0.3 ±0.20
0.5 ±0.30
Operating Temperature Range: -55°C to +125°C

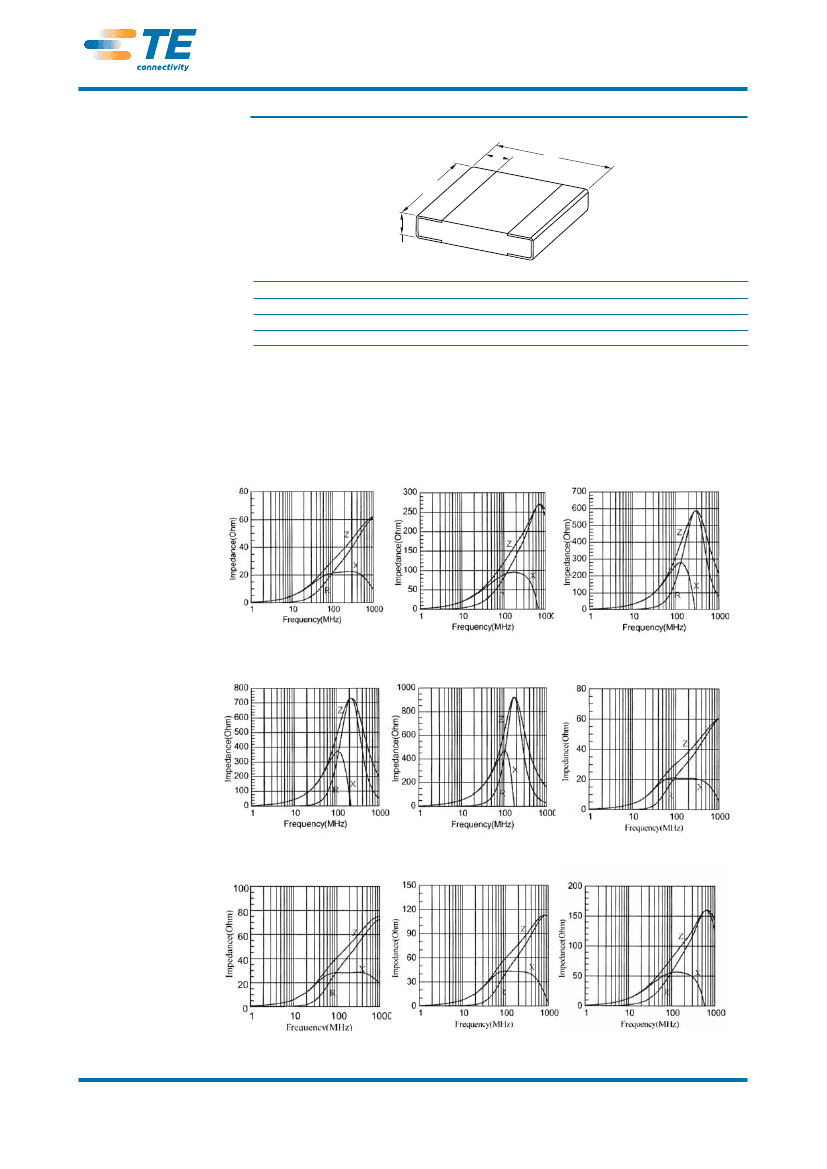

Characteristic Curves
BMB-1E-0030A-N2
BMB-1E-0120A-N2
BMB-1E-0300A-N2
BMB-1E-0470A-N2
BMB-1E-0600A-N2
BMB-1J-0030A-N2
BMB-1J-0040A-N2
BMB-1J-0060A-N2
BMB-1J-0080A-N2
1773178 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
Multilayer Ferrite Beads
Type BMB-A Series

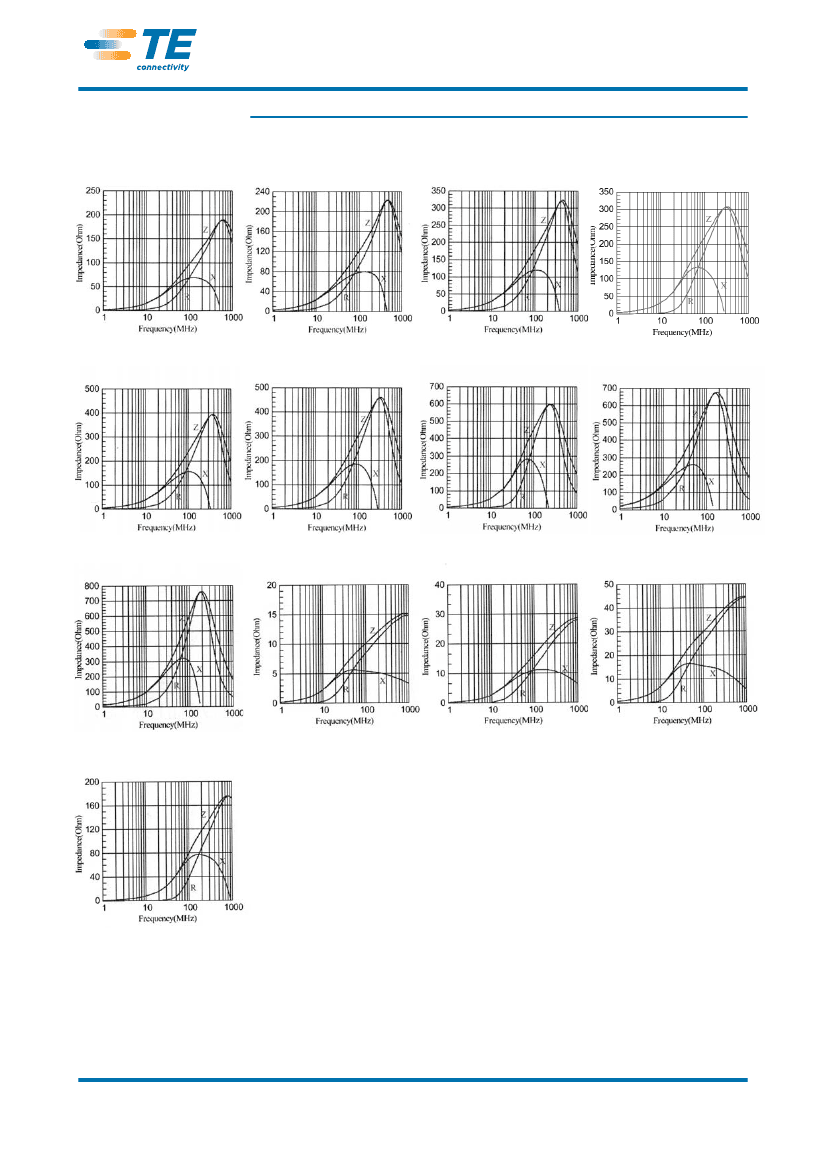

Characteristic Curves (continued)
BMB-1J-0100A-N2
BMB-1J-0120A-N2
BMB-1J-0180A-N2
BMB-1J-0220A-N8A
BMB-1J-0240A-N2
BMB-1J-0300A-N2
BMB-1J-0450A-N2
BMB-1J-0600A-N8
BMB-1J-1000A-N2
BMB-2A-0010A-N1
BMB-2A-0017A-N2
BMB-2A-0030A-N1
BMB-2A-0080A-N4
1773178 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
Multilayer Ferrite Beads
Type BMB-A Series

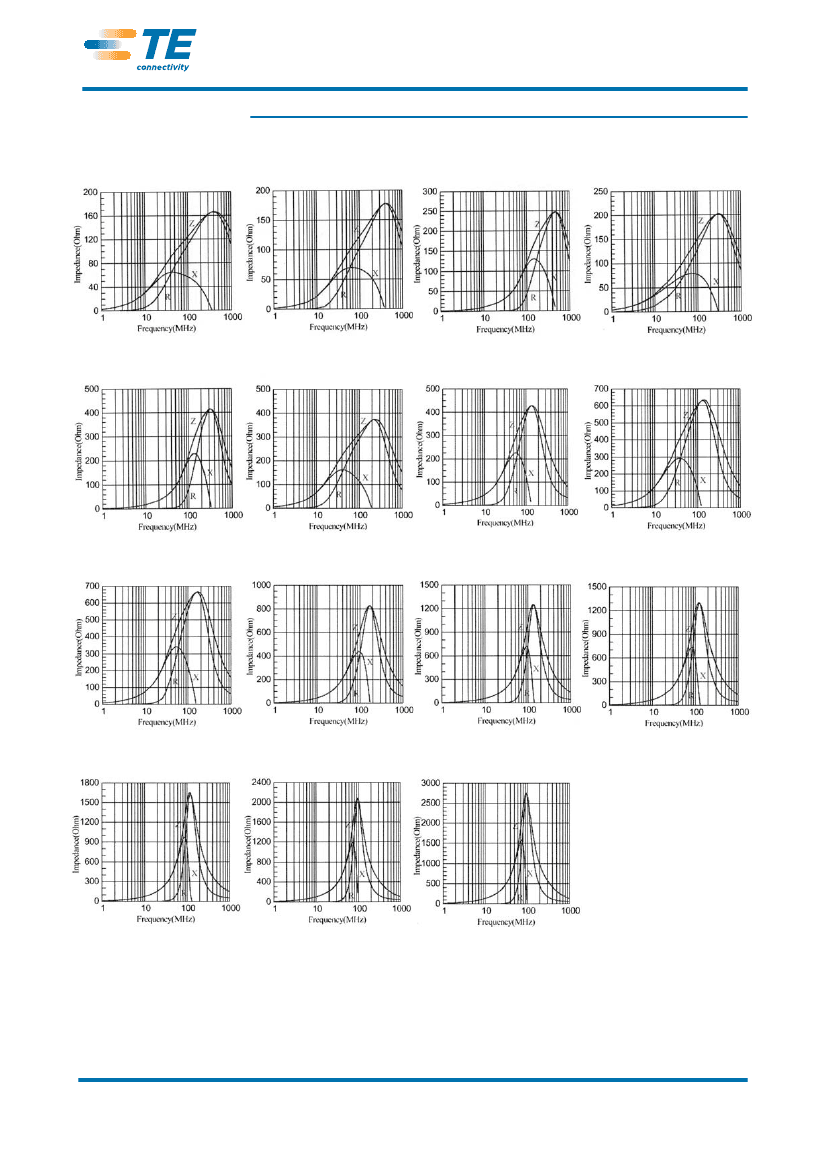

Characteristic Curves (continued)
BMB-2A-0120A-N1
BMB-2A-0120A-N2
BMB-2A-0120A-N4
BMB-2A-0150A-N1
BMB-2A-0220A-N4
BMB-2A-0300A-N1
BMB-2A-0400A-N2
BMB-2A-0600A-N1
BMB-2A-0600A-N2
BMB-2A-0600A-N4
BMB-2A-1000A-N4
BMB-2A-1200A-N4
BMB-2A-1500A-N4
BMB-2A-2000A-N4
BMB-2A-2700A-N4
TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks.
Other logos, product and Company names mentioned herein may be trademarks of their respective owners.
While TE has made every reasonable effort to ensure the accuracy of the information in this datasheet, TE does not guarantee that it is error-free, nor does TE make any other
representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein
at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantabili-
ty or fitness for a particular purpose. The dimensions in this datasheet are for reference purposes only and are subject to change without notice. Specifications are subject to change
without notice. Consult TE for the latest dimensions and design specifications.
