A481303 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> A481303

A481303: Description35 A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK; CategoryThe connector terminals; File Size2MB，2 Pages; ManufacturerCooper Industries; Environmental Compliance

Download Datasheet Parametric View All

A481303 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	A481303	-	-	View	Buy Now

A481303 Overview

35 A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK

A481303 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cooper Industries
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	94V-0, THERMOPLASTIC
Fastening method	SCREW
Manufacturer's serial number	A4
Installation type	PANEL
Number of layers	1
Rows	1
Number of channels	3
Rated current	35 A
Rated voltage	600 V
safety certificate	UL; CSA; CE
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	10 AWG

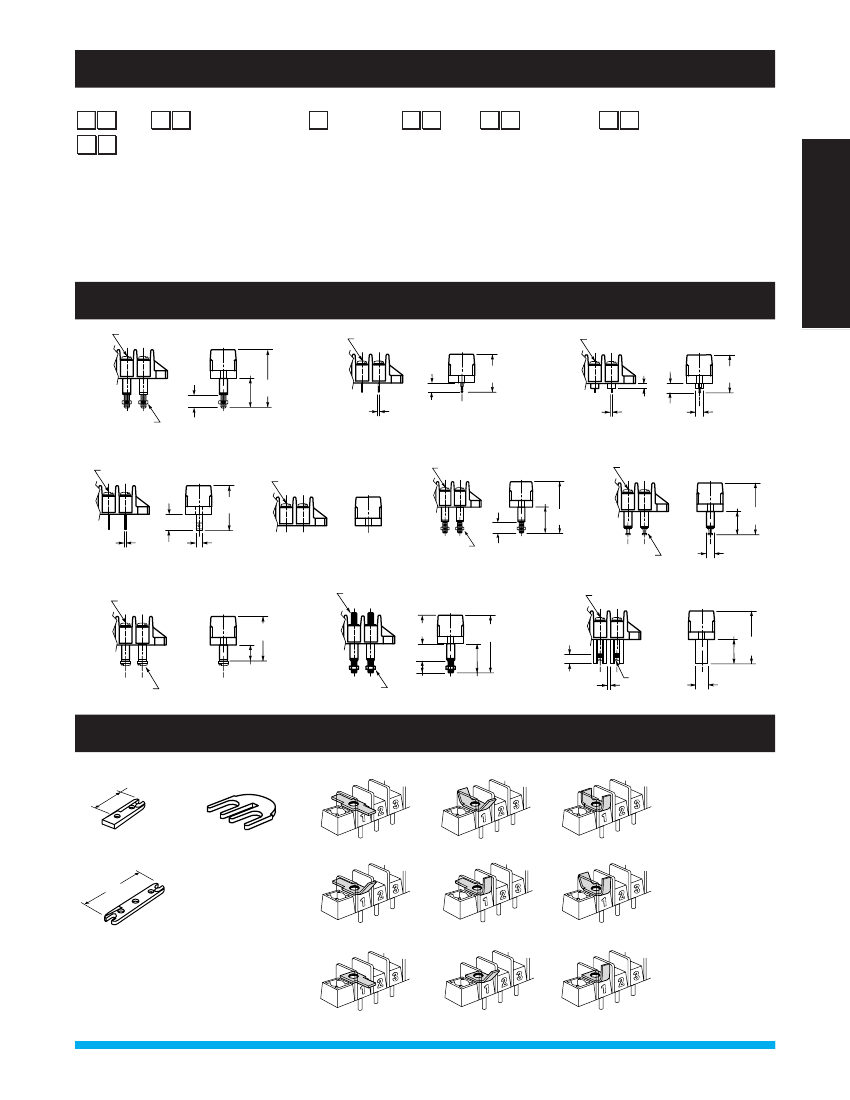

Preview

Download Datasheet

View All

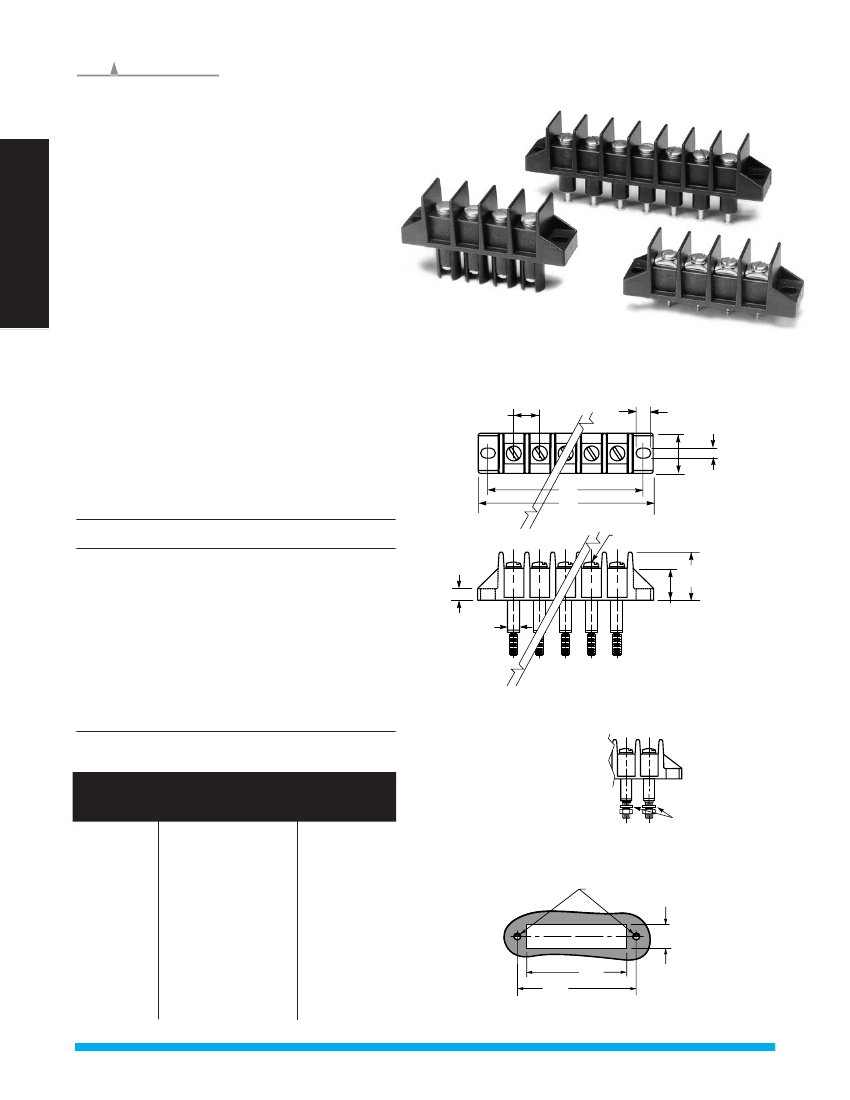

MAGNUM

A481307

Series A4000 & Series B4000

Single Row Terminal Blocks

Single & Double Row

Filtered Connectors

SPECIFICATIONS

Rating:

See table.

Center Spacing:

.562” or 9/16” (14.28 mm)

Wire Range:

See rating table.

Screw Size:

#8-32 or #10-32 zinc plated slotted screws

Torque Rating:

#8 screw size 16 in-lb.; #10 screw size

20 in-lb.

Distance Between Barriers:

.47” (11.9 mm)

Operating Temperature:

105°C (221°F) max., -40°C

(-40°F) min.

Molded Material:

Black, UL Rated 94V0 Thermoplastic

Hardware:

Bottom studs supplied with nuts assembled.

Cup washers are optional on bottom studs but are not

recommended with ring terminals.

Extended Hex Nuts:

Optional extended, slotted hex nuts

enable easier installation and removal with hex wrench or

screwdriver. Available in bulk for the #10-32 studs on

Series A4953 blocks. Specify part no. F582 and quantity.

Breakdown Voltage:

6100V

Agency Information:

UL/CSA; CE Certified

RATING TABLE

Part

Number

A4003XX

A4011XX

A4013XX

A4021XX

A4035XX

A4041XX

A4043XX

A4051XX

A4803XX

A4813XX

A4843XX

A4953XX

B4843XX

Terminal

Top

# 8 Screw

#10 Screw

#10 Stud

#10 Screw

Terminal

Bottom

#8 Stud

Solder

.250 QC

Closed

Solder

250 QC

#8 Stud

SolderTurret

#8 Screw

#10 Stud

#8 Screw

Wire*

Range CU

8-16 AWG

10-16 AWG

8-16 AWG

10-16 AWG

8-16 AWG

10-16 AWG

8-16 AWG

Ratings*

150V; 50 amps

600V; 35 amps

600V; 50 amps

600V; 35 amps

600V, 35 amps

600V; 35 amps

150V; 50 amps

600V; 35 amps

150V; 50 amps

600V; 50 amps

B484304

A40110407

Euro-MAG Series

PCB – Spring Clamp

A4000 Series

.562

(14.27)

.31

(7.9)

.87

(22.1)

.21

(5.3)

#8-32 or #10-32 THD’S

.31

(7.9)

Base & Rail Mount

Connectors

1.05

(26.7)

.36 dia.

(9.1)

.57

(14.5)

Note: Above unit supplied with nuts

assembled. Cup washers are optional.

Power Distribution Blocks

* All models 30A Max. with 10 AWG;

35-50A ratings with 8 AWG using ring or fork type terminals.

Note: 50A rating achieved with #8 copper wire crimped to ring terminal.

Optional Cup Washers

Assembled

Available on A4003, A4803,

A4843, A4953 & B4843.

CUP

WASHERS

Poles

A (in.)

Mount Centers

1.69

2.25

2.81

3.37

3.93

4.50

5.06

5.62

6.18

6.74

7.31

7.87

8.43

8.99

9.55

10.12

10.68

B (in.)

Length

2.12

2.68

3.24

3.80

4.36

4.93

5.34

6.05

6.61

7.17

7.74

8.30

8.86

9.44

9.98

10.55

11.11

WIRE MANAGEMENT PRODUCTS

Reference Panel Cutout for 6 Position Block

.20 DIA.

(5.1)

.75

(19.1)

3.31

(84.1)

3.93

(99.8)

* Dimensions in inches. To convert to millimeters, multiply by 25.4.
