87427-2052: DescriptionRectangular Power Connector, 20 Contact(s), Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size129KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

87427-2052 Overview

Rectangular Power Connector, 20 Contact(s), Male, Solder Terminal, Receptacle

87427-2052 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	MINI-FIT JR
body width	0.449 inch
subject depth	0.72 inch
body length	1.701 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
Plating thickness	100u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	9 A
Guideline	CSA,UL,VDE
reliability	COMMERCIAL
Shell material	POLYAMIDE
Terminal length	0.138 inch
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0
Evacuation force-minimum value	3.0024 N
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Sizes 2 to 24 circuits

s

Molded in high temperature, surface mount compatible

material

s

Fully isolated terminals to protect contacts from damage

Reference Information

Product Specification: PS-87427-0001

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980

Mates With:

5557

dual row receptacle

Designed in: Millimeters

Electrical

Voltage: 600V

Current: (Used with 16 AWG)

Circuits

Amperes-Jr.

Amperes-HCS

2–3

9

12

4–6

8

11

7–10

7

10

12–24

6

9

4.20mm (.165") Pitch

Mini-Fit, Jr.

™

Wire-to-Board

Header

Power Connectors

Contact Resistance: 10m

Ω

max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 1000 M

Ω

min.

Mechanical

Pin Retention Force: 9.81N (2.2 lb) min.

Mating Force: 14.23N (3.19 lb) max.

Unmating Force: 0.50N (0.11 lb) max.

Durability: 30 cycles

Physical

Housing: Nylon 4/6, UL 94V-0

Contact: Brass (1.07 square)

Plating: Tin

Operating Temperature: -40 to +105°C

87427

Right Angle without Flanges

High Temperature Material

F

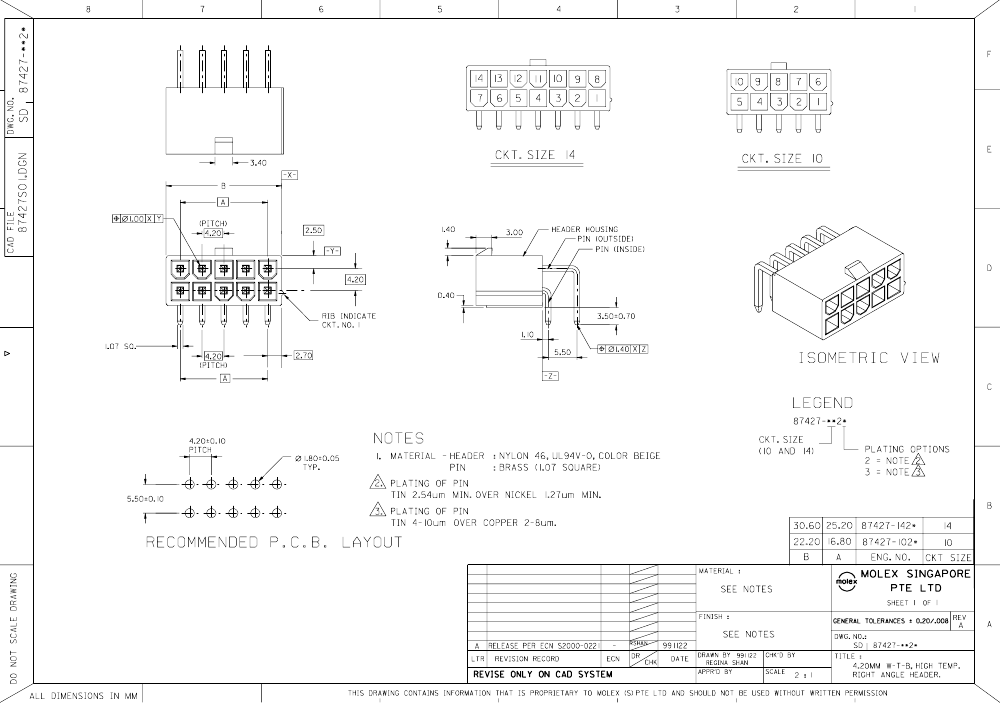

CATALOG DRAWING (FOR REFERENCE ONLY)

(1.00)

.039

(0.70)

.029

Ø1.80

.070

A

B

-X-

12.80

.503

1.40

.055

4.20

.165

2.70

.106

2.50

.098

3.00

.118

P

.C.B. BOARD

(THK.=1.6MM)

.062

4.20

.165

-Y-

9.60

.377

3.30

.129

RIB INDICATE

CKT. NO. 1

1.07 SQ

.042

4.20

.165

B

2.70

.106

(0.60)

.023

(10.80)

.425

1.10

.043

5.50

.216

-Z-

(0.40)

5.50

.016

4.20

.165

RECOMMENDED P

.C.B. LAYOUT

RECOMMENDED INSTALLATION PATTERN

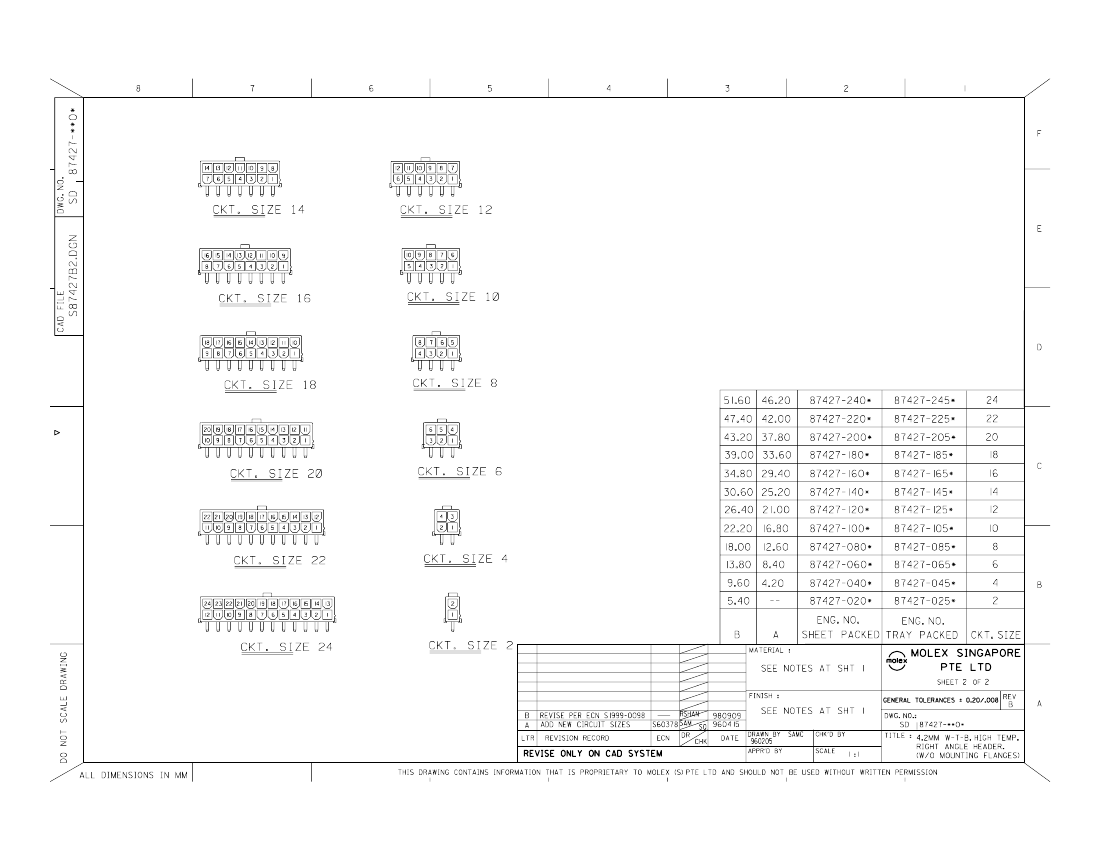

ORDERING INFORMATION AND DIMENSIONS

Order No.

Circuits

2

4

6

8

10

12

14

16

18

20

22

24

Tin Over

Nickel Plating

87427-0202

87427-0402

87427-0602

87427-0802

87427-1002

87427-1202

87427-1402

87427-1602

87427-1802

87427-2002

87427-2202

87427-2402

Tin Over

Copper Plating

87427-0203

87427-0403

87427-0603

87427-0803

87427-1003

87427-1203

87427-1403

87427-1603

87427-1803

87427-2003

87427-2203

87427-2403

A

5.40

9.60

13.80

18.00

22.20

26.40

30.60

34.80

39.00

43.20

47.40

51.60

(.212)

(.377)

(.543)

(.708)

(.824)

(1.030)

(1.204)

(1.370)

(1.535)

(1.700)

(1.866)

(2.031)

4.20

8.40

12.60

16.80

21.00

25.20

29.40

33.60

37.80

42.00

46.20

Dimension

B

(.165)

(.330)

(.496)

(.667)

(.826)

(.992)

(1.152)

(1.324)

(1.488)

(1.653)

(1.818)

MX01

F-53
