DEVICE NUMBER：BL-HJEX134B-TRB
SHEET
DATE
2006.08.25
1
2
3
4
5
6
7
CONTENTS
Original Released
1.0 1.2 1.1 1.0 1.0 1.0 1.0
½鴻工業股½有限公司
BRIGHT LED ELECTRONICS CORP.
台北縣板橋市和平路
19
號
3
樓
3F., No. 19, Ho Ping Road, Pan Chiao City,
Taipei, Taiwan, R. O. C.
Tel: 886-2-29591090
Fax: 886-2-29547006/29558809
www.brtled.com.
APPROVED
DRAWER
張
2006.08.25
孫
2006.08.25
孝 嚴
秀 梅
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HJEX134B-TRB
●
Features:
1. Emitted Color : Super Orange Red and
Hi-Eff Green
2. Lens Appearance : Water Clear
3. Bi-color type.
4. 3.2x1.0x2.0mm(1204) standard package
5. Suitable for all SMT assembly methods.
6. Compatible with infrared and vapor phase
reflow solder process.
7. Compatible with automatic placement
equipment.
8. This product doesn’t contain restriction
Substance, comply ROHS standard.
●
Package Dimensions:
3.2(.126)±0.2
1.3(.051)
0.6(.024)
Super Orange Red
Super Orange Red
1
Hi-Eff Green
3,4
2
3
1
1.0(.039)±0.2
2
4
0.4(.016)
0.3(.012)
Hi-Eff Green
For reflow soldeving
For upright mounting
1.5(.059)
2.0(.079)
1.5(.059)
4-R0.25(.010)
2.0(.079)
2.0(.079)±0.2
1.0(.039)
0.5(.020)
For right anoge mounting
1.5(.059)
2.0(.079)
1.5(.059)
Cathode Mark
0.8(.02)
Cathode
0.6(.024)
0.6(.024)
Cathode
1.2(.047)
●
Applications:
1.
Automotive: Dashboards, stop lamps,
turn signals.
2.
3.
Backlighting: LCDs, Key pads advertising.
Status indicators: Comsumer & industrial
electronics.
NOTES:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.10mm (0.004”) unless otherwise specified.
3. Specifications are subject to change without notice.
4.
General use.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Peak Forward Current
＊1
Reverse Volage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Super Orange Red
100
30
100
5
-25℃~80℃
-30℃~85℃
See Page 6
Hi-Eff Green
100
30
100
Unit
mW
mA
mA
V
-
-
-
＊1
Condition for IFp is pulse of 1/10 duty and 0.1msec width.
Ver.1.0 Page 1 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HJEX134B-TRB
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Reverse Current
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Veiwing Angle
Symbol
Vf
Iv
I
R
λp
λd
Δλ
2θ
1/2
Condition
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Color
Super Orange Red
Hi-Eff Green
Super Orange Red
Hi-Eff Green
Super Orange Red
Hi-Eff Green
Super Orange Red
Hi-Eff Green
Super Orange Red
Hi-Eff Green
Super Orange Red
Hi-Eff Green
Super Orange Red
Hi-Eff Green
Min.
-
63
5.5
-
-
615
566
-
-
Typ.
2.0
2.2
100
12
-
630
568
-
17
30
100
Max.
2.6
2.6
-
100
-
625
576
-
-
Unit
V
mcd
µA
nm
nm
nm
deg
●

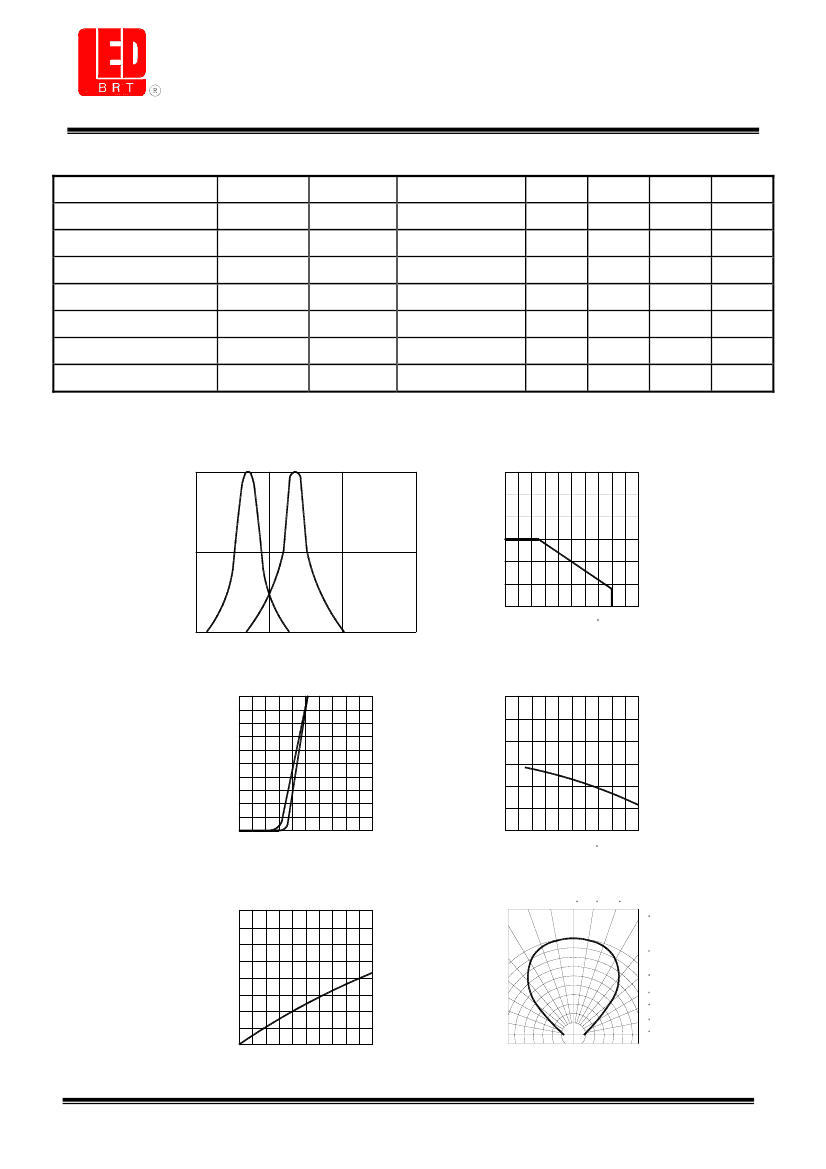

Typical Electro-Optical Characteristics Curves
Fig.1 Relative intensity vs. wavelength
(X1)
(JE)
60
Fig.2 Forward current derating curve
vs. ambient temperature
1.0
Forward Current (mA)
50
Relative radiant intensity
40
30
0.5
20
10
0
20
40
60
80
100
Ambient temperature Ta( C)
0
500
600
700
800
Wavelength (nm)
Fig.3 Forward current vs. forward voltage
3.0
Fig.4 Relative luminous intensity vs.
ambient temperature
Relative luminous intensity
(Normalized @ 20mA)
Forward current (mA)
40
2.5
2.0
30
1.5
20
(JE)
(X1)
1.0
10
0.5
0
1
2
3
4
5
0
-40
-20
0
20
40
60
Forward voltage(V)
Ambient temperature Ta( C)
A
Fig.5 Relative luminous intensity vs. forward current
Relative luminous intensity (@20mA)
4.0
Fig.6 Radiation diagram
0
10
20
30
3.0
Relative radlant intensity
40
1.0
0.9
0.8
0.7
80
90
50
60
70
2.0
(JE,X1)
1.0
0
5
10
20
30
40
50
0.5
0.3
0.1
0.2
0.4
0.6
Forward current (mA)
Ver.1.0 Page 2 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HJEX134B-TRB
●

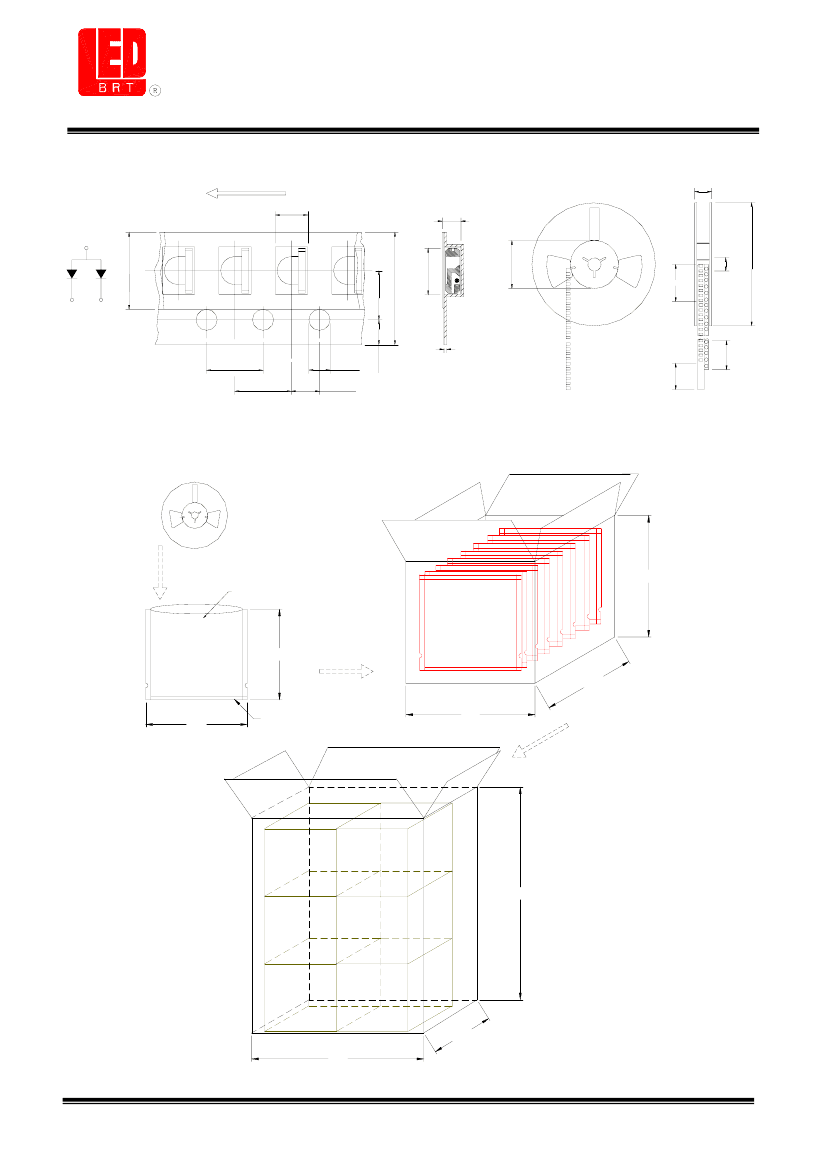

Tapping and packaging specifications(Units: mm)
USER DIRECTION OF FEED
2.3 ± 0.1
ANODE
START
END
17.2± 1.2
1.3 ± 0.1
13.0± 0.5
71.0± 1
5.3 ± 0.05
8.0 ± 0.3
3.3 ± 0.1
CATHODE
CATHODE
3.5 ± 0.05
TRAILER
1.75 ± 0.1
0.3
FIXING TAPE
NOTE: 3000 pcs PER REEL
LEADER
4.0 ± 0.1
4.0 ± 0.1
1.5± 0.1
2.0± 0.05
●
Package Method:(unit:mm)
12 bag/box
3000 pcs/reel
200
Bar Code Label
245
220
185
220
Aluminum Foil Bag
645
6 box/carton
210
470
Ver.1.0 Page 3 of 7
179± 1
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HJEX134B-TRB
●
Bin Limits
I n t e n s i t y B i n L i m i ts ( J E ) ( A t 2 0 m A )
BIN CODE
Min. (mcd)
N
P
Q
R
63
94
140
210
Max. (mcd)
94
140
210
317
To l e r a n c e f o r e a c h B i n l i m i t i s ± 1 5 % .
I n t e n s i t y B i n L i m i ts ( X 1 ) ( A t 2 0 m A )
BIN CODE
Min. (mcd)
H
J
K
L
5.5
8.2
12.3
18.5
Max. (mcd)
8.2
12.3
18.5
28.0
To l e r a n c e f o r e a c h B i n l i m i t i s ± 1 5 % .
C o l o r B i n L i m i ts ( X 1 ) ( A t 2 0 m A )
BIN CODE
Min. (nm)
4
5
6
7
8
566
568
570
572
574
Max. (nm)
568
570
572
574
576
To l e r a n c e f o r e a c h B i n l i m i t i s ± 1 n m .
●
B IN：
x - x
x
Color BIN CODE (X1)
Intensity BIN CODE (X1)
Intensity BIN CODE (JE)
Ver.1.0 Page 4 of 7
