MKC 1860
Not for new designs
Vishay Roederstein
Metallized Polycarbonate Film Capacitor
Related Document: IEC 60384-6
Dimensions in millimeters
Ød
FEATURES
Product is completely lead (Pb)-free.
Product is RoHS compliant.
RATED VOLTAGES (U
R
)
40.0
±
5.0
L
Max.
40.0
±
5.0
D
Max.
63 VDC, 100 VDC, 250 VDC, 400 VDC
e3
RoHS
COMPLIANT

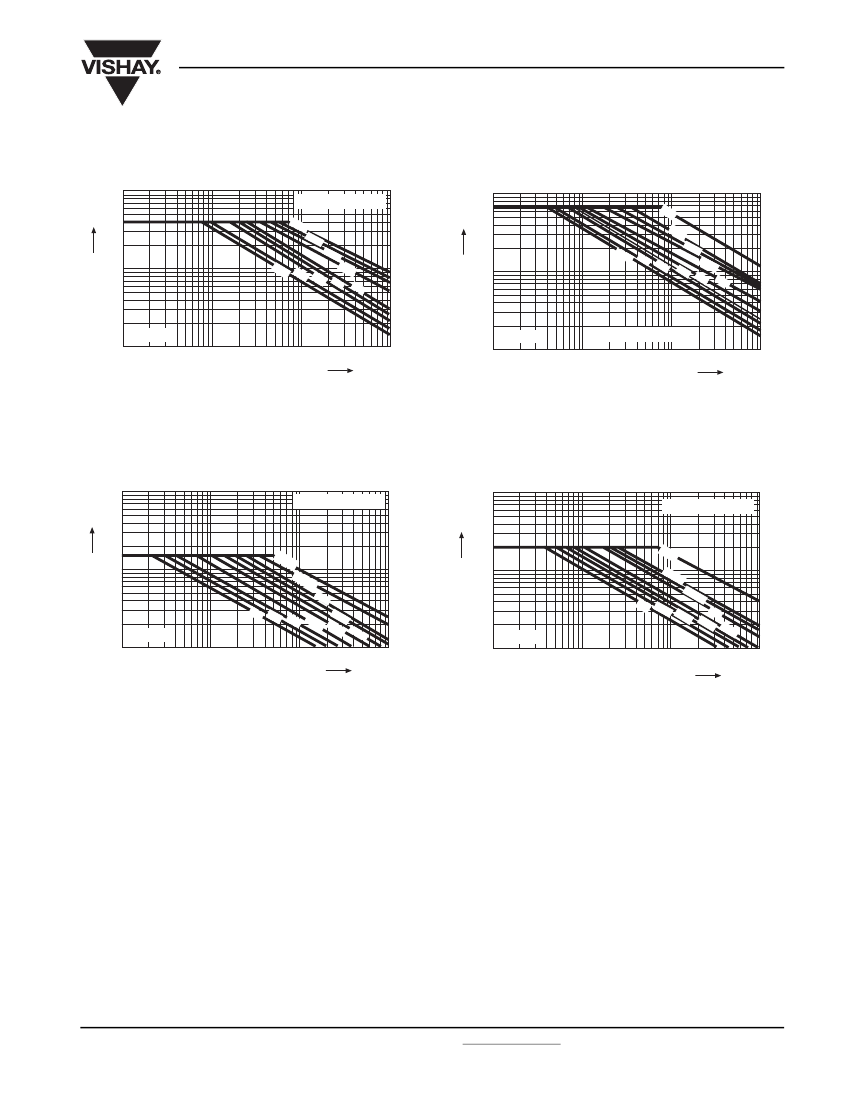

PERMISSIBLE AC VOLTAGES (RMS)
UP TO 60HZ
40 VAC, 63 VAC, 160 VAC, 200 VAC
D
≤
7.0
< 16.0
≥
16.5
ØD
0.7
0.8
1.0
TEST VOLTAGE (ELECTRODE/ELECTRODE)
1.6 x U
R
for 2 s
MAIN APPLICATIONS
MARKING
Storage, filter, timing and integrating circuits.
Manufacturer's logo/type/C-value/rated voltage/tolerance/
date of manufacture
Measured at 100 VDC (63 VDC series measured at
50 VDC) after one minute
For C
≤
0.33µF and U
R
> 100 VDC:
30,000 MΩ minimum value (100,000 MΩ typical value)
For C
≤
0.33µF and U
R
≤
100 VDC:
15,000 MΩ minimum value (50,000 MΩ typical value)
INSULATION RESISTANCE
TIME CONSTANT
DIELECTRIC
Polycarbonate film
ELECTRODES
COATING
Vacuum deposited aluminum
Plastic-wrapping, epoxy resin sealed
Measured at 100 VDC (63 VDC series measured at
50 VDC) after one minute
For C > 0.33µF and U
R
> 100 VDC:
10,000 s minimum value (40,000 s typical value)
For C > 0.33µF and U
R
≤
100 VDC:
5,000 s minimum value (15,000 s typical value)
CAPACITANCE DRIFT
Up to + 40°C, ± 2% for a period of two years
CONSTRUCTION
LEADS
DERATING FOR DC AND AC. CATEGORY VOLTAGE U
C
At + 85°C: U
C
= 1.0 U
R
At + 100°C: U
C
= 0.8 U
R
Extended metallized film (refer to general information)
Tinned wire
SELF INDUCTANCE
~ 12 nH measured with 6mm long leads
IEC TEST CLASSIFICATION
55/100/21, according to IEC 60068
PULL TEST ON LEADS
≥
20 N in direction of leads according to IEC 60068-2-21
OPERATING TEMPERATURE RANGE
- 55°C to + 100°C
0.01µF to 10µF
BEND TEST ON LEADS
RELIABILITY
2 bends through 90° with half of the force used in pull test
Operational life > 300,000 h
Failure rate < 1 FIT (40°C and 0.5 x U
R
)
For further details, please refer to the general information
available at www.vishay.com/doc?26033.
CAPACITANCE RANGE
CAPACITANCE TOLERANCES
± 10% (K), ± 5% (J)
MAXIMUM PULSE RISE TIME
CAPACITOR
LENGTH (mm)
14
19
26.5
31.5
63 VDC
17
9
6
5
Maximum Pulse Rise Time d
v
/d
t
[V/µs]
100 VDC
250 VDC
23
38
13
21
8
13
6
10
400 VDC
61
33
20
16
If the maximum pulse voltage is less than the rated voltage higher d
v
/d
t
values can be permitted.
Document Number: 26028
Revision: 05-Jul-05
For technical questions contact; dc-film@vishay.com
www.vishay.com
1
