935262546112 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 935262546112

935262546112: DescriptionALVC/VCX/A SERIES, 18 1-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDSO56, PLASTIC, TSSOP2-56; Categorylogic logic; File Size394KB，15 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric Compare View All

935262546112 Overview

ALVC/VCX/A SERIES, 18 1-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDSO56, PLASTIC, TSSOP2-56

935262546112 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	56
Reach Compliance Code	unknow
Other features	ALSO OPERATES AT 3 TO 3.6V SUPPLY
series	ALVC/VCX/A
JESD-30 code	R-PDSO-G56
JESD-609 code	e4
length	14 mm
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Humidity sensitivity level	1
Number of digits	1
Number of functions	18
Number of ports	2
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
propagation delay (tpd)	5.9 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	2.7 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	6.1 mm
Base Number Matches	1

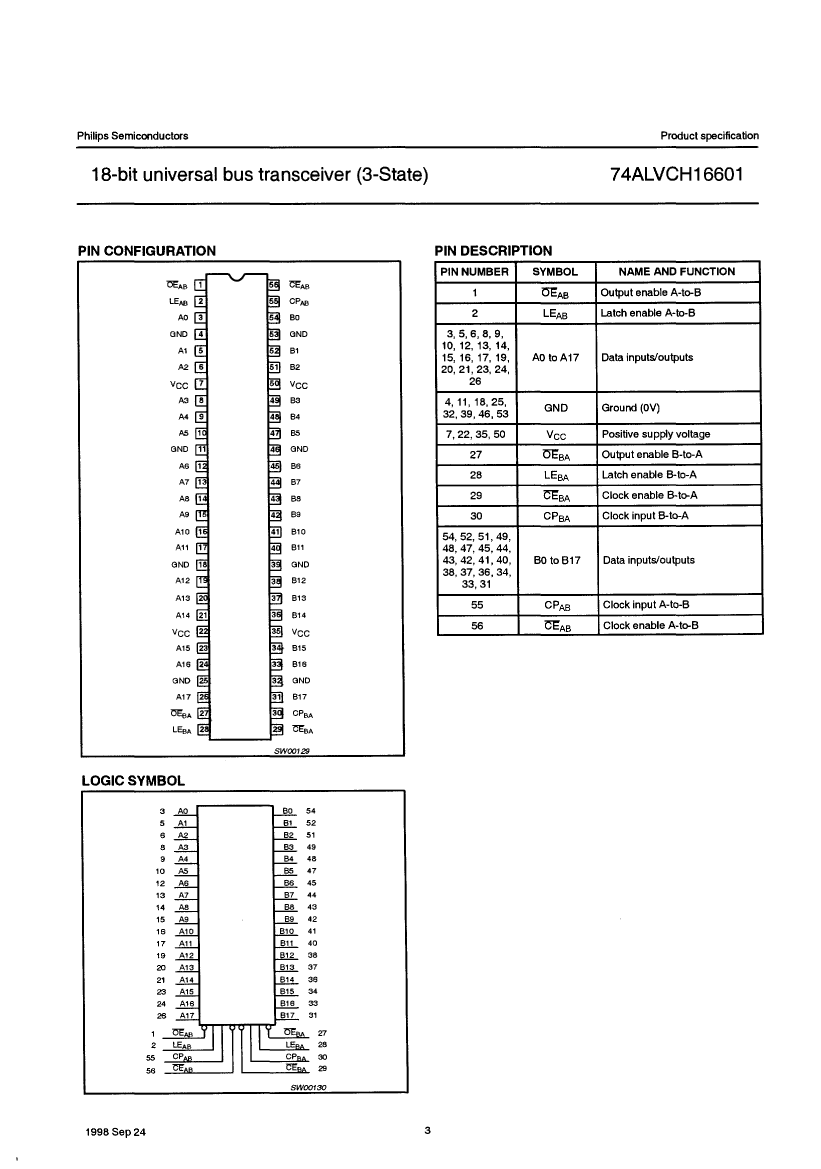

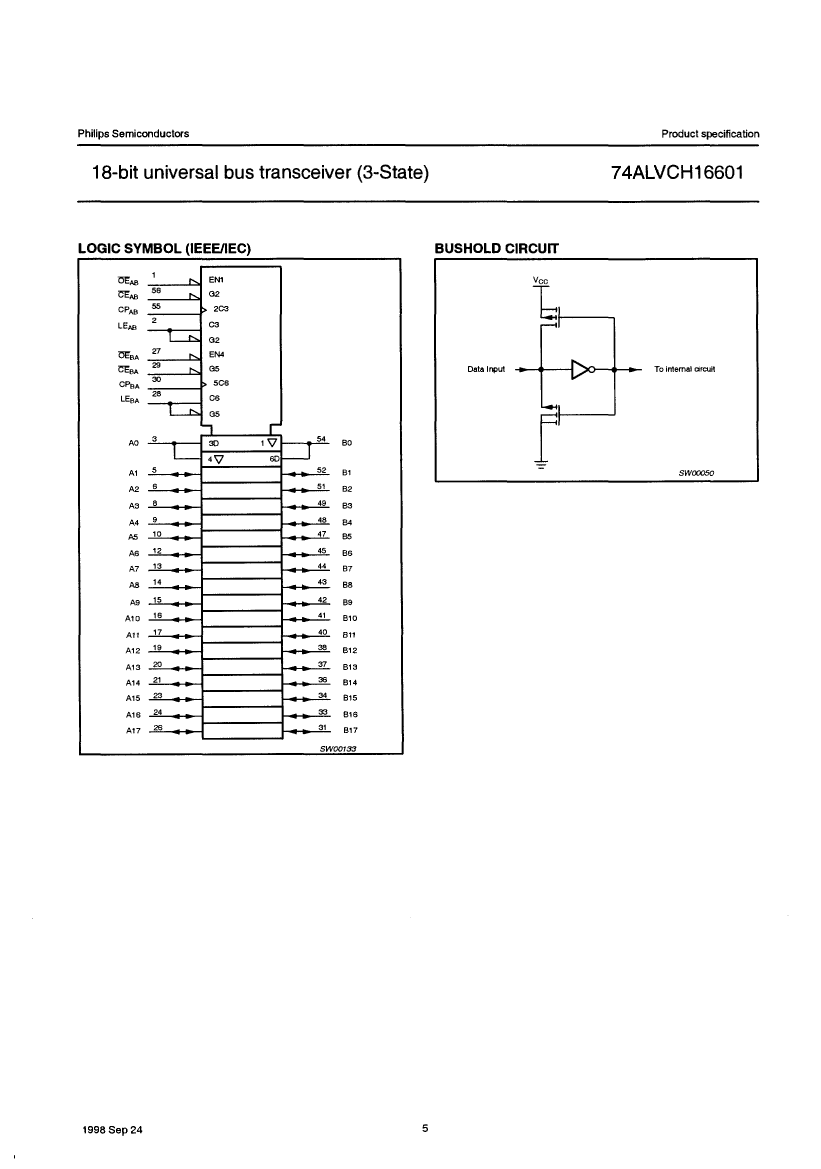

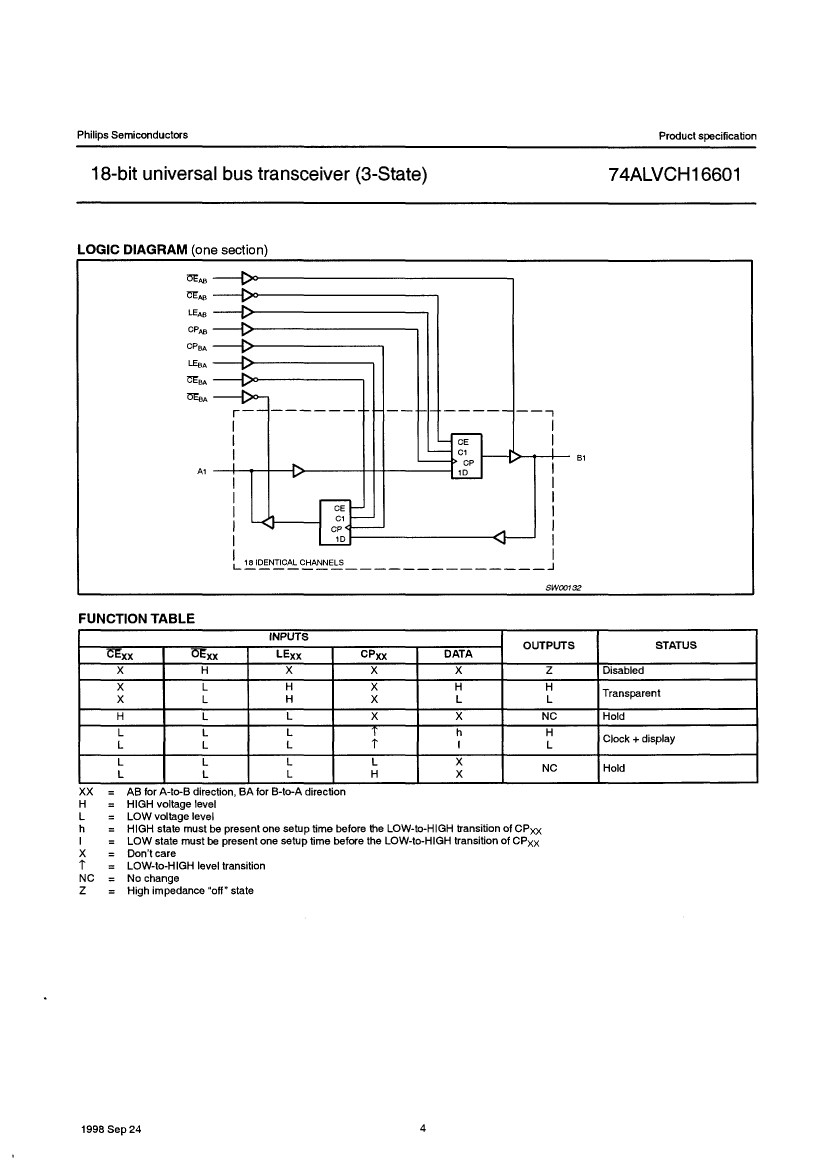

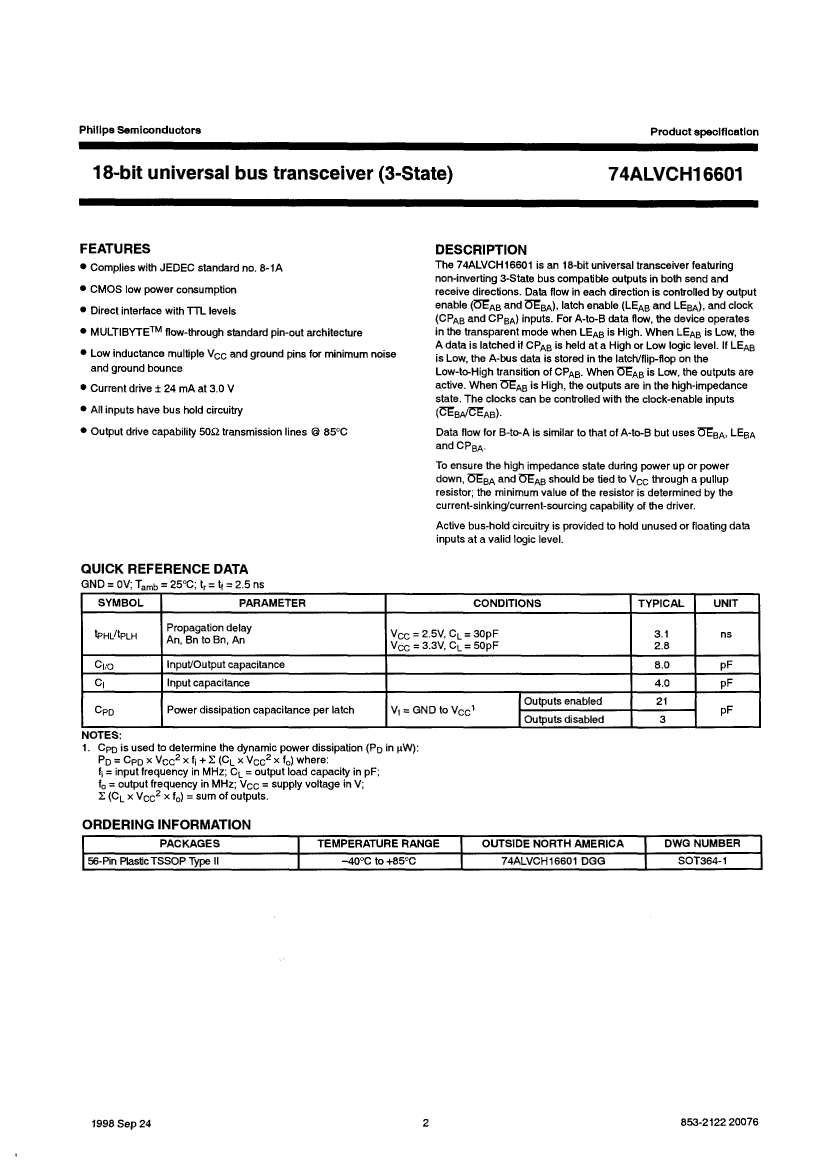

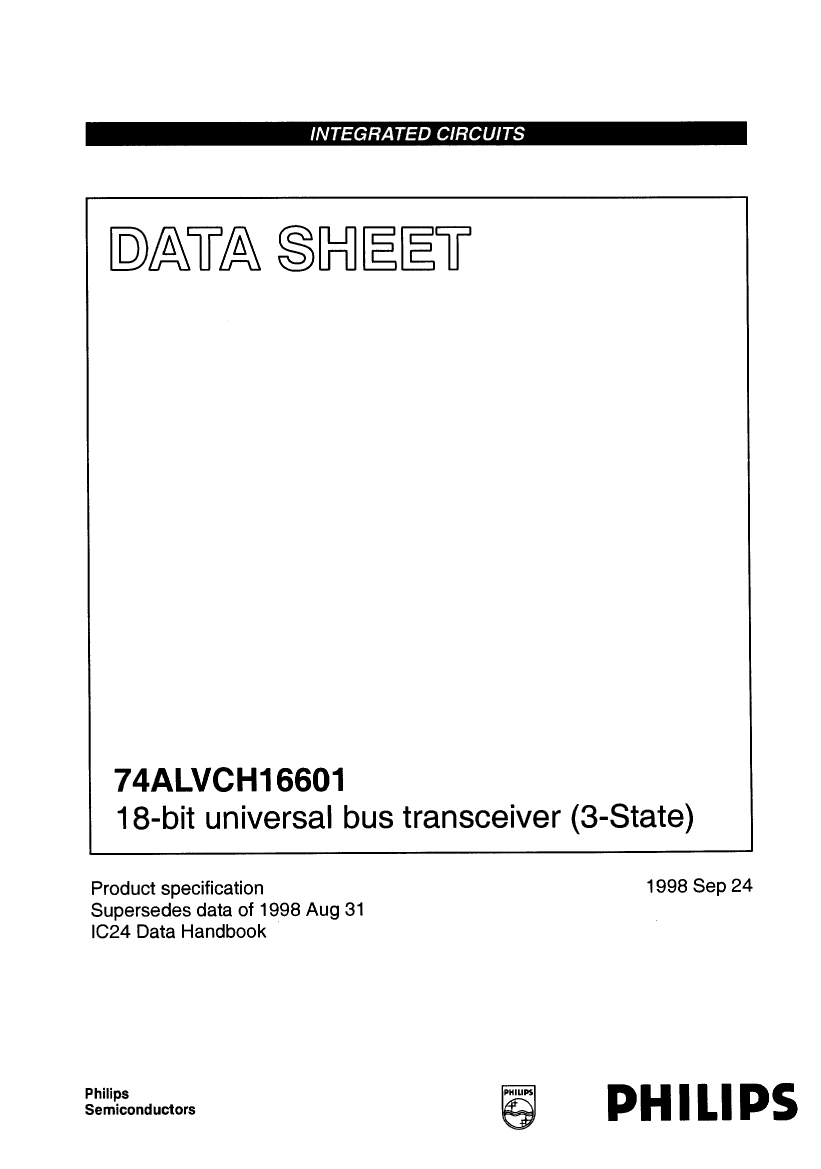

Preview

Download Datasheet

View All

935262546112 Related Products

	935262546112	935262546118	74ALVCH16601DGG-T	74ALVCH16601DGG
Description	ALVC/VCX/A SERIES, 18 1-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDSO56, PLASTIC, TSSOP2-56	ALVC/VCX/A SERIES, 18 1-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDSO56, PLASTIC, TSSOP2-56	IC ALVC/VCX/A SERIES, 18-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDSO56, 6.10 MM, PLASTIC, MO-153EE, SOT-364, TSSOP2-56, Bus Driver/Transceiver	IC ALVC/VCX/A SERIES, 18-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDSO56, 6.10 MM, PLASTIC, MO-153EE, SOT-364, TSSOP2-56, Bus Driver/Transceiver
Parts packaging code	TSSOP	TSSOP	TSSOP	TSSOP
package instruction	TSSOP,	TSSOP,	TSSOP,	TSSOP, TSSOP56,.3,20
Contacts	56	56	56	56
Reach Compliance Code	unknow	unknow	unknown	compliant
Other features	ALSO OPERATES AT 3 TO 3.6V SUPPLY	ALSO OPERATES AT 3 TO 3.6V SUPPLY	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; WITH CLOCK ENABLE	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; WITH CLOCK ENABLE
series	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A
JESD-30 code	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56
length	14 mm	14 mm	14 mm	14 mm
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Number of digits	1	1	18	18
Number of functions	18	18	1	1
Number of ports	2	2	2	2
Number of terminals	56	56	56	56
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	TSSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	5.9 ns	5.9 ns	6 ns	6 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	2.7 V	2.7 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.3 V	2.3 V	1.2 V	1.2 V
Nominal supply voltage (Vsup)	2.5 V	2.5 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	6.1 mm	6.1 mm	6.1 mm	6.1 mm
Base Number Matches	1	1	1	1
Is it Rohs certified?	conform to	conform to	-	conform to
JESD-609 code	e4	e4	-	e4
Humidity sensitivity level	1	1	-	1
Peak Reflow Temperature (Celsius)	260	260	-	260
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	-	Nickel/Palladium/Gold (Ni/Pd/Au)
Maximum time at peak reflow temperature	40	40	-	30
