CL-191UR-C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> CL-191UR-C

CL-191UR-C: DescriptionSINGLE COLOR LED, ULTRA BRIGHT RED, 1.2 mm, 1.60 X 0.80 MM, 0.60 MM HEIGHT, MINIATURE, ULTRA THIN PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size537KB，1 Pages; ManufacturerCITIZEN; Websitehttp://ce.citizen.co.jp/e/index.html

Download Datasheet Parametric View All

CL-191UR-C Overview

SINGLE COLOR LED, ULTRA BRIGHT RED, 1.2 mm, 1.60 X 0.80 MM, 0.60 MM HEIGHT, MINIATURE, ULTRA THIN PACKAGE-2

CL-191UR-C Parametric

Parameter Name	Attribute value
Maker	CITIZEN
package instruction	1.60 X 0.80 MM, 0.60 MM HEIGHT, MINIATURE, ULTRA THIN PACKAGE-2
Reach Compliance Code	unknown
color	ULTRA BRIGHT RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	NONDIFFUSED
Nominal luminous intensity	13.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.6 mm
method of packing	BULK
peak wavelength	660 nm
shape	RECTANGULAR
size	1.2 mm
surface mount	YES
Terminal pitch	1.5 mm

Preview

Download Datasheet

View All

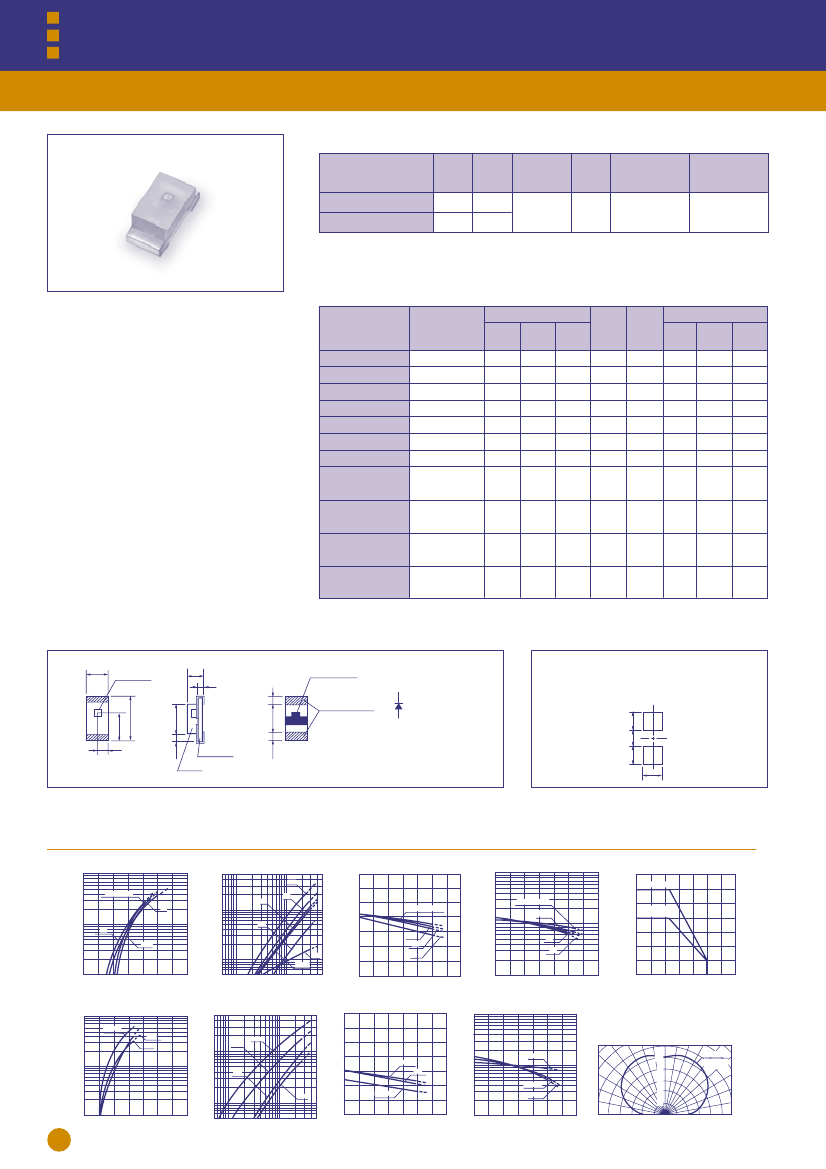

超小型・薄型 LED

CL-191 シリーズ

Miniature Chip LED CL-191 Series

■ Ultra Thin and Small Size

●絶対最大定格/Absolute

Maximum Rating

Series

CL-191

(mW)

(mA)

100

※1

(V)

Top

(℃)

−25∼＋80

(Ta 25℃)

Tst

(℃)

−30∼＋85

(

UR,HRを除く

)

Except UR and HR

CL-191UR/HR

※1

の条件はduty 1/10 、

パルス巾0.1msecです。

Condition for I

is pulse of 1/10 duty and 0.1msec width.

1.6(L)×0.8(W)×0.6

（H）

●電気的光学的特性/Electro-optical

Characteristics

● 超小型タイプLED CL-190の厚み(0.8mm)

を更に薄くした1.6(L)×0.8(W)×0.6(H)

mmの超小型チップLEDです。

● Ultra-small-sized chip LED even thinner than CL-

190 (0.8mm thick),dimensions:1.6 (L)×0.8(W)×

0.6(H)mm

(Ta 25℃)

V※

min

typ

(mA) (mcd) (mcd)

0.5

2.4

2.6

2.5

2.2

1.5

3.5

1.3

7.1

6.4

6.5

4.3

6.2

Code for parts

CL-191R

CL-191D

CL-191Y

CL-191YG

CL-191G

CL-191FG

CL-191PG

CL-191SR

CL-191SD

CL-191UR

CL-191HR

※NIST規格に準拠

※Per NIST standards

Lighting color

Red

Orange

Yellow

Yellow green

Green

Fresh green

Pure green

Super

brightness red

Super brightness

orange

Ultra

brightness red

High

brightness red

(mA)

typ

(V)

2.2

2.1

2.2

1.8

max

(V)

2.6

typ

(nm)

700

605

589

570

567

560

557

650

630

660

Δλ

typ

(nm)

100

●外½寸法図/Outline

drawing

推奨はんだ付けパターン

0.8

LED 素子

LED die

0.6

0.18

カ½ードマーク

(0.3)

The following soldering patterns are recommended for

reflow-soldering:

リフローはんだ用

For reflow soldering

Cathode mark

はんだ付け電極

(1.2)

1.6

(1.08)

(0.2)

樹脂

Resin

P.C. board

0.8

基板

0.3

(0.4)

※UR,HRは極性が逆です。

※Polarity is reversed

on the UR and HR.

0.7

極性※

Polarity※

0.8

Soldering terminal

単½/Unit : mm

0.8

■ 諸特性／

Characteristics

-V

特性

-V

Characteristics

100

2.6

R/YG/G/FG

2.4

YG/G/FG/PG

200

YG/G/FG/PG

500

CL-191UR•HR

Iv-I

特性

Iv-I

Characteristics

-Ta 特性

-Ta Characteristics

Iv-Ta 特性

Iv-Ta Characteristics

max-Ta 特性

max-Ta

Characteristics

Iv(mcd)

(mA)

Iv ( in％)

1.6

1.8

2.0

2.2

max

(mA)

(

)

2.2

2.0

1.8

100

CL-191

シリーズ

CL-191Series

Y/FG

0.5

2.4

2.6

1.6

- 20

100

- 20

100

- 20

100

(

)

-V

特性

-V

Characteristics

100

UR/HR

(mA)

Iv-I

特性

Iv-I

Characteristics

2.6

2.4

T a (

-Ta 特性

-Ta Characteristics

500

Iv-Ta 特性

Iv-Ta Characteristics

指向特性

Directive Characteristics

40°

30°

20° 10°

120

100

60°

UR/HR

70°

80°

90°

- 20

100

70°

80°

90°

50°

100

0°

10° 20°

30°

40°

50°

全機種共通

Common to

all colors

Iv(mcd)

(

)

2.2

2.0

1.8

Iv ( in％)

(mA)

200

60°

1.6

1.8

2.0

2.2

2.4

2.6

0.5

UR/HR

1.6

- 20

100

(

)

(mA)

T a (
