803-43-025-30-001000 datasheet, PDF

803-43-025-30-001000: DescriptionIC Socket, DIP50, 50 Contact(s),; CategoryThe connector socket; File Size241KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

803-43-025-30-001000 Overview

IC Socket, DIP50, 50 Contact(s),

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER
Device slot type	IC SOCKET
Type of equipment used	DIP50
Shell material	POLYESTER
JESD-609 code	e3
Number of contacts	50

MAXIMUM

solutions

Double Row SMT Strip Socket for

.025”-.037” Diameter and .025” Square Pins

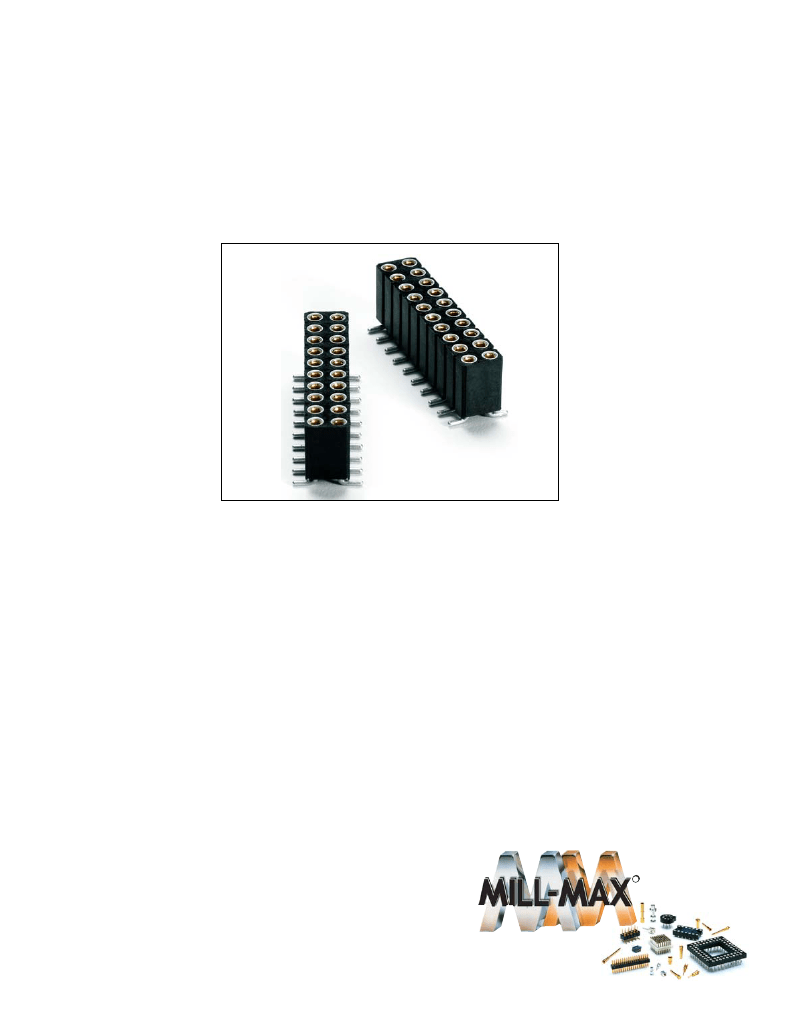

Mill-Max introduces a double row SMT strip socket which accepts .025”-.037” diameter and

.025” square pins. This double-row connector is offered standard in 4 (2x2) up to 100 (2x50)

position configurations on .100” spacing. The .276” tall insulator is manufactured with high

temperature thermoplastic suitable for reflow soldering operations. Each precision-

machined receptacle contains a Mill-Max #47 contact clip, rated at 4.5 amps per position.

This connector is available in RoHS compliant and traditional platings.

For connector configurations up to 10 positions per row, the coplanarity of the leads is .005”.

For strips larger than 10 positions per row, the co-planarity will need to be addressed. Please

visit

www.mill-max.com/PR573

for more information.

(7/09 - 573)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, Oyster Bay, NY 11771-0300

516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

Maximum Interconnect Solutions
