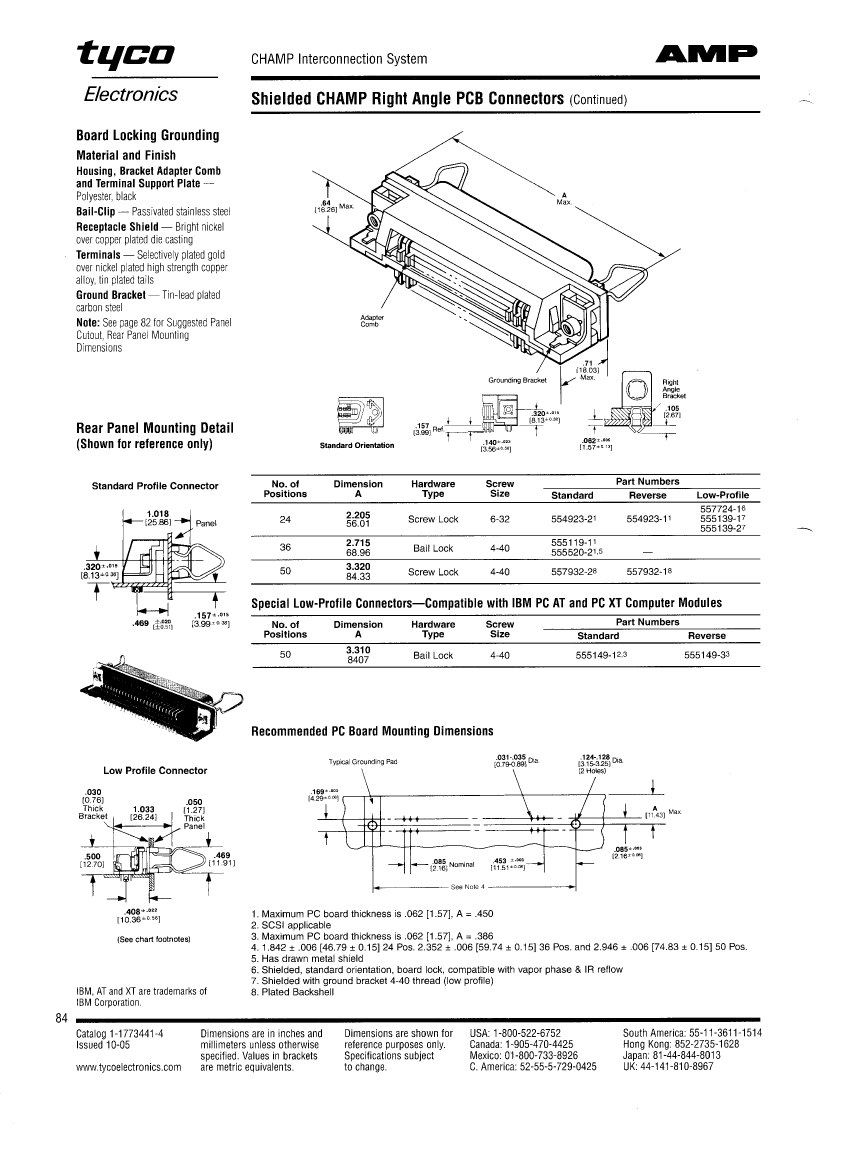

24 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | TE Connectivity |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | CHAMP |
| body width | 0.64 inch |
| subject depth | 0.71 inch |
| body length | 2.205 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | Tin (Sn) |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulator color | BLACK |
| insulator material | POLYESTER |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Manufacturer's serial number | 554923 |
| Plug contact pitch | 0.085 inch |
| Mixed contacts | NO |
| Installation option 1 | #6-32 |
| Installation option 2 | SCREWLOCKS |
| Installation method | RIGHT ANGLE |
| Installation type | PANEL |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 4.2926 mm |
| Rated current (signal) | 3.5 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal pitch | 2.16 mm |
| Termination type | SOLDER |
| Total number of contacts | 24 |
| 554923-1 | 555119-1 | |
|---|---|---|
| Description | 24 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE | 36 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER |
| Is it lead-free? | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible |
| Reach Compliance Code | compliant | compliant |
| ECCN code | EAR99 | EAR99 |
| Other features | CHAMP | CHAMP |
| body width | 0.64 inch | 0.64 inch |
| subject depth | 0.71 inch | 0.71 inch |
| body length | 2.205 inch | 2.715 inch |
| Body/casing type | RECEPTACLE | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED |
| Contact completed and terminated | Tin (Sn) | Tin (Sn) |
| Contact point gender | FEMALE | FEMALE |
| Contact material | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR |
| Contact style | BELLOWED TYPE | BELLOWED TYPE |
| DIN compliance | NO | NO |
| Filter function | NO | NO |
| IEC compliance | NO | NO |
| Insulator color | BLACK | BLACK |
| insulator material | POLYESTER | POLYESTER |
| JESD-609 code | e3 | e3 |
| MIL compliance | NO | NO |
| Manufacturer's serial number | 554923 | 555119 |
| Plug contact pitch | 0.085 inch | 0.085 inch |
| Mixed contacts | NO | NO |
| Installation method | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | PANEL | PANEL |
| PCB row number | 2 | 2 |
| Number of rows loaded | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 4.2926 mm | 4.2926 mm |
| Rated current (signal) | 3.5 A | 3.5 A |
| Guideline | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 2.16 mm | 2.16 mm |
| Termination type | SOLDER | SOLDER |
| Total number of contacts | 24 | 36 |
