DDU-222C-75 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DDU-222C-75

DDU-222C-75: DescriptionActive Delay Line, 1-Func, 5-Tap, True Output, CMOS, SIP-8; Categorylogic logic; File Size41KB，1 Pages; ManufacturerData Delay Devices; Environmental Compliance

Download Datasheet Parametric Compare View All

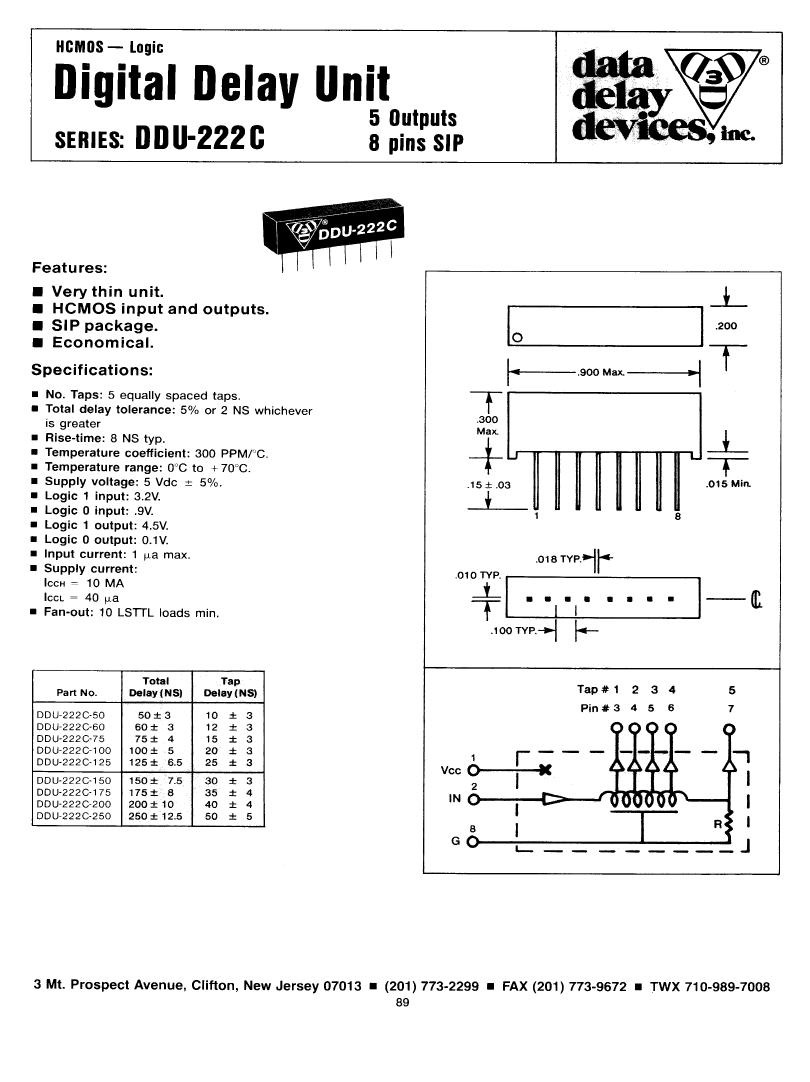

DDU-222C-75 Overview

Active Delay Line, 1-Func, 5-Tap, True Output, CMOS, SIP-8

DDU-222C-75 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Data Delay Devices
Parts packaging code	SIP
package instruction	SIP-8
Contacts	8
Reach Compliance Code	compliant
Other features	MIN. FAN OUT OF 10 LSTTL LOADS
series	HC/UH
JESD-30 code	R-XSIP-T8
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	5
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	SIP
Encapsulate equivalent code	SIP8,.06
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	10 mA
programmable delay line	NO
Prop。Delay @ Nom-Sup	75 ns
Certification status	Not Qualified
Maximum seat height	7.62 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	75 ns
width	5.08 mm

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DDU-222C-75 Related Products

	DDU-222C-75	DDU-222C-250	DDU-222C-175	DDU-222C-100	DDU-222C-200	DDU-222C-150	DDU-222C-50	DDU-222C-125	DDU-222C-60
Description	Active Delay Line, 1-Func, 5-Tap, True Output, CMOS, SIP-8	Active Delay Line, 1-Func, 5-Tap, True Output, CMOS, SIP-8	Active Delay Line, 1-Func, 5-Tap, True Output, CMOS, SIP-8	Active Delay Line, 1-Func, 5-Tap, True Output, CMOS, SIP-8	Active Delay Line, 1-Func, 5-Tap, True Output, CMOS, SIP-8	Active Delay Line, 1-Func, 5-Tap, True Output, CMOS, SIP-8	Active Delay Line, 1-Func, 5-Tap, True Output, CMOS, SIP-8	Active Delay Line, 1-Func, 5-Tap, True Output, CMOS, SIP-8	Active Delay Line, 1-Func, 5-Tap, True Output, CMOS, SIP-8
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	SIP	SIP	SIP	SIP	SIP	SIP	SIP	SIP	SIP
package instruction	SIP-8	SIP, SIP8,.06	SIP, SIP8,.06	SIP, SIP8,.06	SIP-8	SIP-8	SIP-8	SIP-8	SIP, SIP8,.06
Contacts	8	8	8	8	8	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	MIN. FAN OUT OF 10 LSTTL LOADS	MIN. FAN OUT OF 10 LSTTL LOADS	MIN. FAN OUT OF 10 LSTTL LOADS	MIN. FAN OUT OF 10 LSTTL LOADS	MIN. FAN OUT OF 10 LSTTL LOADS	MIN. FAN OUT OF 10 LSTTL LOADS	MIN. FAN OUT OF 10 LSTTL LOADS	MIN. FAN OUT OF 10 LSTTL LOADS	MIN. FAN OUT OF 10 LSTTL LOADS
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-XSIP-T8	R-XSIP-T8	R-XSIP-T8	R-XSIP-T8	R-XSIP-T8	R-XSIP-T8	R-XSIP-T8	R-XSIP-T8	R-XSIP-T8
Logic integrated circuit type	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE
Number of functions	1	1	1	1	1	1	1	1	1
Number of taps/steps	5	5	5	5	5	5	5	5	5
Number of terminals	8	8	8	8	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	SIP	SIP	SIP	SIP	SIP	SIP	SIP	SIP	SIP
Encapsulate equivalent code	SIP8,.06	SIP8,.06	SIP8,.06	SIP8,.06	SIP8,.06	SIP8,.06	SIP8,.06	SIP8,.06	SIP8,.06
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA
programmable delay line	NO	NO	NO	NO	NO	NO	NO	NO	NO
Prop。Delay @ Nom-Sup	75 ns	250 ns	175 ns	100 ns	200 ns	150 ns	50 ns	125 ns	60 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Total delay nominal (td)	75 ns	250 ns	175 ns	100 ns	200 ns	150 ns	50 ns	125 ns	60 ns
width	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Maker	Data Delay Devices	Data Delay Devices	-	-	Data Delay Devices	Data Delay Devices	Data Delay Devices	Data Delay Devices	Data Delay Devices
