2694.8083 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 2694.8083

2694.8083: DescriptionSingle Color LED, Green, Diffused, T-1, 3mm,; CategoryLED optoelectronic/LED photoelectric; File Size477KB，4 Pages; ManufacturerMentor( a Siemens Business); Websitehttps://www.mentor.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2694.8083 Overview

Single Color LED, Green, Diffused, T-1, 3mm,

2694.8083 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
color	GREEN
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	DIFFUSED
Nominal luminous intensity	20.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2.6 mm
method of packing	BULK
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	60 deg
Base Number Matches	1

Preview

Download Datasheet

View All

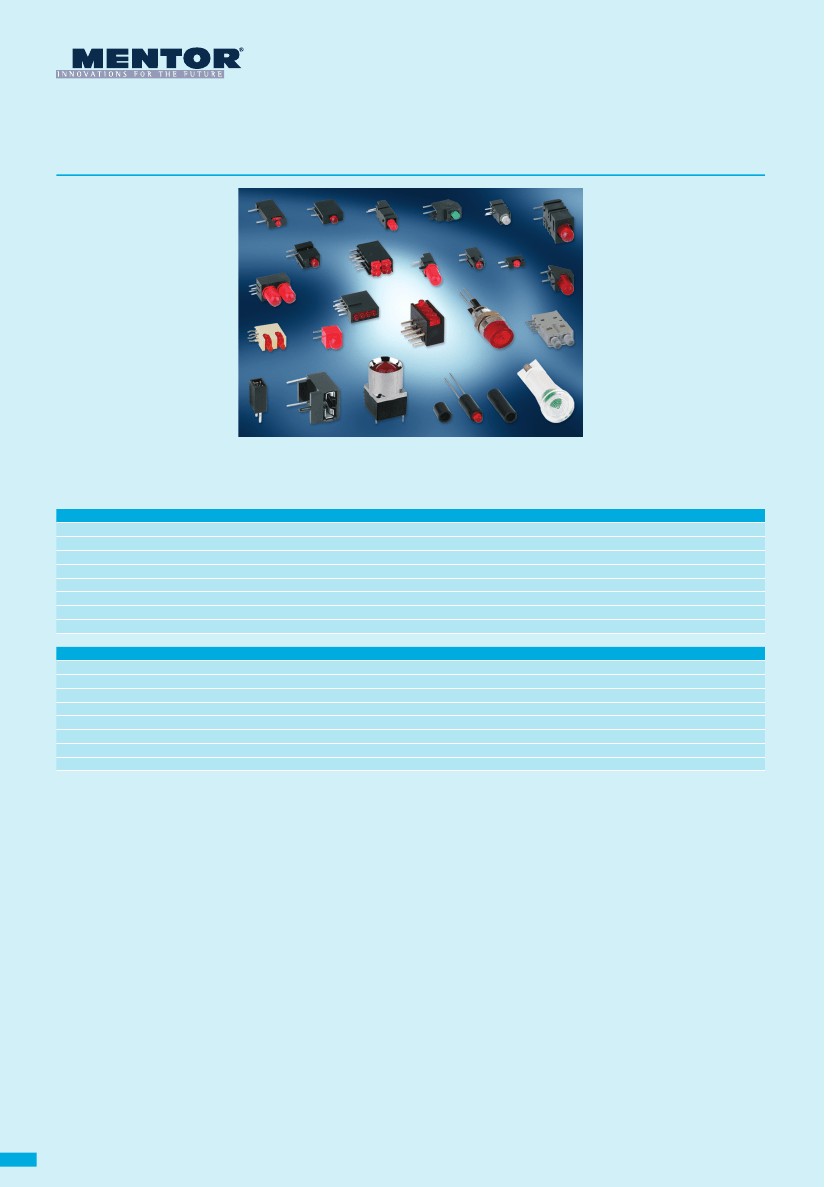

LED-Anzeigesysteme

In die Entwicklung dieser Bausteine ist

das über Jahrzehnte erworbene Know-

how der Firma MENTOR als Entwickler

und Lieferant von Bauelementen für die

Industrieelektronik geflossen. Die Baue-

lementen-Vielfalt erstreckt sich von THT-

Einzelanzeigen in unterschiedlichsten

Ausführungen über THT-LED-Leisten,

Flächenausleuchtsystemen, Signallam-

pen bis hin zu Lampenfassungen. THT-

Ausführungen kennzeichnen Bauteile in

Durchstecktechnik.

Der Einsatz dieser Bausteine ist überall

dort zu suchen, wo Licht flimmert, strahlt

oder blinkt, wo Lichtsignale auf Funkti-

onen oder Betriebszustände aufmerksam

machen sollen und müssen.

Den sich ständig verändernden Anforde-

rungen unserer Kunden begegnen wir mit Kompetenz und Innovationskraft und

der sich daraus ergebenden Möglichkeit, neben Standardlösungen auch spezielle

Kundenwünsche zu erfüllen.

LED Display Systems

The development of these components

benefited from decades of experience

gained by MENTOR in developing and

supplying components for industrial

electronics. The range of components

stretches from individual THT displays in

various versions via THT LED bars, sur-

faces made from illumination systems,

and signaling lamps all the way to lamp

sockets. THT versions designate compon-

ents in hole-mounted technology.

The area of application of these compo-

nents covers any scenario where light

flickers, radiates or flashes where light

signals should and must draw attention

to functions or operating status.

We meet our customer‘s constantly

changing demands with competency

and innovative energy, thus being able to fulfil not only standard solutions but

also to meet customer specific requirements.

Allgemeine technische Daten

(Auswahl bzw. Abweichungen zu den folgenden allgem. Daten: siehe Beschreibung des jeweiligen Artikels)

Lötbarkeit

DIN IEC 68-2-20 (260°C

≤

5s)

Anschlüsse

verzinnt

Betriebstemperatur

-40°C ... +85°C

Klima

GPF DIN 40040

Beschriftung

auf Sonderwunsch bedruckt oder gelasert

Bestückung mit LED‘s

Technische Daten siehe Seite 65/66

Sonderwünsche

Sonderbestückung, Verwendung von zusätzlichen Fixierpins sowie umgekehrte Polarität auf Anfrage möglich.

Mindestbestellmengen für Sonderausführungen auf Anfrage.

General Technical Data

(Selection and deviations from the following general data: see description of the respective item)

Solderability

DIN IEC 68-2-20 (260°C

≤

5s)

Terminals

tinned

Operatin temperature

-40°C ... +85°C

Climate

GPF DIN 40040

Marking

On special request printed or laser printed

LED’s

Technical data see page 65/66

Special requirements

Special components, use of additional fixing pins and reverse polarity on request

Minimum quantity for special design on request.

Magerdruck keine Lagerware · Bestellmenge und Preise auf Anfrage · Articles in roman typefaces not in stock · Order quantities and prices on request

2694.8083 Related Products

	2694.8083	2694.8023	2694.8323	2694.3083
Description	Single Color LED, Green, Diffused, T-1, 3mm,	Single Color LED, Red, Diffused, T-1, 3mm,	Single Color LED, Red, Diffused, T-1, 3mm,	Single Color LED, Green, Diffused, T-1, 3mm,
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	unknow	unknow	unknow	unknow
color	GREEN	RED	RED	GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.025 A	0.025 A	0.025 A	0.025 A
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	20.0 mcd	3.0 mcd	3.0 mcd	2.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	2.6 mm	2.6 mm	2.6 mm	2.6 mm
method of packing	BULK	BULK	BULK	BULK
shape	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	60 deg	60 deg	60 deg	60 deg
Base Number Matches	1	1	1	1
