DIP14-5170 datasheet, PDF - EEWORLD Datasheet

DIP14-5170: DescriptionPassive Delay Line, 1-Func, 10-Tap, True Output, 0.200 INCH HEIGHT, DIP-14; Categorylogic logic; File Size303KB，4 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

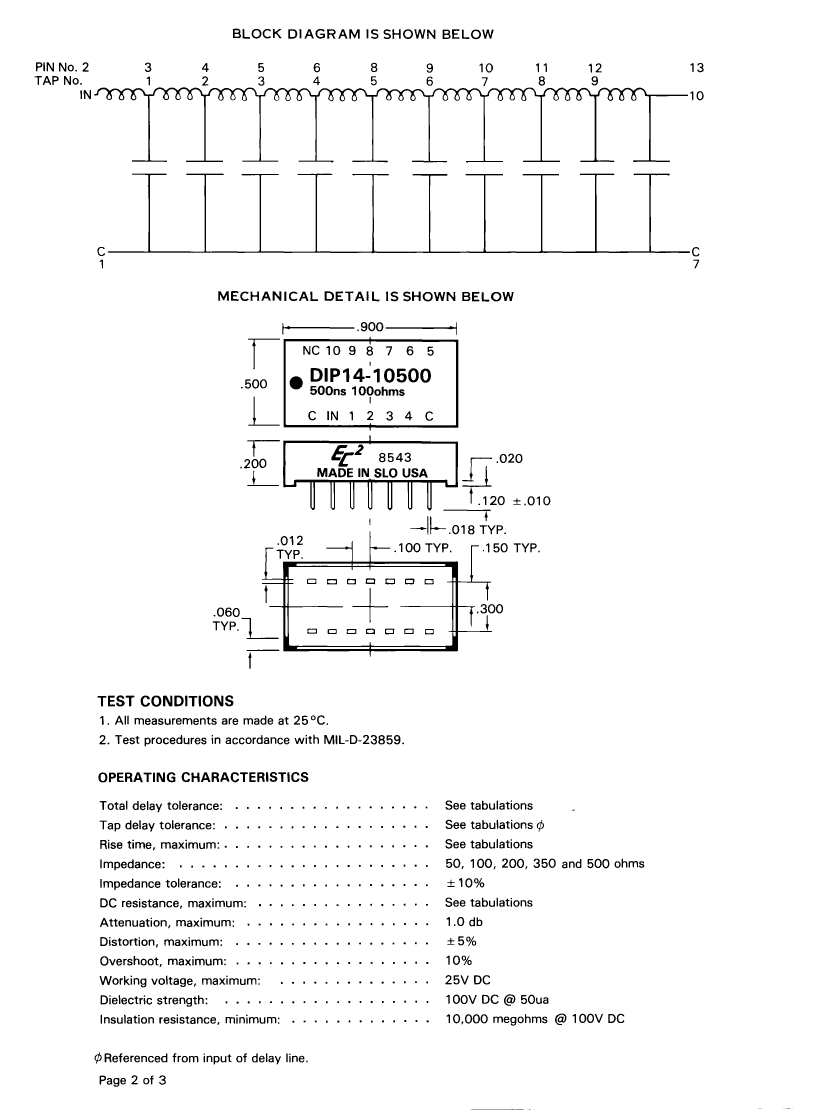

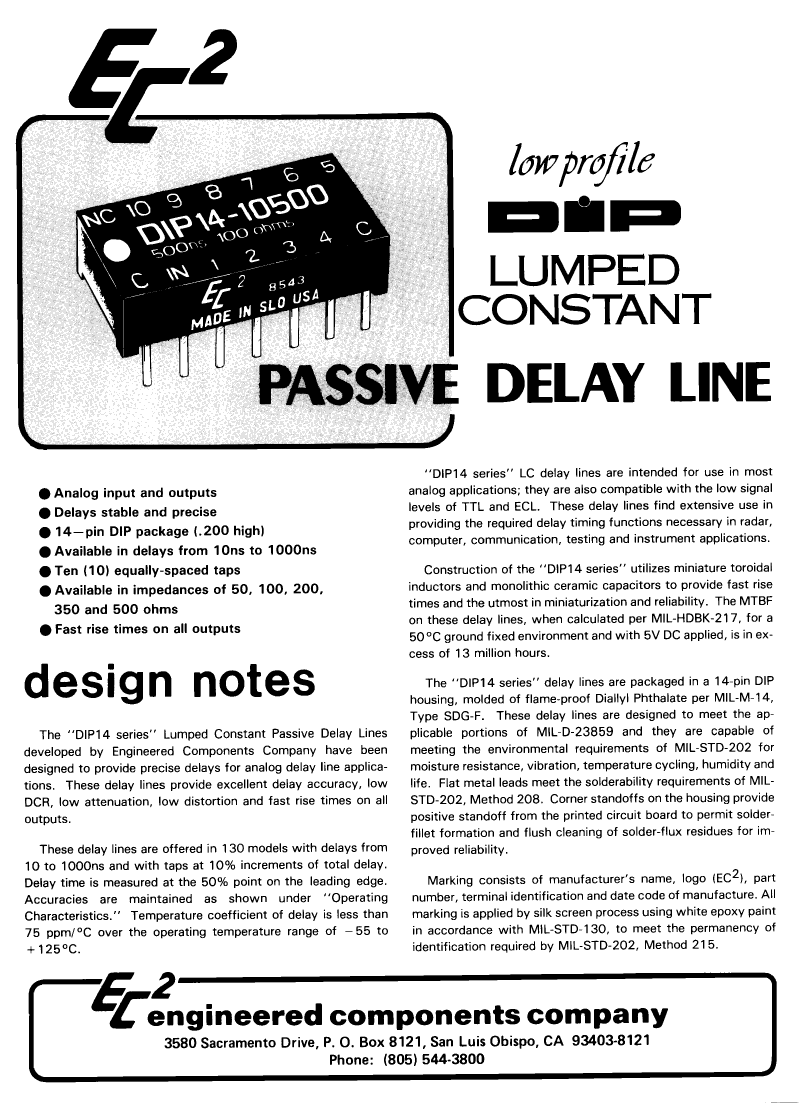

DIP14-5170 Overview

Passive Delay Line, 1-Func, 10-Tap, True Output, 0.200 INCH HEIGHT, DIP-14

Parameter Name	Attribute value
Maker	Engineered Components Co.
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	unknown
Other features	MEETS MIL-D-23859; MAX DISTORTION 5%; MAX RISE TIME AND TEMP. COEFF. CAPTURED
JESD-30 code	R-XDIP-T14
length	22.86 mm
Logic integrated circuit type	PASSIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance nominal value (Z0)	50 Ω
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
programmable delay line	NO
Certification status	Not Qualified
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

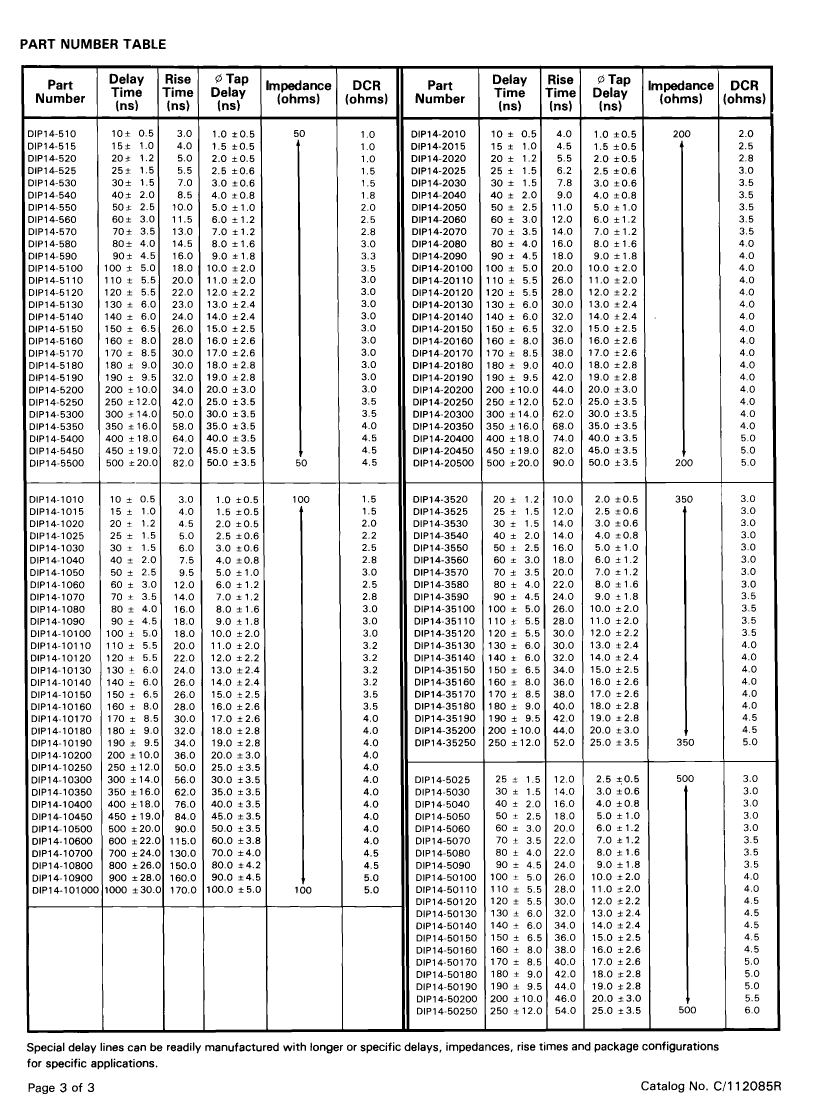

Total delay nominal (td)	170 ns
width	7.62 mm
