Printview: Busbar terminal block 4 mm² - Item No.: 812-104
.
Busbar terminal block 4 mm²
Item No.: 812-104
.
Busbar terminal block 4 mm²
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
812-104
4044918253291
1
10
Safety information 1: Current carrying capacity: With a maximum total current of 96 A, the clamping units of the
busbar terminal block can be loaded with the rated current of the conductor cross sections approved. This only
applies when 10 x 3 mm (0.394 x 0.118 in) busbars are used.
Technical data
Miscellaneous
No. of poles
Total number of connection points
Total number of potentials
Color
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
Nominal current [A]
Connection technology
12
12
12
blue
1000 [V]
6 [kV]
96 [A]
Push-in CAGE CLAMP®
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Busbar terminal block 4 mm² - Item No.: 812-104
Technical data
Number of connection points
Actuation type
Connectable conductor materials
Solid sizes
solid, directly pluggable
stranded, connectable
Fine-stranded wires
Strip length
Type of wiring
Insulating material
Fire load [MJ]
Weight [g]
Width
Height
Length
1
Betätigungswerkzeug
Kupfer
0.5 … 4 mm² / 20 … 12 AWG
0.5 … 4 mm² / 20 … 12 AWG
0.5 … 4 mm² / 20 … 12 AWG
0.5 … 4 mm² / 20 … 12 AWG
11 mm / 0.43 in
Front-entry wiring
Polyamide 66 (PA 66)
0.822 [MJ]
35.688 [g]
75 mm / 2.953 in
30 mm / 1.181 in
27.5 mm / 1.083 in
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Busbar terminal block 4 mm² - Item No.: 812-104

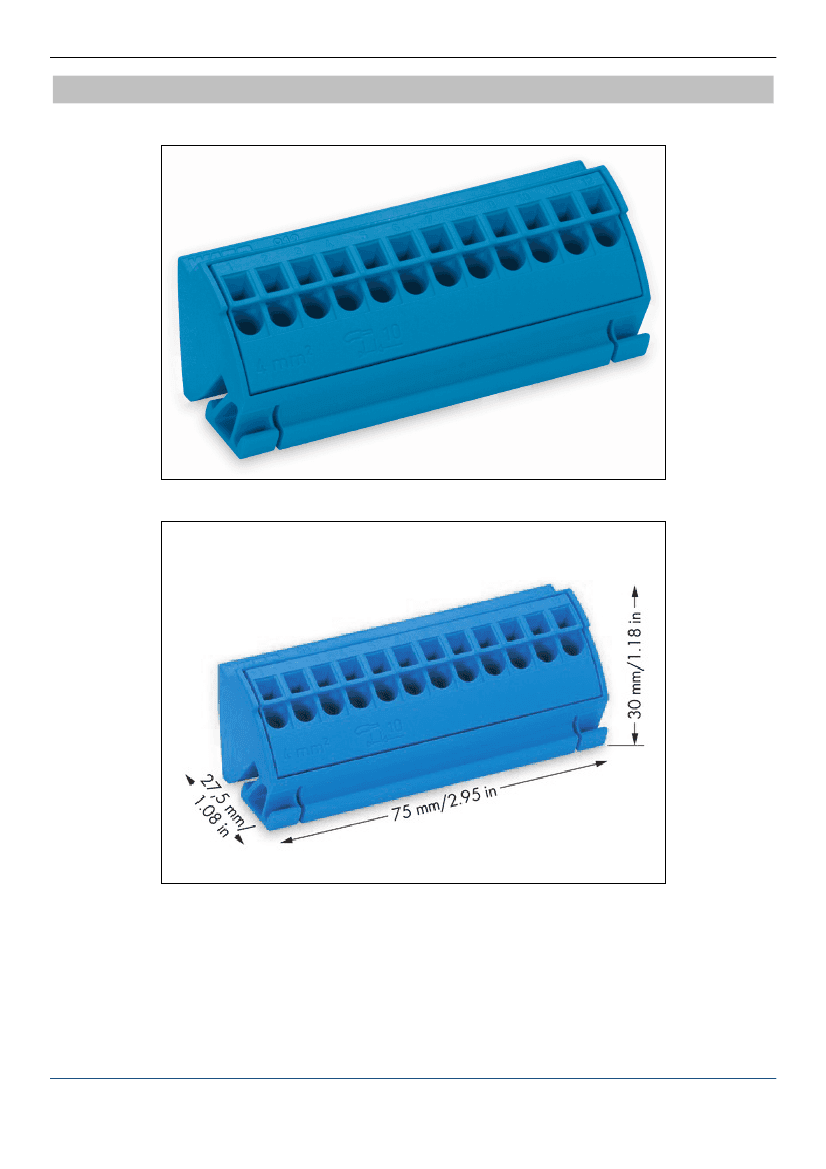

Images & drawings
.
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Busbar terminal block 4 mm² - Item No.: 812-104
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
WAGO Kontakttechnik GmbH & Co. KG
4
