AT22LV10-25FC datasheet, PDF - EEWORLD Datasheet

AT22LV10-25FC: DescriptionOT PLD, 25ns, PAL-Type, CMOS, CDFP24, MO-19AA, CERPACK-24; CategoryProgrammable logic devices Programmable logic; File Size436KB，14 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric View All

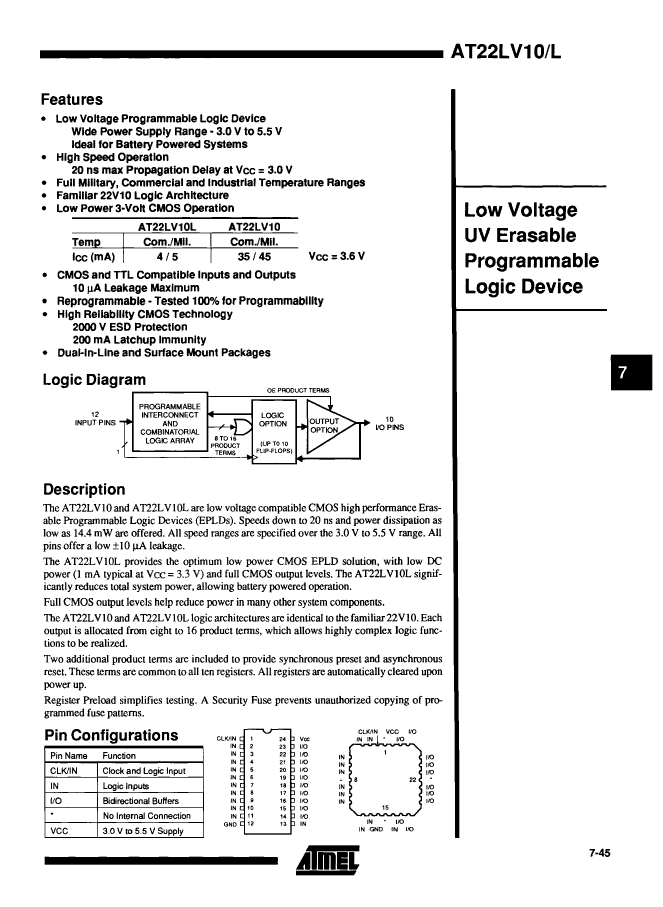

AT22LV10-25FC Overview

OT PLD, 25ns, PAL-Type, CMOS, CDFP24, MO-19AA, CERPACK-24

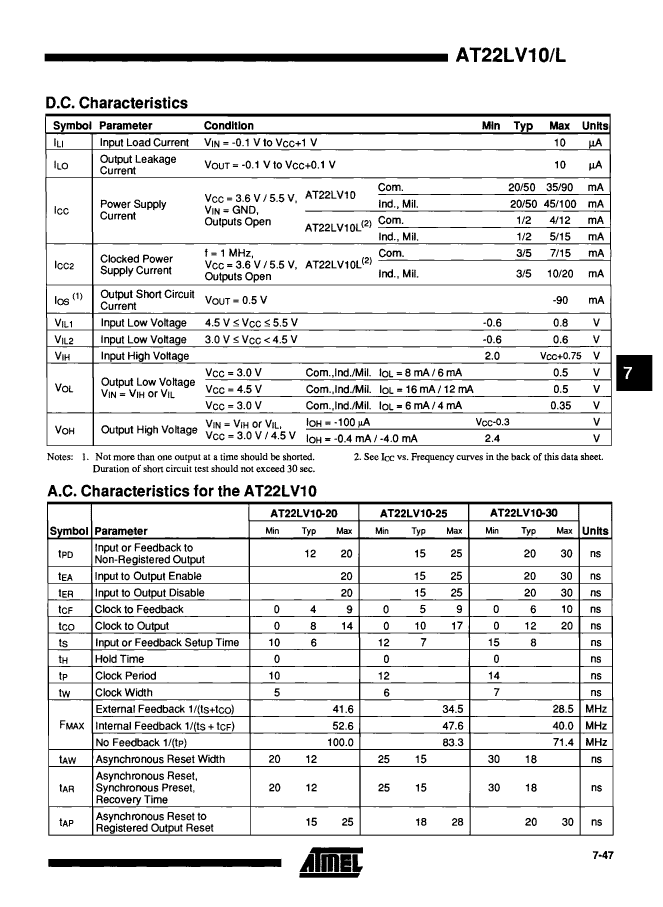

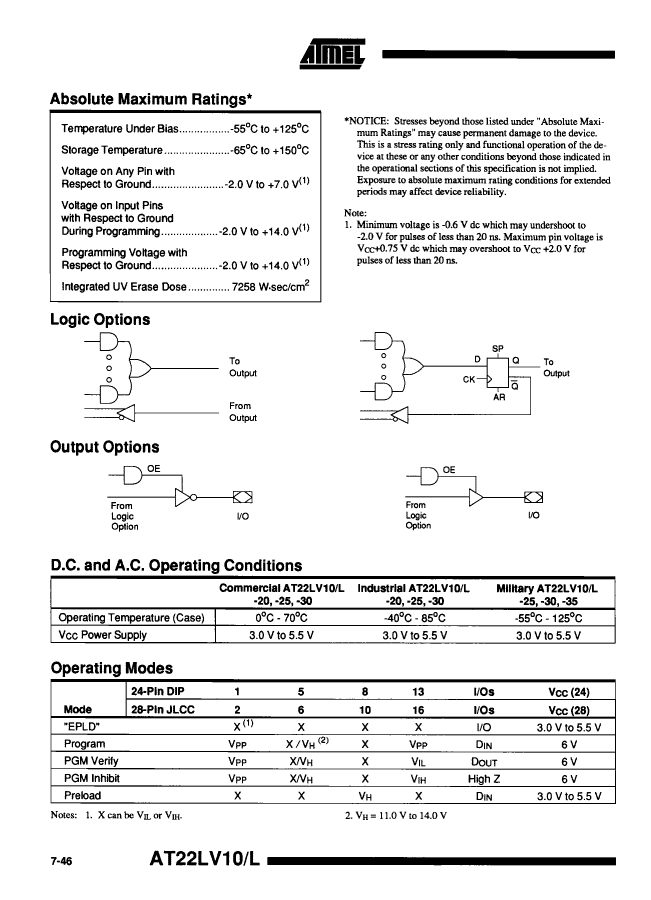

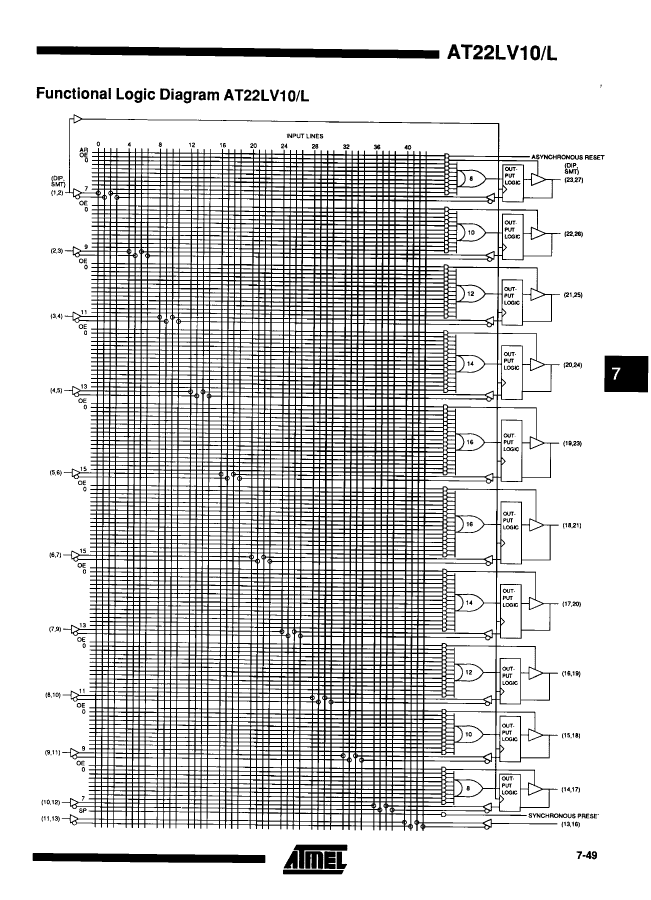

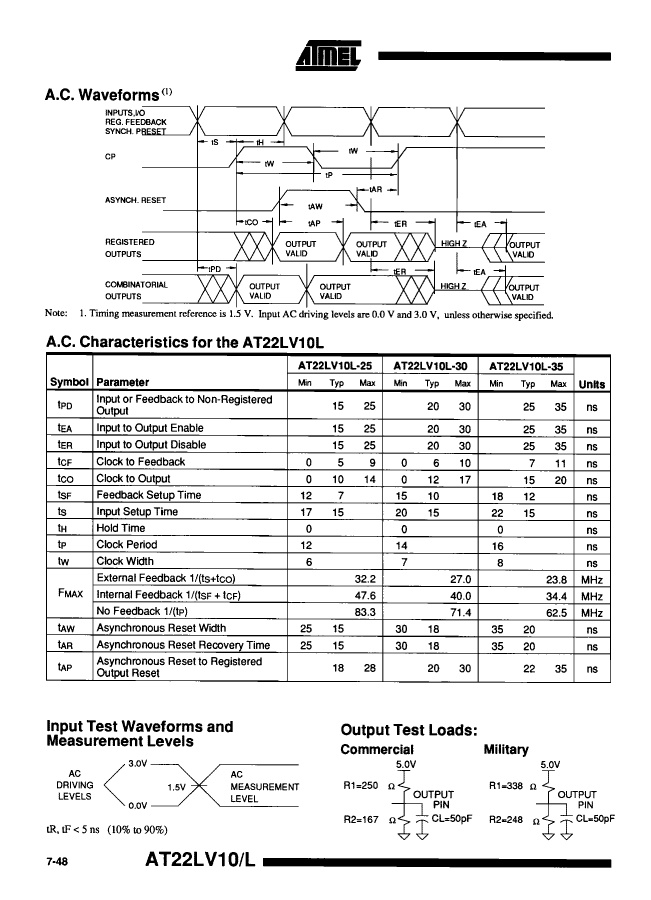

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
Parts packaging code	DFP
package instruction	DFP, FL24,.4
Contacts	24
Reach Compliance Code	unknown
Other features	10 FLIP FLOPS
Architecture	PAL-TYPE
maximum clock frequency	34.5 MHz
JESD-30 code	R-GDFP-F24
JESD-609 code	e0
length	15.45 mm
Dedicated input times	11
Number of I/O lines	10
Number of entries	22
Output times	10
Number of product terms	132
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
organize	11 DEDICATED INPUTS, 10 I/O
Output function	REGISTERED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL24,.4
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	3.3/5 V
Programmable logic type	OT PLD
propagation delay	25 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.29 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	9.6 mm
