2N3073 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2N3073

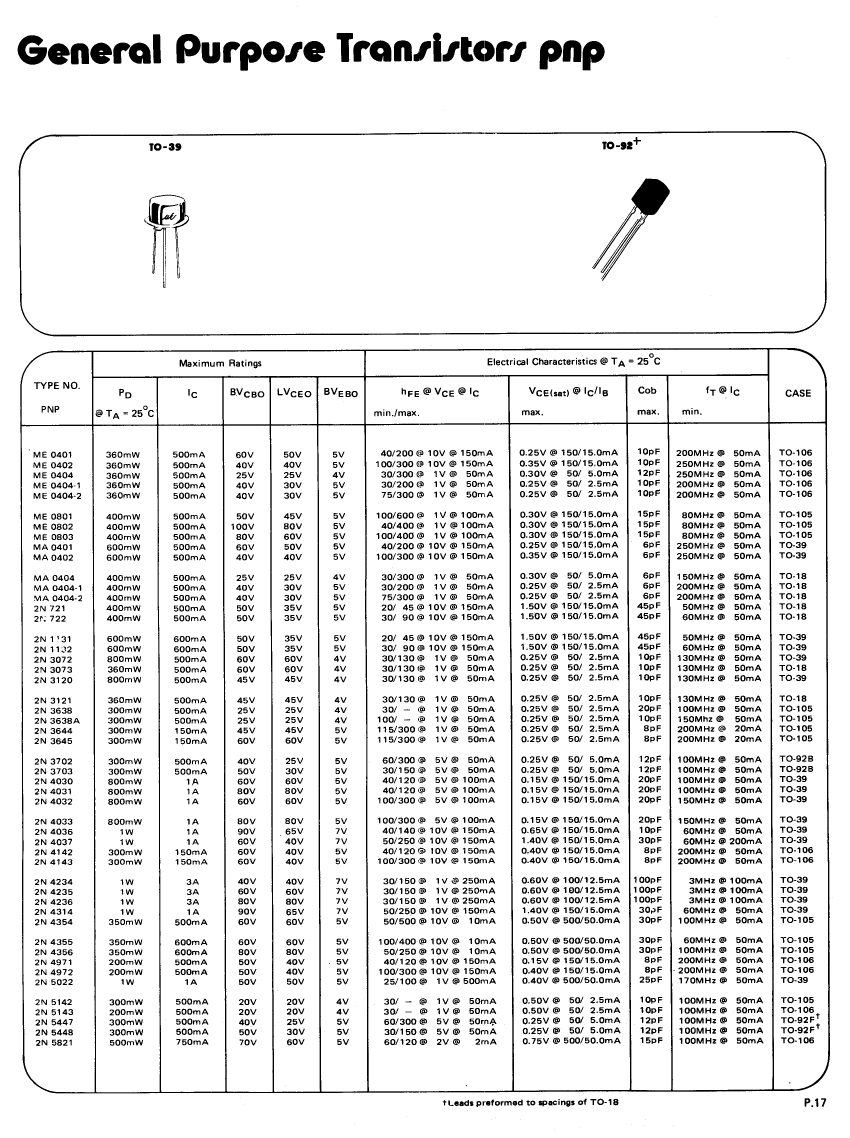

2N3073: DescriptionSmall Signal Bipolar Transistor, 0.5A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-18, TO-18, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size84KB，1 Pages; ManufacturerMicro Electronics; Websitehttp://www.microelectr.com.hk

Download Datasheet Parametric Compare View All

2N3073 Overview

Small Signal Bipolar Transistor, 0.5A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-18, TO-18, 3 PIN

2N3073 Parametric

Parameter Name	Attribute value
Parts packaging code	BCY
package instruction	CYLINDRICAL, O-MBCY-W3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	60 V
Configuration	SINGLE
Minimum DC current gain (hFE)	30
JEDEC-95 code	TO-18
JESD-30 code	O-MBCY-W3
Number of components	1
Number of terminals	3
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.36 W
Certification status	Not Qualified
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	130 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

2N3073 Related Products

	2N3073	2N3644	2N5143	2N3121	2N3120	2N4142	2N4143	2N4356	2N4031	2N3645
Description	Small Signal Bipolar Transistor, 0.5A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-18, TO-18, 3 PIN	Small Signal Bipolar Transistor, 0.15A I(C), 1-Element, PNP, Silicon, TO-105, TO-105, 4 PIN	Transistor,	Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, TO-18, TO-18, 3 PIN	Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, TO-39, TO-39, 3 PIN	Transistor,	Transistor,	Small Signal Bipolar Transistor, 0.6A I(C), 1-Element, PNP, Silicon, TO-105, TO-105, 4 PIN	Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-39, TO-39, 3 PIN	Small Signal Bipolar Transistor, 0.15A I(C), 1-Element, PNP, Silicon, TO-105, TO-105, 4 PIN
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-PBCY-W4	,	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	,	,	CYLINDRICAL, O-PBCY-W4	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-PBCY-W4
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Maximum collector current (IC)	0.5 A	0.15 A	0.5 A	0.5 A	0.5 A	0.2 A	0.2 A	0.6 A	1 A	0.15 A
Configuration	SINGLE	SINGLE	Single	SINGLE	SINGLE	Single	Single	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	30	115	15	30	30	40	100	50	40	115
Maximum operating temperature	200 °C	125 °C	125 °C	200 °C	200 °C	150 °C	150 °C	125 °C	175 °C	125 °C
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	0.36 W	0.3 W	0.2 W	0.36 W	0.8 W	0.3 W	0.3 W	0.35 W	0.8 W	0.3 W
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Nominal transition frequency (fT)	130 MHz	200 MHz	100 MHz	130 MHz	130 MHz	200 MHz	200 MHz	100 MHz	100 MHz	200 MHz
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Parts packaging code	BCY	TO-105	-	BCY	TO-39	-	-	TO-105	TO-39	TO-105
Contacts	3	4	-	3	3	-	-	4	3	4
JEDEC-95 code	TO-18	TO-105	-	TO-18	TO-39	-	-	TO-105	TO-39	TO-105
JESD-30 code	O-MBCY-W3	O-PBCY-W4	-	O-MBCY-W3	O-MBCY-W3	-	-	O-PBCY-W4	O-MBCY-W3	O-PBCY-W4
Number of components	1	1	-	1	1	-	-	1	1	1
Number of terminals	3	4	-	3	3	-	-	4	3	4
Package body material	METAL	PLASTIC/EPOXY	-	METAL	METAL	-	-	PLASTIC/EPOXY	METAL	PLASTIC/EPOXY
Package shape	ROUND	ROUND	-	ROUND	ROUND	-	-	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	-	CYLINDRICAL	CYLINDRICAL	-	-	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	-	-	Not Qualified	Not Qualified	Not Qualified
Terminal form	WIRE	WIRE	-	WIRE	WIRE	-	-	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	-	BOTTOM	BOTTOM	-	-	BOTTOM	BOTTOM	BOTTOM
Transistor component materials	SILICON	SILICON	-	SILICON	SILICON	-	-	SILICON	SILICON	SILICON
