2782-6051-20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 2782-6051-20

2782-6051-20: Description0MHz - 26500MHz RF/MICROWAVE FIXED ATTENUATOR; CategoryWireless rf/communication Radio frequency and microwave; File Size96KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

2782-6051-20 Overview

0MHz - 26500MHz RF/MICROWAVE FIXED ATTENUATOR

2782-6051-20 Parametric

Parameter Name	Attribute value
Objectid	1420075469
Reach Compliance Code	unknown
Other features	SMA
Nominal attenuation	20 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	26500 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

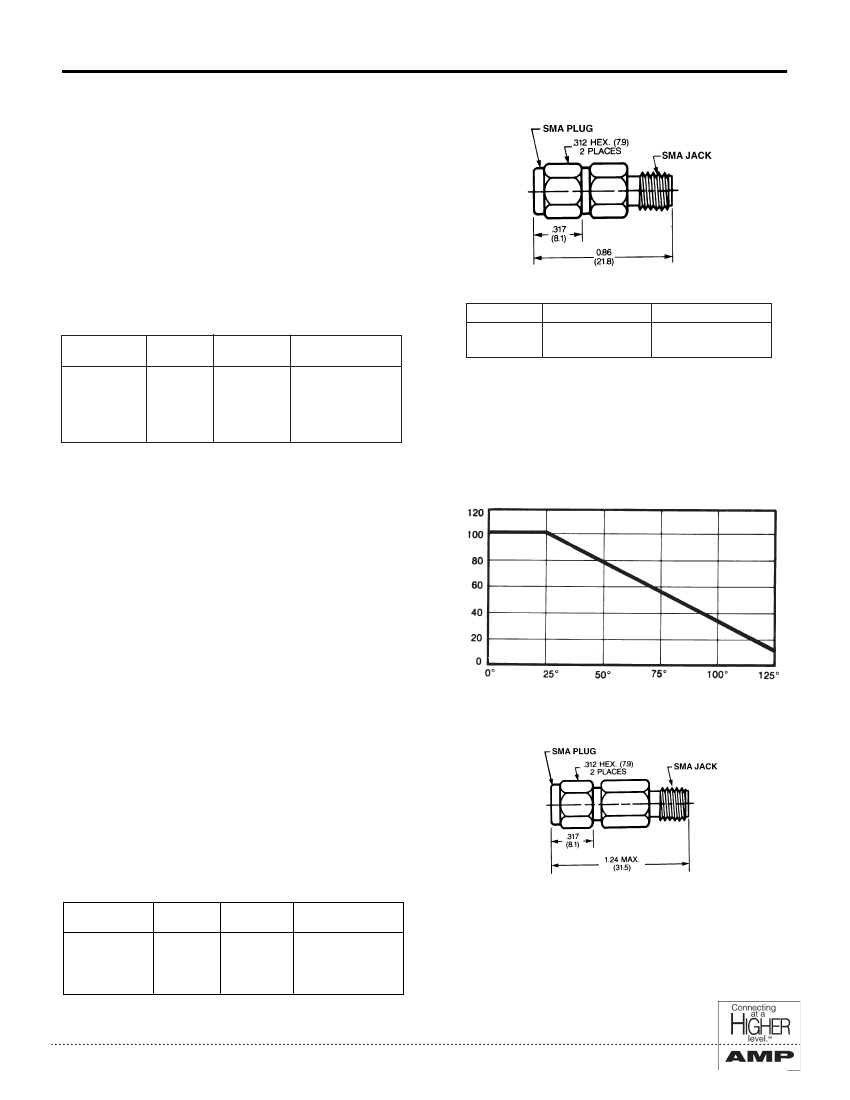

SMA Fixed Coaxial Attenuators

Subminiature

Round Body

Any standard attenuator shown below is available with

any combination of plug and jack connectors, as well as

attenuation values. Contact factory for part numbers and

speciﬁcations.

2082 Series

V2.00

Low Cost

Part Number

Plug Jack

2082-6141-03

2082-6142-06

2082-6143-10

2082-6144-20

2082-6144-30

dc - 18.0

Frequency

(GHz)

Attenuation

(dB)

3.0 ±0.60

6.0 ±0.75

10.0 ±1.25

20.0 ±1.50

30.0 ±2.00

Power:

2 Watts Average

500 Watts Peak

See Derating Curve

Finish:

Passivated Stainless

Steel

VSWR

dc to 4 GHz 1.20

4 to 12.4 GHz 1.40

12.4 to 18 GHz 1.60

0 - 12

13 - 30

DIM. A

0.86 (21.8mm)

1.02 (25.9mm)

WEIGHT

.18 oz. max. (5g)

.21 oz. max. (6g)

Part Number

Plug Jack

2082-6020-03

2082-6021-06

2082-6022-10

2082-6023-20

2082-6024-30

2082-6010-03

2082-6011-06

2082-6012-10

2082-6013-20

2082-6014-30

Frequency

(GHz)

Attenuation

(dB)

3.0 ±0.30

6.0 ±0.30

VSWR

dc to 4 GHz 1.15

4 to 12.4 GHz 1.25

dc - 12.4

10.0 ±0.50

20.0 ±0.50

30.0 ±0.75

3.0 ±0.30

6.0 ±0.30

dc - 4

10.0 ±0.50

20.0 ±0.50

30.0 ±0.75

dc to 4 GHz 1.15

M/A-COM Division of AMP Incorporated

North America: Tel. (800) 366-2266, Fax (800) 618-8883

Asia/Paciﬁc: Tel. +85 2 2111 8088, Fax +85 2 2111 8087

Europe: Tel. +44 (1344) 869 595, Fax +44 (1344) 300 020

www.macom.com

AMP and Connecting at a Higher Level are trademarks.

Speciﬁcations subject to change without notice.

4-10
