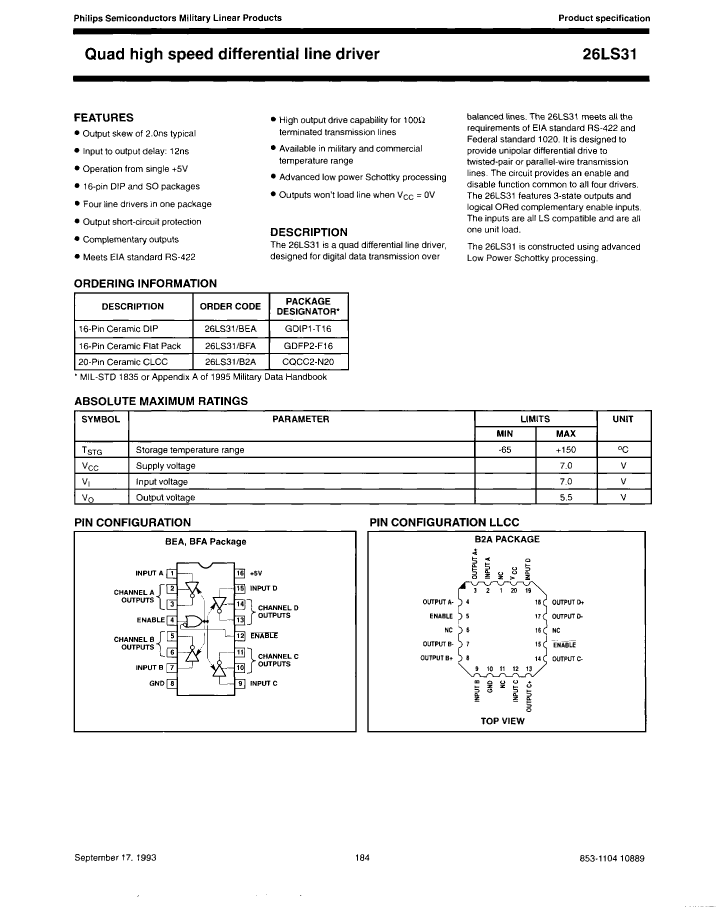

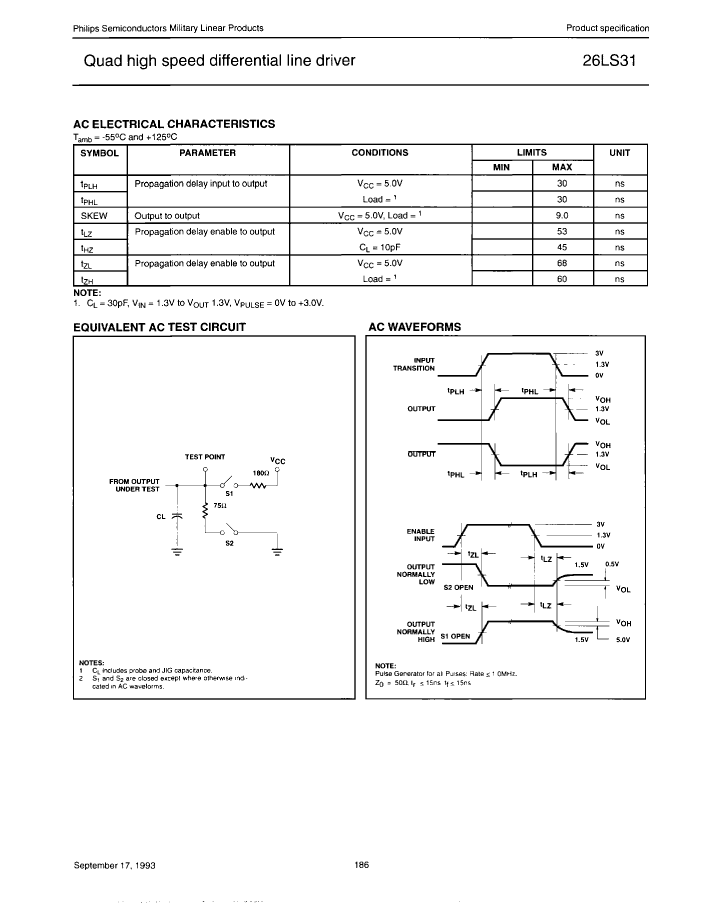

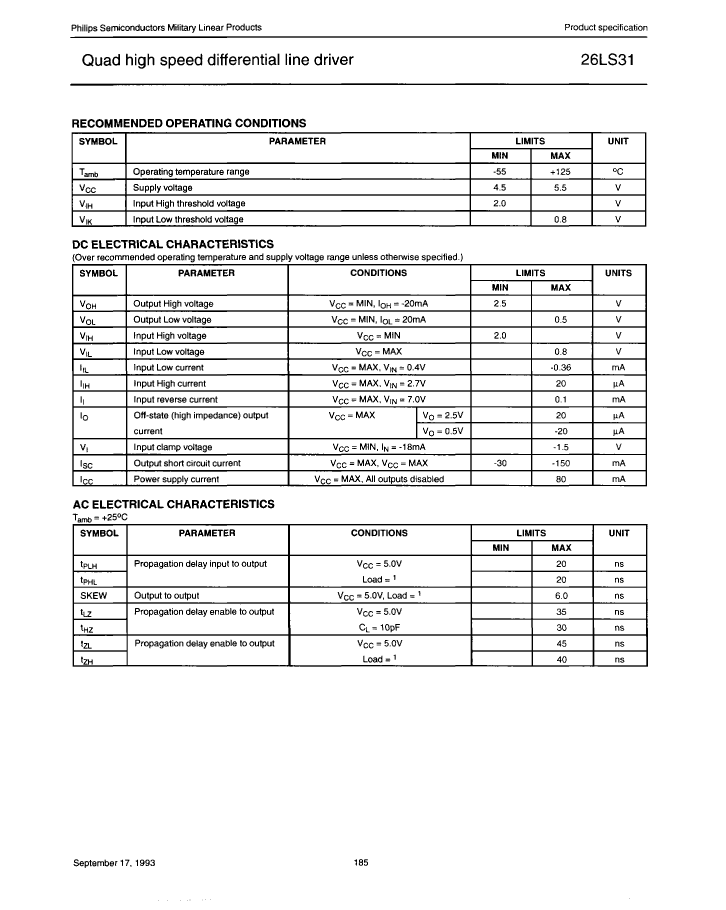

IC QUAD LINE DRIVER, CDIP16, CERAMIC, DIP-16, Line Driver or Receiver
| Parameter Name | Attribute value |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 16 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Differential output | YES |
| Number of drives | 1 |
| Input properties | STANDARD |
| Interface integrated circuit type | LINE DRIVER |
| Interface standards | EIA-422; FED STD 1020 |
| JESD-30 code | R-GDIP-T16 |
| length | 19.535 mm |
| Number of functions | 4 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| maximum transmission delay | 30 ns |
| width | 7.62 mm |
| Base Number Matches | 1 |
| 26LS31/BEA | 26LS31/B2A-T | 26LS31/B2A | 26LS31/BFA | 26LS31/BFA-T | |
|---|---|---|---|---|---|
| Description | IC QUAD LINE DRIVER, CDIP16, CERAMIC, DIP-16, Line Driver or Receiver | IC QUAD LINE DRIVER, CQCC20, CERAMIC, LCC-20, Line Driver or Receiver | IC QUAD LINE DRIVER, CQCC20, CERAMIC, LCC-20, Line Driver or Receiver | IC QUAD LINE DRIVER, CDFP16, CERAMIC, DFP-16, Line Driver or Receiver | IC QUAD LINE DRIVER, CDFP16, CERAMIC, DFP-16, Line Driver or Receiver |
| Parts packaging code | DIP | QLCC | QLCC | DFP | DFP |
| package instruction | DIP, | QCCN, | QCCN, | DFP, | DFP, |
| Contacts | 16 | 20 | 20 | 16 | 16 |
| Reach Compliance Code | unknow | unknow | unknow | unknow | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Differential output | YES | YES | YES | YES | YES |
| Number of drives | 1 | 1 | 1 | 1 | 1 |
| Input properties | STANDARD | STANDARD | STANDARD | STANDARD | STANDARD |
| Interface integrated circuit type | LINE DRIVER | LINE DRIVER | LINE DRIVER | LINE DRIVER | LINE DRIVER |
| Interface standards | EIA-422; FED STD 1020 | EIA-422; FED STD 1020 | EIA-422; FED STD 1020 | EIA-422; FED STD 1020 | EIA-422; FED STD 1020 |
| JESD-30 code | R-GDIP-T16 | S-CQCC-N20 | S-CQCC-N20 | R-CDFP-F16 | R-CDFP-F16 |
| Number of functions | 4 | 4 | 4 | 4 | 4 |
| Number of terminals | 16 | 20 | 20 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | QCCN | QCCN | DFP | DFP |
| Package shape | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | CHIP CARRIER | CHIP CARRIER | FLATPACK | FLATPACK |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.08 mm | 1.905 mm | 1.905 mm | 2.159 mm | 2.159 mm |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | YES | YES |
| technology | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | NO LEAD | NO LEAD | FLAT | FLAT |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | QUAD | QUAD | DUAL | DUAL |
| maximum transmission delay | 30 ns | 30 ns | 30 ns | 30 ns | 30 ns |
| width | 7.62 mm | 8.89 mm | 8.89 mm | 6.731 mm | 6.731 mm |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| length | 19.535 mm | 8.89 mm | 8.89 mm | - | - |
| Part Number | Manufacturer | Description |
|---|---|---|
| ST26C31CP16 | Exar | Line Driver, 1 Func, 4 Driver, CMOS, PDIP16, |
| ST26C31IP16 | STARTECH | Line Driver, 1 Func, 4 Driver, CMOS, PDIP16, |
| DS8924N | National Semiconductor（TI ） | IC QUAD LINE DRIVER, PDIP16, PLASTIC, DIP-16, Line Driver or Receiver |
| AM26LS32AIDRG4 | Texas Instruments(德州仪器) | Quadruple Differential Line Receiver 16-SOIC -40 to 85 |
| AM26LV31CD | Texas Instruments(德州仪器) | |
| AM26LV31CDRE4 | Texas Instruments(德州仪器) | Low-Voltage High-Speed Quadruple Differential Line Driver 16-SOIC 0 to 70 |
| AM26C32QDR | Texas Instruments(德州仪器) | Quadruple Differential Line Receiver 16-SOIC -40 to 125 |
| DS34C86TM/NOPB | Texas Instruments(德州仪器) | Quad Receiver RS-422/RS-423 16-Pin SOIC Tube |
| 5962-7802003MEA | Texas Instruments(德州仪器) | Quadruple Differential Line Receiver 16-CDIP -55 to 125 |
| SN65LVDS048APW | Texas Instruments(德州仪器) | Quad LVDS Receiver with Flow-Through Pinout 16-TSSOP -40 to 85 |
| DS26C31MJ/883 | Texas Instruments(德州仪器) | CMOS Quad TRI STATE Differential Line Drivers 16-CDIP -55 to 125 |
| MAX3093EEPE | Rochester Electronics | QUAD LINE RECEIVER, PDIP16, 0.300 INCH, PLASTIC, MS-001AA, DIP-16 |
| MAX3042BEUE+ | Maxim(美信半导体) | 类型：驱动器 驱动器/接收器数：4/0 协议类别：RS422, RS485 数据速率：20Mbps |
| 5962-9164001M2A | Texas Instruments(德州仪器) | CMOS Quad Differential Line Receivers 20-LCCC -55 to 125 |
| AM26C31MWB | Texas Instruments(德州仪器) | Quadruple Differential Line Driver 16-CFP -55 to 125 |
| AM26C31CN | Texas Instruments(德州仪器) | Quadruple Differential Line Driver 16-PDIP 0 to 70 |
| AM26C31ID | Texas Instruments(德州仪器) | Quadruple Differential Line Driver 16-SOIC -40 to 85 |
