B623-2T: DescriptionSilicon Controlled Rectifier, 46000mA I(T), 800V V(RRM), 2 Element, ROHS COMPLIANT PACKAGE-6; CategoryAnalog mixed-signal IC Trigger device; File Size780KB，4 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric View All

B623-2T Overview

Silicon Controlled Rectifier, 46000mA I(T), 800V V(RRM), 2 Element, ROHS COMPLIANT PACKAGE-6

B623-2T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Crydom
package instruction	FLANGE MOUNT, R-XUFM-D6
Contacts	6
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, HALF-CONTROLLED, COMMON ANODE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	80 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	2G-2AK-CA-CK
Description of screw terminals	0
Maximum holding current	200 mA
JESD-30 code	R-XUFM-D6
Maximum leakage current	43000 mA
On-state non-repetitive peak current	650 A
Number of components	2
Number of terminals	6
Maximum on-state current	46000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Repeated peak reverse voltage	800 V
surface mount	NO
Terminal surface	COPPER
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

Preview

Download Datasheet

View All

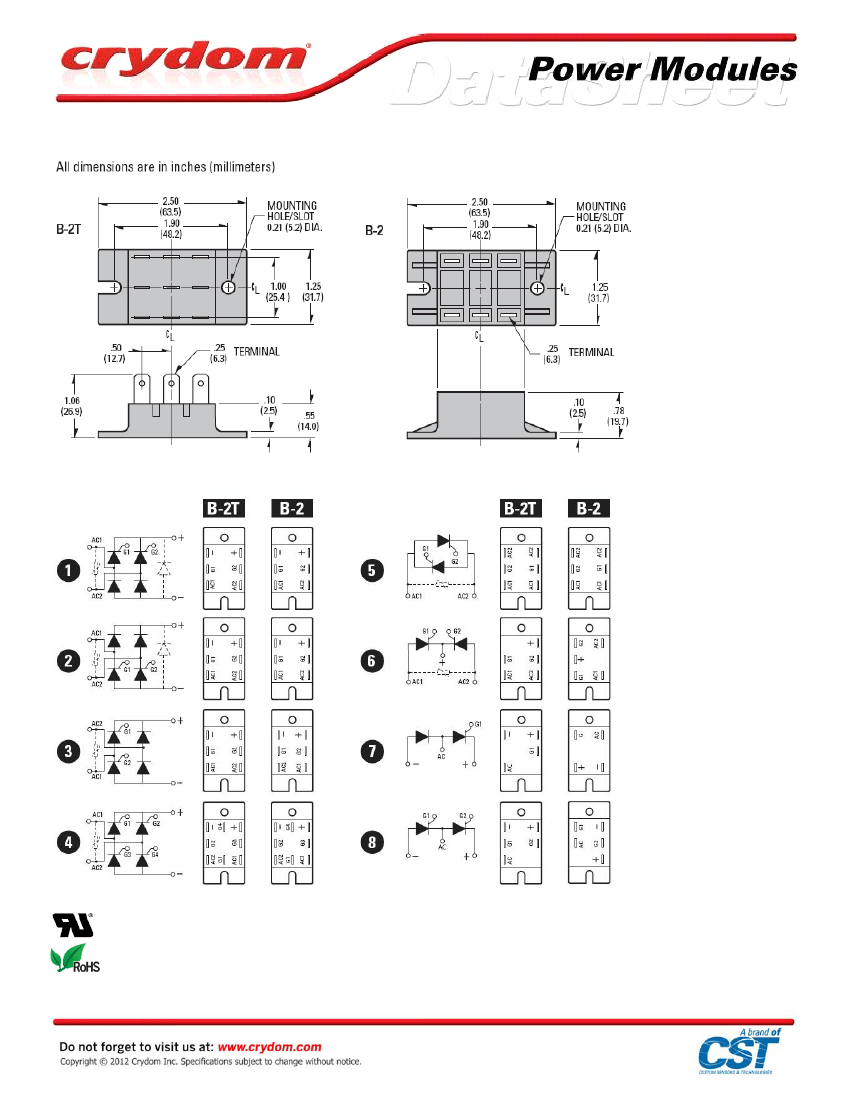

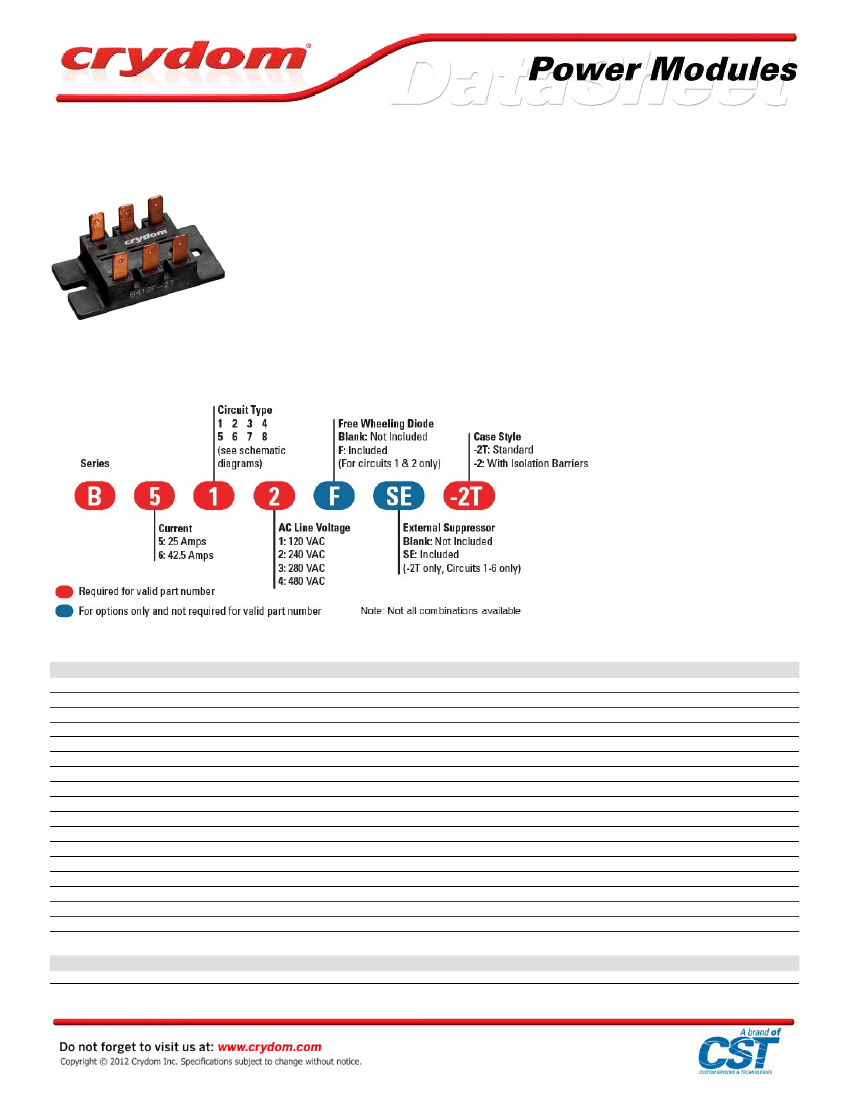

B-2T, B-2 Series

•

Eight Circuits to Choose from

•

For AC or DC Variable Voltage

Output Up to 15KW

• UL Recognized E72445

AVAILABLE OPTIONS

ELECTRICAL SPECIFICATIONS

Description

Maximum DC Output Current (Tc = 85°C)

Maximum Voltage Drop @ Amps Peak

Operating Junction Temperature Range

Critical Rate of Rise of On-State Current @ TJ=125°C

Critical Rate of Rise of Off-State Voltage [V/µs]

AC Line Input Voltage (Repetitive Peak Reverse Voltage)

Maximum Non-Repetitive Surge Current (1/2 Cycle, 60 Hz)

Maximum I²T for Fusing (t=8.3ms) [A²sec]

Minimum Required Gate Current to Trigger @ 25°C

Minimum Required Gate Voltage to Trigger @ 25°C

Average Gate Power

Maximum Peak Reverse Gate Voltage

Maximum Thermal Resistance, Junction to Ceramic Base per Chip

Isolation Voltage

Symbol

I

D

V

F

T

J

di/dt

dv/dt

V

RMS

V

RMS

V

RMS

V

RMS

I

TSM

I

2

T

I

GT

V

GT

P

G(AV)

V

GM

R

JC

V

ISOL

B5

25A

1.65V @ 25A

-40 - 125°C

100A/µs

500V/µs

120 (400V

RRM)

240 (600V

RRM)

280 (800V

RRM)

480 (1200V

RRM)

250A

260

60mA

2.5V

0.5W

5.0V

0.9°C/W

2500 Vrms

B6

42.5A

1.65V @ 42.5A

-40 - 125°C

100A/µs

500V/µs

120 (400V

RRM)

240 (600V

RRM)

280(800V

RRM)

480(1200V

RRM)

600A

1500

80mA

3.0V

0.5W

5.0V

0.7°C/W

2500 Vrms

GENERAL SPECIFICATIONS

Description

Weight (typical)

1.5 oz (42.5g)
