8251/BXA datasheet, PDF - EEWORLD Datasheet

8251/BXA: DescriptionSerial I/O Controller, 1 Channel(s), MOS, CDIP28, CERAMIC, DIP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size152KB，5 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

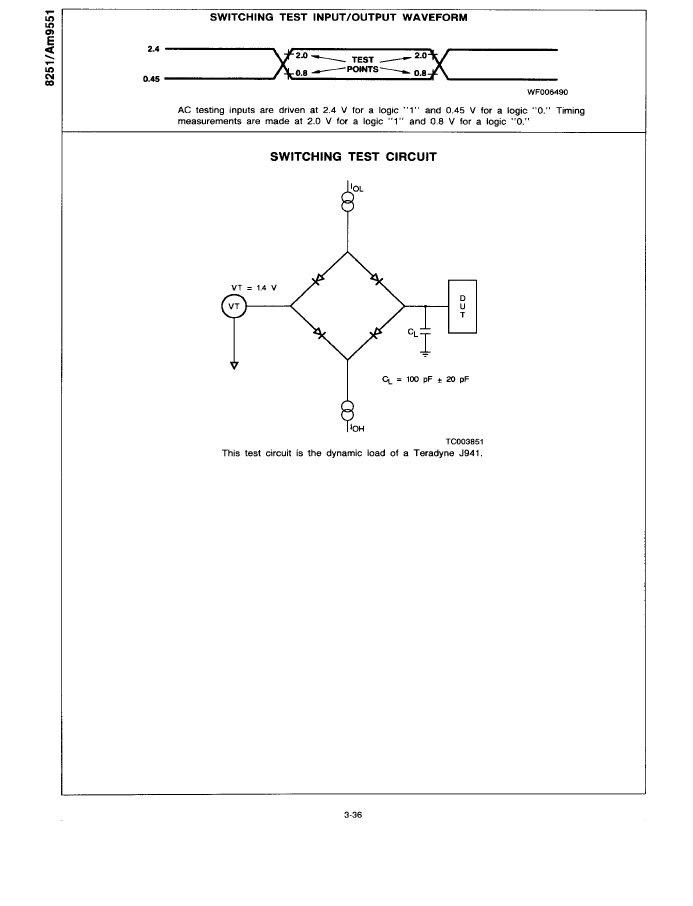

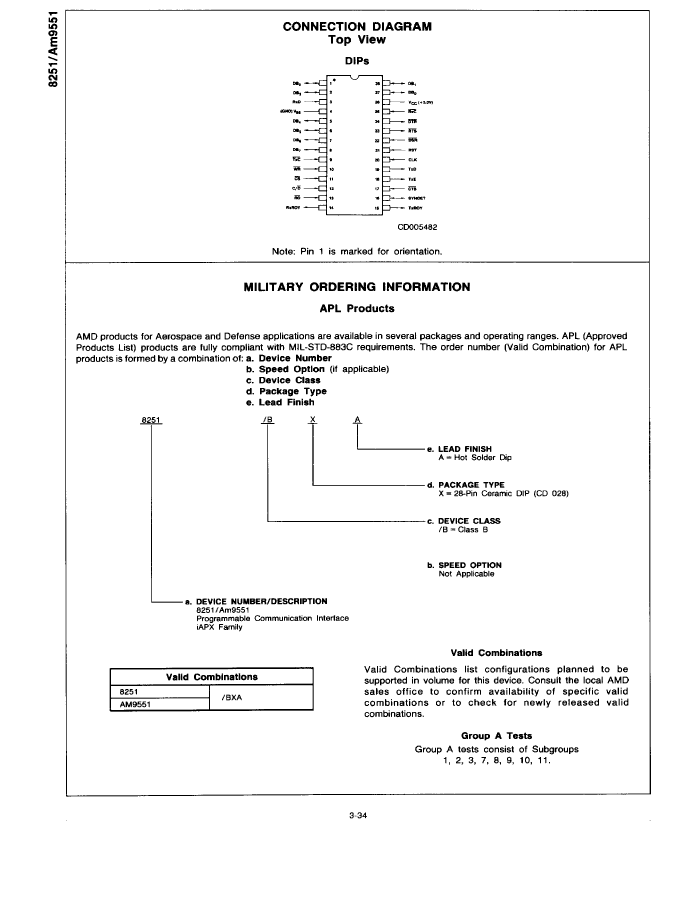

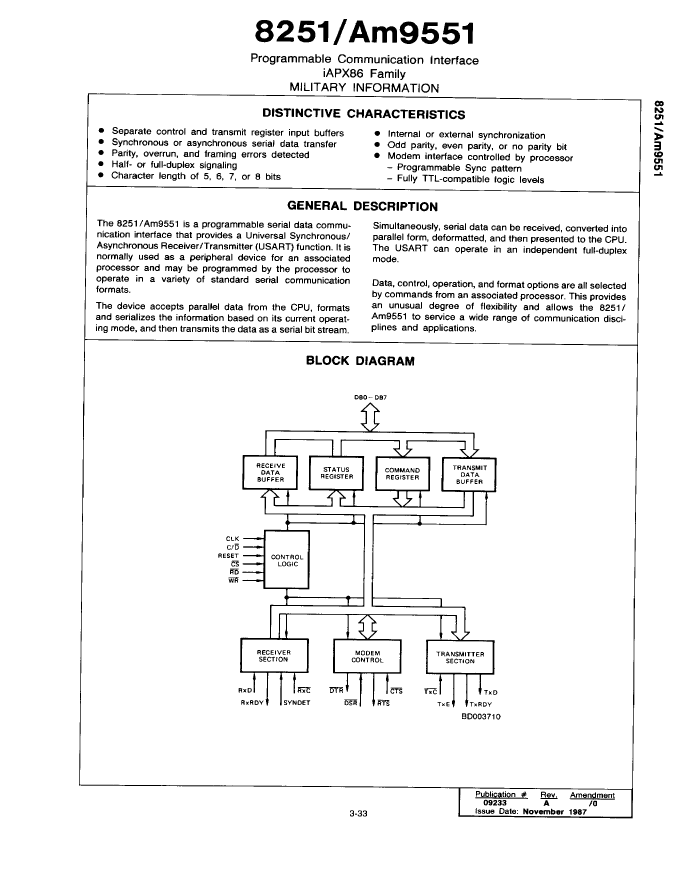

8251/BXA Overview

Serial I/O Controller, 1 Channel(s), MOS, CDIP28, CERAMIC, DIP-28

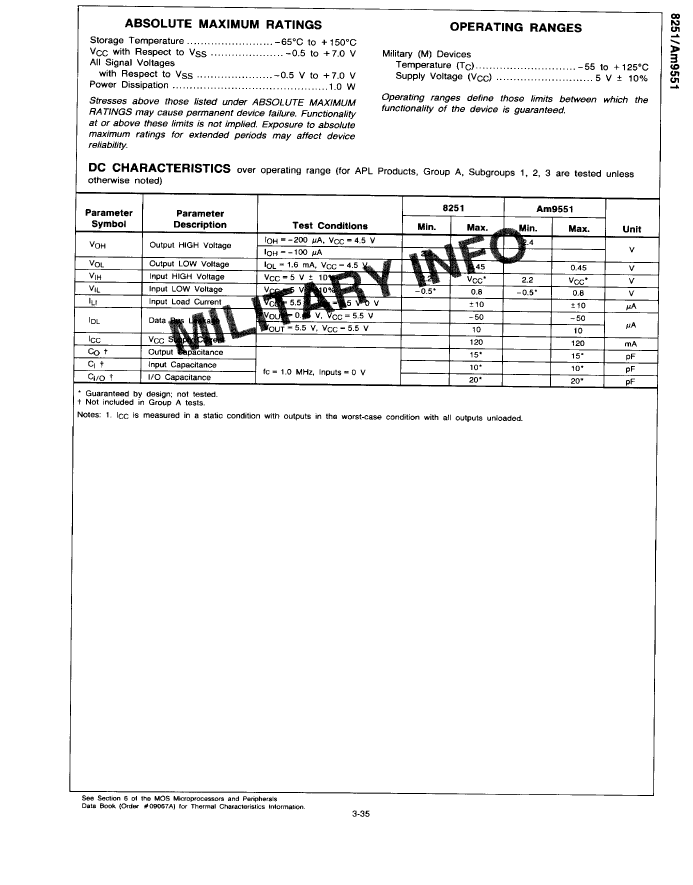

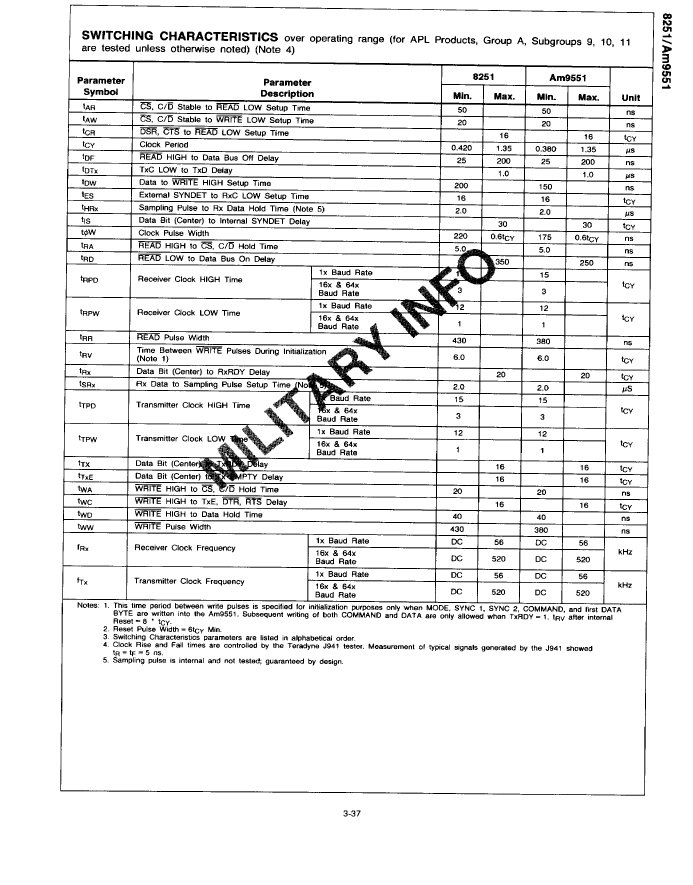

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP-28
Contacts	28
Reach Compliance Code	unknown
boundary scan	NO
letter of agreement	ASYNC, BIT; SYNC, BYTE
Data encoding/decoding methods	NRZ
External data bus width	8
JESD-30 code	R-CDIP-T28
JESD-609 code	e0
low power mode	NO
Number of serial I/Os	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Certification status	Not Qualified
Filter level	MIL-STD-883 Class C
Maximum slew rate	120 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

	8251/BXA	AM9551/BXA
Description	Serial I/O Controller, 1 Channel(s), MOS, CDIP28, CERAMIC, DIP-28	Serial I/O Controller, 1 Channel(s), MOS, CDIP28, CERAMIC, DIP-28
Is it Rohs certified?	incompatible	incompatible
Maker	AMD	AMD
Parts packaging code	DIP	DIP
package instruction	DIP-28	DIP-28
Contacts	28	28
Reach Compliance Code	unknown	unknown
boundary scan	NO	NO
letter of agreement	ASYNC, BIT; SYNC, BYTE	ASYNC, BIT; SYNC, BYTE
Data encoding/decoding methods	NRZ	NRZ
External data bus width	8	8
JESD-30 code	R-CDIP-T28	R-CDIP-T28
JESD-609 code	e0	e0
low power mode	NO	NO
Number of serial I/Os	1	1
Number of terminals	28	28
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR
Certification status	Not Qualified	Not Qualified
Filter level	MIL-STD-883 Class C	MIL-STD-883 Class C
Maximum slew rate	120 mA	120 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
