MIG75Q202H datasheet, PDF - EEWORLD Datasheet

MIG75Q202H: DescriptionHigh Power Switching Applications Motor Control Applications; CategoryOther integrated circuit (IC) The signal circuit; File Size226KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

MIG75Q202H Overview

High Power Switching Applications Motor Control Applications

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	AC MOTOR CONTROLLER
JESD-30 code	R-XXMA-X22
JESD-609 code	e0
Number of functions	1
Number of terminals	22
Maximum output current	75 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum supply current (Isup)	48 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	HYBRID
Terminal surface	TIN LEAD
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED

MIG75Q202H

TOSHIBA Intelligent Power Module Silicon N Channel IGBT

MIG75Q202H

High Power Switching Applications

Motor Control Applications

Integrates inverter, brake power circuits & control circuits (IGBT drive units, protection units

for over-current, realtime-current-control (RTC), under-voltage & over-temperature) in one

package.

The electrodes are isolated from case.

High speed type IGBT

: V

CE (sat)

= 3.5 V (Max)

toff = 2.8 µs (Max)

trr = 0.21 µs (Max)

Package dimensions : TOSHIBA 2-110A1A

Weight : 520g

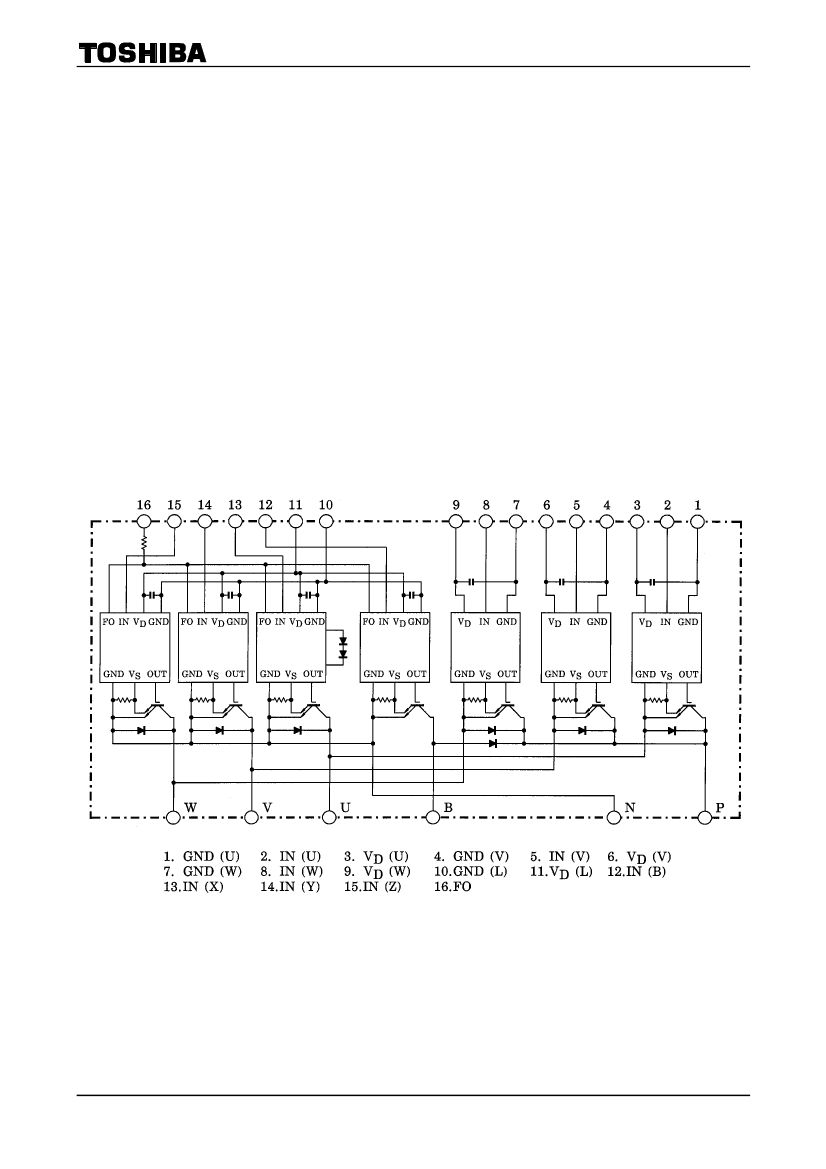

Equivalent Circuit

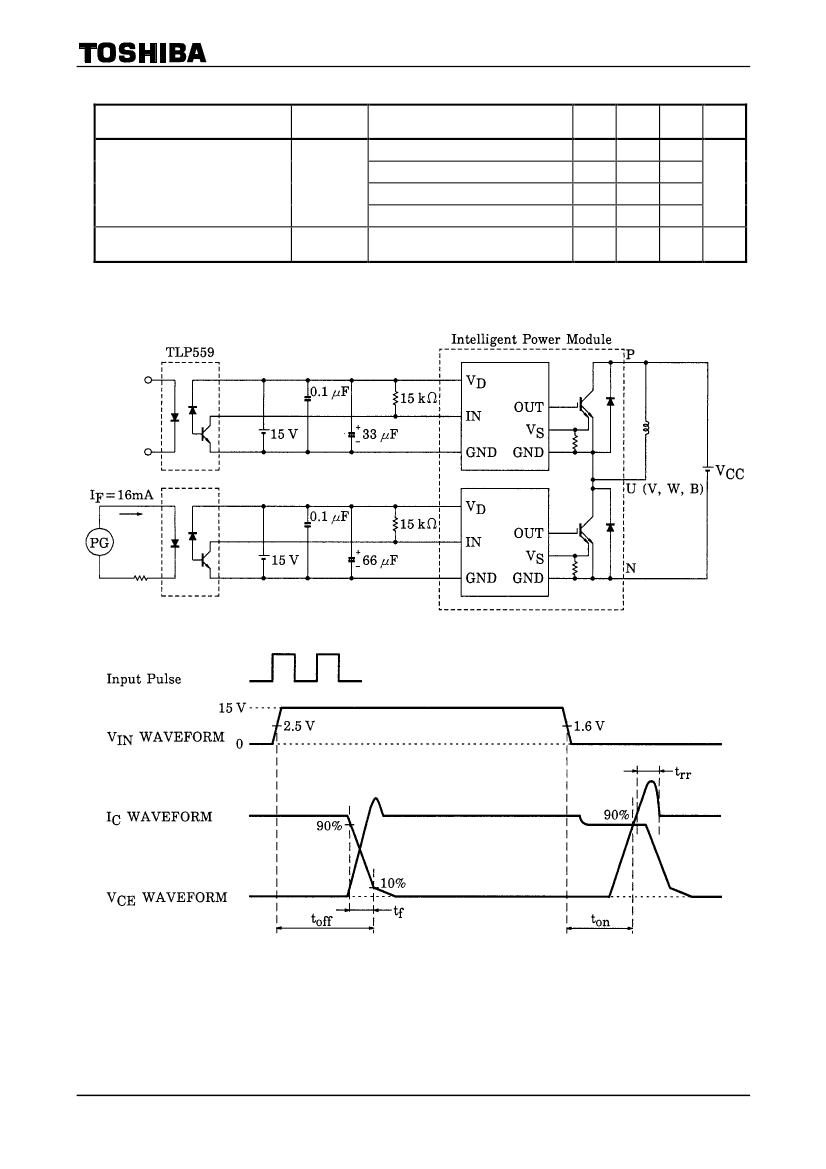

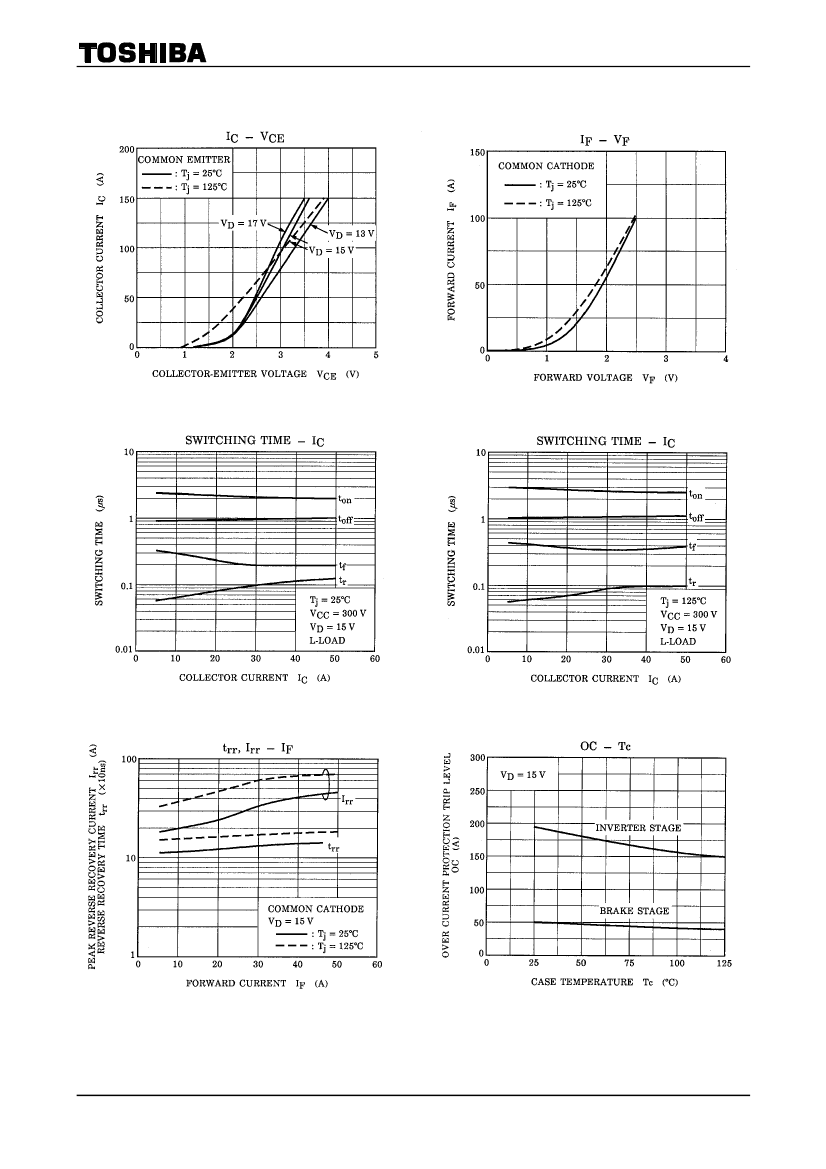

2001-05-29
