EL817(S1)(A)TU)-G datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> EL817(S1)(A)TU)-G

EL817(S1)(A)TU)-G: DescriptionTransistor Output Optocoupler, 1-Element, 5000V Isolation, GREEN, SURFACE MOUNT, DIP-4; CategoryLED optoelectronic/LED photoelectric; File Size344KB，13 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

EL817(S1)(A)TU)-G Overview

Transistor Output Optocoupler, 1-Element, 5000V Isolation, GREEN, SURFACE MOUNT, DIP-4

EL817(S1)(A)TU)-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EVERLIGHT
package instruction	GREEN, SURFACE MOUNT, DIP-4
Reach Compliance Code	compliant
Other features	UL APPROVED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	80 V
Configuration	SINGLE
Current transmission ratio - minimum value	80%
Nominal current transfer ratio	80%
Maximum dark power	100 nA
Maximum forward current	0.05 A
Maximum forward voltage	1.4 V
Maximum insulation voltage	5000 V
Installation features	SURFACE MOUNT
Number of components	1
Maximum on-state current	0.05 A
Maximum operating temperature	110 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER
Maximum power dissipation	0.15 W
Maximum response time	0.000018 s
surface mount	YES

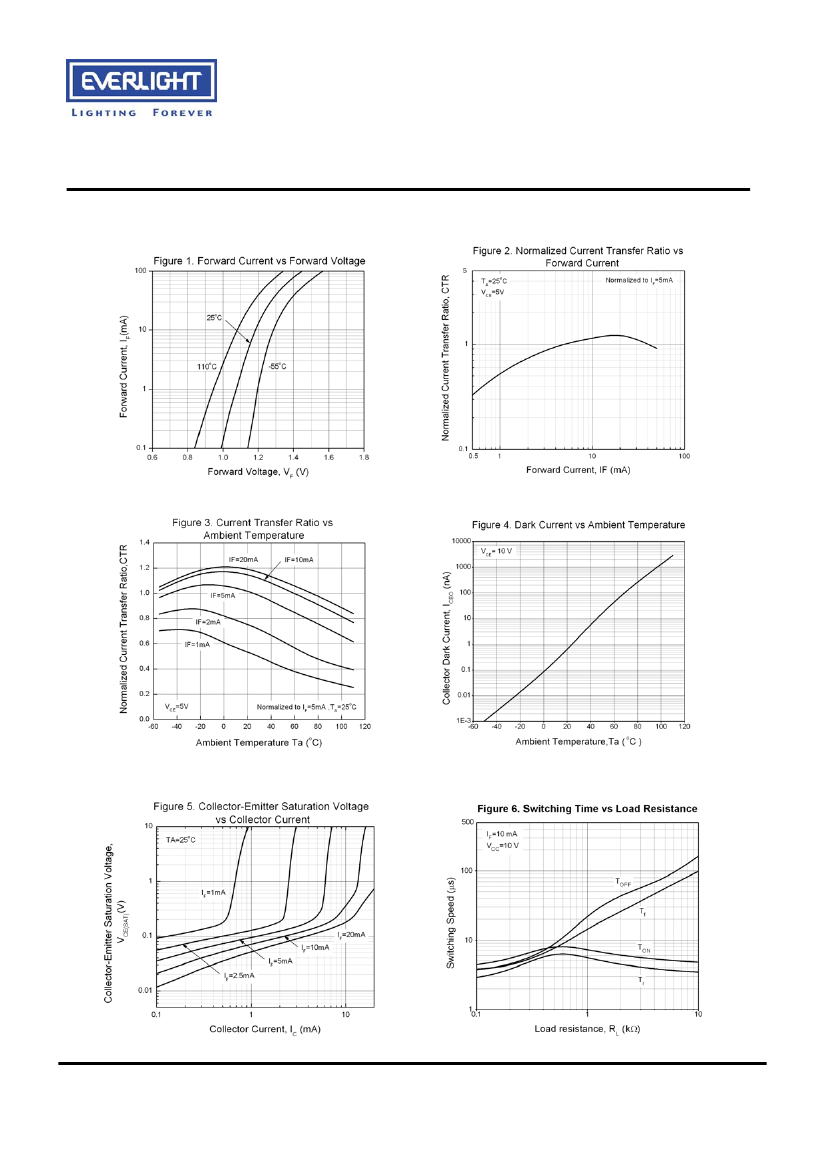

Preview

Download Datasheet

View All

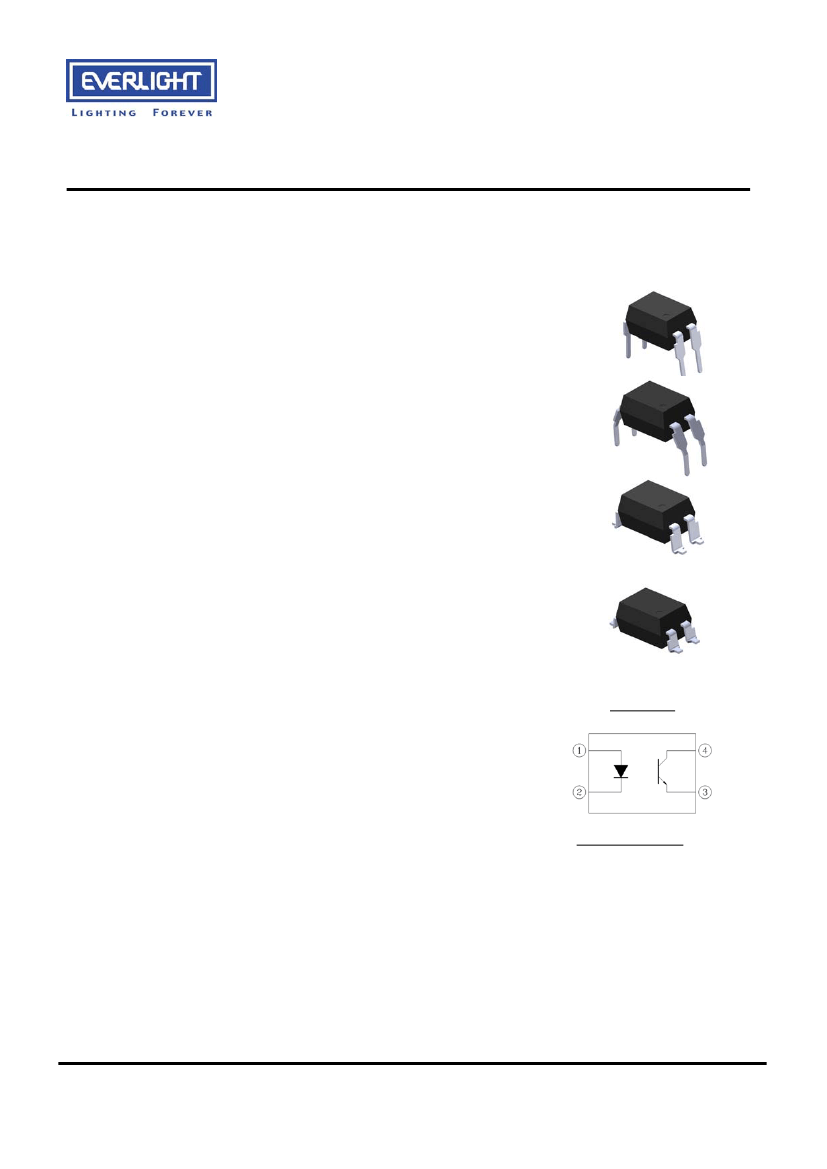

4 PIN DIP PHOTOTRANSISTOR

PHOTOCOUPLER

Features:

•

Halogens free.

•

Current transfer ratio

(CTR: 50~600% at I

=5mA, V

=5V)

•

High isolation voltage between input

and output (Viso=5000 V rms )

•

Creepage distance >7.62 mm

•

Operating temperature up to +110°C

•

Compact small outline package

•

Pb free and RoHS compliant.

•

UL approved (No. E214129)

•

VDE approved (No. 132249)

•

SEMKO approved

•

NEMKO approved

•

DEMKO approved

•

FIMKO approved

•

CSA approved

•

CQC approved

EL817-G Series

Description

The EL817 series of devices each consist of an infrared

emitting diodes, optically coupled to a phototransistor

detector encapsulated with green compound.

The devices are in a 4-pin DIP package and available in

wide-lead spacing and SMD option.

Applications

•

Programmable controllers

•

System appliances, measuring instruments

•

Telecommunication equipments

•

Home appliances, such as fan heaters, etc.

•

Signal transmission between circuits of different potentials and impedances

Schematic

Pin Configuration

1. Anode

2. Cathode

3. Emitter

4. Collector

Everlight Electronics Co., Ltd.

Document No：DPC-817-061

Rev. 1

http://www.everlight.com

April ,18 2008

EL817(S1)(A)TU)-G Related Products

	EL817(S1)(A)TU)-G	EL817(S1)(A)TD)-G	EL817(S1)(A)TD)-FG	EL817(S1)(A)TB)-G	EL817(S1)(A)TA)-G	EL817(S1)(A)TA)-FG	EL817(S1)(A)TU)-FG	EL817(S1)(A)TB)-FG
Description	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GREEN, SURFACE MOUNT, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GREEN, SURFACE MOUNT, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GREEN, SURFACE MOUNT, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GREEN, SURFACE MOUNT, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GREEN, SURFACE MOUNT, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GREEN, SURFACE MOUNT, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GREEN, SURFACE MOUNT, DIP-4	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GREEN, SURFACE MOUNT, DIP-4
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	GREEN, SURFACE MOUNT, DIP-4	GREEN, SURFACE MOUNT, DIP-4	GREEN, SURFACE MOUNT, DIP-4	GREEN, SURFACE MOUNT, DIP-4	GREEN, SURFACE MOUNT, DIP-4	GREEN, SURFACE MOUNT, DIP-4	GREEN, SURFACE MOUNT, DIP-4	GREEN, SURFACE MOUNT, DIP-4
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	UL APPROVED, VDE APPROVED	UL APPROVED, VDE APPROVED	UL APPROVED, VDE APPROVED	UL APPROVED, VDE APPROVED	UL APPROVED, VDE APPROVED	UL APPROVED, VDE APPROVED	UL APPROVED, VDE APPROVED	UL APPROVED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	80 V	80 V	80 V	80 V	80 V	80 V	80 V	80 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Current transmission ratio - minimum value	80%	80%	80%	80%	80%	80%	80%	80%
Nominal current transfer ratio	80%	80%	80%	80%	80%	80%	80%	80%
Maximum dark power	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA
Maximum forward current	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Maximum forward voltage	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V
Maximum insulation voltage	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of components	1	1	1	1	1	1	1	1
Maximum on-state current	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Maximum operating temperature	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Maximum power dissipation	0.15 W	0.15 W	0.15 W	0.15 W	0.15 W	0.15 W	0.15 W	0.15 W
Maximum response time	0.000018 s	0.000018 s	0.000018 s	0.000018 s	0.000018 s	0.000018 s	0.000018 s	0.000018 s
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Maker	EVERLIGHT	EVERLIGHT	EVERLIGHT	-	EVERLIGHT	EVERLIGHT	EVERLIGHT	EVERLIGHT
