54944-2690 datasheet, PDF - EEWORLD Datasheet

54944-2690: DescriptionUSB Connector, 26 Contact(s), Male, Right Angle, Surface Mount Terminal, Detent, Receptacle; CategoryThe connector The connector; File Size270KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

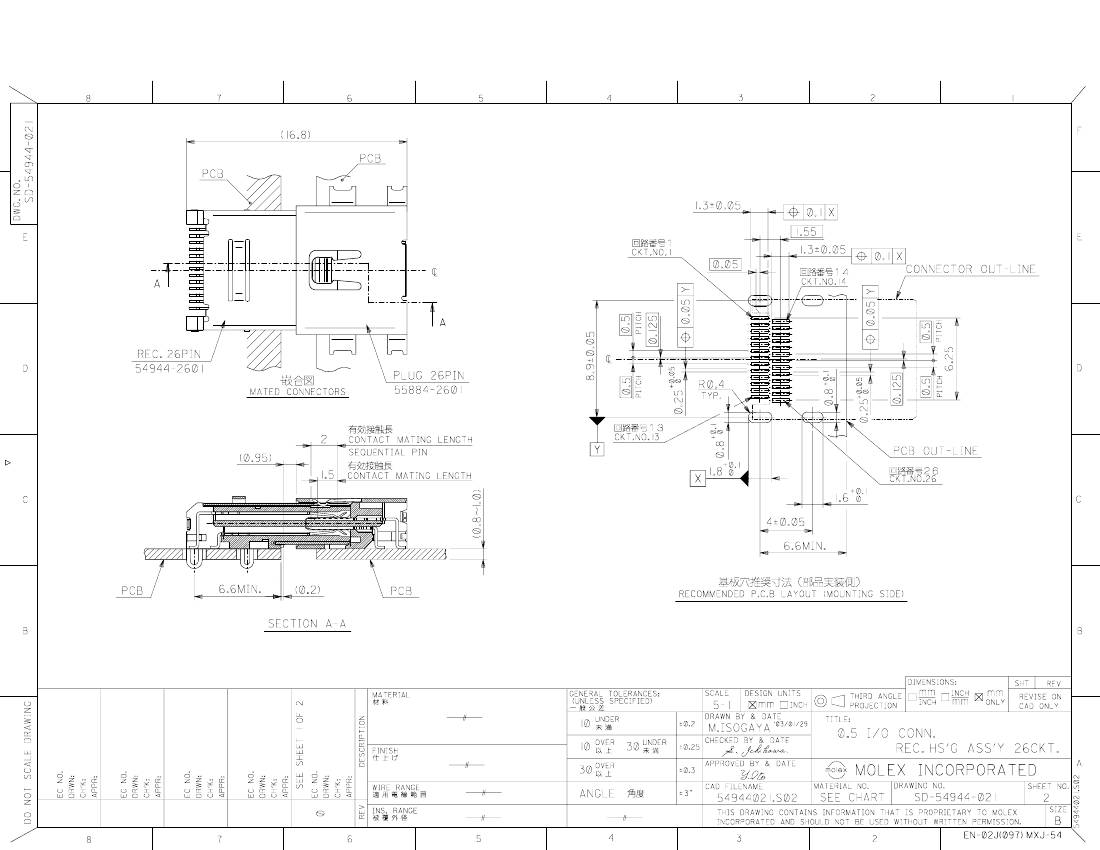

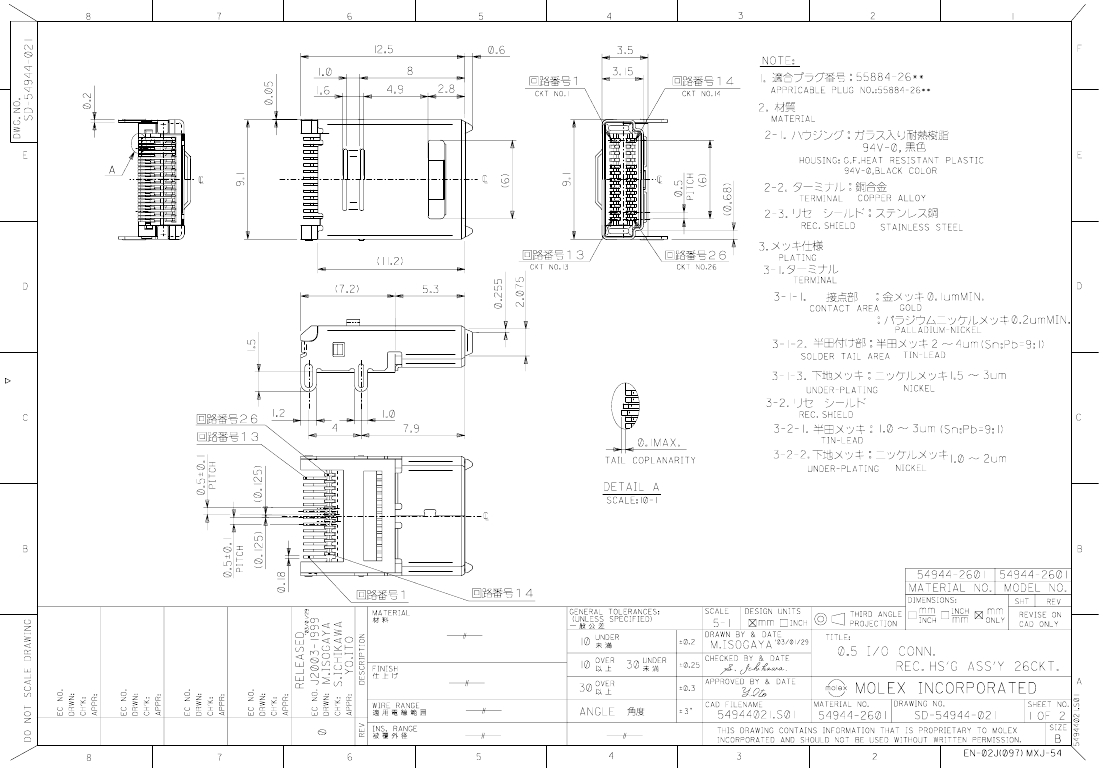

54944-2690 Overview

USB Connector, 26 Contact(s), Male, Right Angle, Surface Mount Terminal, Detent, Receptacle

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown

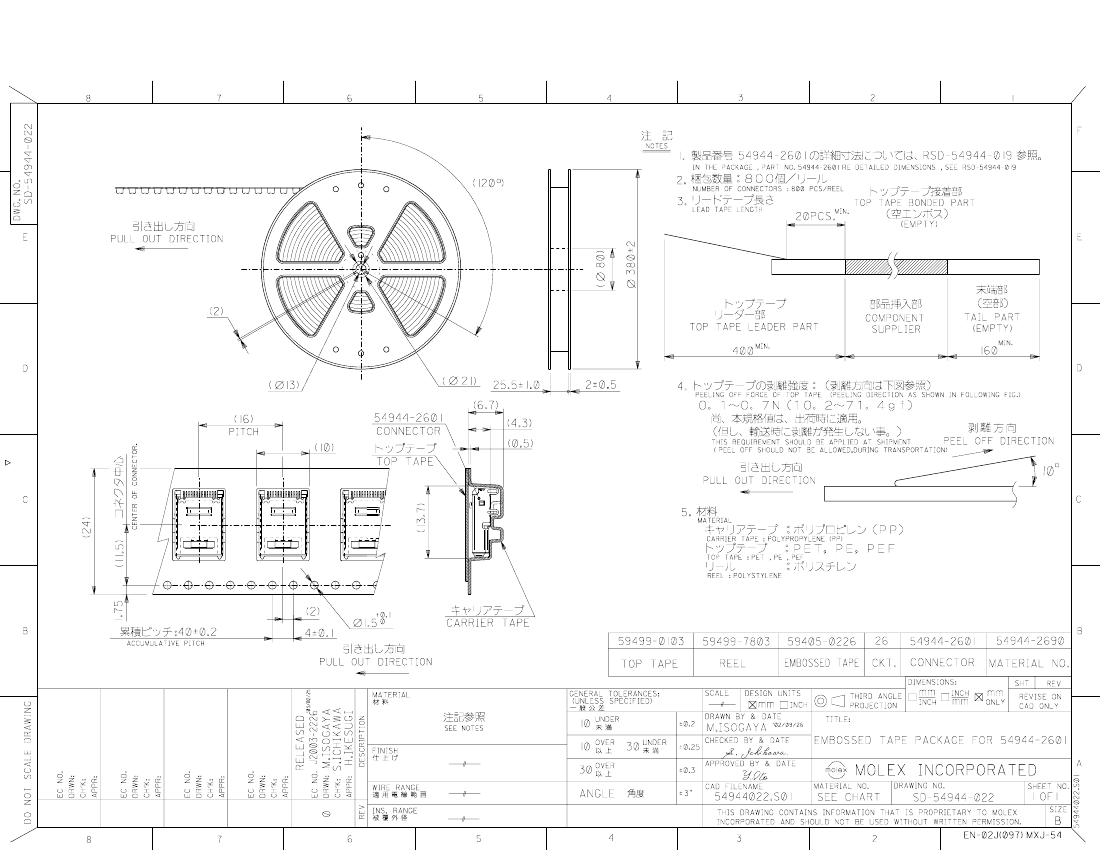

Other features	LOW PROFILE,TAPE PACKAGING
Board mount options	SOLDER HOLDING FLANGE
body width	0.138 inch
subject depth	0.516 inch
body length	0.358 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	50 mΩ
Contact style	USB, SER A FLAT
Dielectric withstand voltage	200VAC V
Durability	5000 Cycles
maximum insertion force	1.529 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	54944
Installation option 1	DETENT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.5494 mm
Plating thickness	4u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN/LEAD OVER NICKEL
Shell material	STEEL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	26
Evacuation force-minimum value	.2224 N
