P120KGPF20BR10K datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> P120KGPF20BR10K

P120KGPF20BR10K: DescriptionRES,TAPPED,CONDUCTIVE PLASTIC,10K OHMS,20% +/-TOL; CategoryPassive components The resistor; File Size83KB，4 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

P120KGPF20BR10K Overview

RES,TAPPED,CONDUCTIVE PLASTIC,10K OHMS,20% +/-TOL

P120KGPF20BR10K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TT Electronics plc
package instruction	PCB Mount,
Reach Compliance Code	compliant
structure	Rotary
Manufacturer's serial number	P120
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package height	9 mm
Package length	14.2 mm
Package form	PCB Mount
Rated power dissipation(P)	0.05 W
resistance	10000 Ω
Resistor type	POTENTIOMETER
rotation angle	260 deg
series	P120
technology	CONDUCTIVE PLASTIC
Tolerance	20%

Preview

Download Datasheet

View All

Model P120

12mm Rotary Potentiometer

Single/Dual Unit

Conductive Plastic Element

100,000 Cycle Life

Insulated shaft

RoHS Compliant

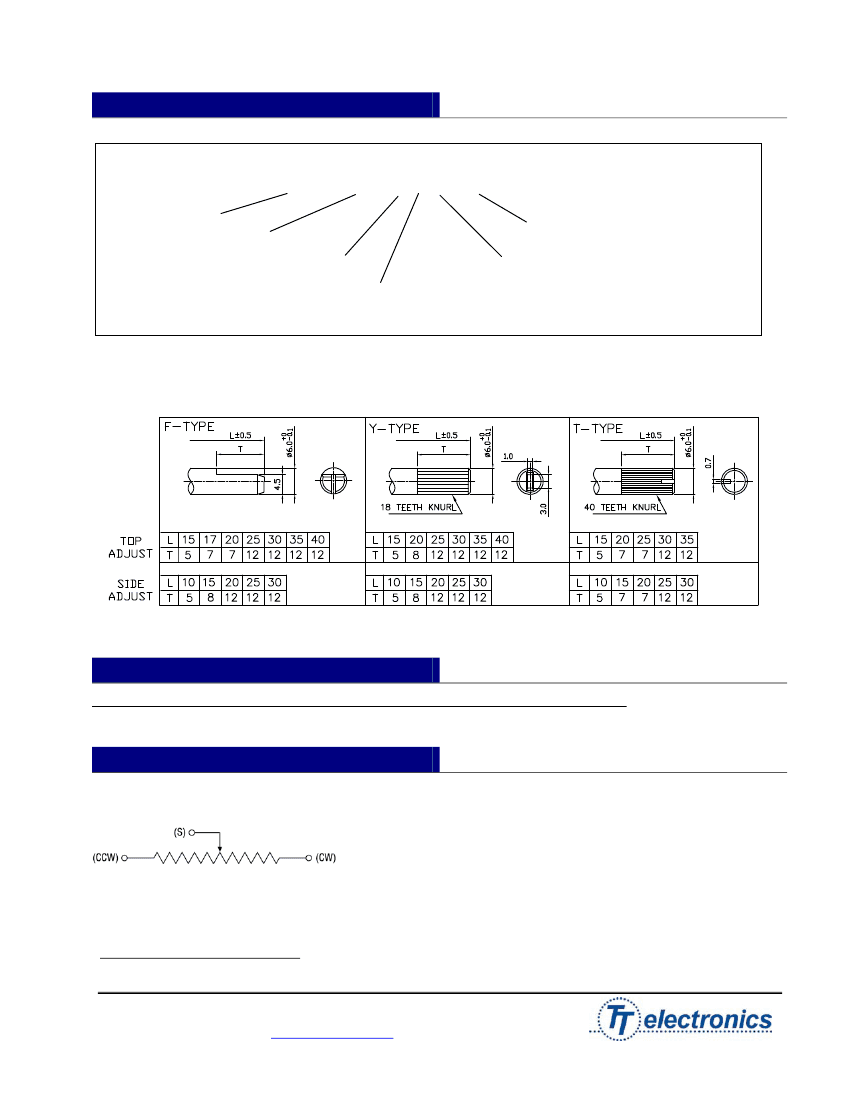

MODEL STYLES

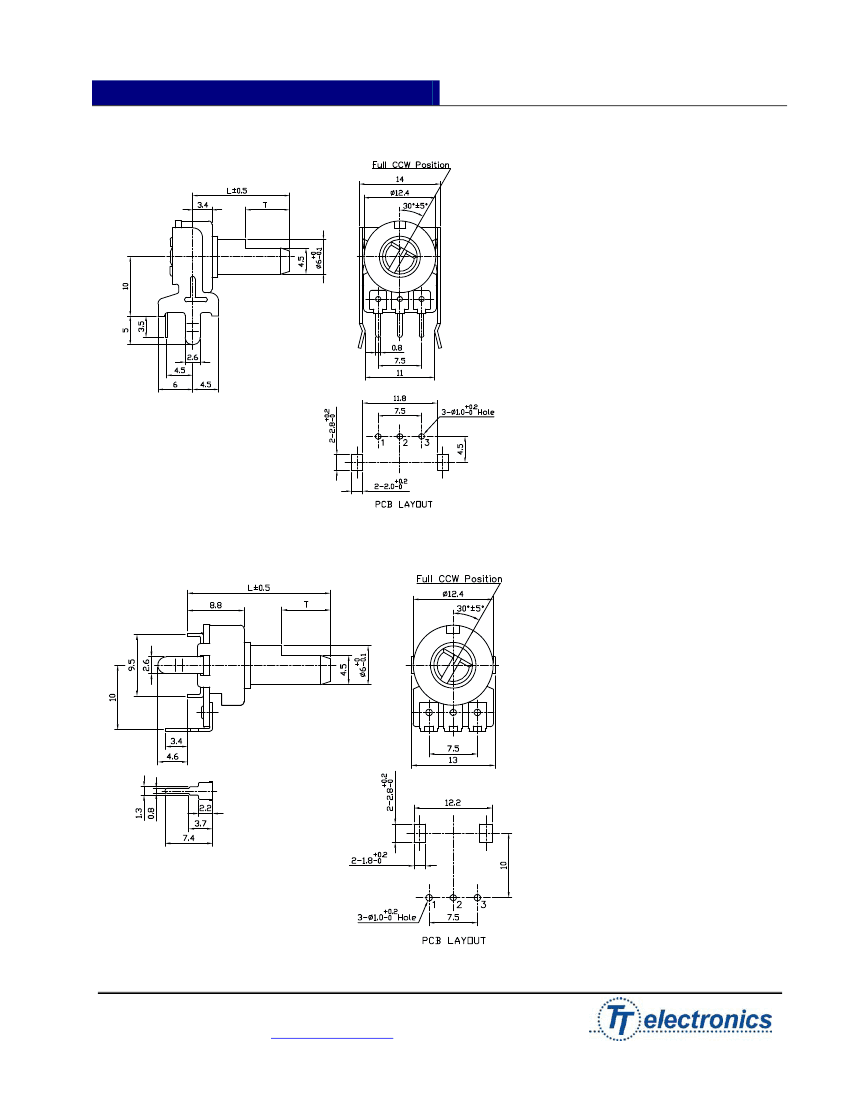

Side Adjust, PCB pins, Single unit

Top Adjust, PCB pins, Single unit

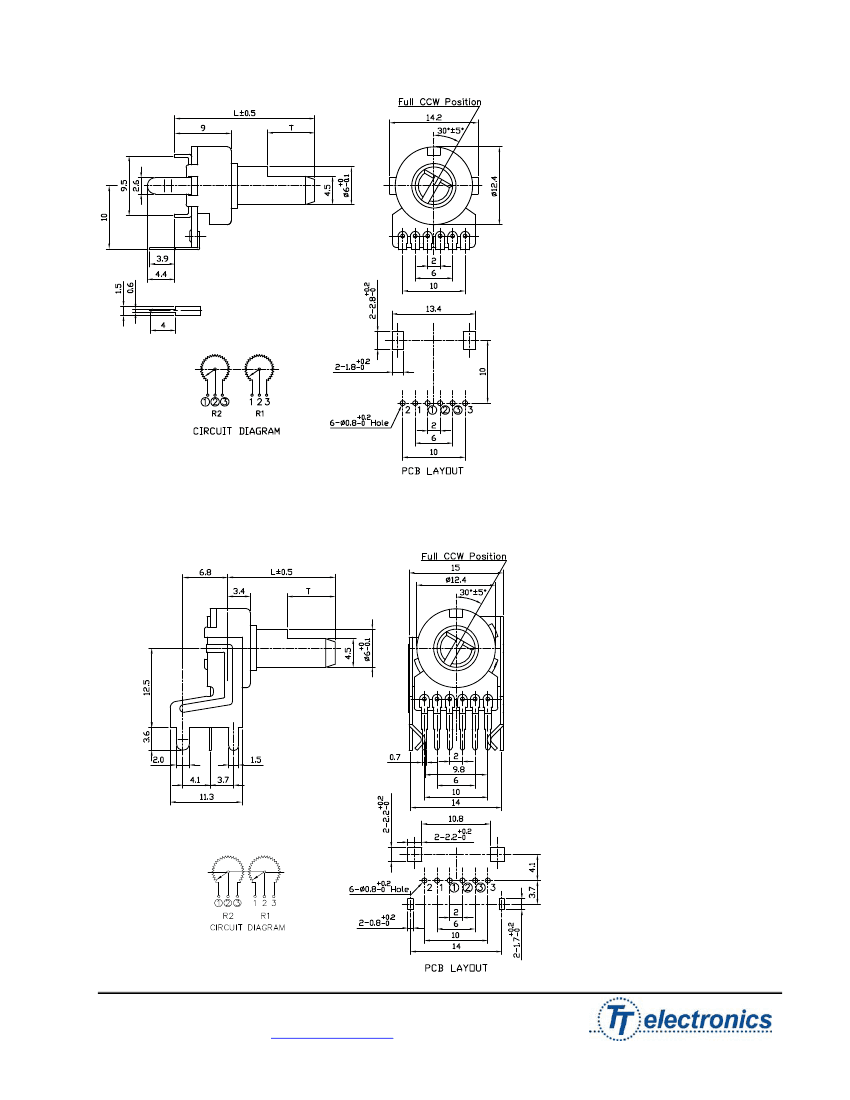

Top Adjust, PCB pins, Dual unit

Side Adjust, PCB pins, Dual unit

P120K

P120PK

P120KGP

P120KGE

ELECTRICAL

Resistance Range, Ohms

Standard Resistance Tolerance

Residual Resistance

Input Voltage, maximum

Power rating, Watts

Dielectric Strength

Insulation Resistance, Minimum

Sliding Noise

Gang Error ( Multi-ganged )

Actual Electrical Travel, Nominal

1K- 1M

20%

20 ohms max.

50 Vac max.

0.05w

300Vac, I minute

100M ohms at 250Vdc

100mV max.

-40dB – 0dB,

±3dB

260°

MECHANICAL

Total Mechanical Travel

Static Stop Strength

Rotational Torque

300°± 10°

50 oz-in

0.5 to 1.25 oz-in

ENVIRONMENTAL

Operating Temperature Range

Rotational Life

-20°C to +70°C

100,000 cycles

Specifications subject to change without notice.

BI Technologies Corporation

4200 Bonita Place, Fullerton, CA 92835 USA

Phone: 714 447 2345

July 18, 2008

Website:

www.bitechnologies.com

page 1 of 4

BI technologies
