TTL OUTPUT FULL SIZE DIP 5.0V
CRYSTAL CLOCK OSCILLATOR
ACT Series
FEATURES:
• Hermetically sealed metal package
• TTL output
• Case ground for EMI protection
• Tri-state Enable/Disable options
Pb
RoHS
Compliant
20.4 x 12.9 x 5.3mm
| | | | | | | | | | | | | | |
APPLICATIONS:
• Provide clock signals for microprocessors and digital circuits
• TTL output for low EMI applications
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N
Frequency:
Operating temperature:
Storage temperature:
Frequency Stability:
Supply voltage (Vdd):
Input current:
Symmetry @ 1.4Vdc:
Rise and Fall Times(Tr/Tf):
Output load:
Output Voltage:
Tri State Function:
Output Disable/ Enable time:
Start-up-time:
ACT Series
400kHz to 160MHz
-10°C to +60°C (see options)
- 55°C to + 125°C
± 100ppm max. (see options)
5.0Vdc ± 10%
See Table 1
40/60% max. @ 1.4V (see option)
See Table 1
10 TTL max.
VOH = 2.4 * Vdd min.
VOL = 0.4*Vdd max.
"1" (VIH >= 2.2 Vdc) or open: Oscillation
"0" (VIL < 0.8V): Hi Z
100 ns max. (for Option "-A" ONLY)
10 to 35 ms max
Table1
Frequency
(MHz)
400.0kHz F<24.9MHz
≤
25.0MHz F<100.0MHz
≤
100.0MHz F<160.0MHz
≤
Input current Idd
(mA)
20
40
80
Rise and Fall Time
Tr/Tf (ns)
10
5
4
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ACT - Frequency -
-
- -
-
-
Packaging
T
TY
Tape and Reel
Tray
Temperature Options
I
E
F
N
L
0°C to +50°C
-20°C to +70°C
-30°C to +70°C
-30°C to +85°C
-40°C to +85°C
Symmetry Options
S*
45/55%@1/4V
* F<70 only.
Freq. Stability
Y5*
±15 ppm max.
J*
±20 ppm max.
R**
±25 ppm max.
K
±30 ppm max.
H
±35 ppm max.
C
±50 ppm max.
* Available for temp options I and E only
** Available for temp options I, E, F, and N only
Tristate Enable Funct
A
Tristate Function
Value Added Option
G
Gull Wing
G3
Gull Wing
GHT
Gull Wing reflow
Q45
0.45(11.43)
Q40
0.40(10.16)
Q35
0.35(8.89)
Q30
0.30(7.62)
Q25
0.25(6.35)
Q20
0.20(5.08)
Q15
0.15(3.81)
Q10
0.10(2.54)
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 10.23.10
30332 Esperanza, Rancho Santa Margarita, California
92688
tel 949-546-8000| fax 949-546-8001
www.abracon.com
|
Visit
www.abracon.com
for Terms & Conditions of Sale
TTL OUTPUT FULL SIZE DIP 5.0V
CRYSTAL CLOCK OSCILLATOR
ACT Series

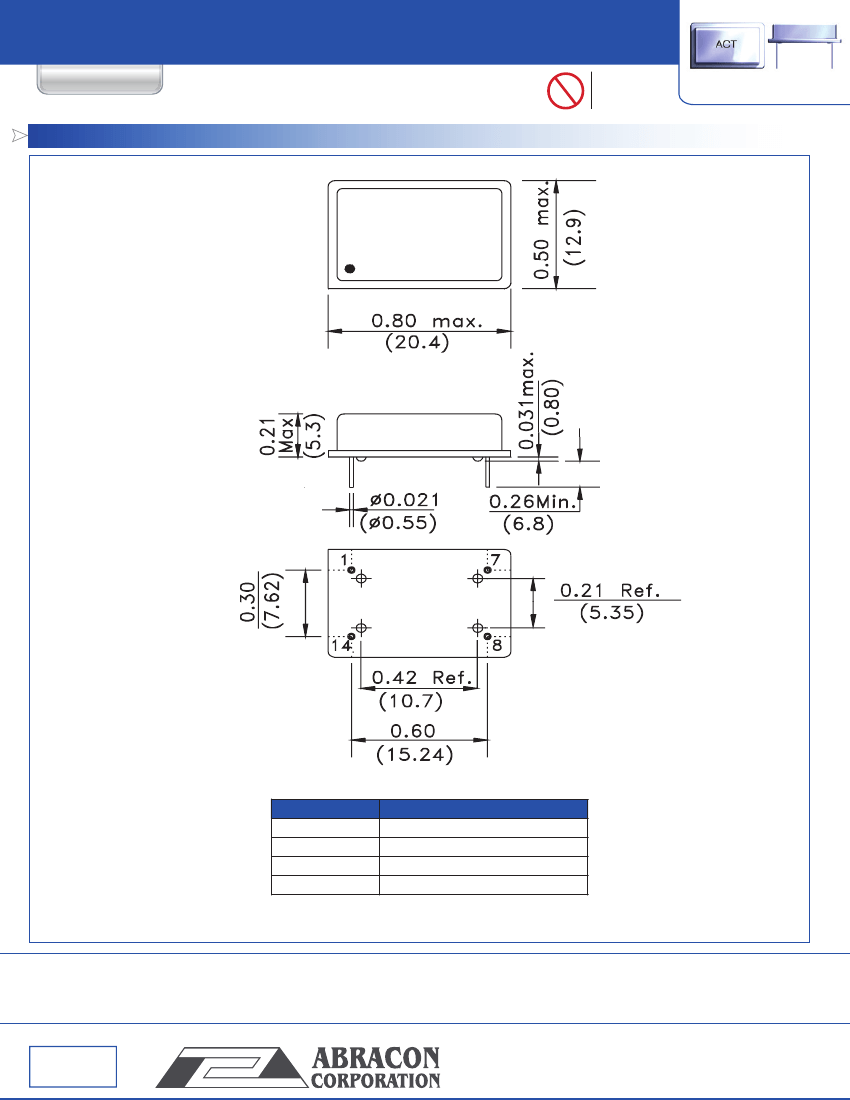

OUTLINE DIMENSIONS
Pb
RoHS
Compliant
20.4 x 12.9 x 5.3mm
| | | | | | | | | | | | | | |
PIN
1
7
8
14
FUNCTION
NC or Tristate Enable/ Disable
GND/Case
Output
Vdd
Dimensions: inches (mm)
Note: Remomended using a approximately
0.01uF bypass capacitor between Pin 7 and 14
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated,
Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application
requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme
operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 10.23.10
30332 Esperanza, Rancho Santa Margarita, California
92688
tel 949-546-8000| fax 949-546-8001
www.abracon.com
|
Visit
www.abracon.com
for Terms & Conditions of Sale
