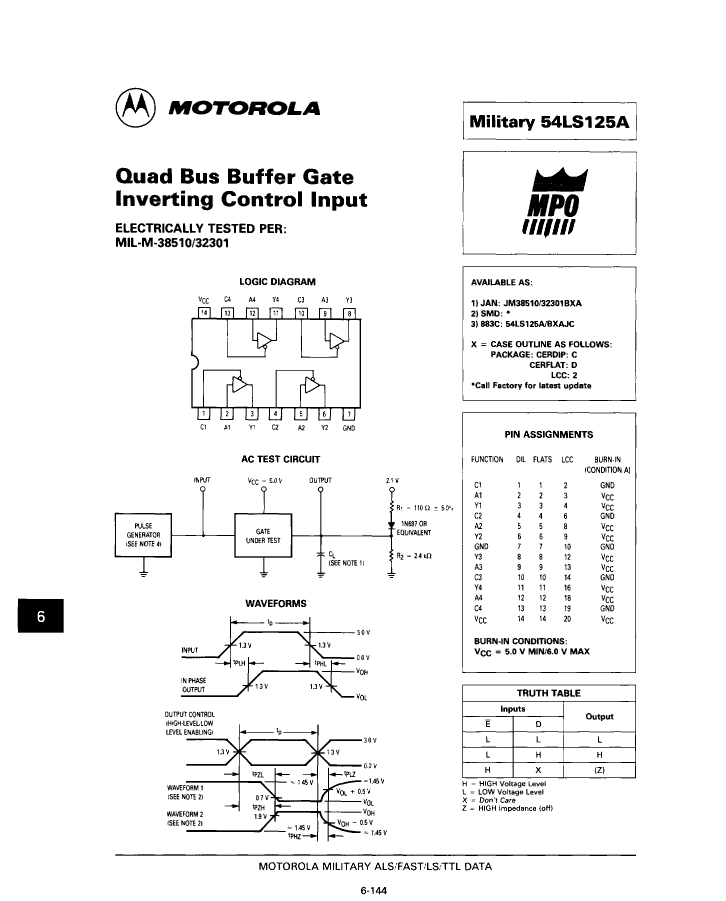

Bus Driver, LS Series, 1-Func, 4-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20

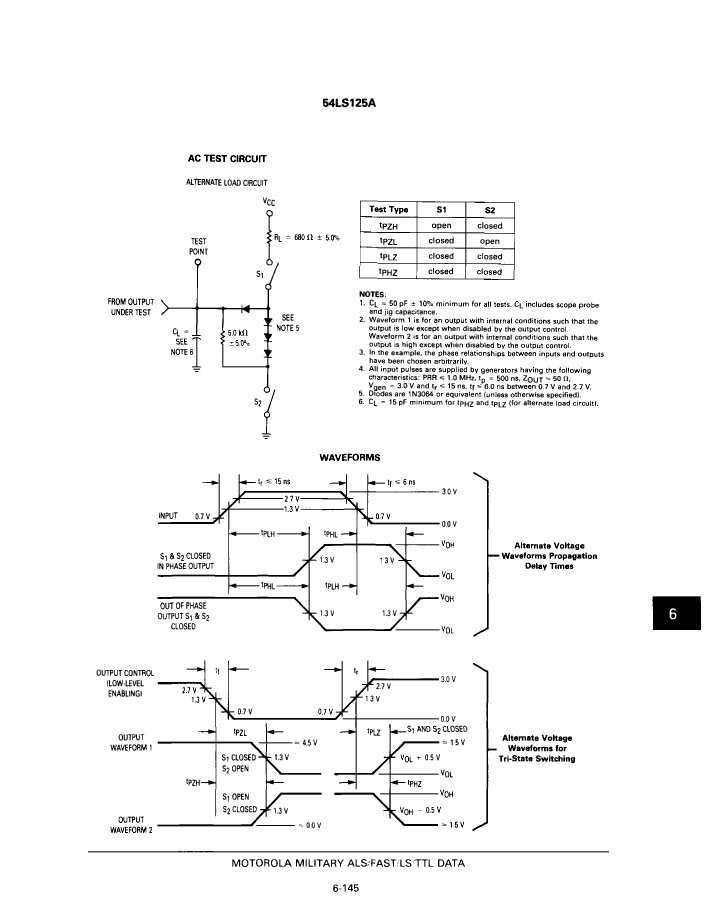

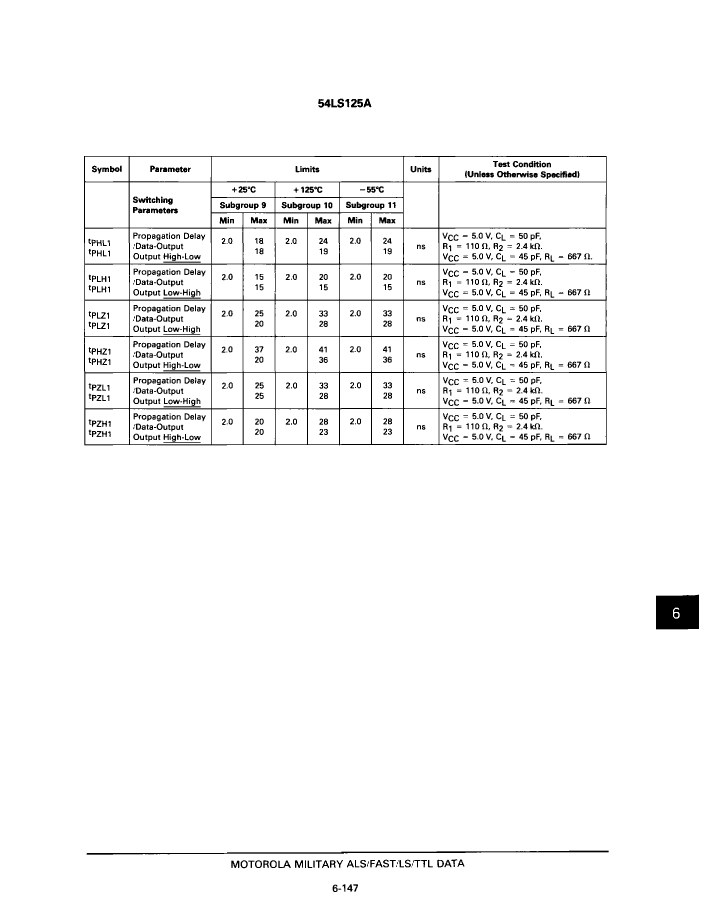

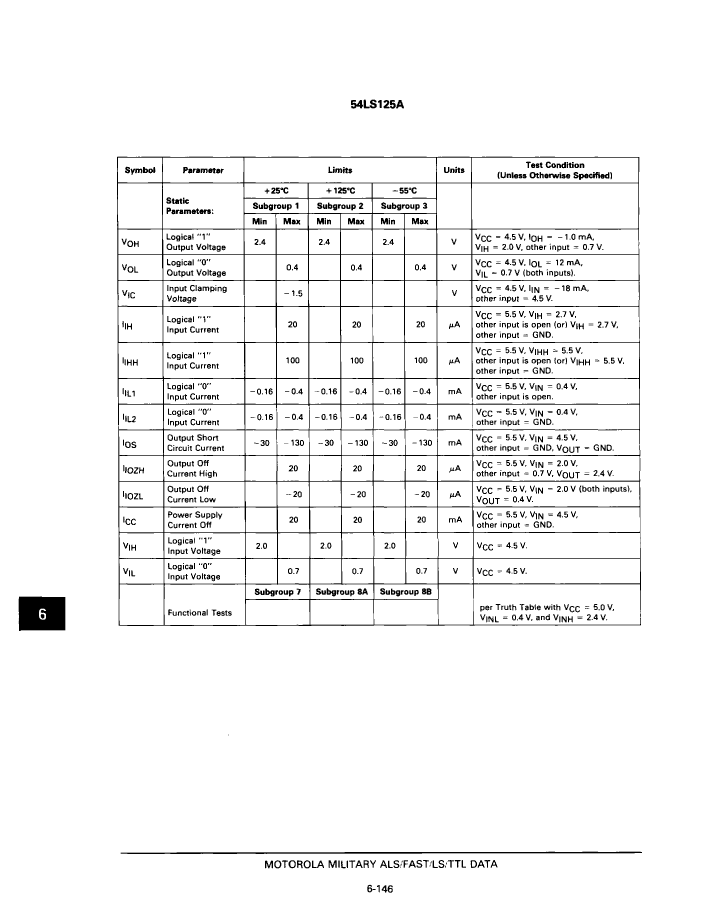

| Parameter Name | Attribute value |
| Maker | Motorola ( NXP ) |
| package instruction | QCCN, |
| Reach Compliance Code | unknown |
| series | LS |
| JESD-30 code | S-CQCC-N20 |
| length | 8.89 mm |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| propagation delay (tpd) | 24 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.9 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| width | 8.89 mm |
| JM38510/32301B2A | 54LS125A/B2AJC | 0348242201 | JM38510/32301BDA | |
|---|---|---|---|---|
| Description | Bus Driver, LS Series, 1-Func, 4-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20 | LS SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20 | Mini50 Unsealed Receptacle, Dual Row, Bridged, with CPA, 20 Circuits, Polarization | Bus Driver, LS Series, 1-Func, 4-Bit, True Output, TTL, CDFP14, CERAMIC, FP-14 |
| package instruction | QCCN, | QCCN, | - | CERAMIC, FP-14 |
| Reach Compliance Code | unknown | unknown | - | unknown |
| series | LS | LS | - | LS |
| JESD-30 code | S-CQCC-N20 | S-CQCC-N20 | - | R-GDFP-F14 |
| length | 8.89 mm | 8.89 mm | - | 9.65 mm |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | - | BUS DRIVER |
| Number of digits | 4 | 1 | - | 4 |
| Number of functions | 1 | 4 | - | 1 |
| Number of ports | 2 | 2 | - | 2 |
| Number of terminals | 20 | 20 | - | 14 |
| Maximum operating temperature | 125 °C | 125 °C | - | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | - | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | - | 3-STATE |
| Output polarity | TRUE | TRUE | - | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | - | CERAMIC, GLASS-SEALED |
| encapsulated code | QCCN | QCCN | - | DFP |
| Package shape | SQUARE | SQUARE | - | RECTANGULAR |
| Package form | CHIP CARRIER | CHIP CARRIER | - | FLATPACK |
| propagation delay (tpd) | 24 ns | 24 ns | - | 24 ns |
| Certification status | Not Qualified | Not Qualified | - | Not Qualified |
| Maximum seat height | 1.9 mm | 1.9 mm | - | 2.15 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | - | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | - | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | - | 5 V |
| surface mount | YES | YES | - | YES |
| technology | TTL | TTL | - | TTL |
| Temperature level | MILITARY | MILITARY | - | MILITARY |
| Terminal form | NO LEAD | NO LEAD | - | FLAT |
| Terminal pitch | 1.27 mm | 1.27 mm | - | 1.27 mm |
| Terminal location | QUAD | QUAD | - | DUAL |
| width | 8.89 mm | 8.89 mm | - | 6.415 mm |
