MOC3163 datasheet, PDF - EEWORLD Datasheet

MOC3163: DescriptionTriac Output Optocoupler With Zero CRSVR, 1-Element, 7500V Isolation, PLASTIC, DIP-6; CategoryLED optoelectronic/LED photoelectric; File Size529KB，10 Pages; ManufacturerQT Optoelectronics

Download Datasheet Parametric Compare View All

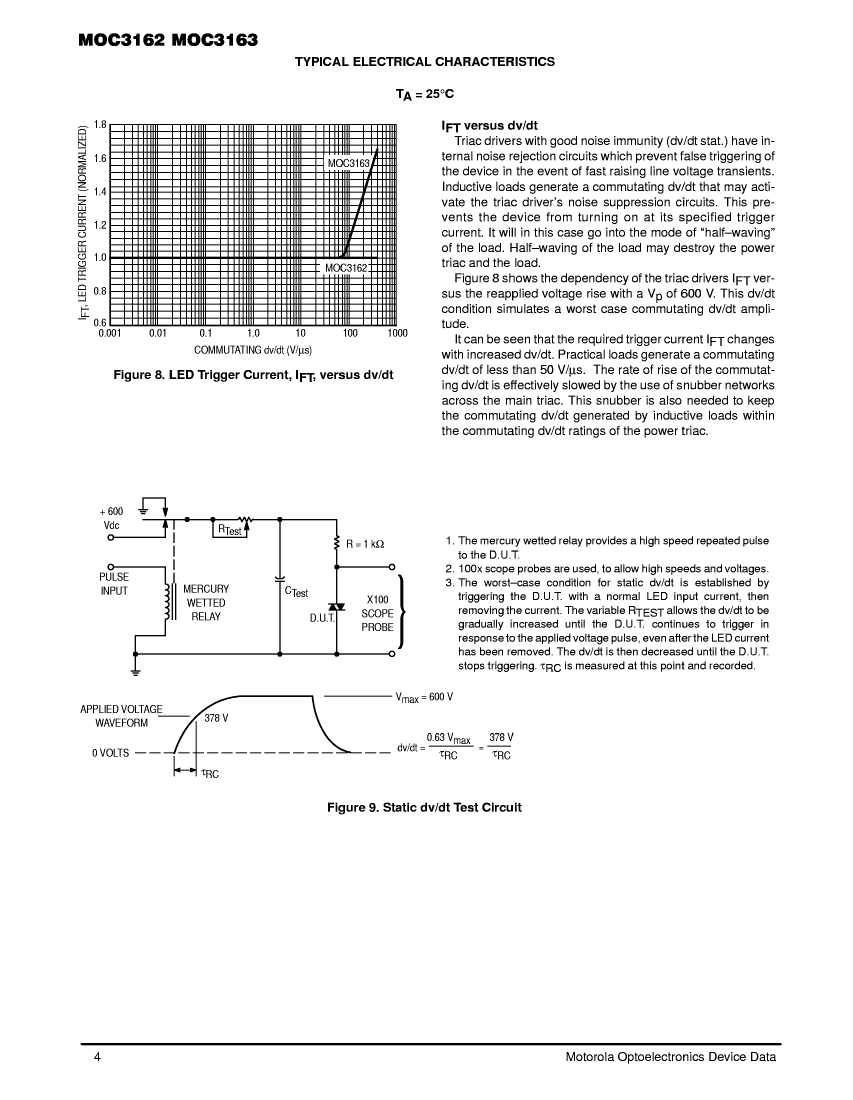

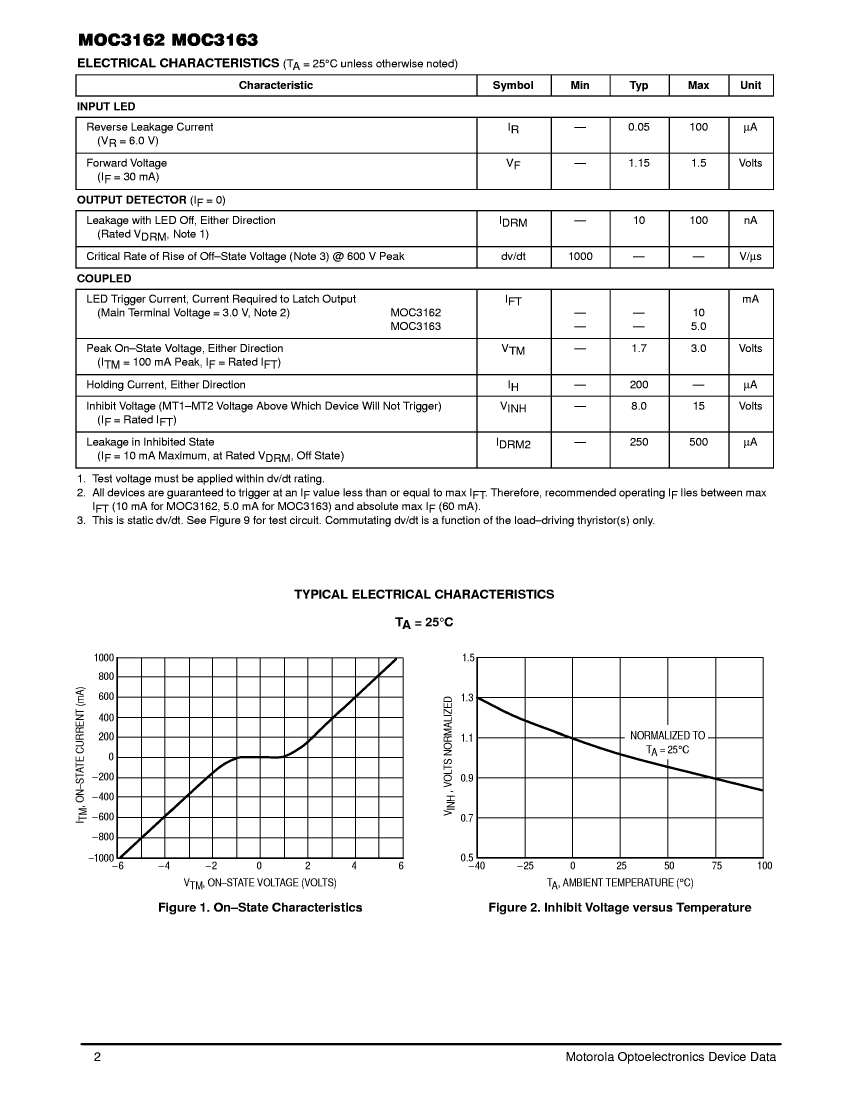

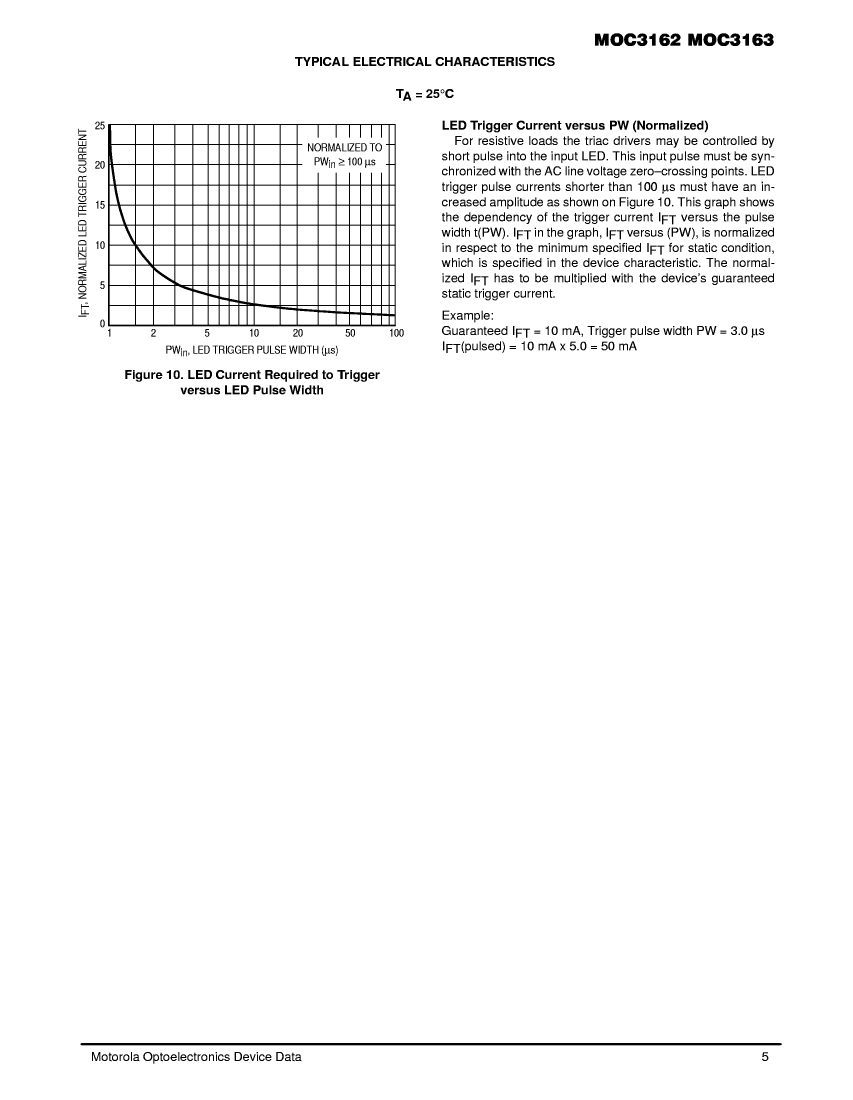

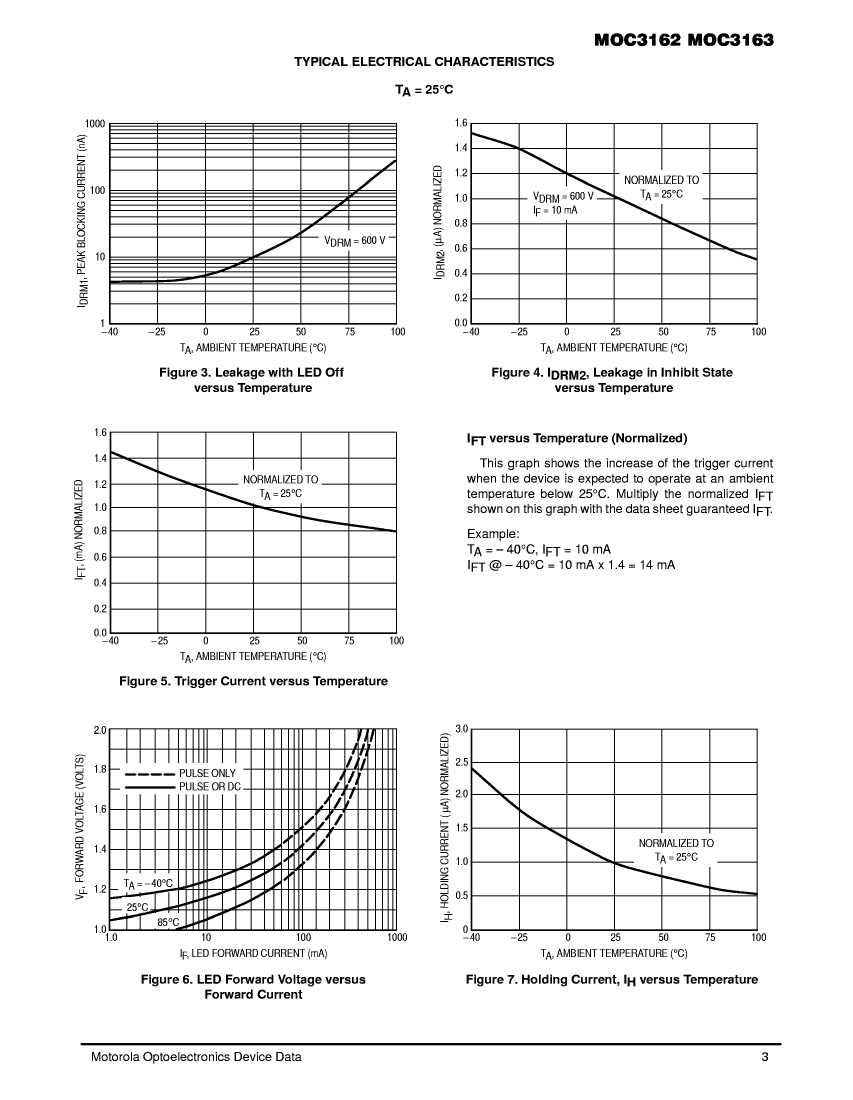

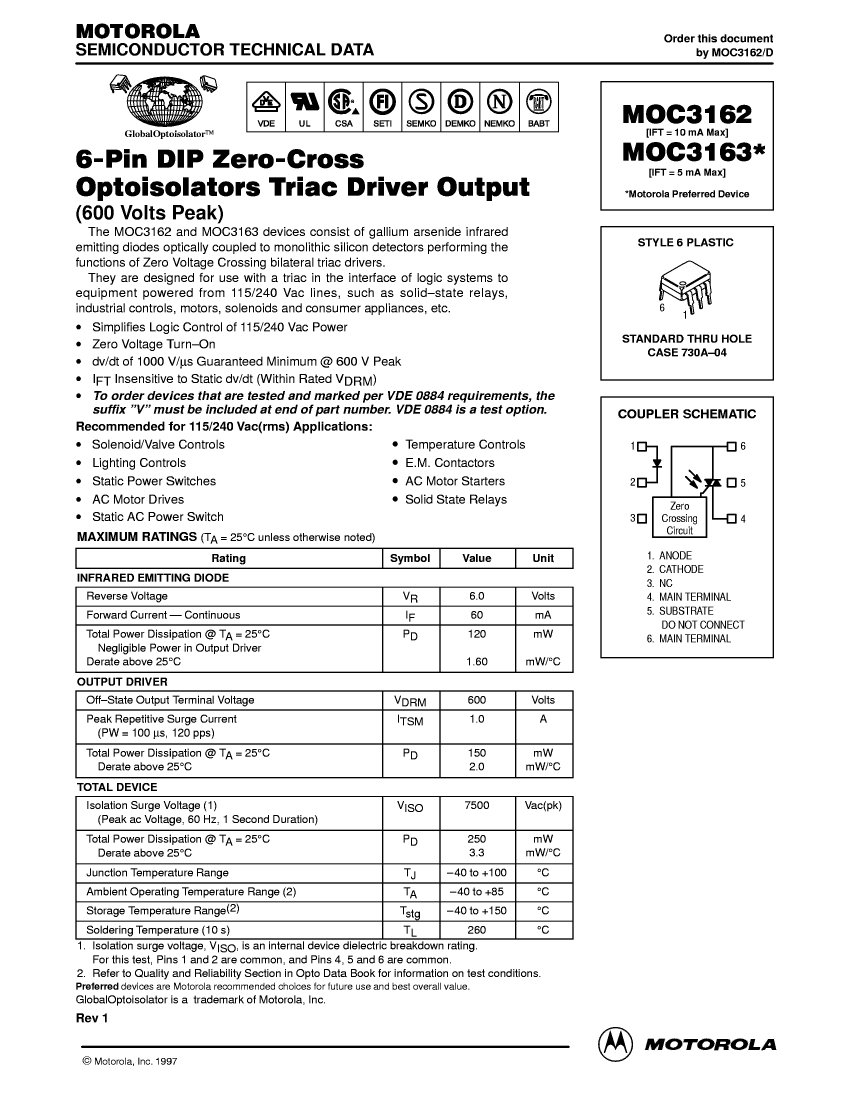

MOC3163 Overview

Triac Output Optocoupler With Zero CRSVR, 1-Element, 7500V Isolation, PLASTIC, DIP-6

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	QT Optoelectronics
package instruction	PLASTIC, DIP-6
Reach Compliance Code	unknown
Other features	UL APPROVED, VDE APPROVED
Configuration	SINGLE
Maximum forward current	0.06 A
Nominal input trigger current	5 mA
Maximum insulation voltage	7500 V
JESD-609 code	e0
Number of components	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR
Minimum off-state peak voltage	600 V
Terminal surface	Tin/Lead (Sn/Pb)

	MOC3163	MOC3162	MOC3163V	MOC3162V
Description	Triac Output Optocoupler With Zero CRSVR, 1-Element, 7500V Isolation, PLASTIC, DIP-6	Triac Output Optocoupler With Zero CRSVR, 1-Element, 7500V Isolation, PLASTIC, DIP-6	Triac Output Optocoupler With Zero CRSVR, 1-Element, 7500V Isolation, PLASTIC, DIP-6	Triac Output Optocoupler With Zero CRSVR, 1-Element, 7500V Isolation, PLASTIC, DIP-6
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	QT Optoelectronics	QT Optoelectronics	QT Optoelectronics	QT Optoelectronics
package instruction	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6
Reach Compliance Code	unknown	unknown	unknown	unknow
Other features	UL APPROVED, VDE APPROVED	UL APPROVED, VDE APPROVED	UL APPROVED, VDE APPROVED	UL APPROVED, VDE APPROVED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.06 A	0.06 A	0.06 A	0.06 A
Nominal input trigger current	5 mA	10 mA	5 mA	10 mA
Maximum insulation voltage	7500 V	7500 V	7500 V	7500 V
JESD-609 code	e0	e0	e0	e0
Number of components	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR
Minimum off-state peak voltage	600 V	600 V	600 V	600 V
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
