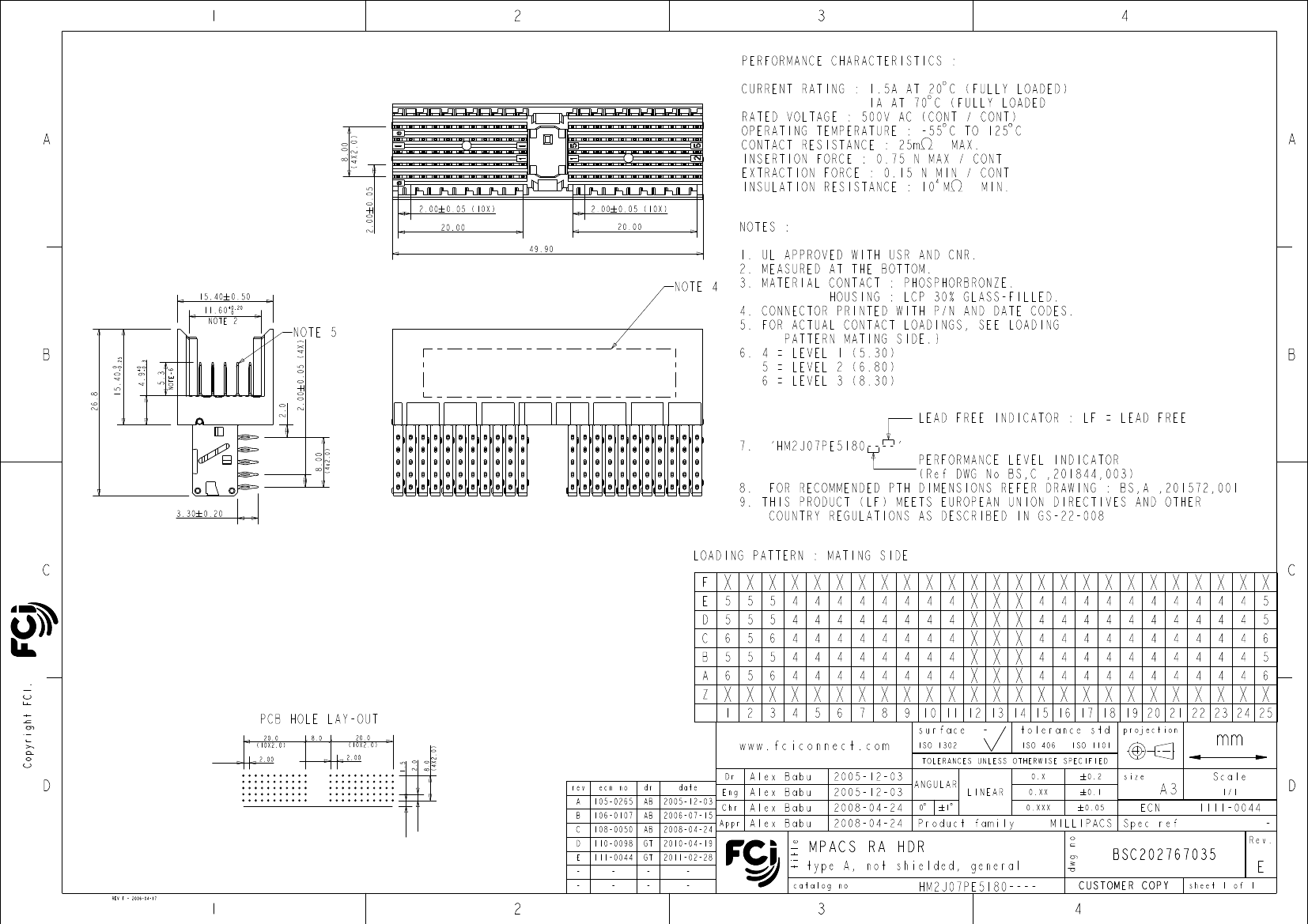

PERFORMANCE CHARACTERISTICS :
CURRENT RATING : 1.5A AT 20 C (FULLY LOADED)
1A AT 70 C (FULLY LOADED
RATED VOLTAGE : 500V AC (CONT / CONT)
OPERATING TEMPERATURE : -55 C TO 125 C
CONTACT RESISTANCE : 25m
MAX.
INSERTION FORCE : 0.75 N MAX / CONT
EXTRACTION FORCE : 0.15 N MIN / CONT
4
INSULATION RESISTANCE : 10 M
MIN.
4
8.00
(4X2.0)
A
A
2.00 0.05
2.00 0.05 (10X)
20.00
49.90
2.00 0.05 (10X)
20.00
NOTES :
1. UL APPROVED WITH USR AND CNR.
2. MEASURED AT THE BOTTOM.
3. MATERIAL CONTACT : PHOSPHORBRONZE.
HOUSING : LCP 30% GLASS-FILLED.
4. CONNECTOR PRINTED WITH P/N AND DATE CODES.
5. FOR ACTUAL CONTACT LOADINGS, SEE LOADING
PATTERN MATING SIDE.}
6. 4 = LEVEL 1 (5.30)
5 = LEVEL 2 (6.80)
6 = LEVEL 3 (8.30)
LEAD FREE INDICATOR : LF = LEAD FREE
15.40 0.50
11.60
+0.20
0
NOTE 2
NOTE 4
NOTE 5
0
15.40
-0.25
4.9
+0
-0.3
B
26.8
2.00 0.05 (4X)
B
NOTE-6
5.3
2.0
(4x2.0)
8.00
7.
'HM2J07PE5180----'
3.30 0.20
PERFORMANCE LEVEL INDICATOR
(Ref DWG No BS,C ,201844,003)
8. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS,A ,201572,001
9. THIS PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER
COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008
LOADING PATTERN : MATING SIDE
C
F
E
D
C
B
A
Copyright FCI.
Z
PCB HOLE LAY-OUT
2.00
2.00
1.5
8.0
(4X2.0)
20.0
(10X2.0)
8.0
20.0
(10X2.0)
2.0
X X X X X X X X X X X X
5 5 5 4 4 4 4 4 4 4 4
X
5 5 5 4 4 4 4 4 4 4 4
X
6 5 6 4 4 4 4 4 4 4 4
X
5 5 5 4 4 4 4 4 4 4 4
X
6 5 6 4 4 4 4 4 4 4 4
X
X X X X X X X X X X X X
1
2
3
4
5
6
7
8
surface
-
X
X
X
X
X
X
X
X X X X X X X X X X X X
X
4 4 4 4 4 4 4 4 4 4 5
X
4 4 4 4 4 4 4 4 4 4 5
X
4 4 4 4 4 4 4 4 4 4 6
X
4 4 4 4 4 4 4 4 4 4 5
X
4 4 4 4 4 4 4 4 4 4 6
X X X X X X X X X X X X
tolerance std
ISO 406
ISO 1101
C
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
projection
ISO 1302
www.fciconnect.com
Dr
rev
A
B
C
D
E
-
-
ecn no
I05-0265
106-0107
I08-0050
I10-0098
I11-0044
-
-
dr
AB
AB
AB
GT
GT
-
-
date
2005-12-03
2006-07-15
2008-04-24
2010-04-19
2011-02-28
-
-
Eng
Chr
Appr
mm
Scale
1/1
TOLERANCES UNLESS OTHERWISE SPECIFIED
D
Alex Babu
Alex Babu
Alex Babu
Alex Babu
title
2005-12-03
2005-12-03
2008-04-24
2008-04-24
ANGULAR
0
1
0.X
0.2
0.1
0.05
size
LINEAR
0.XX
0.XXX
A3
ECN
D
-
Rev.
1I11-0044
Product family
MILLIPACS Spec ref
dwg no
MPACS RA HDR
type A, not shielded, general
HM2J07PE5180----
BSC202767035
CUSTOMER COPY
sheet
1 of 1
E
catalog no
REV F - 2006-04-17
1
2
3
PDM: Rev:E
STATUS:
Released
4
Printed: Mar 19, 2011
.
