E31-50NX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> E31-50NX

E31-50NX: DescriptionSnap Acting/Limit Switch, SPDT, On-(on), Momentary, Quick Connect Terminal, Straight Lever Actuator, Panel Mount,; CategoryMechanical and electronic products switch; File Size131KB，2 Pages; ManufacturerThe Cherry Corporation; Environmental Compliance

Download Datasheet Parametric View All

E31-50NX Overview

Snap Acting/Limit Switch, SPDT, On-(on), Momentary, Quick Connect Terminal, Straight Lever Actuator, Panel Mount,

E31-50NX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	The Cherry Corporation
Reach Compliance Code	compliant
Actuator angle
Actuator length	1.382 inch
Actuator material	THERMOPLASTIC
Actuator type	STRAIGHT LEVER
Other features	LIGHT FORCE
Center contact plating	GOLD
Contact (AC) maximum rated R load	1A@125VAC
Maximum contact current (AC)	1 A
Contact function	ON-(ON)
contact time	SNAP ACTION
Maximum contact voltage (AC)	125 V
End contact plating	GOLD
insulator material	PHENOLIC
Manufacturer's serial number	E
Installation features	PANEL MOUNT
Maximum operating force	0.2168 N
work location	0.578 inch
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal material	BRASS
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

GO TO TABLE OF CONTENTS

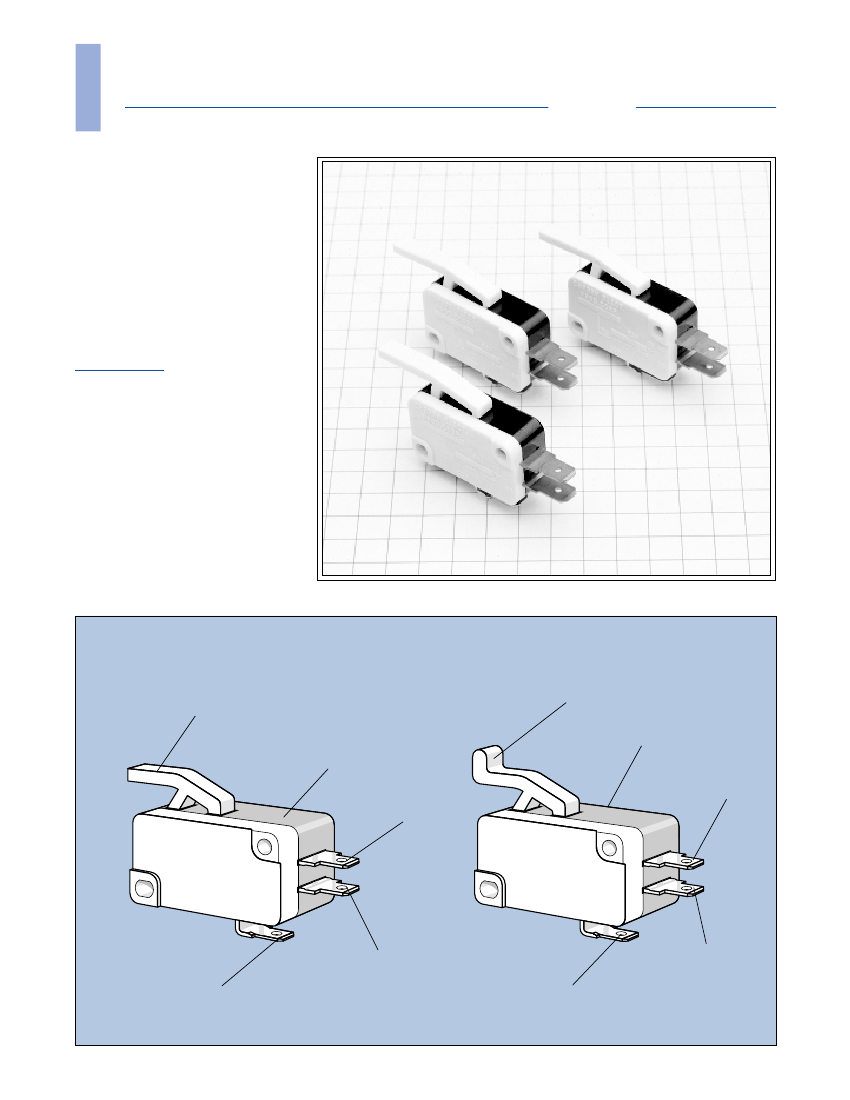

Plastic Lever Actuator

Standard and Light Force

E21

E22

E23

E31

E33

E34

0.1 amp

3 amp

5 amp

1 amp

10 amp

15 amp

Miniature

E35* 20.1 amp

E36* 25 amp

Features

8 current ratings

2 actuator styles

Choice of terminals

3 contact arrangements

Choice of standard or light

operating force

Only available in 85°C

* E35 and E36 available with 0.250

Q.C. terminals only.

Molded plastic unitary hinged lever

combines switch actuator and button.

Simulated

Thermoplastic

Roller

Phenolic Case

NC Terminal

Thermoplastic Lever

NO Terminal

Common

Terminal

Common

Terminal

NO Terminal

3-26
