SUR16D: DescriptionSingle Color LED, Red, Diffused, 5mm, 5 X 2.50 MM, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size173KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

SUR16D Overview

Single Color LED, Red, Diffused, 5mm, 5 X 2.50 MM, ROHS COMPLIANT PACKAGE-2

SUR16D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
package instruction	5 X 2.50 MM, ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
color	RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	4.8 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	9.6 mm

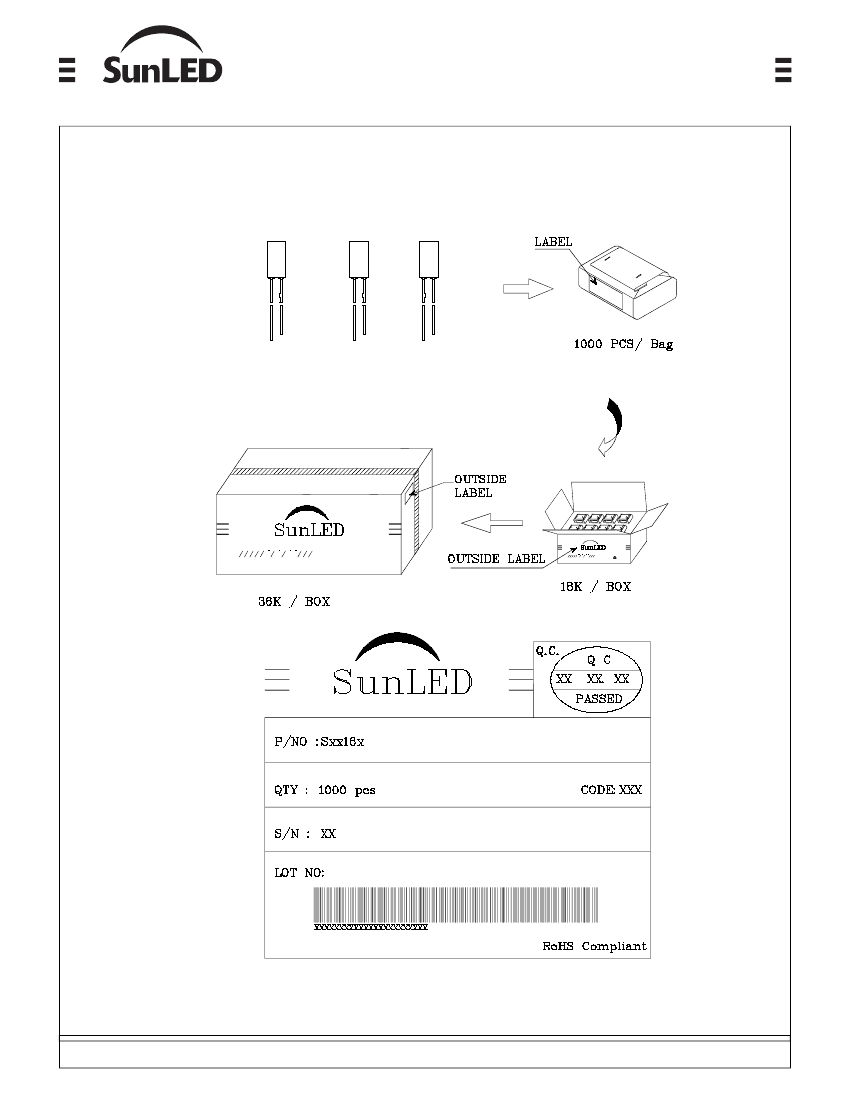

method of packing	BOX/BAG
peak wavelength	627 nm
shape	RECTANGULAR
size	5 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	110 deg

Preview

Download Datasheet

View All

Part Number:

SUR16D

www.SunLED.com

2.5x5mm RECTANGULAR SOLID LAMP

Features

LOW POWER CONSUMPTION.

RELIABLE AND RUGGED.

EXCELLENT UNIFORMITY OF LIGHT OUTPUT.

SUITABLE FOR LEVEL INDICATOR.

LONG LIFE - SOLID STATE RELIABILITY.

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3.Specifications are subject to change without notice.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Lead Solder Temperature

[2mm Below Package Base]

Lead Solder Temperature

[5mm Below Package Base]

Tstg

(GaAsP/GaP)

160

-40 ~ +85

260°C For 3 Seconds

260°C For 5 Seconds

Unit

°C

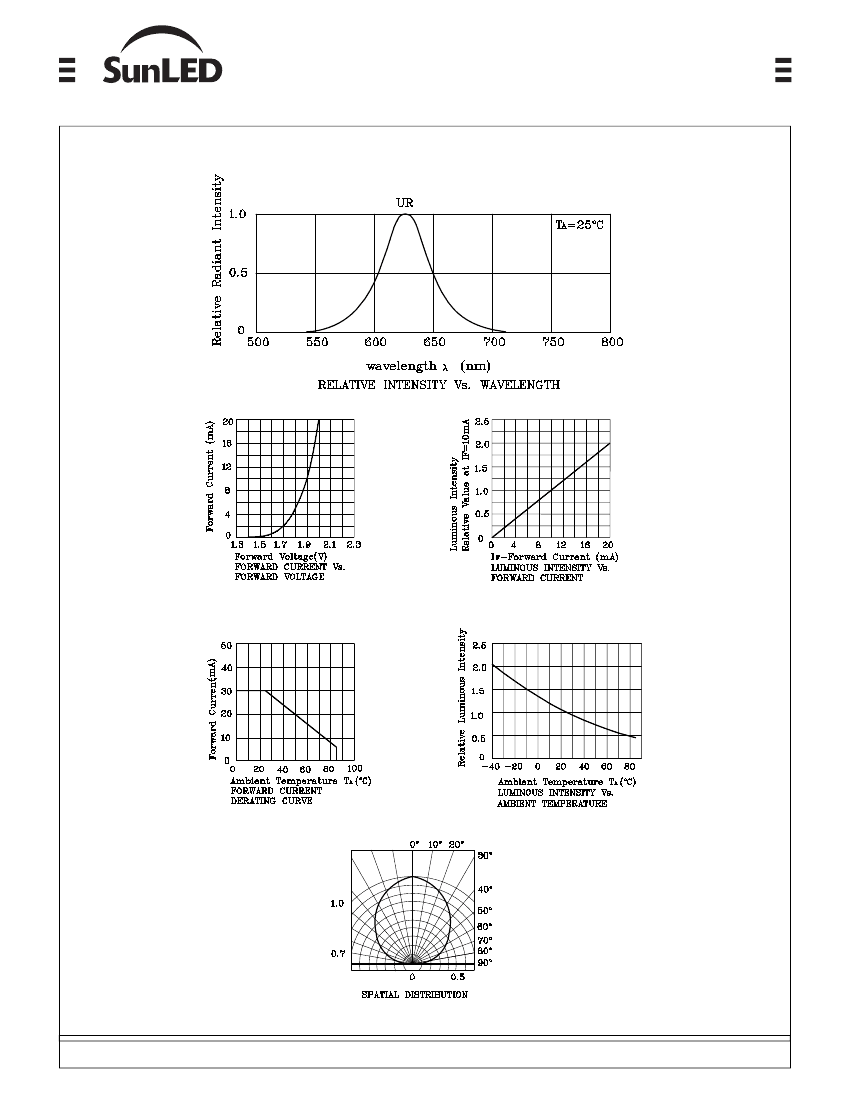

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=10mA)

Forward Voltage (Max.)

=10mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak

Emission (Typ.)

=10mA)

Wavelength of Dominant

Emission (Typ.)

=10mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=10mA)

Capacitance

=0V, f=1MHz)

(GaAsP/GaP)

1.9

2.5

Unit

627

625

Δλ

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

(IF=10mA)

mcd

min.

typ.

4.8

Wavelength

Viewing

Angle

1/2

SUR16D

Red

GaAsP/GaP

Red Diffused

627

110°

Published Date : MAR 21, 2008

Drawing No : SDSA2915

Checked : B.L.LIU

P.1/4
