AS5C4009LLECJ-85/IT datasheet, PDF

Datasheet> All Categories > storage> storage> AS5C4009LLECJ-85/IT

AS5C4009LLECJ-85/IT: DescriptionStandard SRAM, 512KX8, 85ns, CMOS, CDSO32, CERAMIC, SOJ-32; Categorystorage storage; File Size144KB，12 Pages; ManufacturerMicross; Websitehttps://www.micross.com

Download Datasheet Parametric View All

AS5C4009LLECJ-85/IT Overview

Standard SRAM, 512KX8, 85ns, CMOS, CDSO32, CERAMIC, SOJ-32

AS5C4009LLECJ-85/IT Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Micross
Parts packaging code	SOJ
package instruction	SOJ, SOJ32,.44
Contacts	32
Reach Compliance Code	compliant
ECCN code	3A991.B.2.A
Maximum access time	85 ns
Other features	LOW POWER STANDBY MODE
I/O type	COMMON
JESD-30 code	R-CDSO-J32
JESD-609 code	e0
length	20.955 mm
memory density	4194304 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	32
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	512KX8
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	SOJ
Encapsulate equivalent code	SOJ32,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.064 mm
Maximum standby current	0.0001 A
Minimum standby current	2 V
Maximum slew rate	0.08 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.4935 mm

Preview

Download Datasheet

View All

SRAM

Austin Semiconductor, Inc.

512K x 8 SRAM

Ultra Low Power SRAM

AVAILABLE AS MILITARY

SPECIFICATION

• SMD 5962-95613

• MIL STD-883

1,2

AS5C4009LL

PIN ASSIGNMENT

(Top View)

32-Pin DIP, 32-Pin SOJ

& 32-Pin TSOP

FEATURES

• Ultra Low Power with 2V Data Retention

(0.2mW MAX worst case Power-down standby)

• Fully Static, No Clocks

• Single +5V ±10% power supply

• Easy memory expansion with CE\ and OE\ options

• All inputs and outputs are TTL-compatible

• Three state outputs

• Operating temperature range:

Ceramic -55

C to +125

C & -40

C to +85

Plastic

-40

C to +85

1. Not applicable to plastic package

2. Applies to CW package only.

3. Contact factory for -55

C to +125

A18

A16

A14

A12

Vcc

A15

A17

WE\

A13

A11

OE\

A10

CE\

I/08

I/07

I/06

I/05

I/04

OPTIONS

• Timing

55ns access

70ns access

85ns access

100ns access

• Packages

Ceramic Dip (600 mil)

Ceramic SOJ

Plastic TSOP

MARKING

-55

-70

-85

-100

ECJ

No. 112

No. 502

No. 1002

I/01

I/02

I/03

Vss

4. For DG package, contact factory

5. Contact Factory

NOTE:

Not all combinations of operating temperature, speed, data retention and low power are

necessarily available. Please contact the factory for availability of specific part number

combinations.

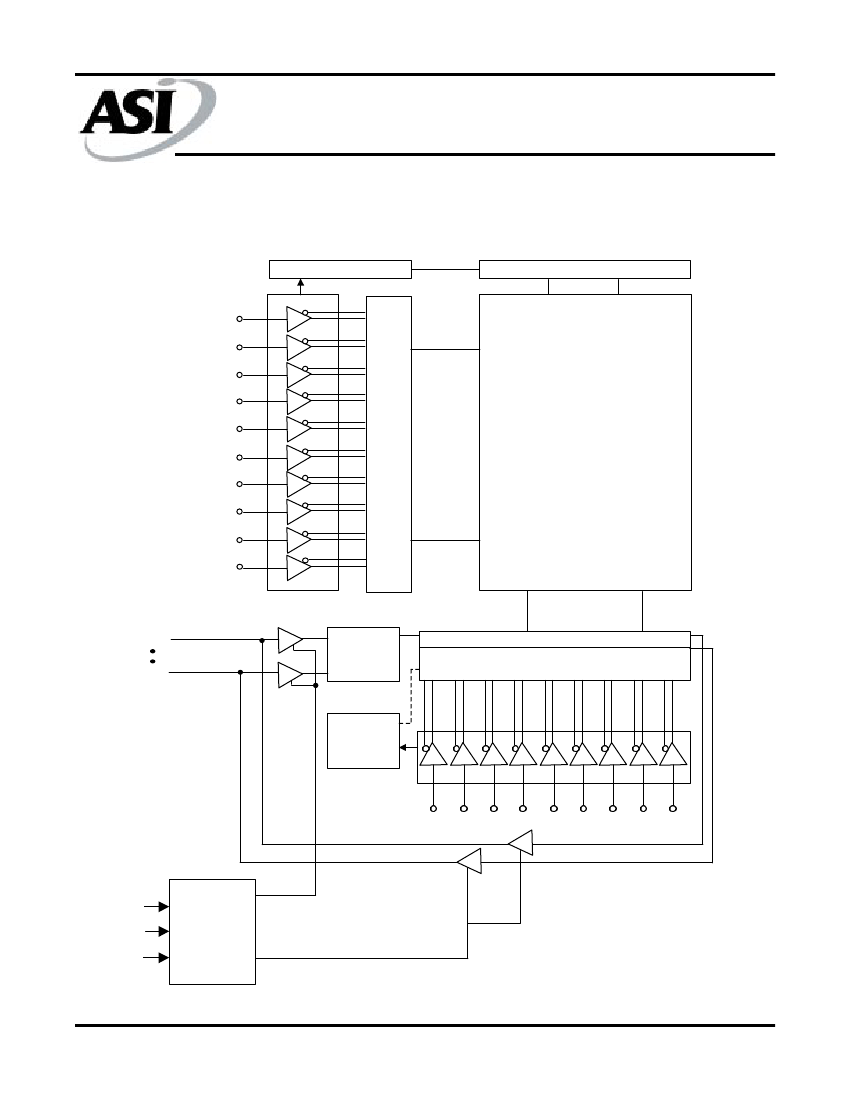

GENERAL DESCRIPTION

The AS5C4009LL is organized as 524,288 x 8 SRAM utilizing a

special ultra low power design process. ASI’s pinout adheres to the

JEDEC standard for pinout on 4 megabit SRAMs. The evolutionary 32

pin version allows for easy upgrades from the 1 meg SRAM design.

For flexibility in memory applications, ASI offers chip enable (CE\)

and output enable (OE\) capabilities. These features can place the

outputs in High-Z for additional flexibility in system design.

This devices operates from a single +5V power supply and all

inputs and outputs are fully TTL-compatible.

Writing to these devices is accomplished when write enable (WE\)

and CE\ inputs are both LOW. Reading is accomplished when WE\

remains HIGH and CE\ and OE\ go LOW. The device offers a re-

duced power standby mode when disabled, by lowering VCC to 2V and

maintaining CE\ = 2V. This allows system designers to meet ultra low

standby power requirements.

AS5C4009LL

Rev. 4.0 2/01

Pin Name

WE\

CE\

OE\

A0 - A18

I/O1 - I/O8

Vcc

Vss

Function

Write Enable Input

Chip Select Input

Output Enable Input

Address Inputs

Data Inputs/Outputs

Power

Ground

For more products and information

please visit our web site at

www.austinsemiconductor.com

Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
