935238730118 datasheet, PDF - EEWORLD Datasheet

935238730118: DescriptionIC LVC/LCX/Z SERIES, 16 1-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, PLASTIC, TSSOP2-48, Bus Driver/Transceiver; Categorylogic logic; File Size386KB，13 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric View All

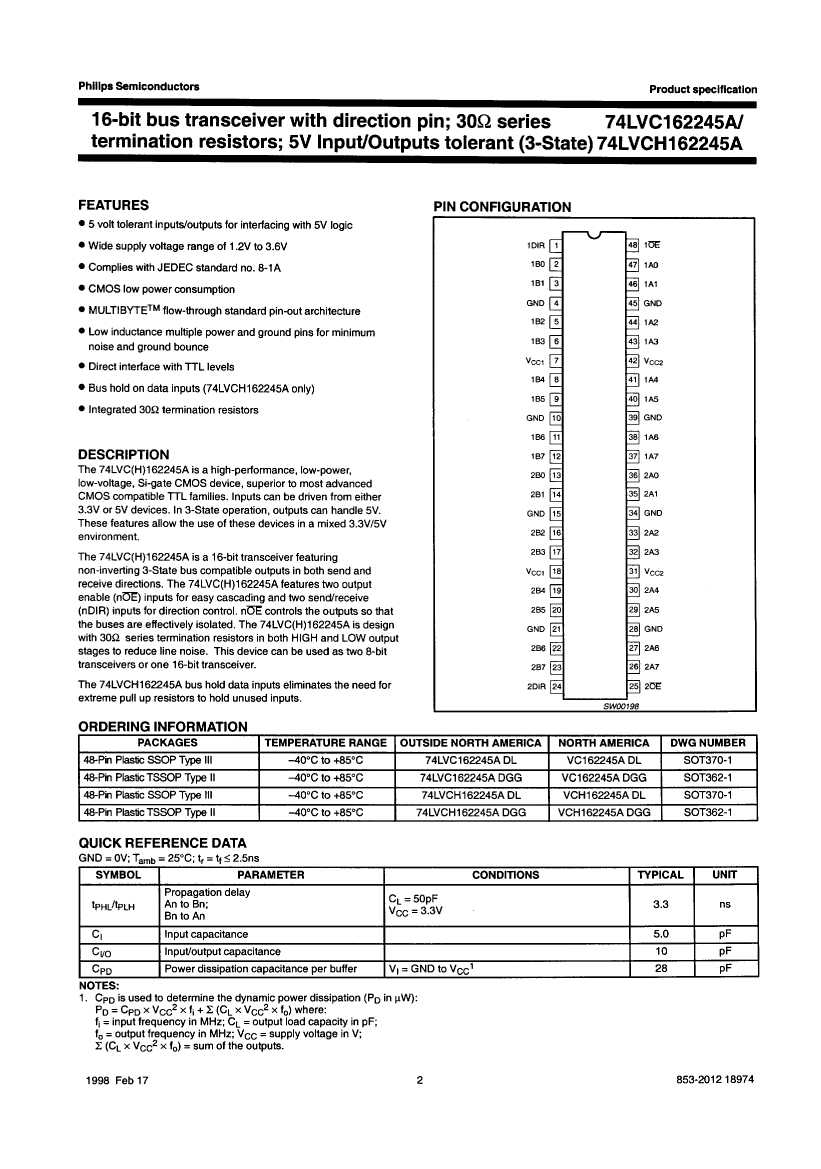

935238730118 Overview

IC LVC/LCX/Z SERIES, 16 1-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, PLASTIC, TSSOP2-48, Bus Driver/Transceiver

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	48
Reach Compliance Code	unknow

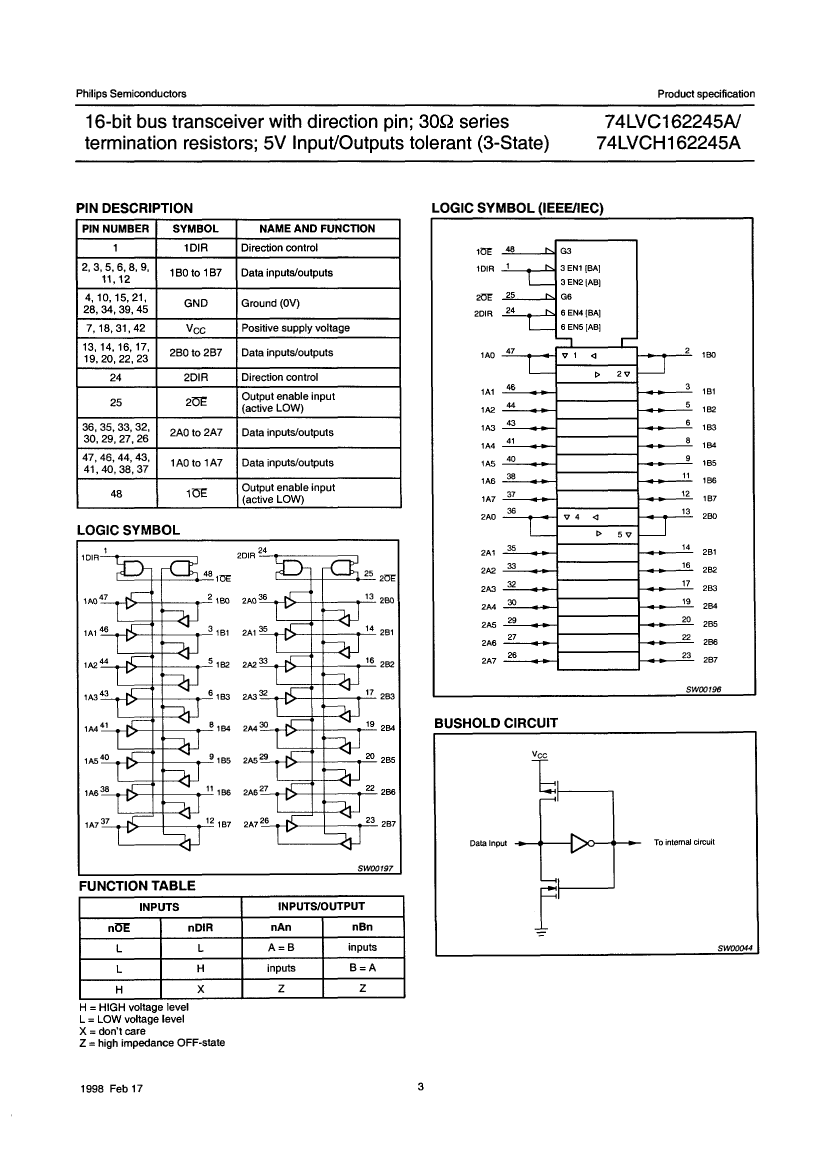

Other features	WITH DIRECTION CONTROL
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G48
JESD-609 code	e4
length	12.5 mm
Logic integrated circuit type	BUS TRANSCEIVER
Humidity sensitivity level	1
Number of digits	8
Number of functions	2
Number of ports	2
Number of terminals	48

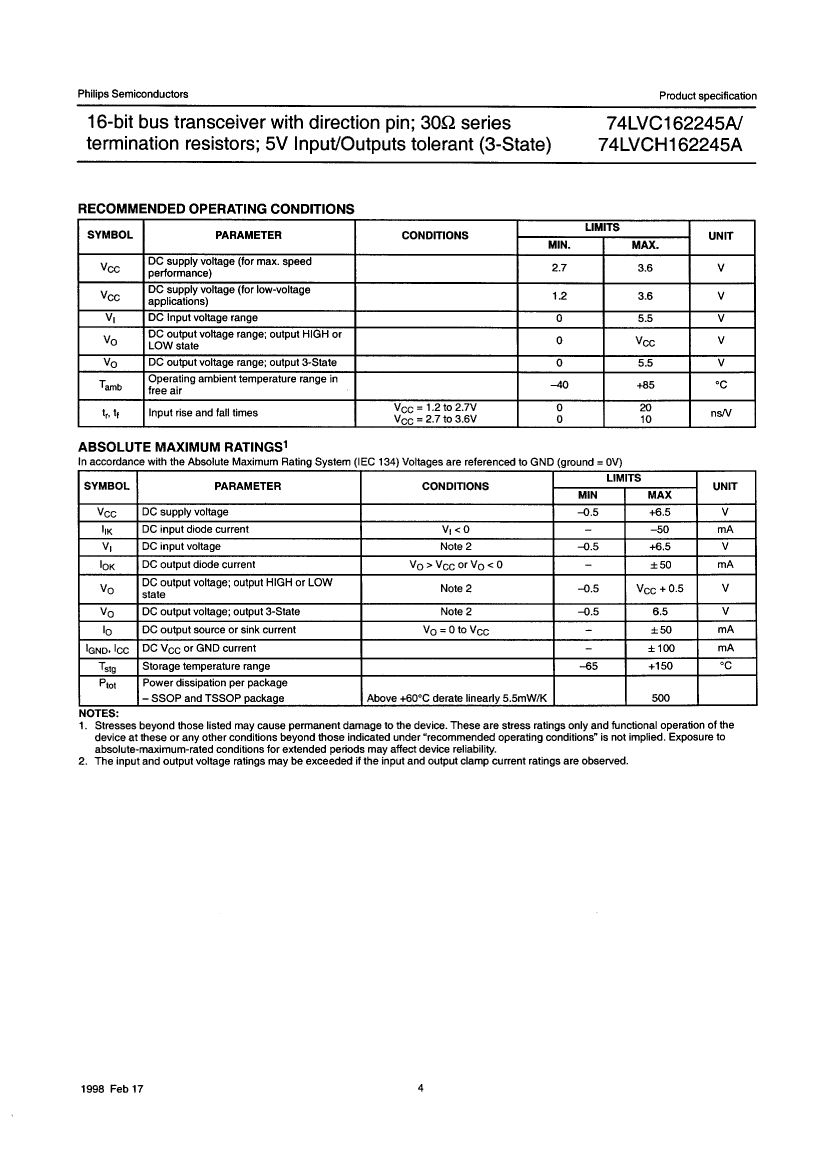

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260

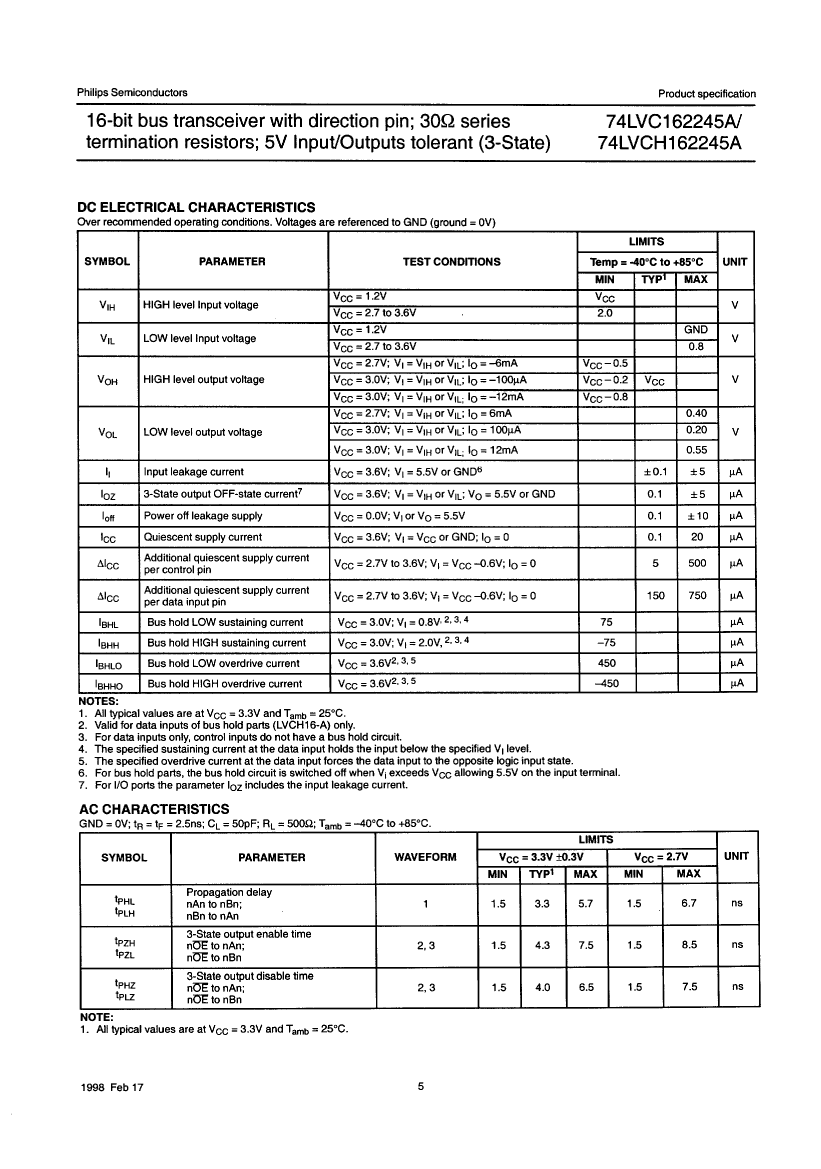

propagation delay (tpd)	6.7 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	1.2 V
Nominal supply voltage (Vsup)	2.7 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	NICKEL PALLADIUM GOLD
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	6.1 mm
Base Number Matches	1
