LAN91C100FDPQFP datasheet, PDF

LAN91C100FDPQFP: DescriptionLAN Controller, 1 Channel(s), 12.5MBps, CMOS, PQFP208, PQFP-208; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，94 Pages; ManufacturerSMSC; Websitehttp://www.smsc.com/

Download Datasheet Parametric View All

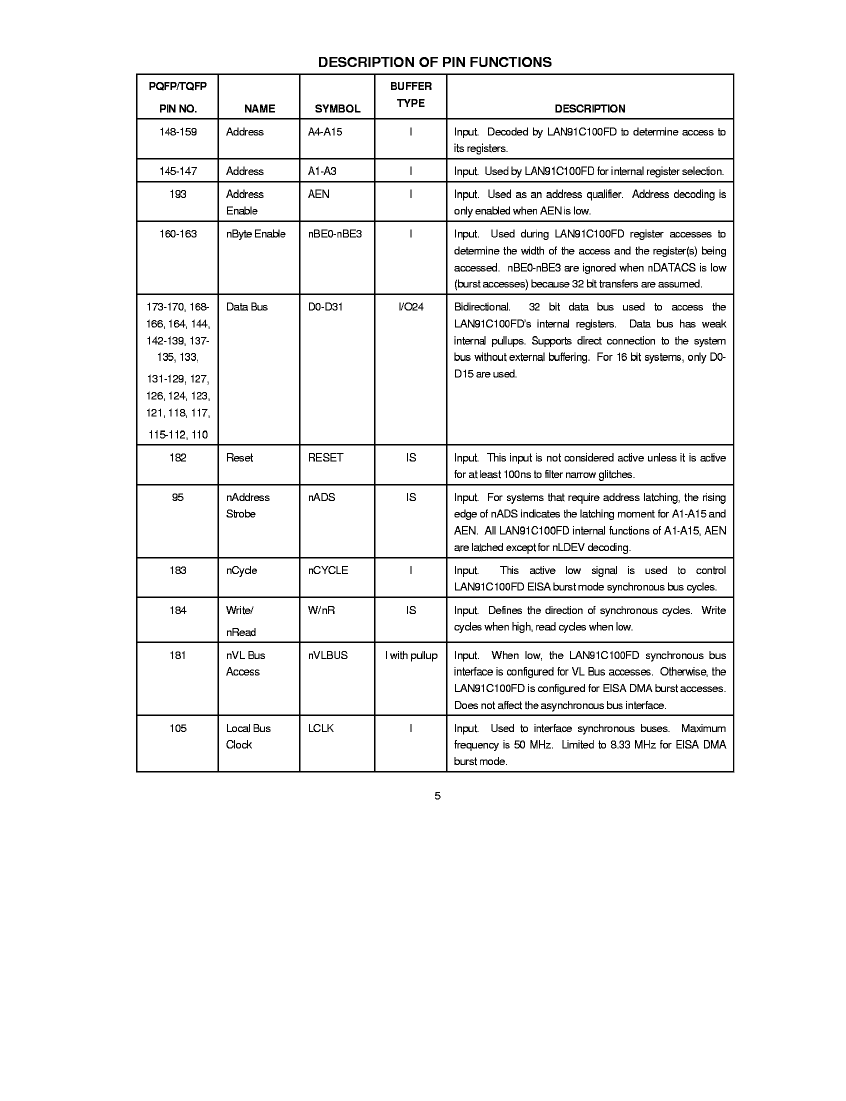

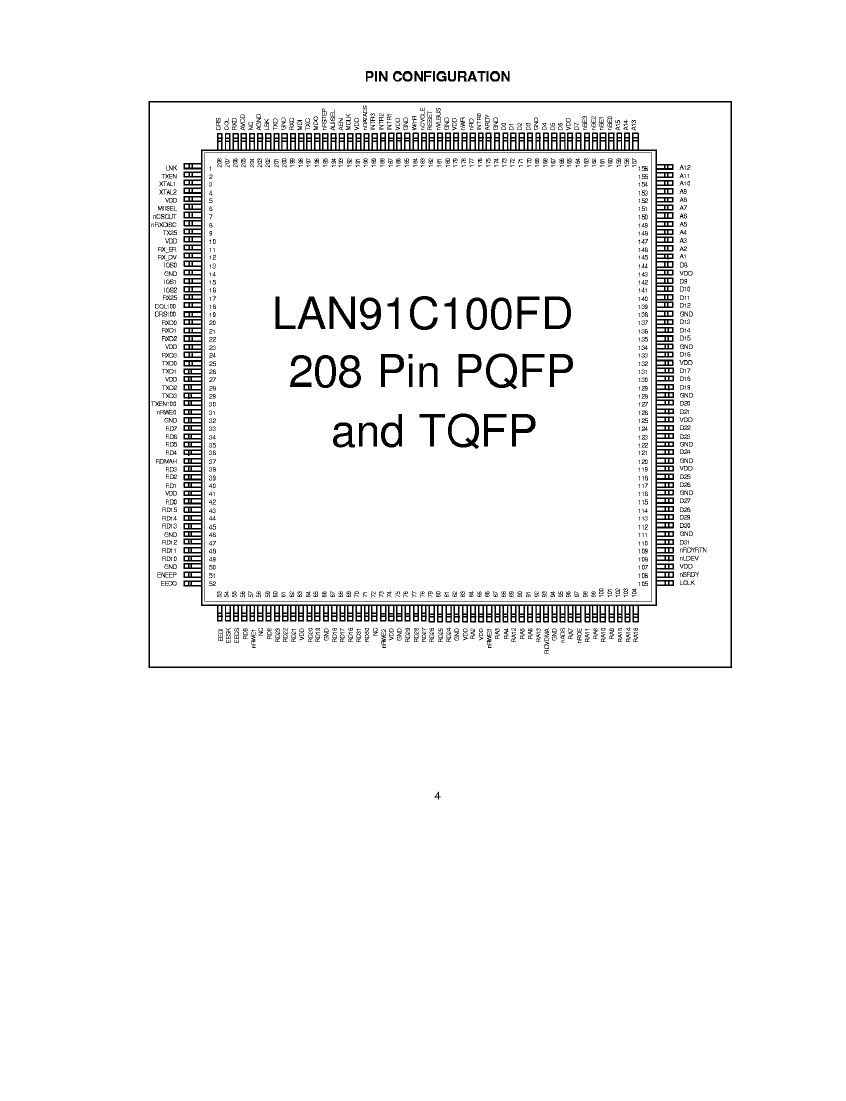

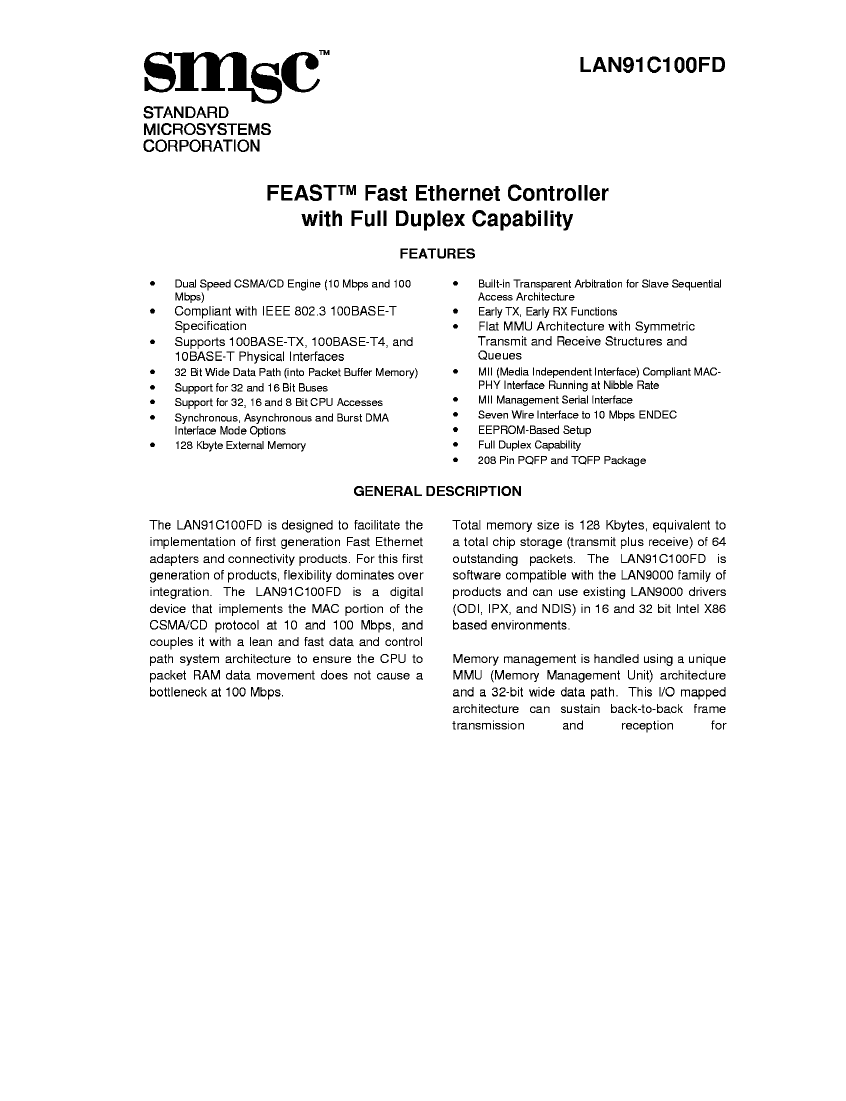

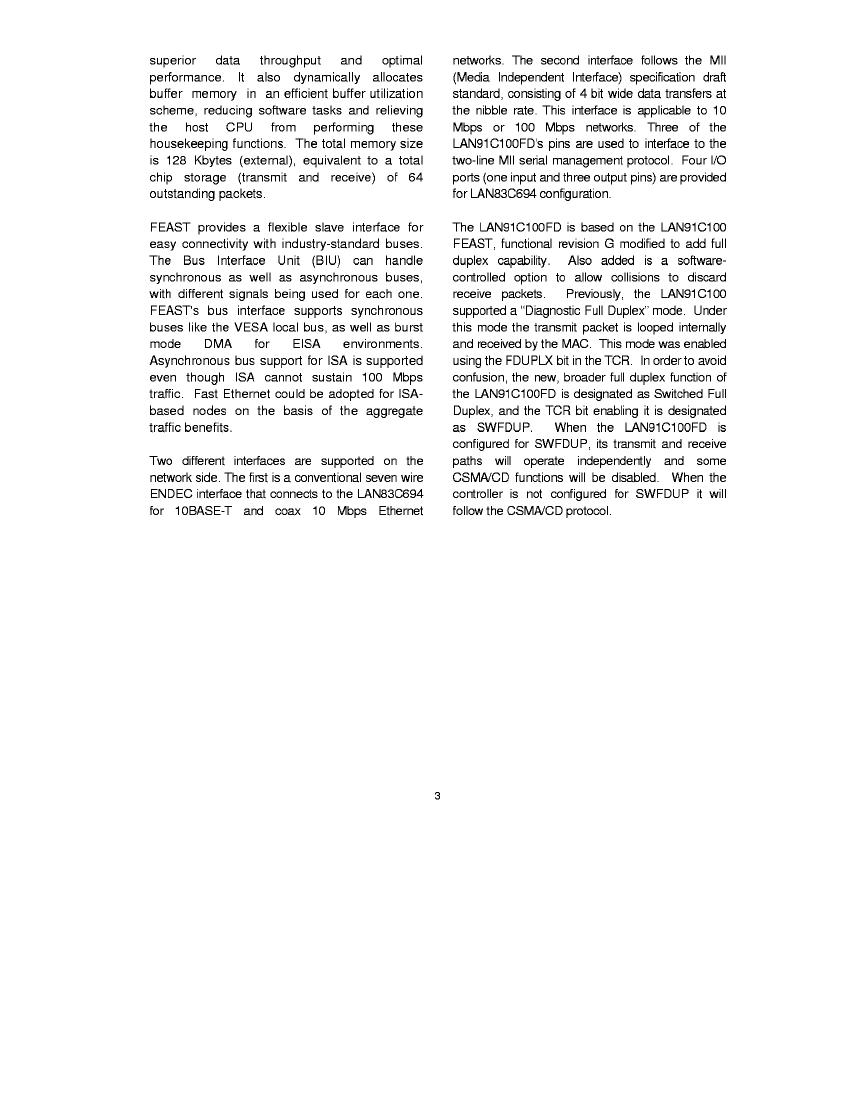

LAN91C100FDPQFP Overview

LAN Controller, 1 Channel(s), 12.5MBps, CMOS, PQFP208, PQFP-208

Parameter Name	Attribute value
Maker	SMSC
Parts packaging code	QFP
package instruction	FQFP,
Contacts	208
Reach Compliance Code	compliant
Address bus width	16
maximum clock frequency	25 MHz
Data encoding/decoding methods	NRZ
Maximum data transfer rate	12.5 MBps
External data bus width	32
JESD-30 code	S-PQFP-G208
length	28 mm
Number of serial I/Os	1
Number of terminals	208
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	FQFP
Package shape	SQUARE
Package form	FLATPACK, FINE PITCH
Certification status	Not Qualified
Maximum seat height	4.07 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	28 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, LAN
