LC66E408DIC42S datasheet, PDF - EEWORLD Datasheet

LC66E408DIC42S: DescriptionMicrocontroller, 4-Bit, UVPROM, CMOS, CDIP42, CERAMIC, DIP-42; CategoryThe embedded processor and controller Microcontrollers and processors; File Size393KB，16 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

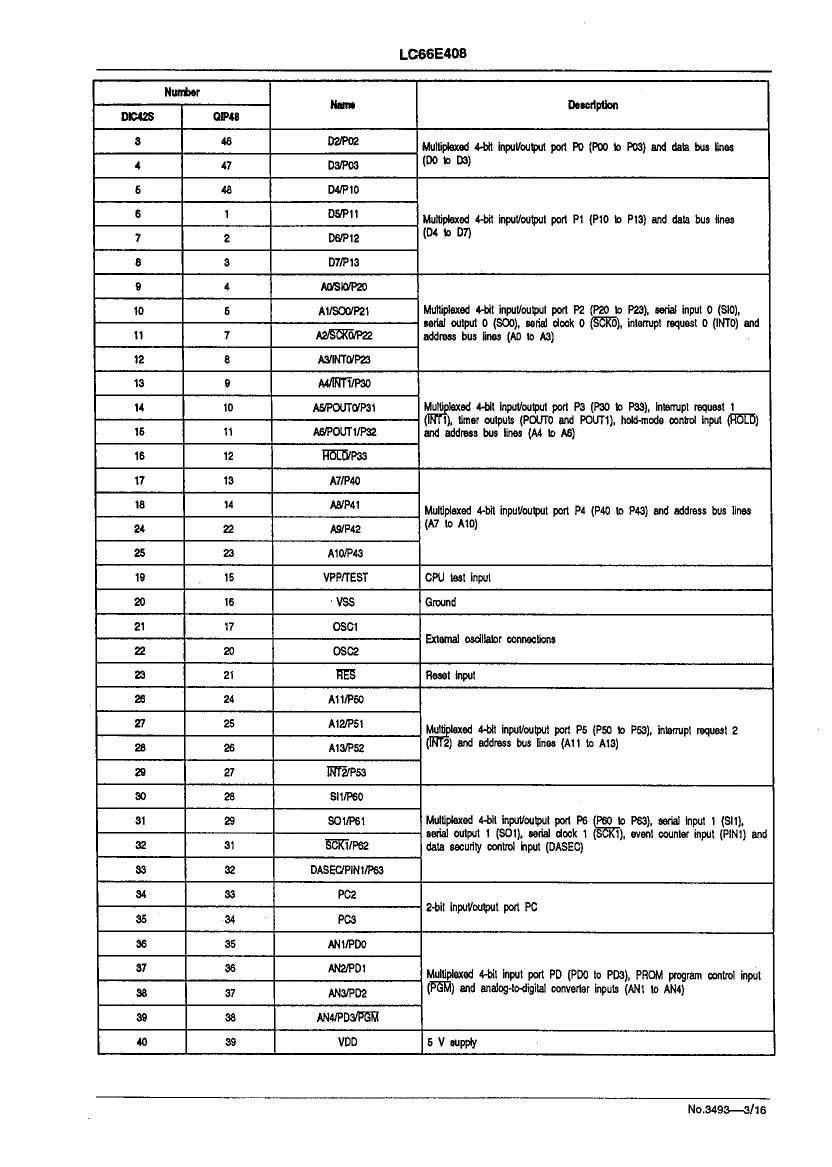

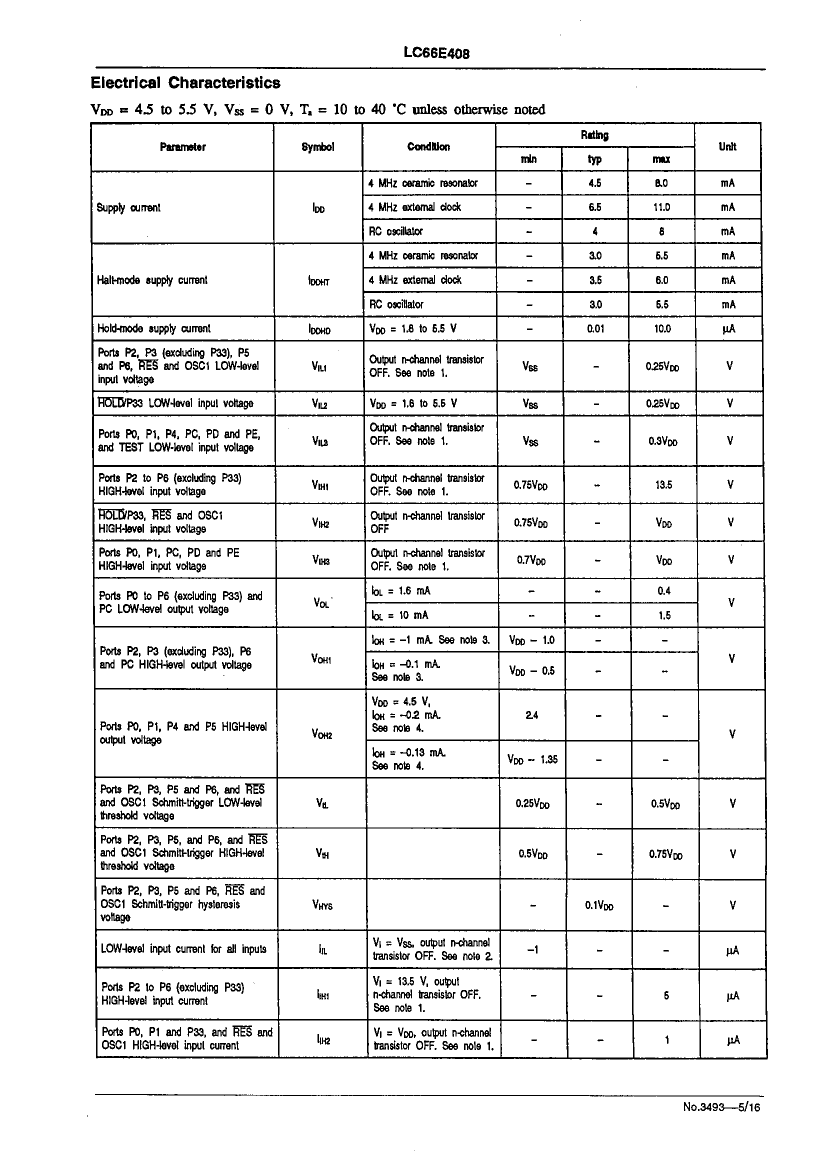

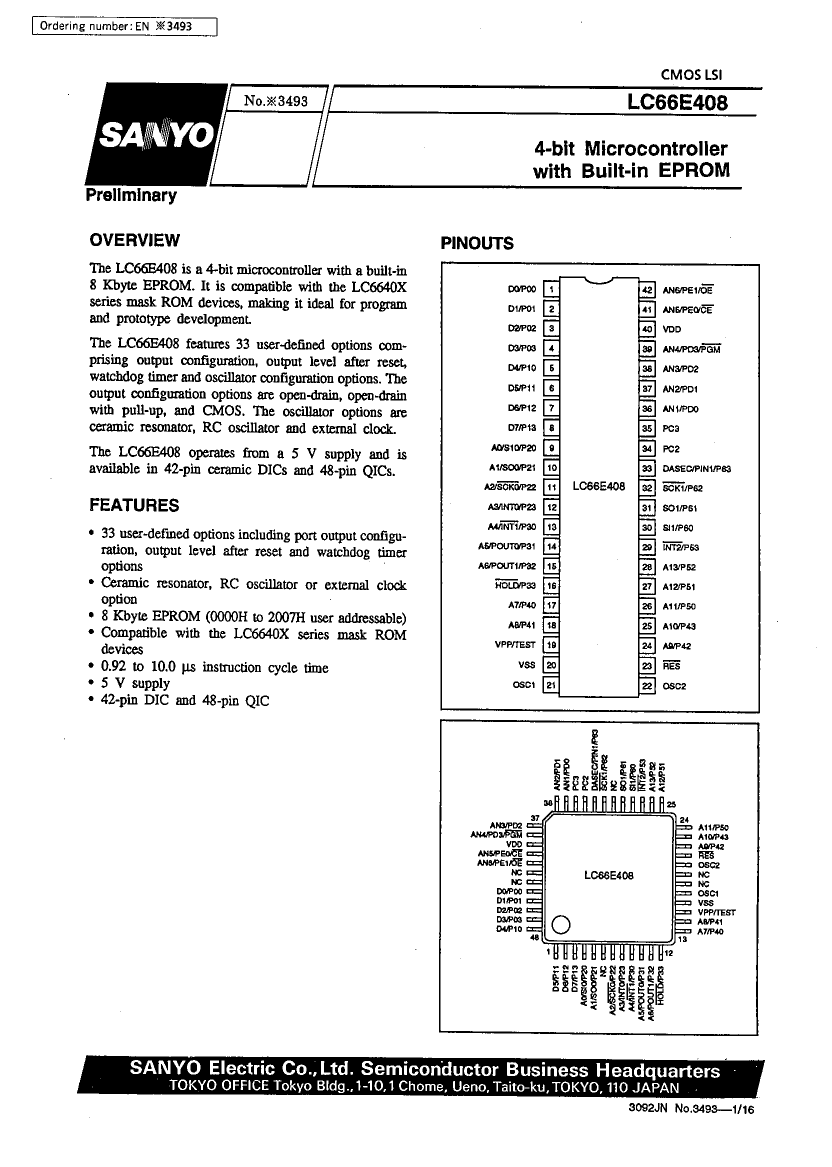

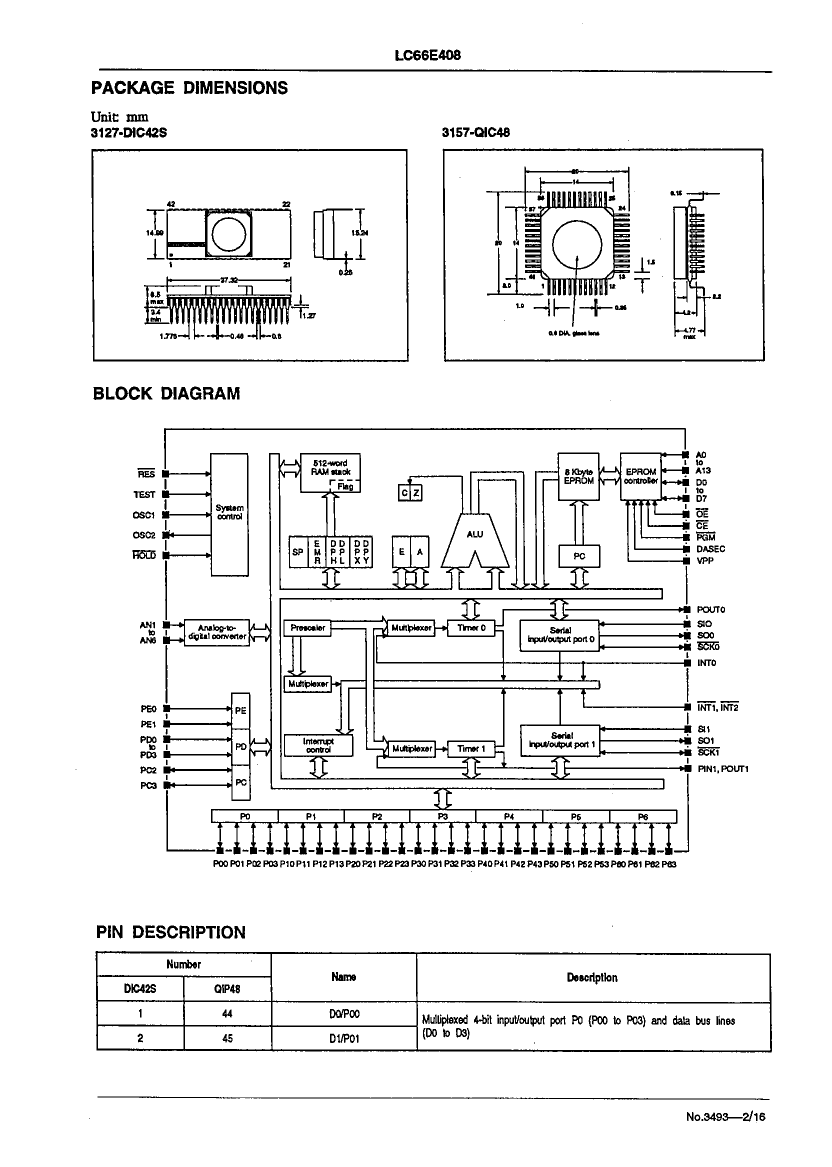

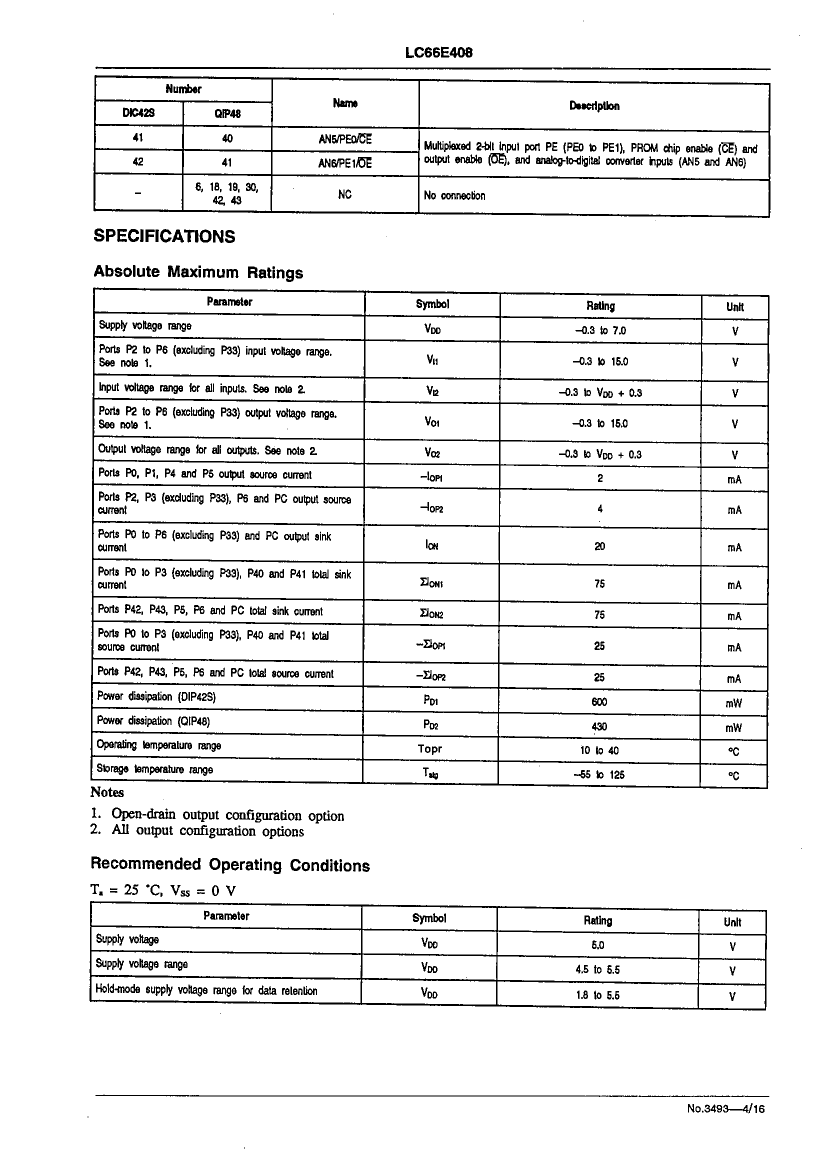

LC66E408DIC42S Overview

Microcontroller, 4-Bit, UVPROM, CMOS, CDIP42, CERAMIC, DIP-42

Parameter Name	Attribute value
Maker	SANYO
Parts packaging code	DIP
package instruction	SDIP,
Contacts	42
Reach Compliance Code	unknown
Has ADC	YES
Address bus width	14
bit size	4
maximum clock frequency	4.35 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-CDIP-T42
length	37.32 mm
Number of I/O lines	36
Number of terminals	42
Maximum operating temperature	40 °C
Minimum operating temperature	10 °C
PWM channel	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	SDIP
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Certification status	Not Qualified
ROM programmability	UVPROM
Maximum seat height	6.5 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

	LC66E408DIC42S	LC66E408QIC48
Description	Microcontroller, 4-Bit, UVPROM, CMOS, CDIP42, CERAMIC, DIP-42	Microcontroller, 4-Bit, UVPROM, CMOS, CQFP48, CERAMIC, QIC-48
Maker	SANYO	SANYO
Parts packaging code	DIP	QFP
package instruction	SDIP,	WQFP,
Contacts	42	48
Reach Compliance Code	unknown	unknown
Has ADC	YES	YES
Address bus width	14	14
bit size	4	4
maximum clock frequency	4.35 MHz	4.35 MHz
DAC channel	NO	NO
DMA channel	NO	NO
External data bus width	8	8
JESD-30 code	R-CDIP-T42	S-CQFP-G48
length	37.32 mm	14 mm
Number of I/O lines	36	36
Number of terminals	42	48
Maximum operating temperature	40 °C	40 °C
Minimum operating temperature	10 °C	10 °C
PWM channel	NO	NO
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	SDIP	WQFP
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE, SHRINK PITCH	FLATPACK, WINDOW
Certification status	Not Qualified	Not Qualified
ROM programmability	UVPROM	UVPROM
Maximum seat height	6.5 mm	4.77 mm
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	OTHER	OTHER
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	1.778 mm	1 mm
Terminal location	DUAL	QUAD
width	15.24 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
