Data sheet
OMNIMATE Power - series BL/SL 7.62HP
BLF 7.62HP/07/180 SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Product image

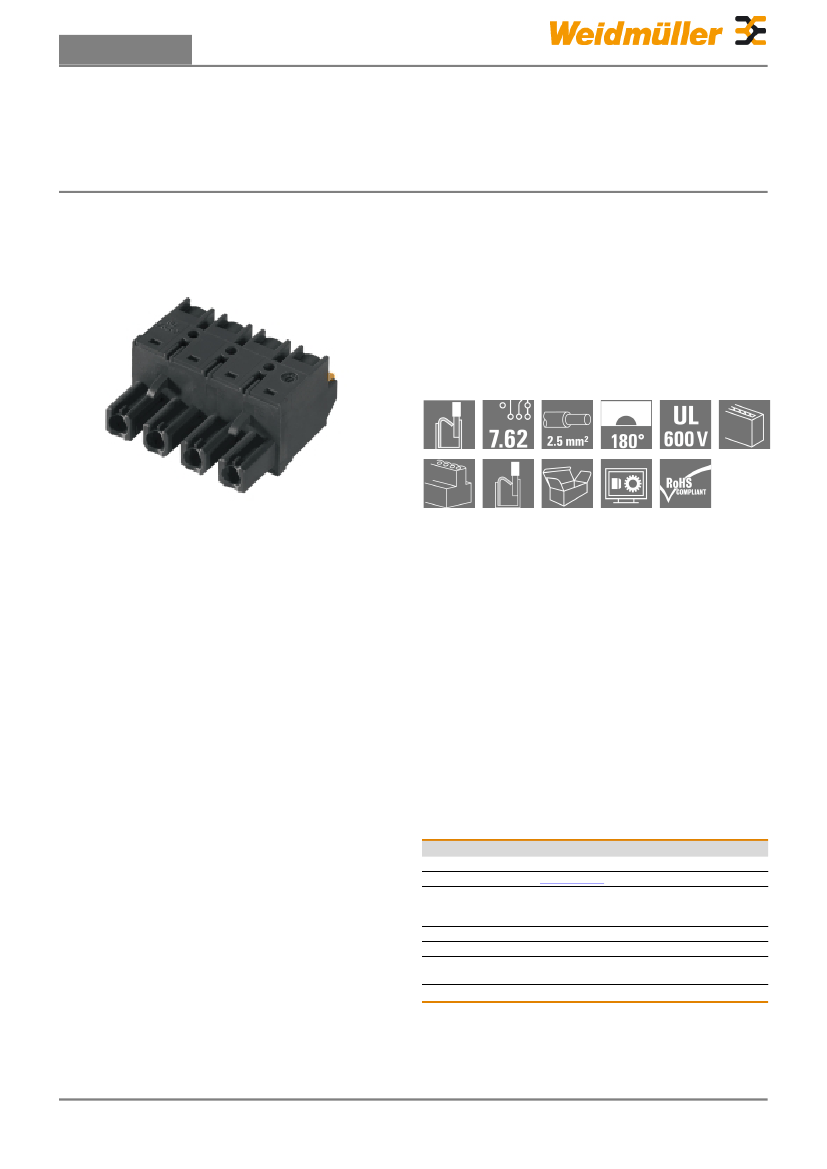

180° female header with PUSH-IN connection technology
for field wiring in 2.5 mm² with a 7.62 pitch.
Meets the requirements as per UL1059 600 V class C
and IEC 61800-5-1
Variants: without flange, external flange, release latch.
Similar to illustration
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
Product data
Packaging
BLF 7.62HP/07/180 SN BK BX
1227350000
PCB plug-in connector, female plug, 7.62 mm, No.
of poles: 7, PUSH IN, Clamping range, max. : 2.5
mm², Box
4050118011487
30 pc(s).
IEC: 1000 V / 24 A / 0.5 - 2.5 mm²
UL: 600 V / 20 A / AWG 20 - AWG 12
Box
Creation date May 14, 2019 10:54:07 AM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
1
Data sheet
OMNIMATE Power - series BL/SL 7.62HP
BLF 7.62HP/07/180 SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
15.1 mm
28.1 mm
18.55 g
Height (inches)
Depth (inches)
Dimensions and weights
Height
Depth
Net weight
0.594 inch
1.106 inch
system parameters
Product family
OMNIMATE Power - series
BL/SL 7.62HP
PUSH IN
0.3 inch
45.72 mm
1
2.5 mm²
IP 20
10 mm
25
6N
Type of connection
Pitch in mm (P)
No. of poles
L1 in inches
Pin series quantity
Touch-safe protection acc. to DIN VDE
57 106
Can be coded
Screwdriver blade
Plugging force/pole, max.
Field connection
7.62 mm
7
1.8 inch
1
Safe from finger touch
Yes
0.6 x 3.5
8.5 N
Wire connection method
Pitch in inches (P)
L1 in mm
Number of rows
Rated cross-section
Touch-safe protection acc. to DIN VDE
0470
Stripping length
Plugging cycles
Pulling force/pole, max.
Material data
Insulating material
Colour of operational elements
Colour chart (similar)
CTI
PBT
orange
RAL 9011
UL 94 flammability rating
Contact material
Layer structure of plug contact
Storage temperature, max.
Operating temperature, max.
Temperature range, installation, max.
≥ 200
V-0
Copper alloy
4-8 µm Sn hot-dip tinned
55 °C
100 °C
100 °C
Colour
Material of operational elements
Insulating material group
Insulation strength
black
PBT
IIIa
GWFI
Contact surface
Storage temperature, min.
Operating temperature, min.
Temperature range, installation, min.
≥ 10
8
Ω
960 °C
tinned
-25 °C
-50 °C
-25 °C
Conductors suitable for connection
Clamping range, min.
0.08 mm²
Clamping range, max.
2.5 mm²
Wire connection cross section AWG,
AWG 20
min.
Wire connection cross section AWG,
AWG 12
max.
Solid, min. H05(07) V-U
0.5 mm²
Solid, max. H05(07) V-U
1.5 mm²
Flexible, min. H05(07) V-K
0.5 mm²
Flexible, max. H05(07) V-K
2.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, 0.5 mm²
min.
w. plastic collar ferrule, DIN 46228 pt 4, 2.5 mm²
max.
w. wire end ferrule, DIN 46228 pt 1, min0.5 mm²
w. wire end ferrule, DIN 46228 pt 1,
2.5 mm²
max.
Plug gauge in accordance with EN
2.8 mm x 2.0 mm
60999 a x b; ø
Creation date May 14, 2019 10:54:07 AM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
2
Data sheet
OMNIMATE Power - series BL/SL 7.62HP
BLF 7.62HP/07/180 SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Type
nominal
Stripping length
Stripping length
Type
nominal
Stripping length
Stripping length
Type
nominal
Stripping length
Stripping length
Type
nominal
Stripping length
Stripping length
Type
nominal
Stripping length
fine-wired
0.5 mm²
nominal
nominal
fine-wired
0.75 mm²
nominal
nominal
fine-wired
1 mm²
nominal
nominal
fine-wired
1.5 mm²
nominal
nominal
fine-wired
2.5 mm²
nominal
Technical data
Cross-section for conductor connection
AEH
Cross-section for conductor connection
AEH
Cross-section for conductor connection
AEH
Cross-section for conductor connection
AEH
Cross-section for conductor connection
Clampable conductor
12 mm
10 mm
12 mm
10 mm
12 mm
10 mm
10 mm
12 mm
10 mm
Max. clamping range
AEH
2.5 mm²
Rated data acc. to IEC
tested acc. to standard
IEC 60664-1, IEC 61984
24 A
21 A
1,000 V
6 kV
6 kV
11.4 mm
Rated current, min. no. of poles
(Tu=20°C)
Rated current, min. no. of poles
(Tu=40°C)
Rated voltage for surge voltage class /
pollution degree II/2
Rated voltage for surge voltage class /
pollution degree III/3
Rated impulse voltage for surge voltage
class/ pollution degree III/2
Short-time withstand current resistance
Creepage distance, min.
24 A
23.8 A
1,000 V
630 V
8 kV
3 x 1s with 180 A
11.4 mm
Rated current, max. no. of poles
(Tu=20°C)
Rated current, max. no. of poles
(Tu=40°C)
Rated voltage for surge voltage class /
pollution degree III/2
Rated impulse voltage for surge voltage
class/ pollution degree II/2
Rated impulse voltage for surge voltage
class/ contamination degree III/3
Clearance, min.
Rated data acc. to CSA
Rated voltage (Use group B / CSA)
Rated voltage (Use group D / CSA)
Rated current (Use group C / CSA)
Wire cross-section, AWG, min.
600 V
600 V
21 A
AWG 20
Rated voltage (Use group C / CSA)
Rated current (Use group B / CSA)
Rated current (Use group D / CSA)
Wire cross-section, AWG, max.
600 V
21 A
5A
AWG 12
Rated data acc. to UL 1059
Institute (cURus)
Certificate No. (cURus)
E60693
Rated voltage (Use group C / UL 1059) 600 V
Rated current (Use group B / UL 1059) 20 A
Rated current (Use group D / UL 1059) 5 A
Wire cross-section, AWG, max.
AWG 12
Rated voltage (Use group B / UL 1059)
Rated voltage (Use group D / UL 1059)
Rated current (Use group C / UL 1059)
Wire cross-section, AWG, min.
Reference to approval values
600 V
600 V
20 A
AWG 20
Specifications are
maximum values, details -
see approval certificate.
Creation date May 14, 2019 10:54:07 AM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
3
Data sheet
OMNIMATE Power - series BL/SL 7.62HP
BLF 7.62HP/07/180 SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Box
135 mm
VPE length
VPE height
Packing
Packaging
VPE width
35 mm
350 mm
Classifications
ETIM 4.0
ETIM 6.0
eClass 7.1
eClass 9.0
EC002637
EC002638
27-44-04-01
27-44-03-09
ETIM 5.0
eClass 6.2
eClass 8.1
eClass 9.1
EC002637
27-26-07-04
27-44-04-01
27-44-03-09
Notes
Notes
• Additional colours on request
• Gold-plated contact surfaces on request
• Rated current related to rated cross-section & min. No. of poles.
• Wire end ferrule without plastic collar to DIN 46228/1
• Wire end ferrule with plastic collar to DIN 46228/4
• P on drawing = pitch
• Rated data refer only to the component itself. Clearance and creepage distances to other components are to
be designed in accordance with the relevant application standards.
Conformity: The products are developed, manufactured and delivered according international recognized
standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties
in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
IPC conformity
Approvals
Approvals
ROHS
Conform
Creation date May 14, 2019 10:54:07 AM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
4
Data sheet
OMNIMATE Power - series BL/SL 7.62HP
BLF 7.62HP/07/180 SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Downloads
Approval/Certificate/Document of
Conformity
Brochure/Catalogue
Engineering Data
Engineering Data
Motion controllers white paper
User Documentation
White Paper UL 600 V
White Paper wire connection
Declaration of the Manufacturer
FL DRIVES EN
MB DEVICE MANUF. EN
FL DRIVES DE
CAT 2 PORTFOLIOGUIDE EN
FL HEATING ELECTR EN
FL APPL_INVERTER EN
FL_BASE_STATION_EN
FL ELEVATOR EN
FL POWER SUPPLY EN
FL 72H SAMPLE SER EN
PO OMNIMATE EN
EPLAN, WSCAD
STEP
Download Whitepaper
Operating Instruction BLF
QR-Code product handling video
Download Whitepaper
Download Whitepaper
Creation date May 14, 2019 10:54:07 AM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
5
