PCX-100-M-250 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PCX-100-M-250

PCX-100-M-250: DescriptionRF/Microwave Termination, 0 MHz - 800 MHz 50 ohm RF/MICROWAVE TERMINATION, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size112KB，1 Pages; ManufacturerCobham PLC; Environmental Compliance

Download Datasheet Parametric View All

PCX-100-M-250 Overview

RF/Microwave Termination, 0 MHz - 800 MHz 50 ohm RF/MICROWAVE TERMINATION, ROHS COMPLIANT PACKAGE

PCX-100-M-250 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	N-M
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	53.98 dBm
Maximum operating frequency	800 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.4

Preview

Download Datasheet

View All

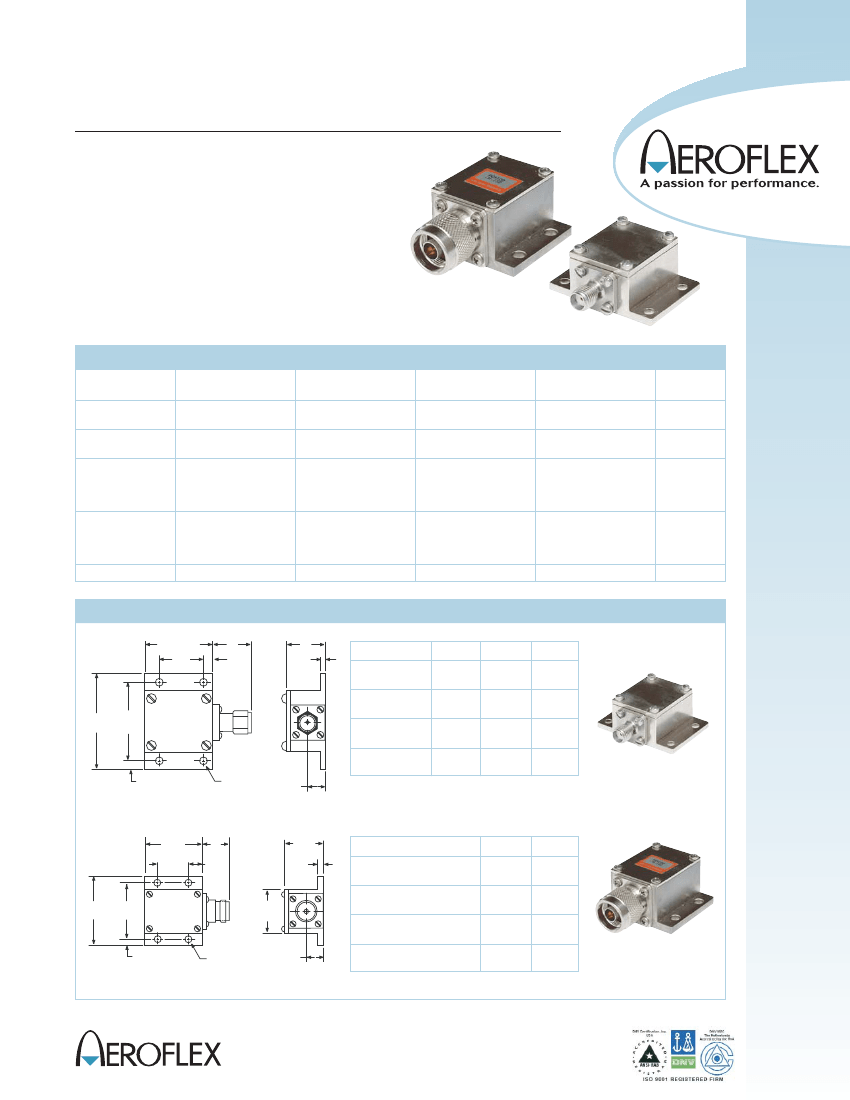

SERIES PCX

HIGH POWER COAXIAL TERMINATIONS

DC to 6 GHz

GENERAL INFORMATION

The PCX Series High Power Terminations are designed to

dissipate RF power when mounted to a heat sink or chill plate.

Power levels up to 500 watts in 50 ohm impedance are avail-

able in units with SMA or Type N, male or female connectors.

High stability thin film resistive elements on beryllium oxide

substrates are used to insure stable VSWR performance over

temperature and environmental conditions.

NOTES

1. Input power ratings based on case temperature of 85°C maximum.

2. Connectors: SMA - Stainless Steel Passivated per MIL-C-39012,

Type N - Nickel Plated Brass per MIL-C-39012

3. Housing: Copper, Nickel Plated per QQ-N-290

RoHS

PERFORMANCE SPECIFICATIONS

Part Number

PCX-050-F-50

PCX-050-M-50

PCX-050-F-100

PCX-050-M-100

PCX-050-F-1

PCX-050-M-1

PCX-100-F-1

PCX-100-M-1

PCX-050-F-250

PCX-050-M-250

PCX-100-F-250

PCX-100-M-250

PCX-100-M-500

Input Power (Watts)

(Note 1)

100

Frequency

Range

DC - 6 GHz

DC - 3 GHz

DC - 2 GHz

Connector Type

(Note 2)

SMA Female

SMA Male

SMA Female

SMAMale

SMA Female

SMA Male

N Female

N Male

SMA Female

SMA Male

N Female

N Male

VSWR

(Typical)

DC-3 GHz:

3 - 6 GHz:

DC- 3 GHz:

DC - 1 GHz:

1 - 2 GHz:

1.25:1

1.35:1

1.25:1

1.1

5:1

1.40:1

Outline

250

DC -800 MHz

DC - 200 MHz: 1.1

5:1

200 - 400 MHz: 1.40:1

400-800 MHz: 1.30:1

DC - 200 MHz:

1.1

5:1

500

DC - 200 MHz

PHYSICAL DIMENSIONS

.960[24.38]

.625

[15.88]

"X"

1.25

[31.8]

"Y"

.090

[2.29]

MODEL

PCX050-F-50

"X"

.375

[9.53]

.507

[12.88]

.375

[9.53]

.507

[12.88]

"Y"

.560

[14.22]

.560

[14.22]

.560

[14.22]

.560

[14.22]

"Z"

.260

[6.60]

.260

[6.60]

.260

[6.60]

.260

[6.60]

PCX050-M-50

1.375

[34.93]

1.25

[31.8]

PCX050-F-100

PCX050-M-100

.125 [3.18]

.120 [3.05] DIA.

4 HOLES

"Z"

SMA 50 & 100 WATTS

OUTLINE A (Shown with SMA)

1.625

[41.28]

.875

[22.23]

1.060

[26.92]

.180

[4.57]

"X"

.375

[9.53]

MODEL

PCX050-F-150, 250

"X"

.375

[9.53]

.375

[9.53]

.736

[18.69]

.819

[20.8]

"Y"

.515

[13.08]

.515

[13.08]

.508

[12.9]

.508

[12.9]

PCX050-M-150, 250

2.000

[50.8]

1.625

[41.28]

1.250

[31.8]

PCX100-F-150, 250, 500

.187 [4.75]

.215 [5.46] DIA.

4 HOLES

"Y"

PCX100-M-150, 250, 500

SMA OR N CONNECTORS

150, 250 & 500 WATTS

OUTLINE B (Shown with TYPE N)

KEY:

Inches [Millimeters] .XX ±.03 .XXX ±.010 [.X ±0.8 .XX ±0.25]

60 South Jefferson Road, Whippany, NJ 07981

Tel: 973-887-8100

•

Fax: 973-884-0445

www.aeroflex-kdi.com

•

sales@aeroflex-kdi.com

KDI-RESISTOR PRODUCTS

REV 3/09
