BYX39-1400R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYX39-1400R

BYX39-1400R: DescriptionRectifier Diode, Avalanche, 1 Phase, 1 Element, 9.5A, Silicon; CategoryDiscrete semiconductor diode; File Size161KB，6 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BYX39-1400R Overview

Rectifier Diode, Avalanche, 1 Phase, 1 Element, 9.5A, Silicon

BYX39-1400R Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LEAKAGE CURRENT IS NOT AT 25 DEG C
application	POWER
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	125 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	175 °C
Maximum output current	9.5 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum reverse current	200 µA
surface mount	NO
technology	AVALANCHE
Terminal form	SOLDER LUG
Terminal location	UPPER

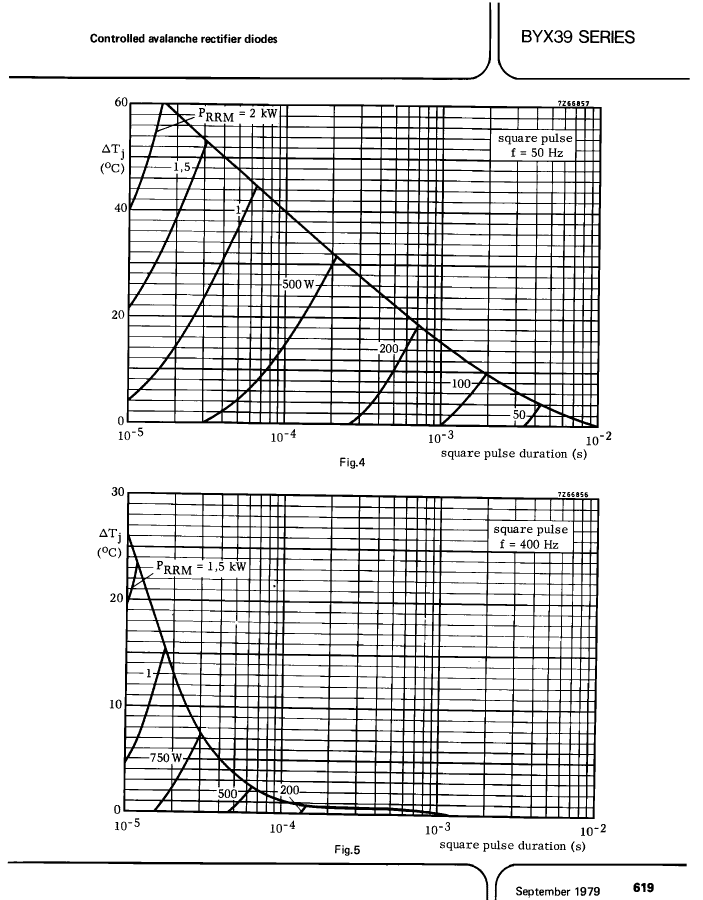

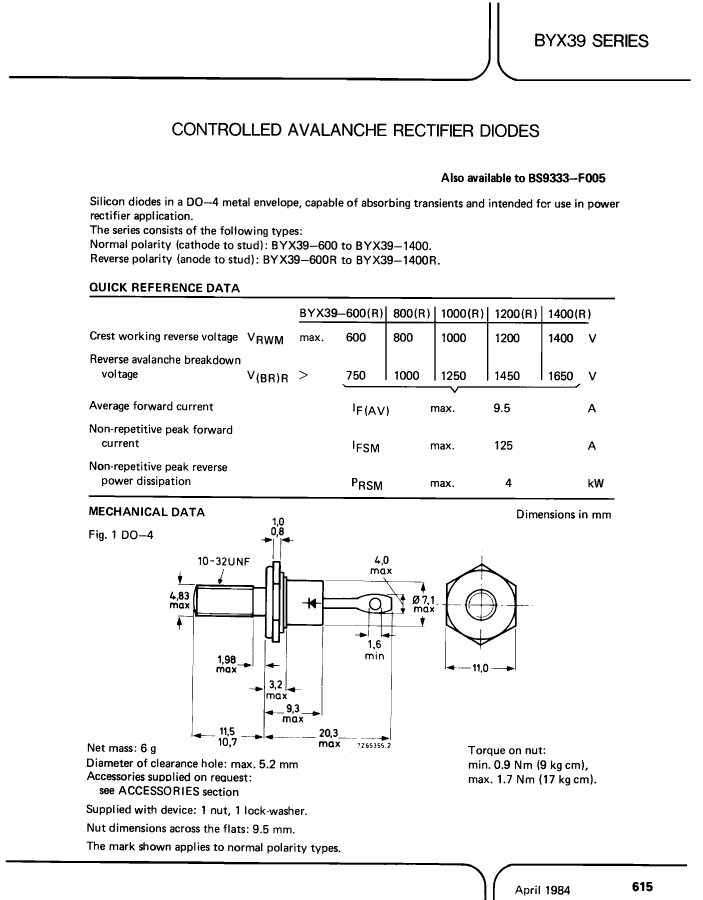

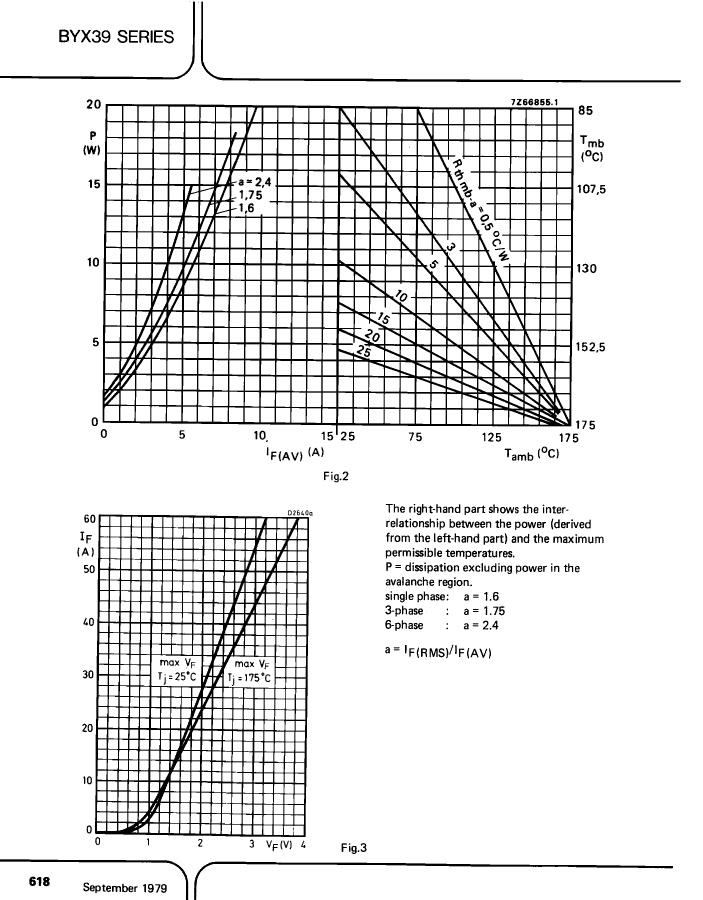

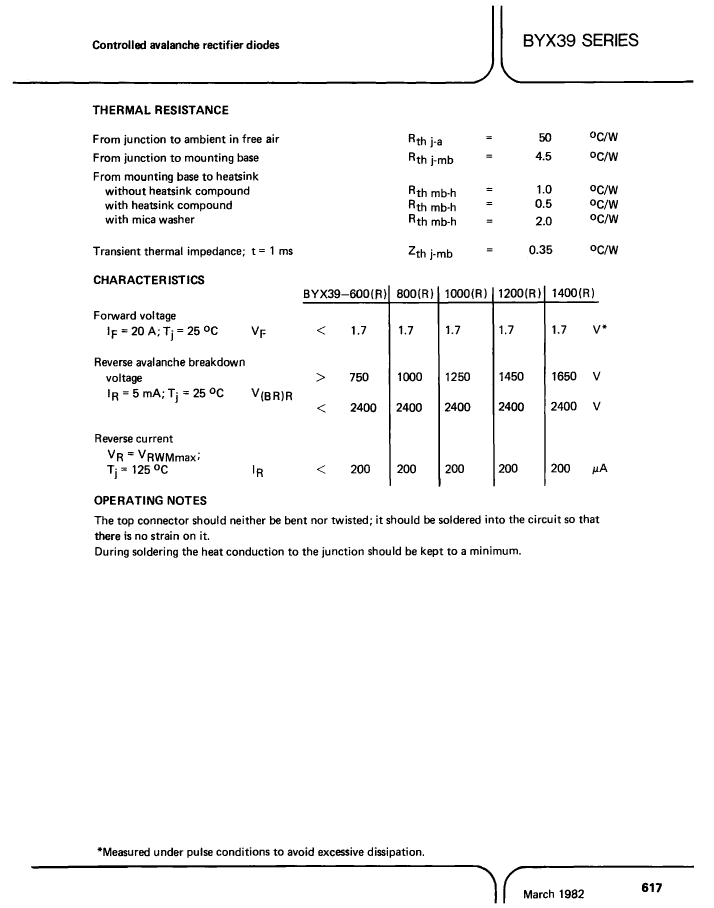

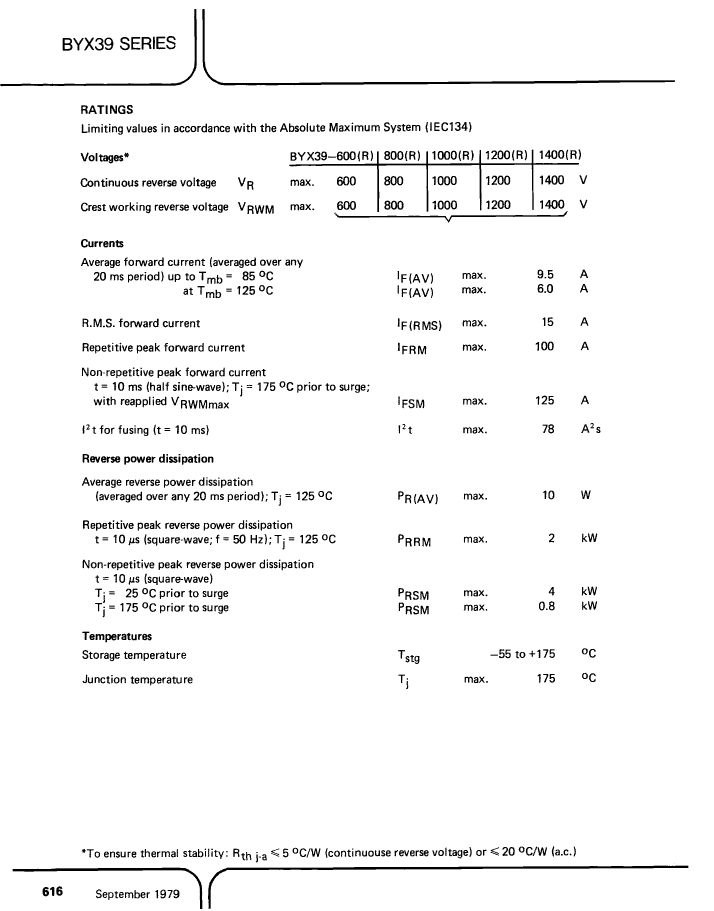

Preview

Download Datasheet

View All

BYX39-1400R Related Products

	BYX39-1400R	BYX39-1000	BYX39-600R	BYX39-600	BYX39-1200	BYX39-1200R	BYX39-800R	BYX39-800	BYX39-1000R
Description	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 9.5A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 9.5A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 9.5A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 9.5A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 9.5A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 9.5A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 9.5A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 9.5A, Silicon	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 9.5A, Silicon
package instruction	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C
application	POWER	POWER	POWER	POWER	POWER	POWER	POWER	POWER	POWER
Shell connection	ANODE	CATHODE	ANODE	CATHODE	CATHODE	ANODE	ANODE	CATHODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	125 A	125 A	125 A	125 A	125 A	125 A	125 A	125 A	125 A
Number of components	1	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1	1	1
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	9.5 A	9.5 A	9.5 A	9.5 A	9.5 A	9.5 A	9.5 A	9.5 A	9.5 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	200 µA	200 µA	200 µA	200 µA	200 µA	200 µA	200 µA	200 µA	200 µA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	YAGEO	-	-	-	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
