PA540F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PA540F

PA540F: DescriptionWide Band Low Power Amplifier, 5MHz Min, 400MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size377KB，1 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

PA540F Overview

Wide Band Low Power Amplifier, 5MHz Min, 400MHz Max,

PA540F Parametric

Parameter Name	Attribute value
Maker	MACOM
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	12 dBm
Maximum operating frequency	400 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

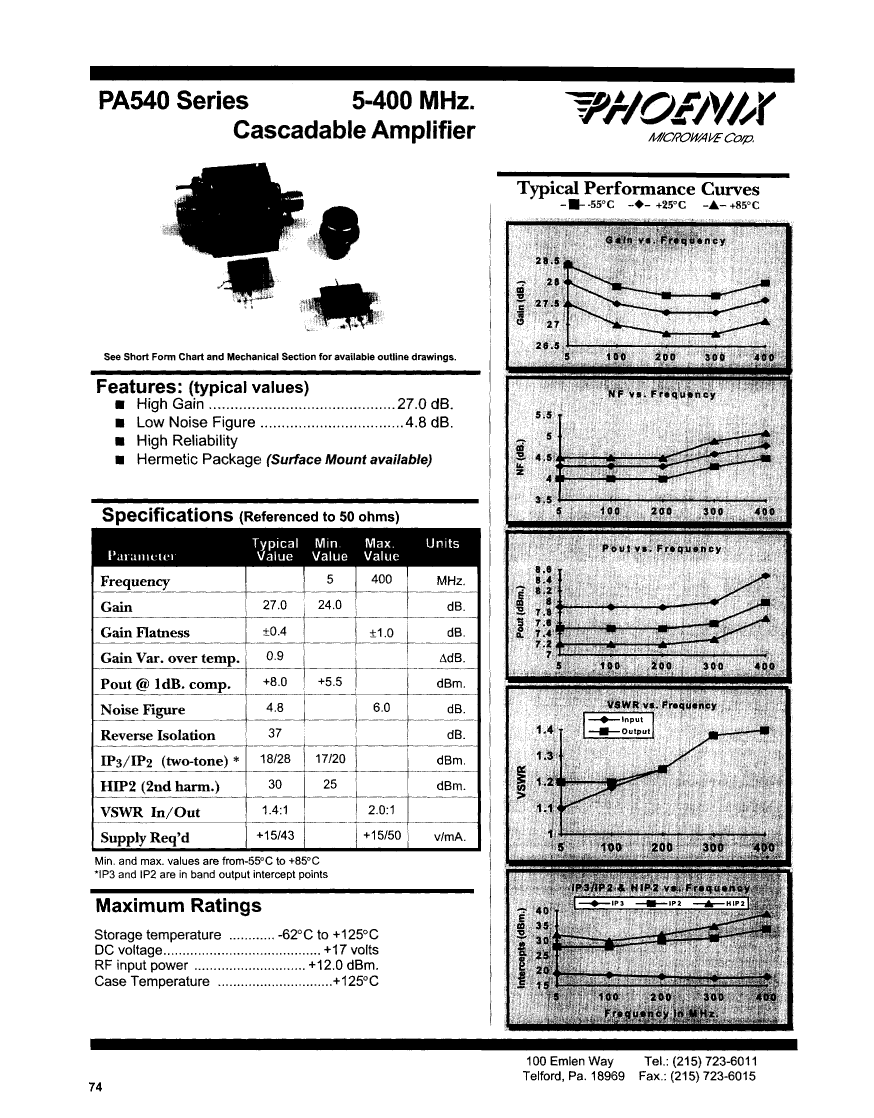

Preview

Download Datasheet

View All

PA540F Related Products

	PA540F	PA540C	PA540CS	PA540MH	PA540M	PA540	PA540FH
Description	Wide Band Low Power Amplifier, 5MHz Min, 400MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 400MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 400MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 400MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 400MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 400MHz Max,	Wide Band Low Power Amplifier, 5MHz Min, 400MHz Max,
Maker	MACOM	MACOM	MACOM	MACOM	MACOM	MACOM	MACOM
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Maximum input power (CW)	12 dBm	12 dBm	12 dBm	12 dBm	12 dBm	12 dBm	12 dBm
Maximum operating frequency	400 MHz	400 MHz	400 MHz	400 MHz	400 MHz	400 MHz	400 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2	2	2	2
