BSAC5.0
LOW CAPACITANCE TRANSZORB
Transient Voltage Suppressors
FEATURES
* Plastic package has underwriters laboratory
* Glass passivated chip construction
* 500 watts peak pulse power capability with a
10/1000us waveform,repetition rate (duty cycle):0.01%
* Excellent clamping capability
* Low incremental surge resistance
* Very fast response time
* Ideal for data line applications
* High temperature soldering guaranteed:
265
o
C /10 seconds,0.375”(9.5mm) lead length,
5lbs.(2.3kg) tension
* Case: JEDEC DO-204AC molded plastic body over passivated junction
* Terminals: Solder plated axial leads, solderable per MIL-STD-750,
Method 2026
* Polarity: Color band denotes TVS cathode
* Mounting position: Any
* Weight: 0.098 grams
DO-214AA
0.083 (2.11)
0.077 (1.96)
0.155 (3.94)
0.130 (3.30)
MECHANICAL DATA
0.180 (4.57)
0.160 (4.06)
0.012 (0.305)
0.006 (0.152)
0.096 (2.44)
0.084 (2.13)
0.060 (1.52)
0.030 (0.76)
0.008 (0.203)
0.004 (0.102)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
o
0.220 (5.59)
0.205 (5.21)
Dimensions in inches and (millimeters)
Schematic
Diode
Transient
Voltage
Suppressor
MAXIMUM RATINGS AND THERMAL CHARACTERISTICS
(@ T
A
=25
O
C unless otherwise noted)
RATINGS
Peak Pulse Power Dissipation With a 10/1000uS Waveform (Note 1)
Steady State Power Dissipation at T
L
=75 C Lead Lengths .375" (9.5mm) (Note 2)
O
SYMBOL
P
PPM
P
M(AV)
I
FSM
T
J
T
STG
O
BSAC5.0
Min. 500
5.0
100
150
-55 to + 150
UNITS
Watts
Watts
Amps
0
0
Peak Pulse Forward Surge Current With a 10/1000uS Waveform (Fig.3)
Operating Temperature Range
Storage Temperature Range

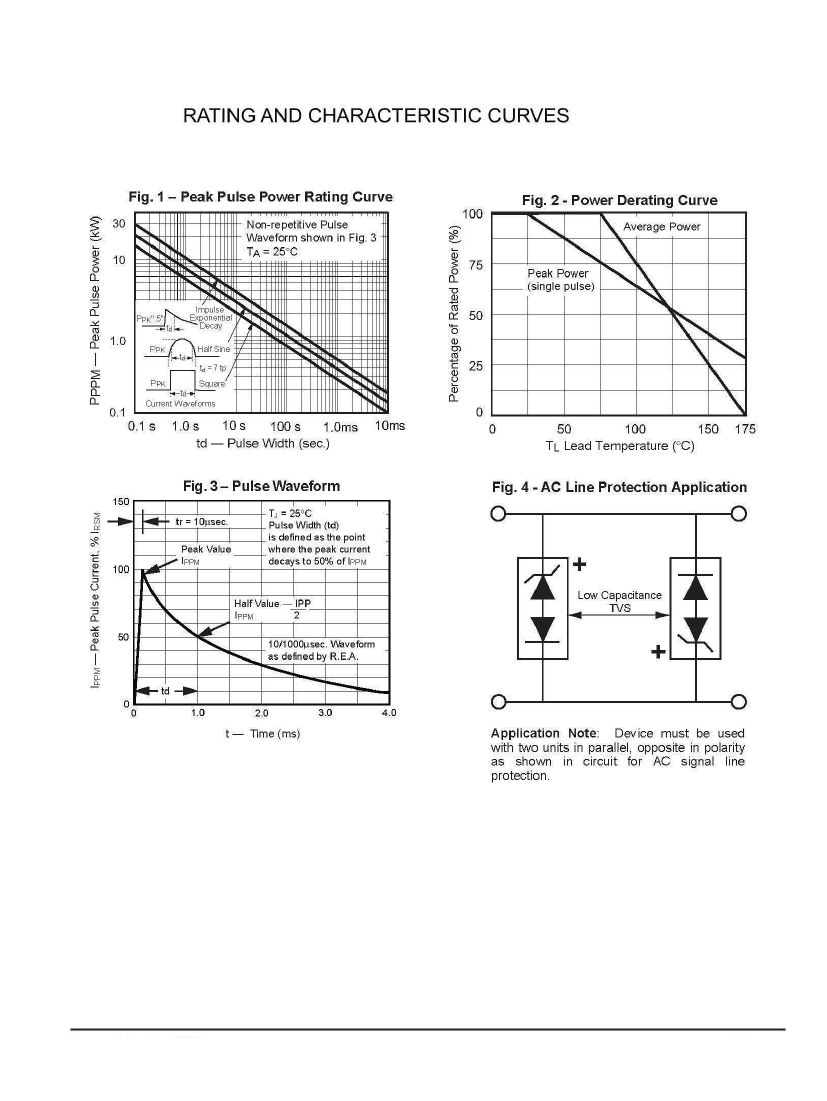

NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above T
A
=25 C per Fig.2
2. “Fully ROHS compliant”, “100% Sn plating (Pb-free)”.
C
C
2007-3
