PP22 B, PP22 S, PP22 SR
www.vishay.com
Vishay MCB
Single-Turn Continuous Rotation Analog Displacement Sensors

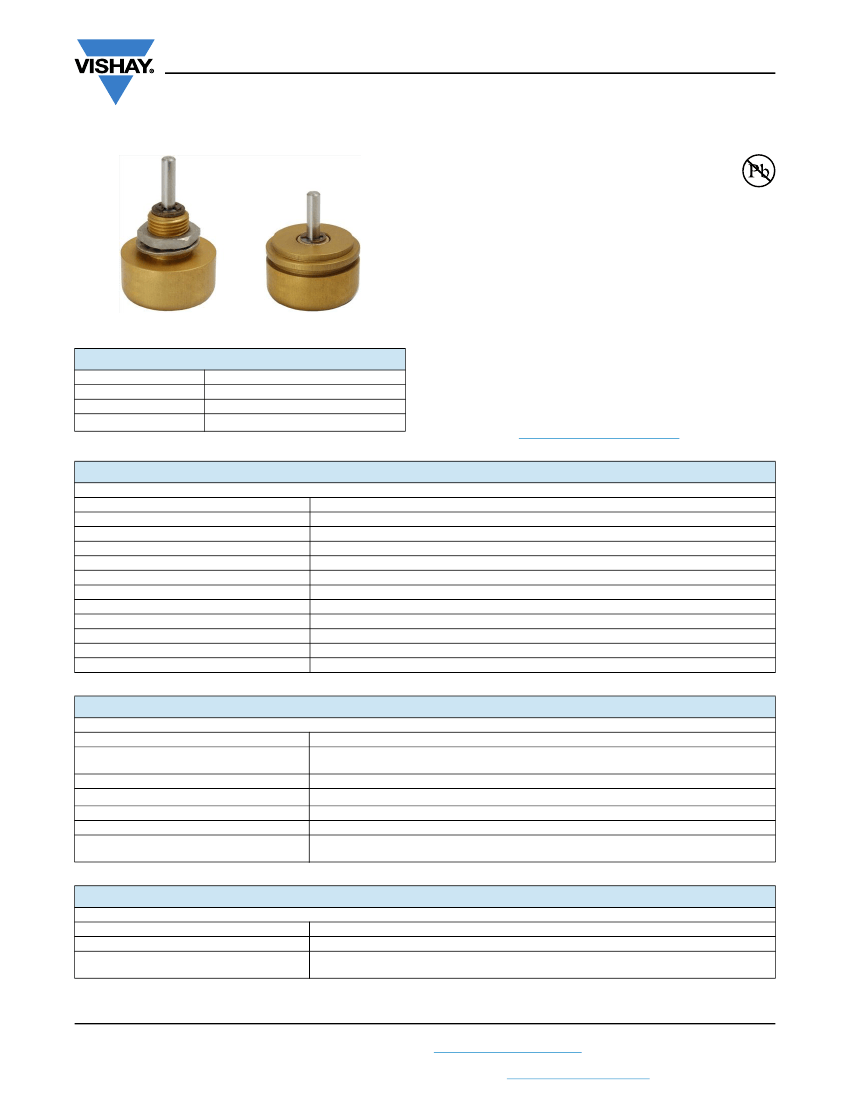

FEATURES
• Conductive plastic potentiometer technology,
infinite resolution
• Metal housing
• Stainless steel shaft
• Precious metal contacts
• Soldering terminal outputs
• Dust proof
• Applicable standards: NFC 93255, MIL R39023
QUICK REFERENCE DATA
Sensor type
Output type
Market appliance
Dimensions
ROTATIONAL, conductive plastic
Output by turrets
Industrial, avionics
7/8" (22.2 mm)
• Variant to be specify:
- PP22 B: bush mounting, plain bearing self lubricating
- PP22 S: servo mounting, plain bearing self lubricating
- PP22 SR: servo mounting, precision ball bearing
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
ELECTRICAL SPECIFICATIONS
PARAMETER
Total and useful electrical travel
Total and useful electrical travel (on request)
Independent linearity standard
Independent linearity optional
Rated resistance range (R
n
)
Tolerance on R
n
Output smoothness
Power rating at 70 °C
Temperature coefficient
Wiper current
Insulation resistance
Test voltage
340° ± 3°
90° ± 2° (SR), 120° + 0° - 2° (SR)
± 1.0 %
B or S: ± 0.5 %, SR: ± 0.25 % and ± 0.2 %
4.7 k, 10 k
± 20 %, ± 10 %, ± 5 % (on request)
0.1 %
1W
-200 ± 200 ppm/°C
1 mA
1 G at 500 V
CC
750 V, 50 Hz, 1 min
MECHANICAL SPECIFICATIONS
PARAMETER
Mechanical rotation
Starting and running torque
Starting torque (on request)
Running torque (on request)
Bush tightening torque (for bushing mount)
Moment of inertia
Weight
360° continuous
B or S:
0.5 N cm
SR:
0.1 N cm
5 cN cm and
10 cN cm
3.5 cN cm and
10 cN cm
250 N cm
1 g cm
2
S or SR: < 13 g
B: < 15 g
PERFORMANCE
PARAMETER
Operating temperature range
Life
Rotation speed (max.)
-55 °C to +125 °C
10M cycles; on request (to test in function of specific cycles) 20M cycles
SR: 600 rpm
S and B: 120 rpm
Revision: 14-Oct-16
Document Number: 32542
1
For technical questions, contact:
mcbprecisionpot@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PP22 B, PP22 S, PP22 SR
www.vishay.com
Vishay MCB
TYPE
S = sleeve bearing
R = ball bearing
S = sleeve bearing
VALUE
472 = 4.7K
103 = 10K
LINEARITY
A=1%
B = 0.5 %
ANGLE
340
PACKAGING
B = box
SAP PART NUMBERING GUIDELINES
MODEL
PP22
MOUNTING
B = bushing
S = servo
DIMENSIONS
in millimeters

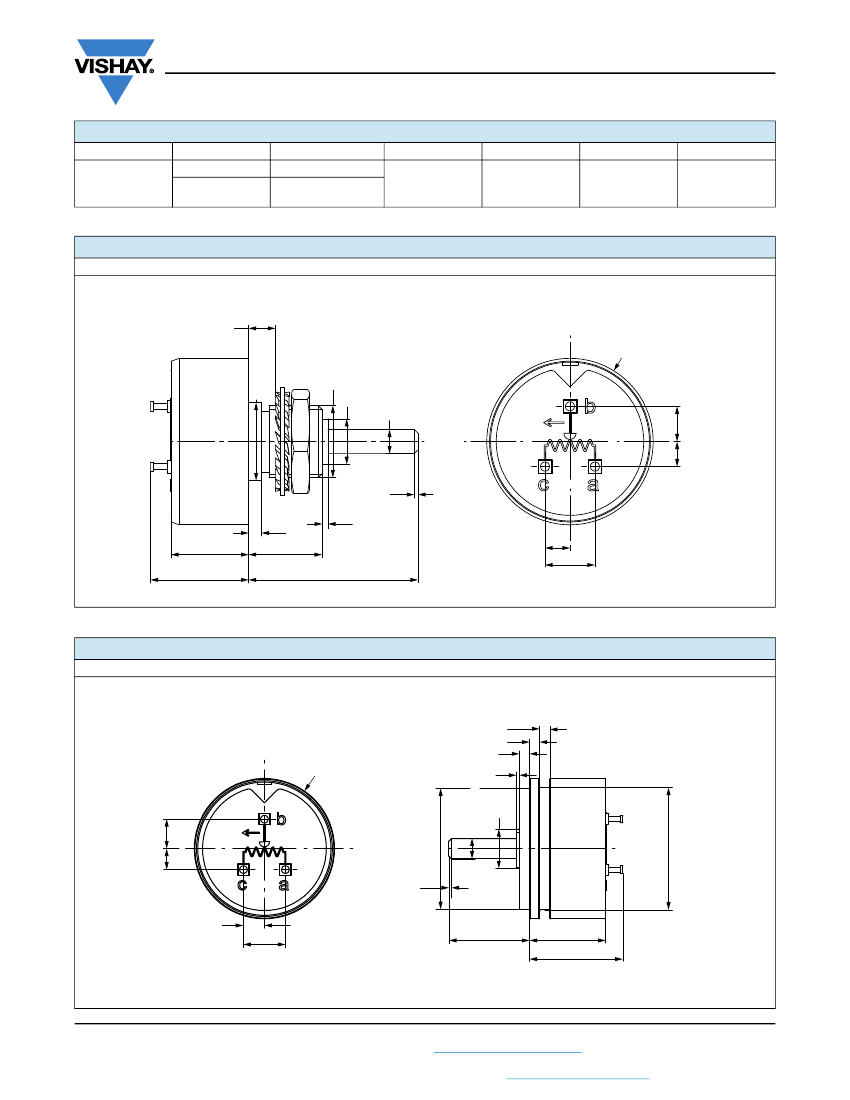

PP22 B
3/8-32 NEF 2A THD
Ø 10.317
- 0
0.03
Ø 3.175
- 0
0.02
Ø6
Ø
22
.2
5 tightening max.
ma
x.
4.65
3.3
Ch 0.5 à 45°
1.5
10.25
13.5 max.
9.5
22
0.8
3.3
6.6
DIMENSIONS
in millimeters
PP22 S, PP22 SR
Ø
22
1.6 ± 0.1
1.6 ± 0.1
1.6 ± 0.1
Ø 3.175
- 0
0.013
0.8
Ø6
.2
ma
x.
4.65
3.3
Ch 0.4 à 45°
0
Ø 19.05
- 0.025
Ø 19.25
3.3
6.6
12.7 ± 0.5
12
15.1 max.
Revision: 14-Oct-16
Document Number: 32542
2
For technical questions, contact:
mcbprecisionpot@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PP22 B, PP22 S, PP22 SR
www.vishay.com
Vishay MCB
DIMENSIONS
in millimeters
PP22 S, PP22 SR ON REQUEST
OPTION 1
OPTION 2
OPTION 3
0
Ø 19.05
- 0.025
7 ± 0.1
0
Ø 19
- 0.025
0
Ø 19
- 0.025
1.6 ± 0.1
Ø 3.175
- 0
0.013
0.8
1.6 ± 0.1
0.8
3 ± 0.1
Ø 7 ± 0.1
1.6 ± 0.1
12
- 0
0.2
Pinion:
- module: 0.5
- tooth number: 36
Ø 3.175
- 0
0.013
Ø6
Ø6
25.4 ± 0.5
23.2 ± 0.5
Ø 3.175
- 0
0.013
12.7 ± 0.5
Marking housing / gear
OPTION 4
OPTION 5
OPTION 6
Ø 3.175
- 0
0.013
1.6 ± 0.1
1.6 ± 0.1
Ø 3.175
- 0
0.013
Ø 4.7 ± 0.1
Pinion:
- module: 0.3
- tooth number: 19
0.8
1 ± 0.1
0.8
0
Ø 19.05
- 0.025
0
Ø 19.05
- 0.025
Ø 3.175
- 0
0.013
Ø 19.05
- 0
0.025
2.5 on flat
Ø6
10.2 ± 0.1
12.7 ± 0.5
3 ± 0.1
0.2
6
+0
Ø6
2 ± 0.2
1.6 ± 0.1
8.5
- 0
0.3
3.5 ± 0.2
Marking housing / gear
Revision: 14-Oct-16
Document Number: 32542
3
For technical questions, contact:
mcbprecisionpot@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PP22 B, PP22 S, PP22 SR
www.vishay.com
Vishay MCB
DIMENSIONS
in millimeters
PP22 S, PP22 SR ON REQUEST
OPTION 7
3 x holes Ø 4-40 UNC
depth 3.2 on Ø 13.2 ± 0.1
Ø 3.175
- 0
0.013
±1
°
12
Ø6
0°
0°
12
±1
Ø 19.05
- 0
0.025
°
0.8
Ch 0.3 à 45°
1.6 ± 0.1
20 ± 0.5
ELECTRICAL DIAGRAM
A
C
B
Clockwise when viewed from shaft end
POWER RATING CHART
W
1.0
°C
0
70
125
OPTIONS
(on request)
• Other electrical travels:
345° (0°; + 2°); 345° ± 3° (SR), 72° ± 2°
• Other ohmic value: 1 k, 2 k, 5 k, and 47 k
• Other tolerances on R
n
• Other linearities (example: 0.9 %)
• Middle tap: 8° ± 1°
Revision: 14-Oct-16
• Reinforced mechanical fixation on turrets and track to
support big efforts (by gluing)
• Insulation resistance 10 G - 500 V
CC
Document Number: 32542
4
For technical questions, contact:
mcbprecisionpot@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
