AA82380-25 datasheet, PDF - EEWORLD Datasheet

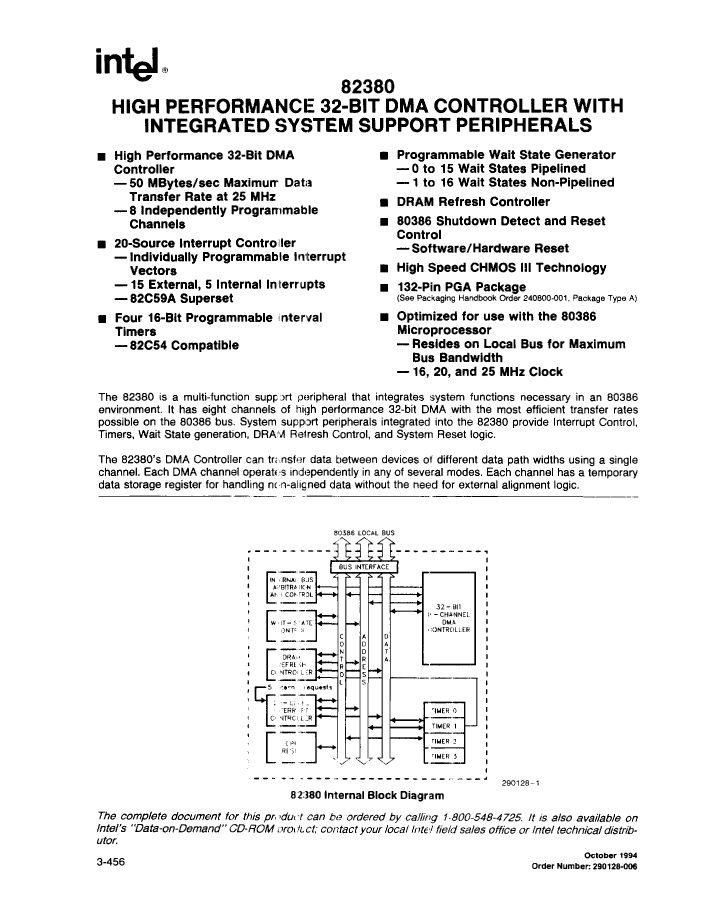

AA82380-25: DescriptionMultifunction Peripheral, CMOS, CPGA132, PGA-132; CategoryThe embedded processor and controller Microcontrollers and processors; File Size41KB，1 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

AA82380-25 Overview

Multifunction Peripheral, CMOS, CPGA132, PGA-132

Parameter Name	Attribute value
Parts packaging code	PGA
package instruction	PGA,
Contacts	132
Reach Compliance Code	unknow
Address bus width	30
boundary scan	NO
Bus compatibility	80386
maximum clock frequency	25 MHz
External data bus width	32
JESD-30 code	S-CPGA-P132
length	37.08 mm
Number of I/O lines
Number of serial I/Os
Number of terminals	132
Maximum operating temperature	85 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Package shape	SQUARE
Package form	GRID ARRAY
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum slew rate	375 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
width	37.08 mm
Base Number Matches	1

	AA82380-25	AA82380-16	AA82380-20
Description	Multifunction Peripheral, CMOS, CPGA132, PGA-132	Multifunction Peripheral, CMOS, CPGA132, PGA-132	Multifunction Peripheral, CMOS, CPGA132, PGA-132
Parts packaging code	PGA	PGA	PGA
package instruction	PGA,	PGA,	PGA,
Contacts	132	132	132
Reach Compliance Code	unknow	unknown	unknown
Address bus width	30	30	30
boundary scan	NO	NO	NO
Bus compatibility	80386	80386	80386
maximum clock frequency	25 MHz	16 MHz	20 MHz
External data bus width	32	32	32
JESD-30 code	S-CPGA-P132	S-CPGA-P132	S-CPGA-P132
length	37.08 mm	37.08 mm	37.08 mm
Number of terminals	132	132	132
Maximum operating temperature	85 °C	85 °C	85 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	PGA	PGA
Package shape	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm	4.57 mm
Maximum slew rate	375 mA	300 mA	325 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
width	37.08 mm	37.08 mm	37.08 mm
Base Number Matches	1	1	1
Maker	-	Intel	Intel
