Datasheet> All Categories > logic> logic> CD74HC132E

Preview

CD74HC132E: DescriptionNAND GATE; Categorylogic logic; File Size265KB，6 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

CD74HC132E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74HC132E	-	-	View	Buy Now

CD74HC132E Overview

NAND GATE

CD74HC132E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	DIP, DIP14,.3
Reach Compliance Code	not_compliant
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.004 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	2/6 V
Prop。Delay @ Nom-Sup	38 ns
Certification status	Not Qualified
Schmitt trigger	YES
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

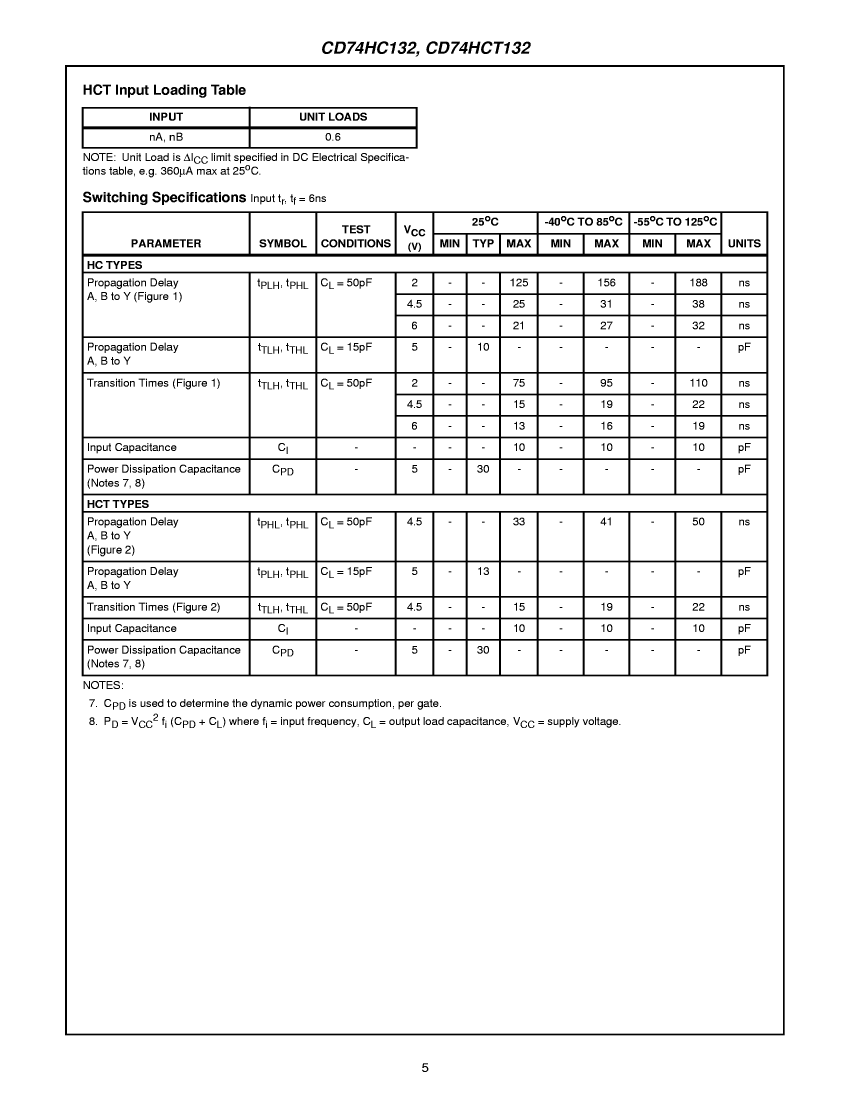

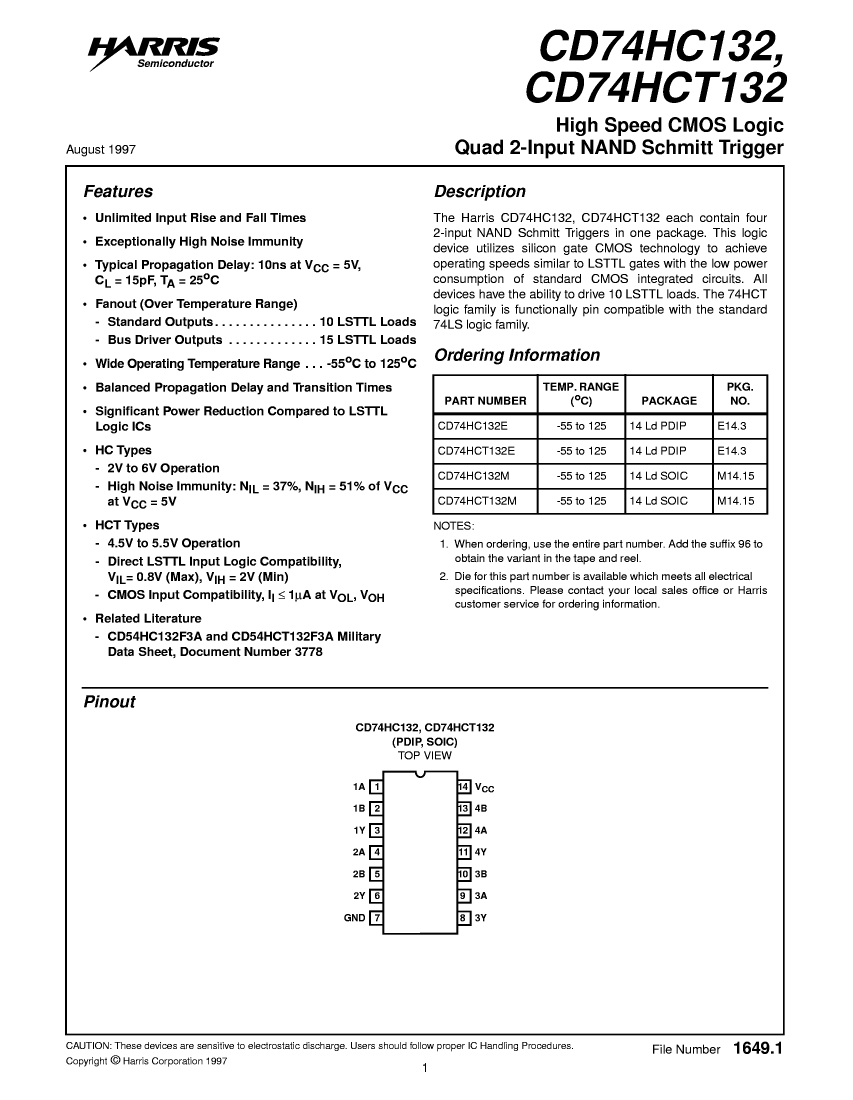

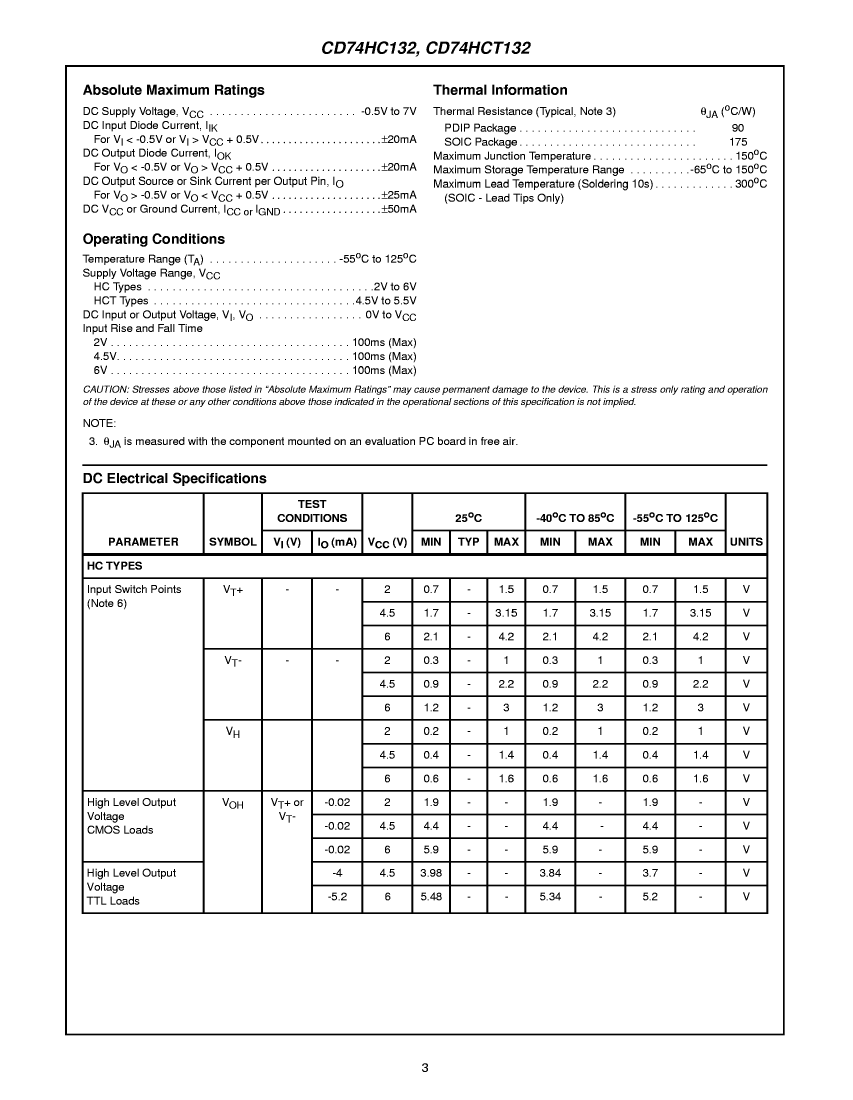

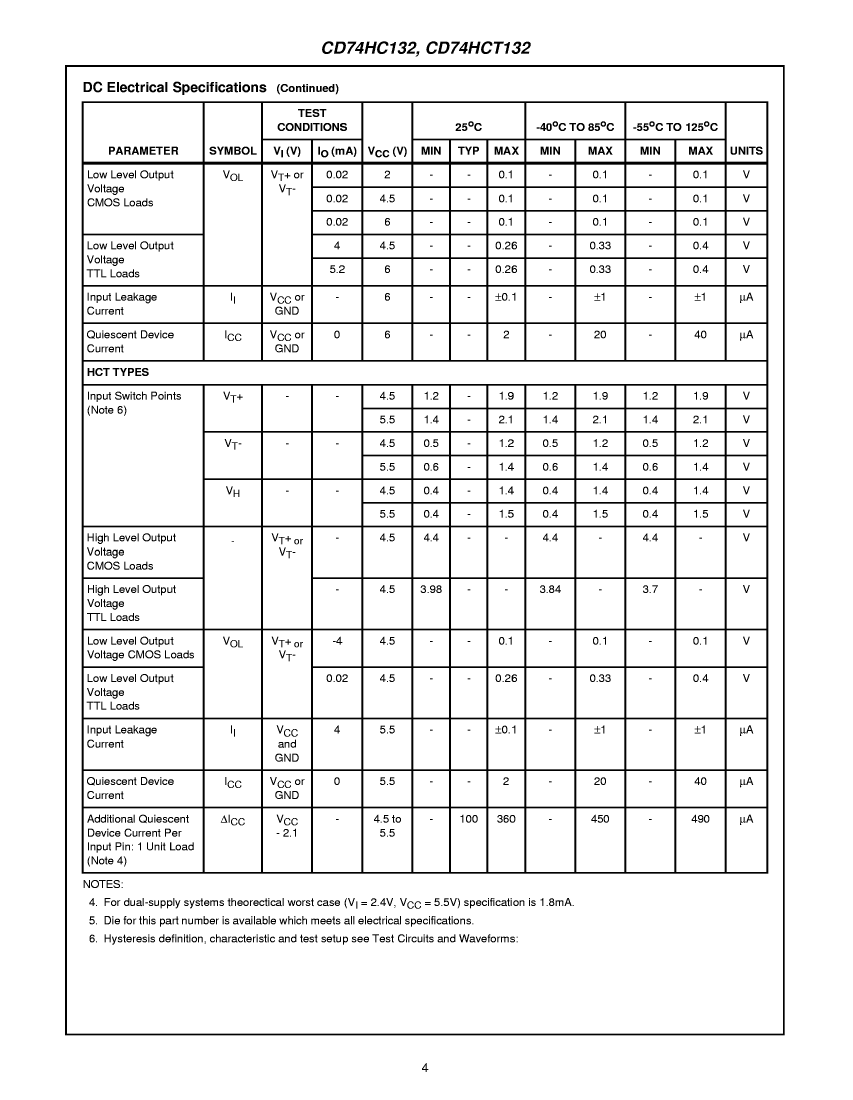

Preview

Download Datasheet

View All

CD74HC132E Related Products

	CD74HC132E	5962-01-369-4273	5962-01-363-5885	CD74HC132M96	CD74HC132M	CD74HCT132M96	CD74HCT132M	CD74HCT132E
Description	NAND GATE	IC,LOGIC GATE,QUAD 2-INPUT NAND,HC-CMOS,SOP,14PIN,PLASTIC	IC,LOGIC GATE,QUAD 2-INPUT NAND,HC-CMOS,DIP,14PIN,PLASTIC	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP14,.3	SOP, SOP14,.25	DIP, DIP14,.3	SOP, SOP14,.25	SOP, SOP14,.25	SOP, SOP14,.25	SOP, SOP14,.25	DIP, DIP14,.3
Reach Compliance Code	not_compliant	_compli	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
JESD-30 code	R-PDIP-T14	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Number of terminals	14	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP	SOP	SOP	SOP	SOP	DIP
Encapsulate equivalent code	DIP14,.3	SOP14,.25	DIP14,.3	SOP14,.25	SOP14,.25	SOP14,.25	SOP14,.25	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
power supply	2/6 V	2/6 V	2/6 V	2/6 V	2/6 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	YES	YES	YES	YES	YES	YES	YES	YES
surface mount	NO	YES	NO	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Renesas Electronics Corporation	-	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
JESD-609 code	e0	-	-	e0	e0	e0	e0	e0
Prop。Delay @ Nom-Sup	38 ns	-	38 ns	38 ns	38 ns	50 ns	50 ns	50 ns
Terminal surface	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
