PQ60033EMLNYS-G datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> PQ60033EMLNYS-G

PQ60033EMLNYS-G: DescriptionDC-DC Regulated Power Supply Module, 1 Output, Hybrid, ROHS COMPLIANT PACKAGE-8; CategoryPower/power management The power supply circuit; File Size512KB，13 Pages; ManufacturerSYNQOR; Websitehttp://www.synqor.com/; Environmental Compliance

Download Datasheet Parametric View All

PQ60033EMLNYS-G Overview

DC-DC Regulated Power Supply Module, 1 Output, Hybrid, ROHS COMPLIANT PACKAGE-8

PQ60033EMLNYS-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SYNQOR
Parts packaging code	MODULE
package instruction	,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V
Minimum input voltage	35 V
Nominal input voltage	48 V
JESD-30 code	R-XDMA-P8
JESD-609 code	e3
Maximum load regulation	0.15%
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Maximum output voltage	3.63 V
Minimum output voltage	2.64 V
Nominal output voltage	3.3 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN OVER NICKEL
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

Technical

S pecification

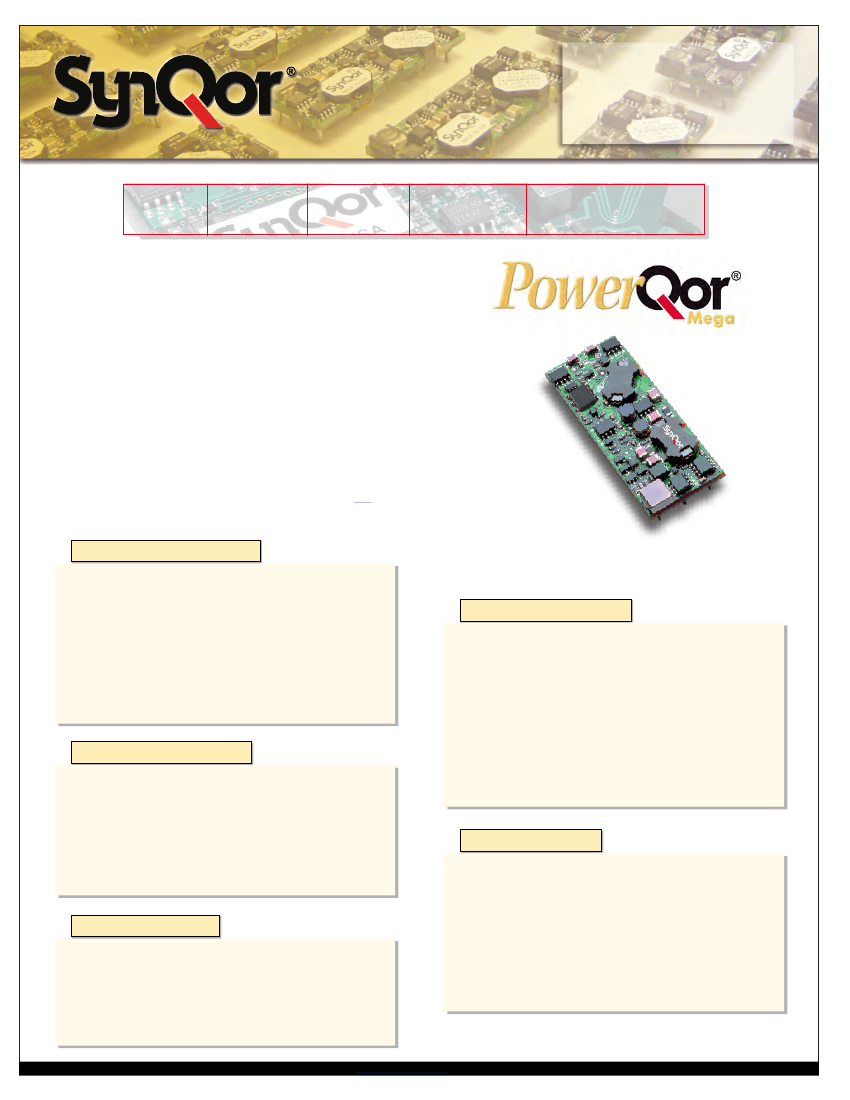

PQ60033EML15

48V in

Input

3.3Vout

Output

15Amp

Current

2000Vdc

Isolation

Eighth-brick

DC/DC Conver ter

Th e PQ6 0033 EML 15 Po we r Qor

Me g a e i gh th- bri ck c on -

v er t er is a n ext -ge ner a ti on , b oa r d- mo un t ab l e, iso la t ed , fixed

s witch ing freq u enc y DC/DC c on ver ter t ha t u ses s y nch r o -

n ou s r ect ifi ca ti on t o a ch iev e ext r emel y h igh co nv er s ion effi -

c ienc y. Th e po wer d iss ip at ed by th e con v er te r i s s o lo w

th at a h ea tsin k i s no t r eq ui red , wh ich s a ves cos t, weigh t,

h eigh t , an d ap p lic atio n ef for t. Al l o f th e p owe r a nd co nt r ol

c omp on ent s ar e mou nt ed to t h e mul t i-l a yer PC B s ub s tr a t e

with h igh -y iel d su r fac e mo un t tec hn ol ogy . Si nce th e

P owe rQ or co nver ter ha s n o ex pl icit th er mal in terf ac es, it is

extremely reliable. RoHS Compliant (see page 12 ).

Operational Features

• High efficiency, >88% at full rated load current

• Delivers up to 15 amps of output current with minimal

derating - no heatsink required

• Wide input voltage range: 35V – 75V, with 100V

100ms input voltage transient capability

• Fixed frequency switching provides predictable EMI

performance

• No minimum load requirement means no preload

resistors required

PQ60033EML15 Module

Pr otection Features

• Input under-voltage lockout disables converter at low

input voltage conditions

• Output current limit and short circuit protection pro-

tects converter and load from permanent damage and

consequent hazardous conditions

• Active back bias limit prevents damage to converter

from external load induced pre-bias

• Output over-voltage protection protects load from dam-

aging voltages

• Thermal shutdown protects converter from abnormal

environmental conditions

Mechanical Features

• Industry standard eighth-brick pin-out configuration

• Industry standard size: 0.90” x 2.3” (22.9x58.4mm)

• Total height only 0.335” (8.5mm), permits better air-

flow and smaller card pitch

• Total weight: 0.68 oz. (19 grams)

• Flanged pins designed to permit surface mount solder-

ing (avoid wave solder) using FPiP technique

Safety Features

• 2000V, 30 MW input-to-output isolation provides

input/output ground separation

• UL 60950-1 recognized (US & Canada), basic insula-

tion rating

• TUV certified to EN60950-1

• Meets 72/23/EEC and 93/68/EEC directives which

facilitates CE Marking in user’s end product

• Board and plastic components meet UL94V-0 flamma-

bility requirements

Contr ol Features

• On/Off control referenced to input side (positive and

negative logic options are available)

• Remote sense for the output voltage compensates for

output distribution drops

• Output voltage trim permits custom voltages and volt-

age margining

Product # PQ60033EML15

Phone 1-888-567-9596

www.synqor.com

Doc.# 005-2EM633E Rev. D

7/17/07

Page 1
