54082-155 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 54082-155

Preview

54082-155: DescriptionPCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size212KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

54082-155 Overview

PCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal

54082-155 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	GOLD (4) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN LEAD (98) OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	54082
Plug information	91931-31169
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	68
UL Flammability Code	94V-0

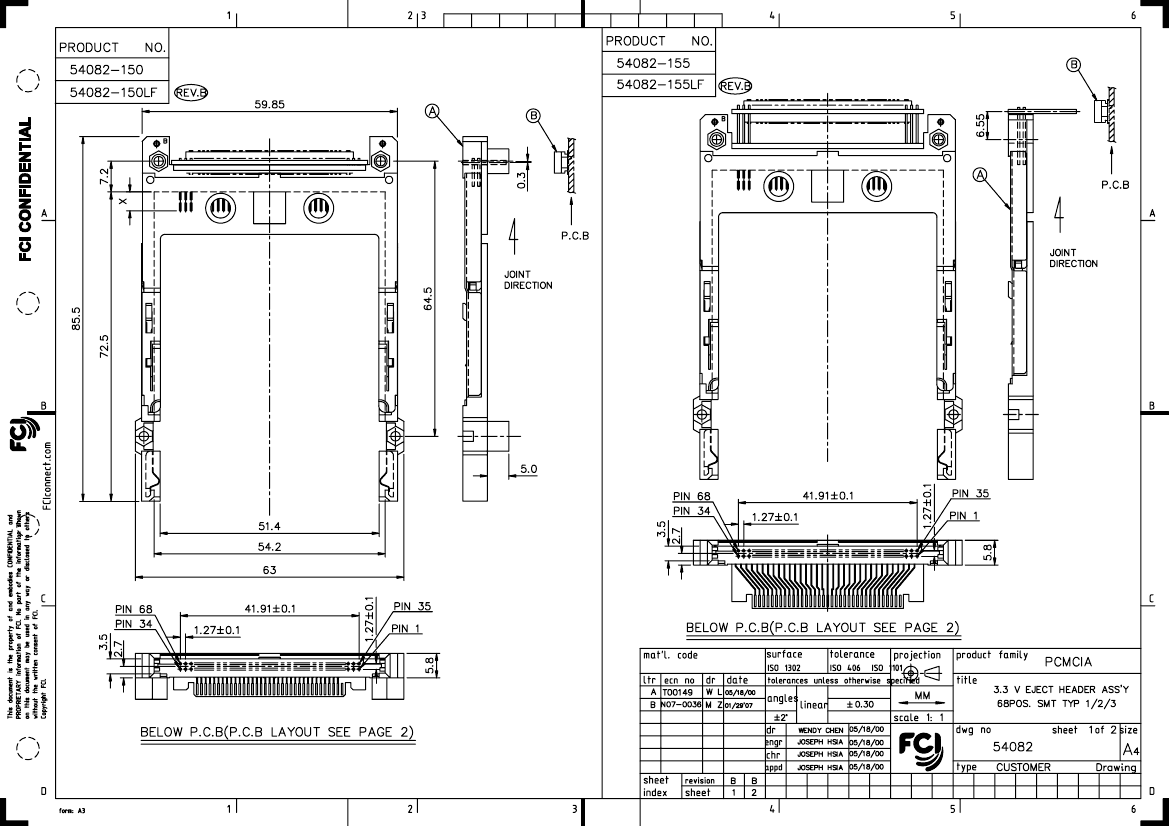

Preview

Download Datasheet

View All

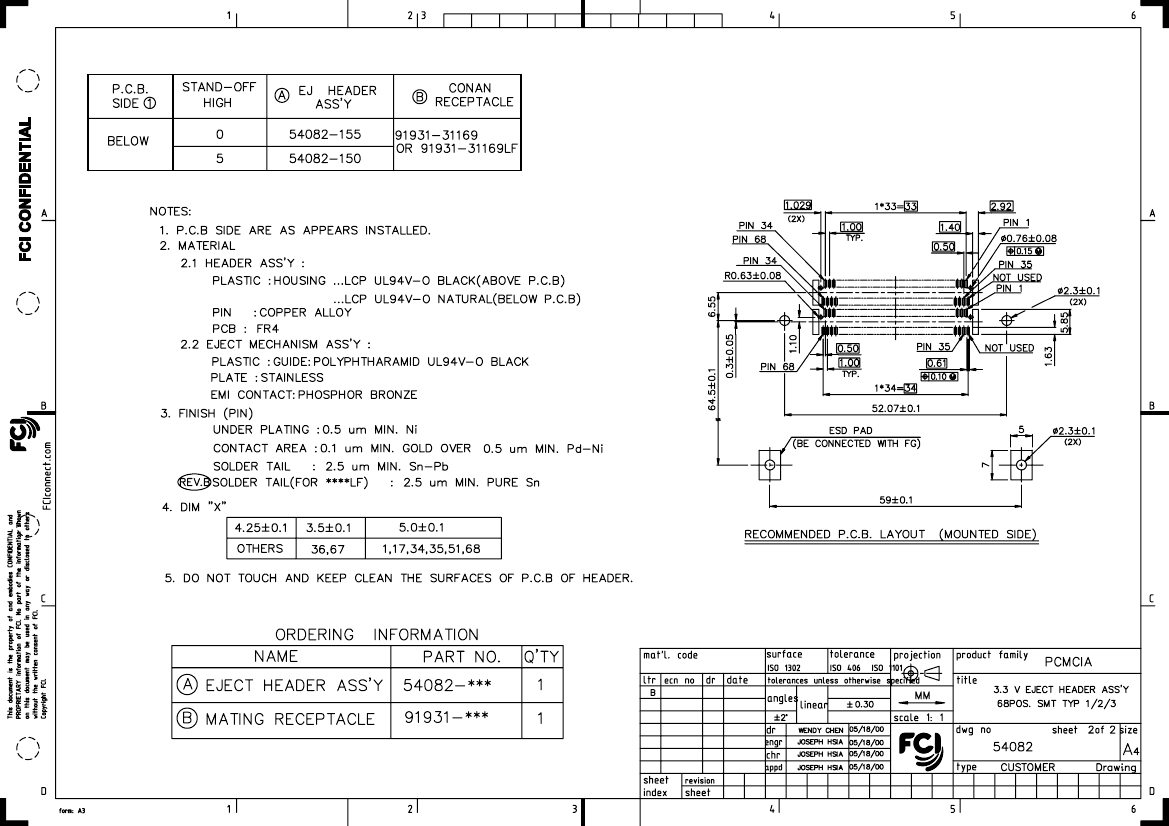

PDM: Rev:B

STATUS:

Released

Printed: May 06, 2009

.

54082-155 Related Products

	54082-155	54082-155LF	54082-150LF	54082-150
Description	PCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal	PCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal, LEAD FREE	PCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal, LEAD FREE	PCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	unknown
Connector type	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR
Contact to complete cooperation	GOLD (4) OVER PALLADIUM NICKEL	GOLD (4) OVER PALLADIUM NICKEL	GOLD (4) OVER PALLADIUM NICKEL	GOLD (4) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN LEAD (98) OVER NICKEL	TIN (98) OVER NICKEL	TIN (98) OVER NICKEL	TIN LEAD (98) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e0	e3	e3	e0
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	54082	54082	54082	54082
Plug information	91931-31169	91931-31169LF	91931-31169LF	91931-31169
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	68	68	68	68
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
