IRKV72-04 datasheet, PDF - EEWORLD Datasheet

IRKV72-04: DescriptionSilicon Controlled Rectifier, 109.9A I(T)RMS, 70000mA I(T), 400V V(DRM), 400V V(RRM), 2 Element, TO-240AA; CategoryAnalog mixed-signal IC Trigger device; File Size683KB，18 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric View All

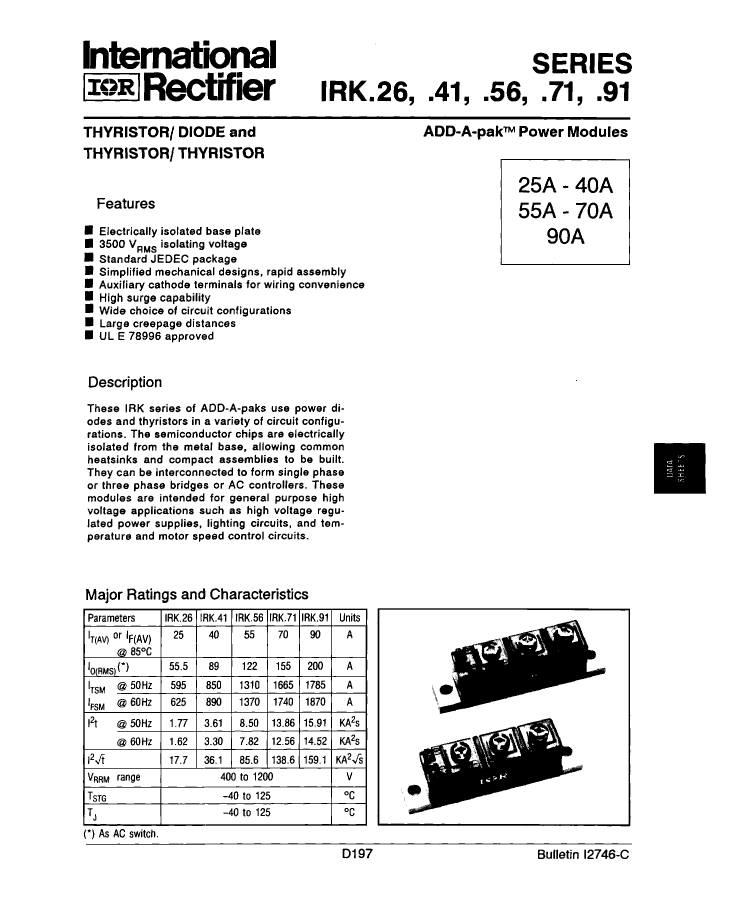

IRKV72-04 Overview

Silicon Controlled Rectifier, 109.9A I(T)RMS, 70000mA I(T), 400V V(DRM), 400V V(RRM), 2 Element, TO-240AA

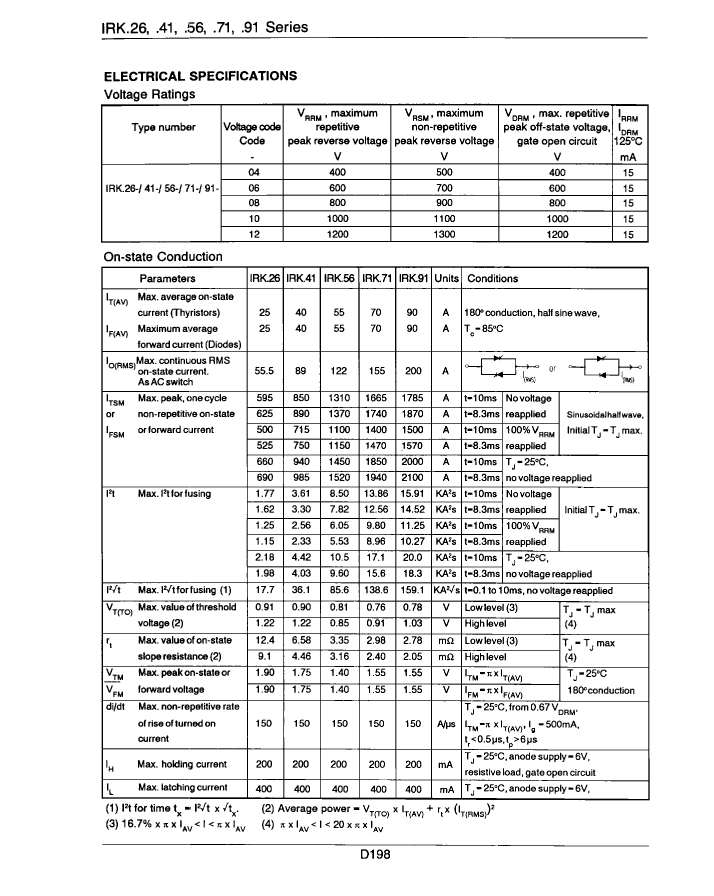

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）

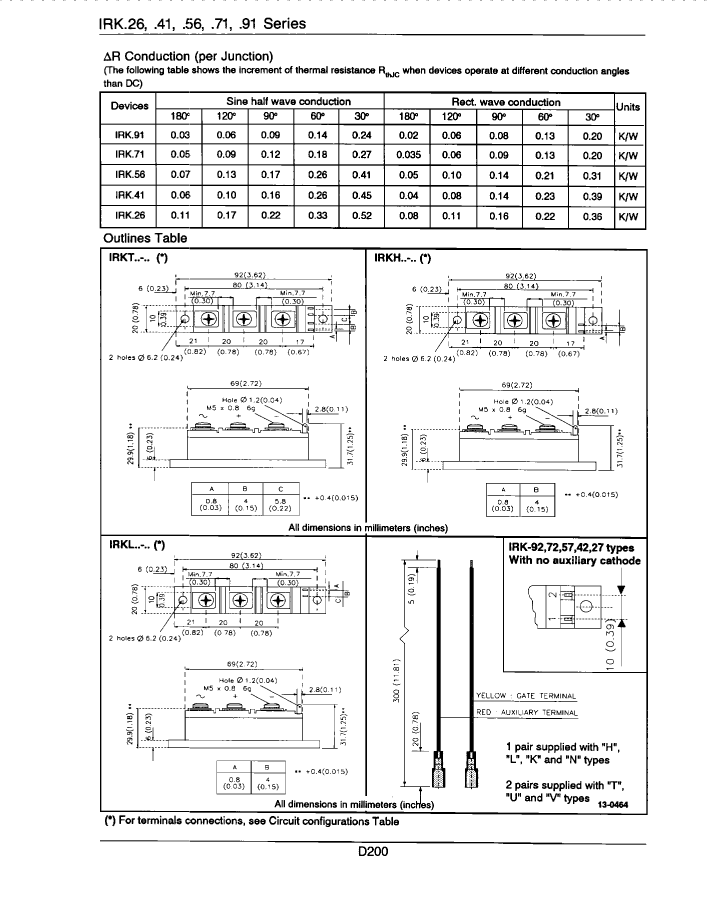

package instruction	FLANGE MOUNT, R-PUFM-X5
Reach Compliance Code	compliant
Shell connection	ISOLATED

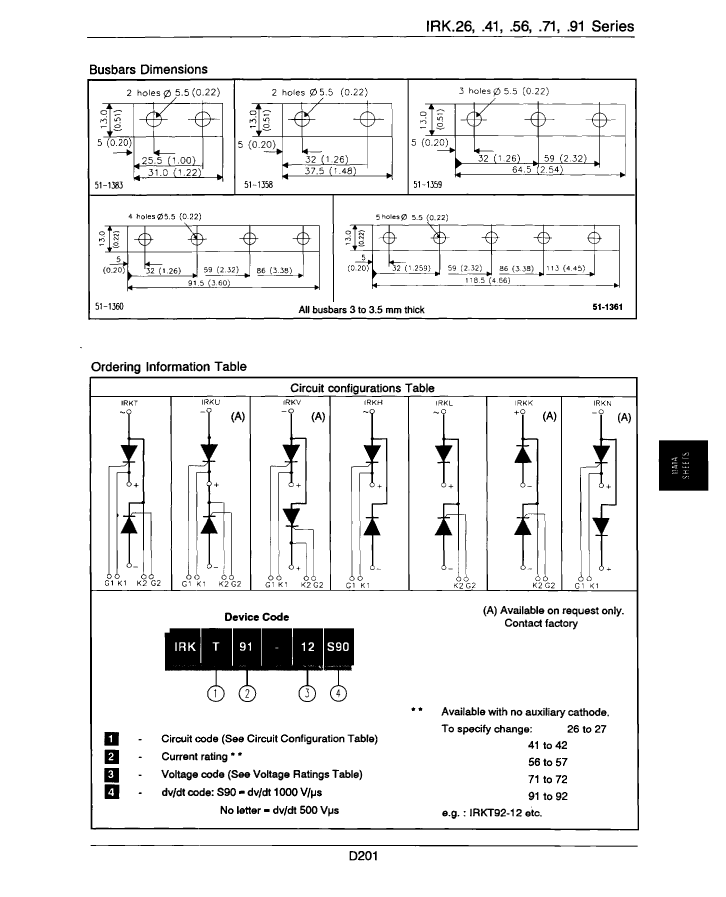

Configuration	COMMON ANODE, 2 ELEMENTS

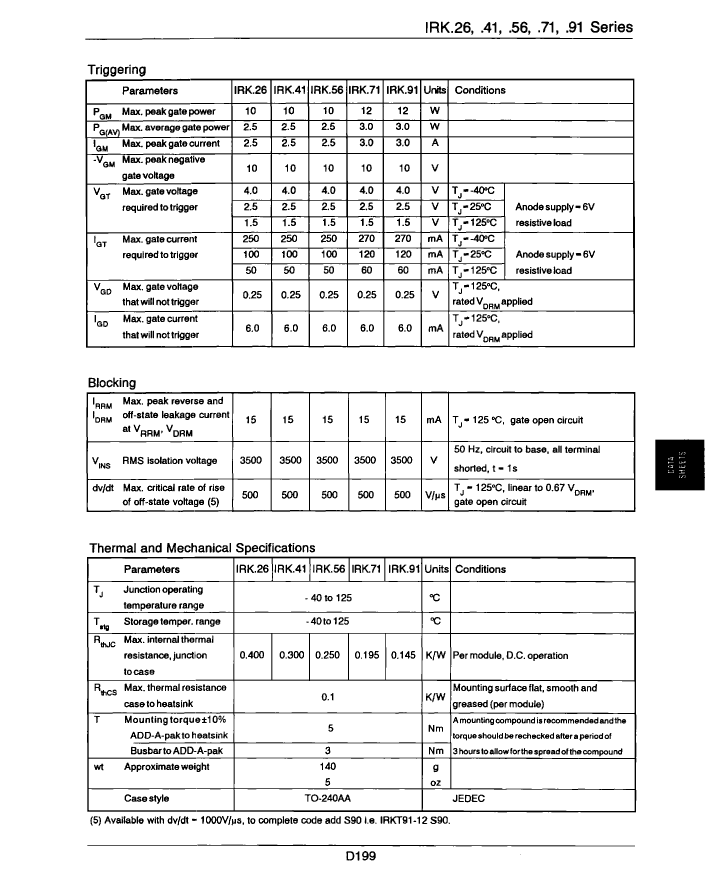

Maximum DC gate trigger current	120 mA
Maximum DC gate trigger voltage	2.5 V
Quick connection description	2G
Description of screw terminals	2K-CA
Maximum holding current	200 mA
JEDEC-95 code	TO-240AA
JESD-30 code	R-PUFM-X5
JESD-609 code	e0
On-state non-repetitive peak current	1800 A
Number of components	2
Number of terminals	5
Maximum on-state current	70000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	109.9 A
Maximum repetitive peak off-state leakage current	15000 µA
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
